Description

Brief Product Description

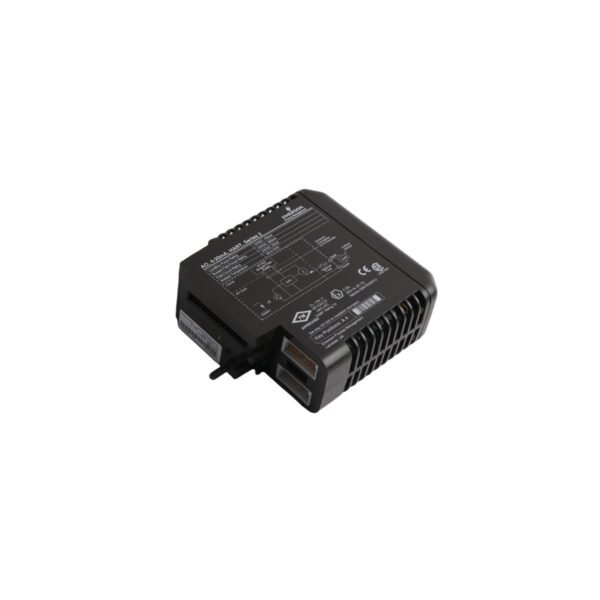

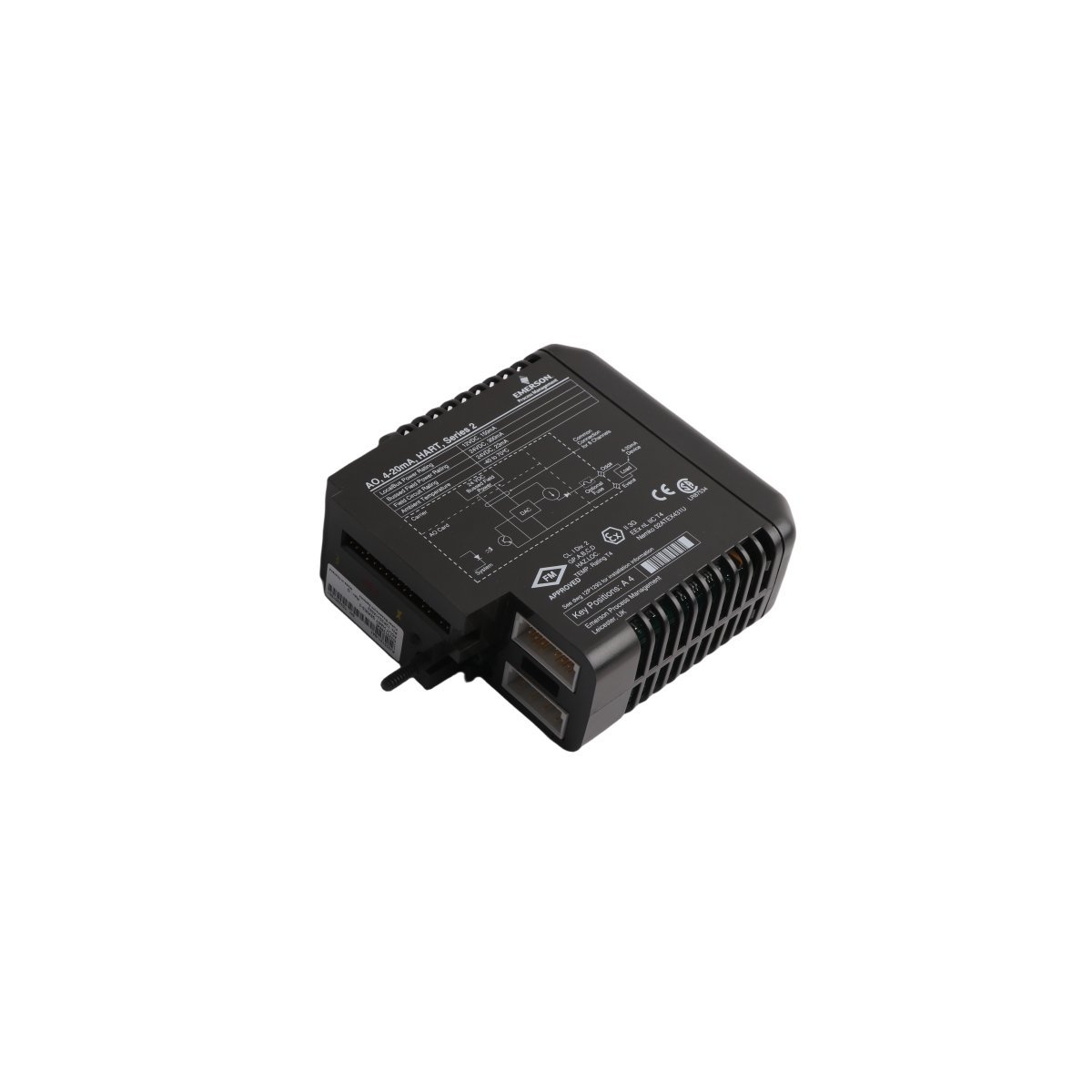

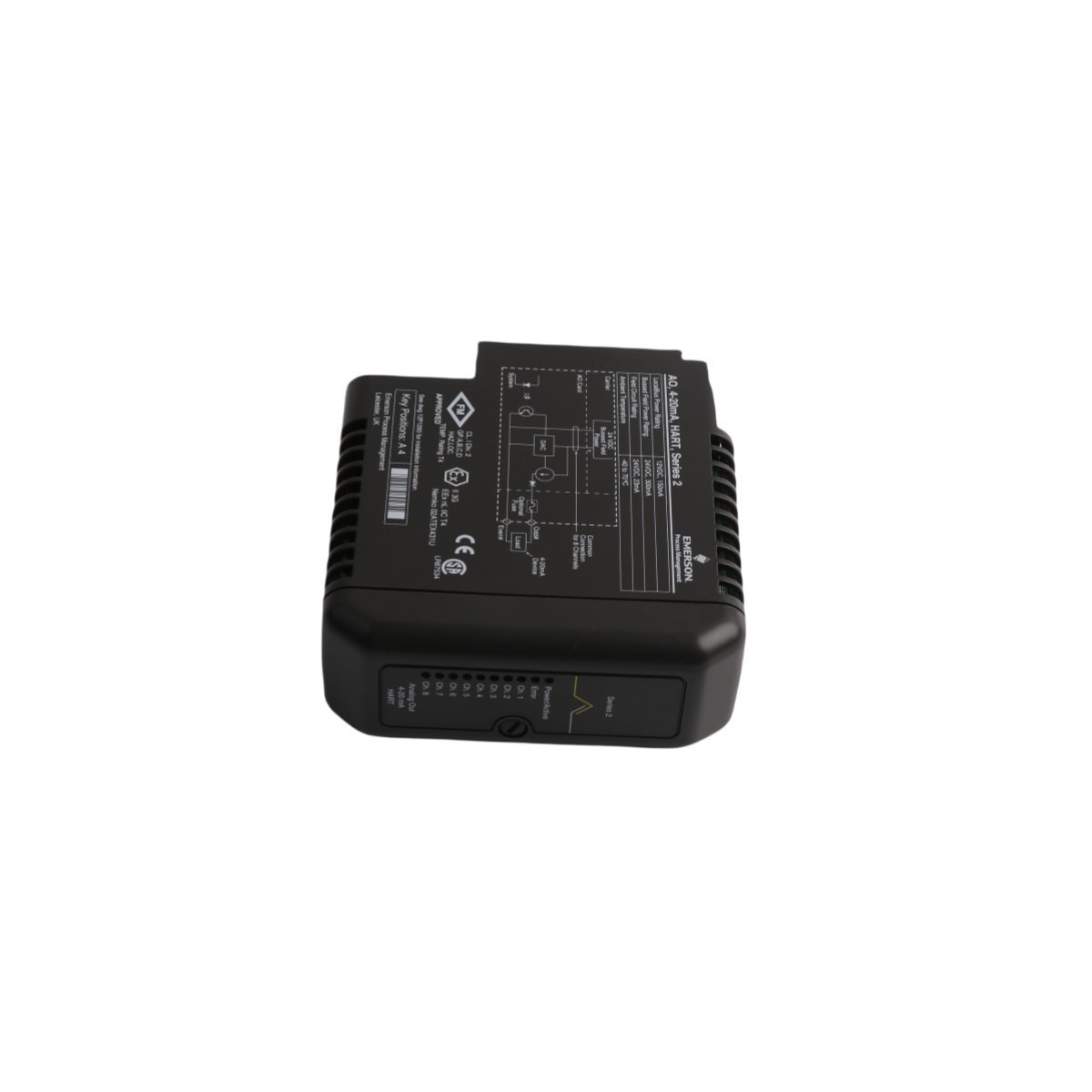

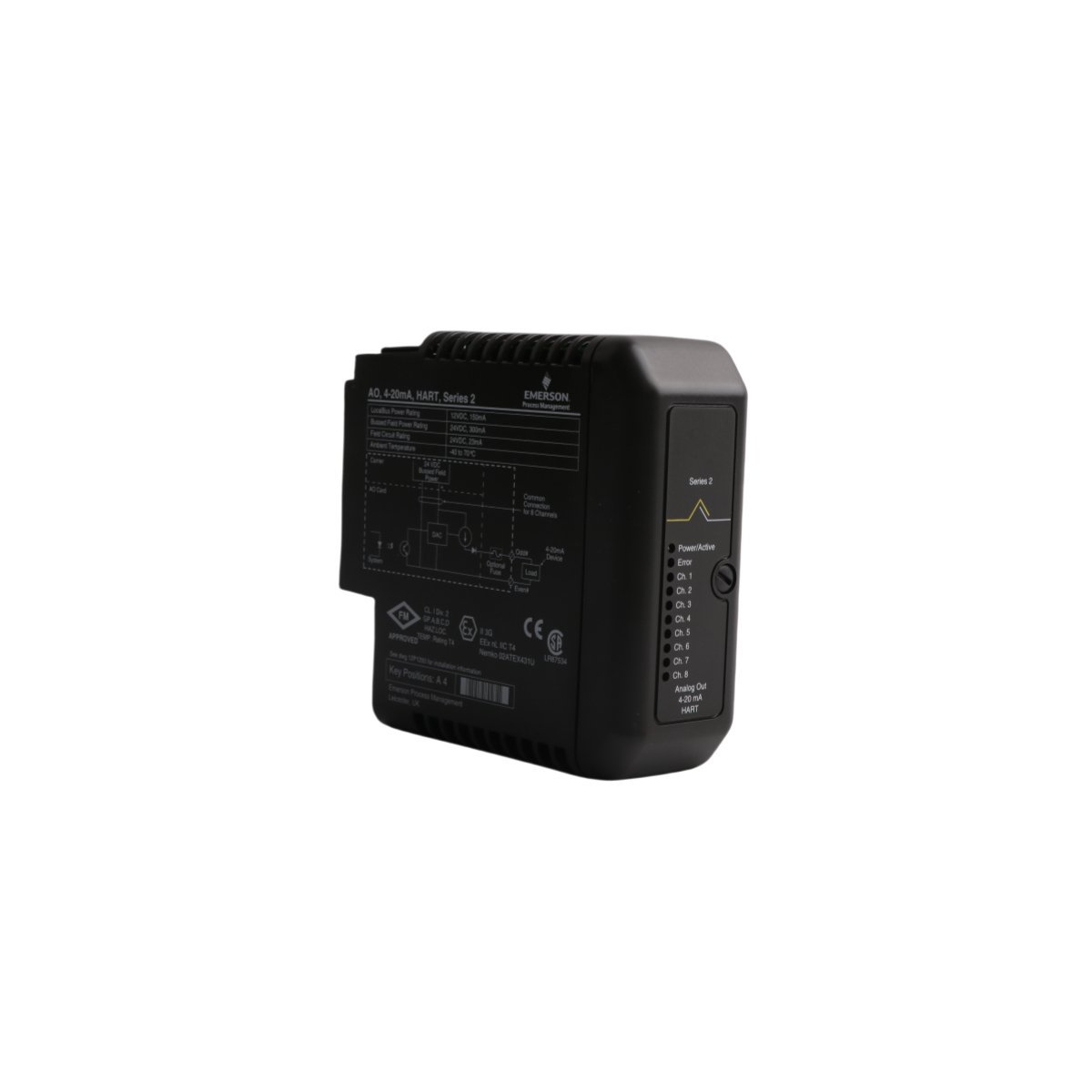

The Emerson KJ3221X1-BA1 (12P2531X062) is a high-availability redundant analog output module featuring HART communication capabilities for the DeltaV™ M-series I/O subsystem. It provides precise 4-20 mA signal control with automated failover logic to ensure uninterrupted process automation in mission-critical environments.

Product Description

High-Availability Redundant Architecture

The Emerson KJ3221X1-BA1 serves as a cornerstone for fault-tolerant control within the DeltaV™ Distributed Control System (DCS). By utilizing a redundant hardware configuration, this module eliminates single points of failure in the output loop. If the primary controller detects a hardware discrepancy, the system executes an instantaneous bumpless transfer to the standby partner. This transition maintains the integrity of the process variable without disruptive signal spikes, which is essential for volatile sectors like oil and gas or chemical refining.

Intelligent HART Integration and Diagnostics

This module excels at bidirectional field device communication through the integrated HART (Highway Addressable Remote Transducer) protocol. Beyond transmitting standard 4-20 mA control signals, the 12P2531X062 extracts valuable secondary instrument data, including calibration status and device health alerts. These advanced diagnostics allow maintenance teams to identify potential valve or actuator issues before they escalate into process shutdowns. Consequently, the combination of real-time acquisition and intelligent digital overlay significantly improves the overall reliability of the asset management strategy.

Versatile Application and Industrial Durability

Engineered for the rigorous demands of the DeltaV M-series I/O subsystem, the KJ3221X1-BA1 features a compact and thermally efficient design. Its ruggedized internal circuitry withstands the electrical noise and temperature fluctuations typical of power generation and heavy manufacturing plants. Furthermore, the module supports hot-swapping, allowing technicians to replace components without powering down the entire I/O rack. This modularity reduces mean time to repair (MTTR) and ensures that the facility remains operational during routine system updates or hardware maintenance.

Technical Specifications
