Description

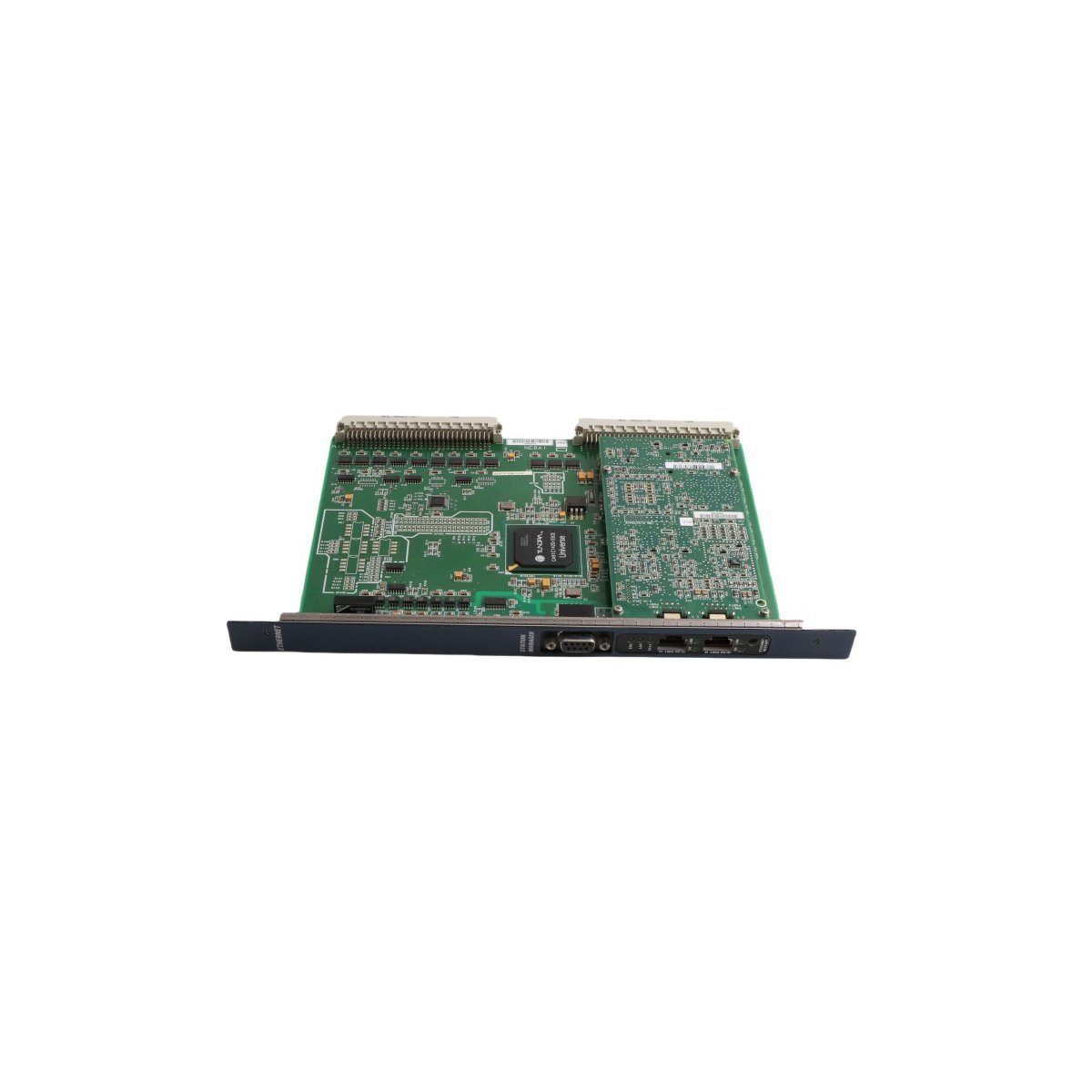

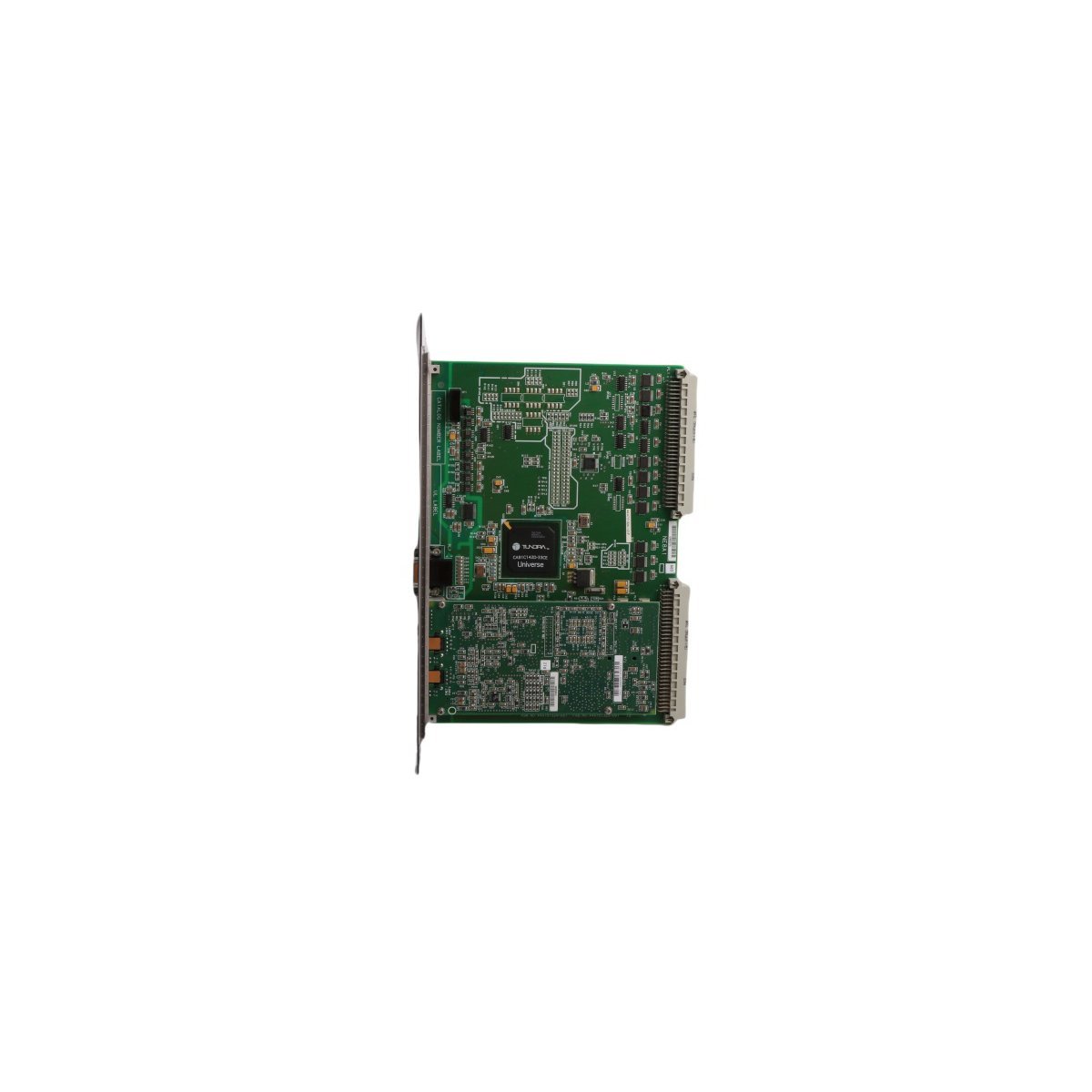

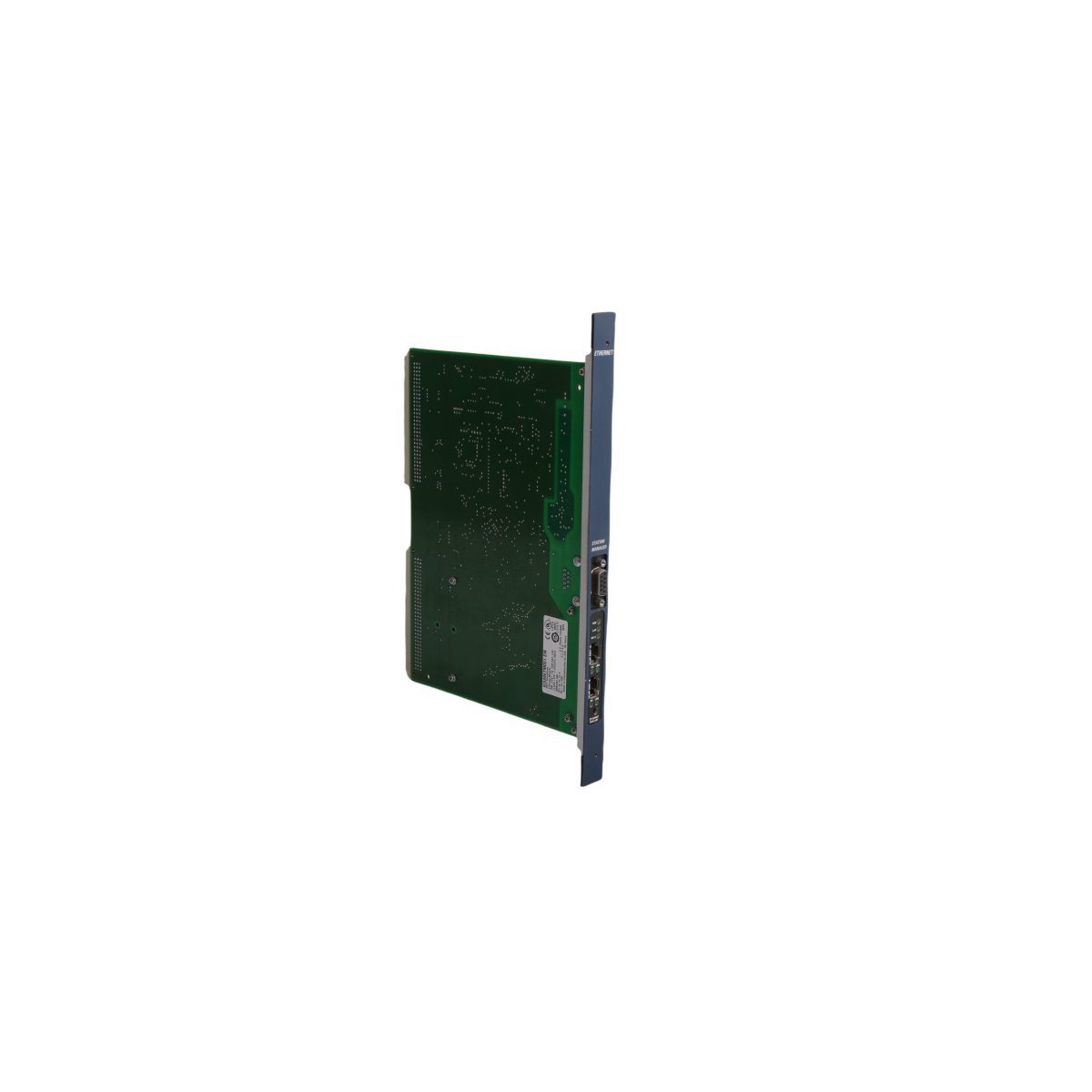

The GE IC698ETM001, also cataloged as the IC698ETM001 PLC Module, operates as a dedicated hardware component for network packet routing and high-speed data exchange within PACSystems RX7i platform architectures.

Hardware Specifications

Backplane Bus Communication Velocity Licences and Deterministic Networking

The module interfaces directly with controller processor nodes via high-speed internal backplane buses. Firmware flash compatibility governs the interaction between the network controller firmware and core execution loops, ensuring deterministic packet transfer and zero frame dropping during real-time data exchange. Profinet and EtherNet/IP protocol layers process communication packets synchronously, updating network nodes without command latency across ring, star, and daisy-chain topologies.

Frequently Asked Questions

Q: Can the IC698ETM001 module be extracted while the RX7i backplane remains powered?

A: Yes. The hardware supports removal and insertion under power (RIUP) without disrupting ongoing rack control operations or neighbouring module functions.

Q: How does the module handle network redundancy configurations?

A: The dual Ethernet ports support redundant IP addressing and independent link monitoring, enabling seamless failover operations across industrial Ethernet architectures.

Field Installation Guidelines

Ensure the designated backplane slot is aligned with the module guide rails prior to insertion. Push the unit straight into the chassis until the rear connector pins engage fully with the backplane bus, then secure the top and bottom retaining screws to maintain structural grounding and mechanical stability in high-vibration industrial enclosures.
