Description

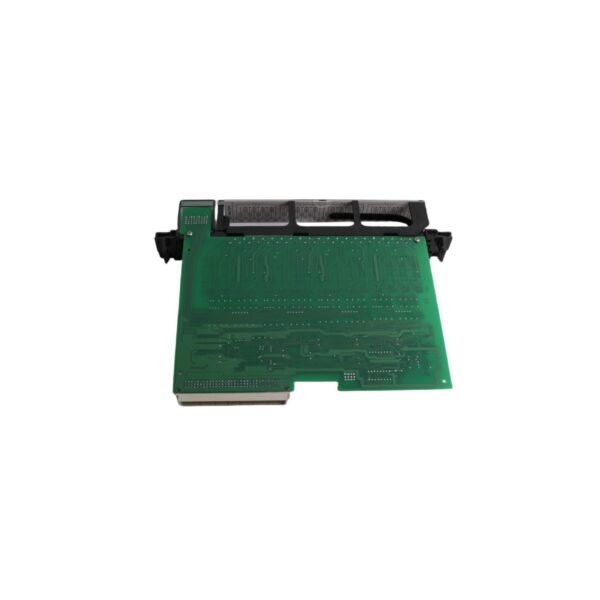

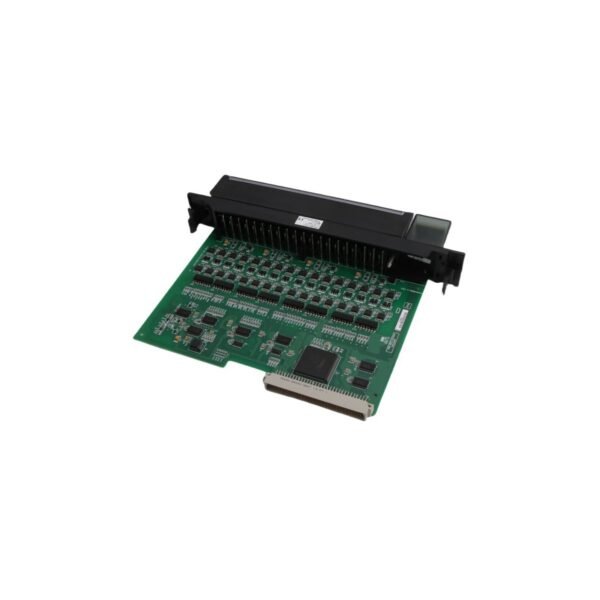

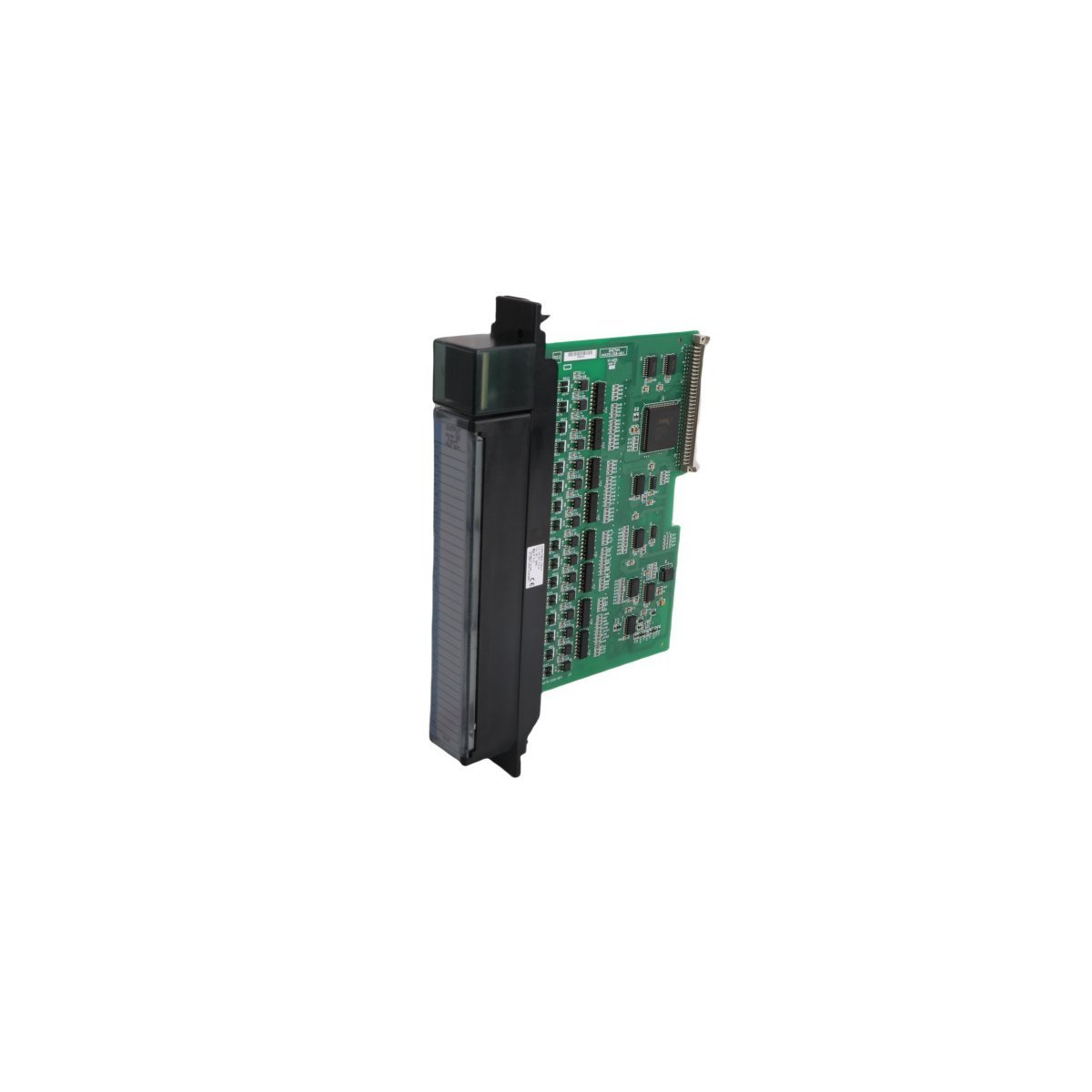

The GE IC697MDL750, also cataloged as the IC697MDL750 Discrete Output Module, operates as a dedicated hardware component for high-density digital signal switching within Series 90-70 PLC platforms.

Hardware Specifications

Industrial Control System Connectivity

The IC697MDL750 utilizes standard backplane bus communication velocity architecture to ensure deterministic command execution for downstream actuators and indicators. The module maintains firmware flash compatibility with the Series 90-70 CPU backplane, ensuring synchronous state updates across the rack. I/O density scaling is optimized by the 32-channel configuration, providing granular control of discrete loads while minimizing rack space utilization. Deterministic network performance is maintained through high-speed internal switching circuitry, which guarantees low-latency signal distribution during execution cycles.

Frequently Asked Questions

Q: Does the IC697MDL750 support hot-swapping under load?

A: No, the module requires the PLC backplane power to be de-energized prior to insertion or removal to prevent potential electrical arcing at the interface pins.

Q: How is the load protection handled for the 8-channel groups?

A: Each group of 8 channels is isolated with a 5000 V rating, providing effective electrical decoupling. Overcurrent protection must be implemented externally to match the 2 A group current limit.

Q: Can the module be wired for negative logic configurations?

A: The module is designed for standard DC sinking/sourcing operation; field wiring must align with the specific voltage potential requirements of the connected load to maintain output integrity.

Field Installation Guidelines

• Verify that the rack power is disconnected before installing the module into the designated slot.
• Ensure the removable terminal block is fully seated and secured; utilize standard torque tools to avoid damaging the terminals.
• Use shielded cabling for field signals to minimize electromagnetic interference; ensure shields are properly bonded to the system common ground point.
• Comply with VME standard C.1 specifications regarding connector engagement to maintain electrical contact integrity.
• Maintain sufficient space around the module housing to facilitate airflow, especially when operating multiple high-density output modules in a single chassis.
