Description

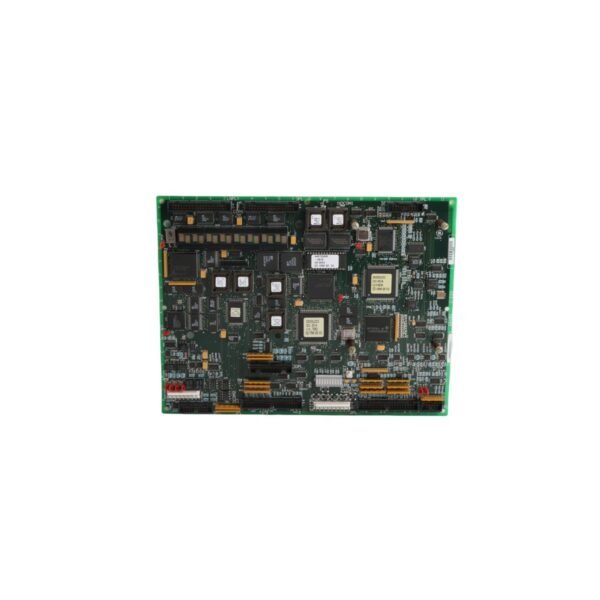

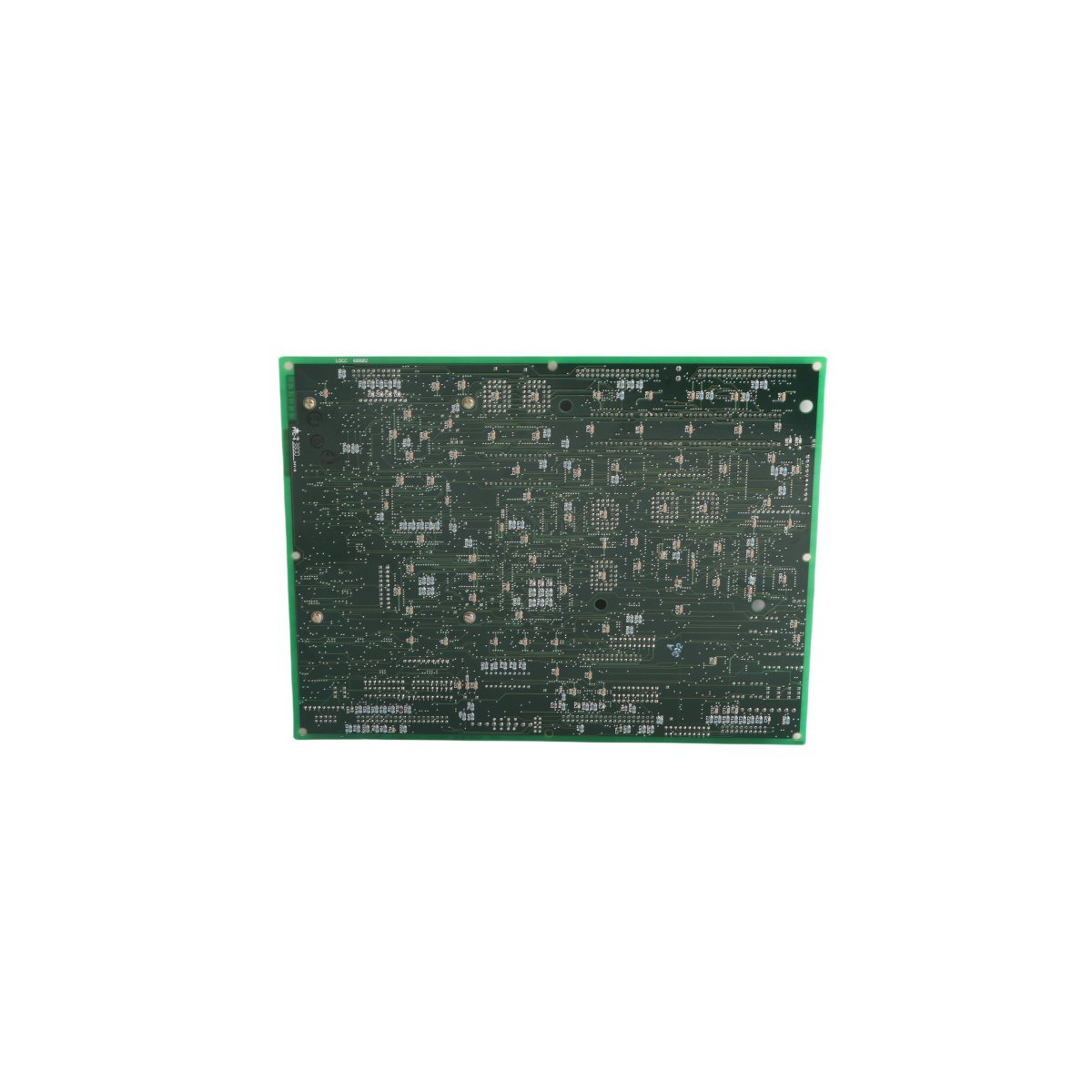

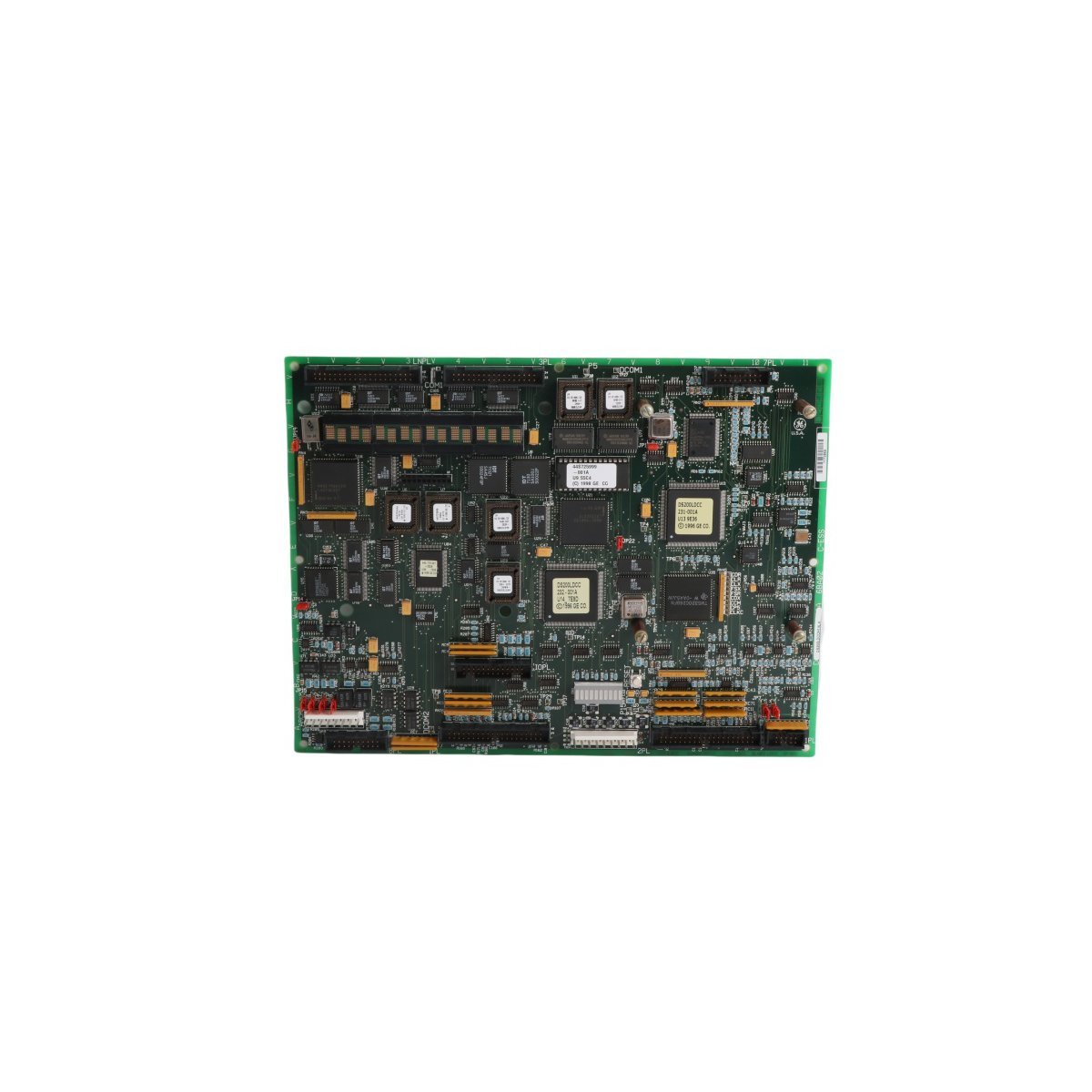

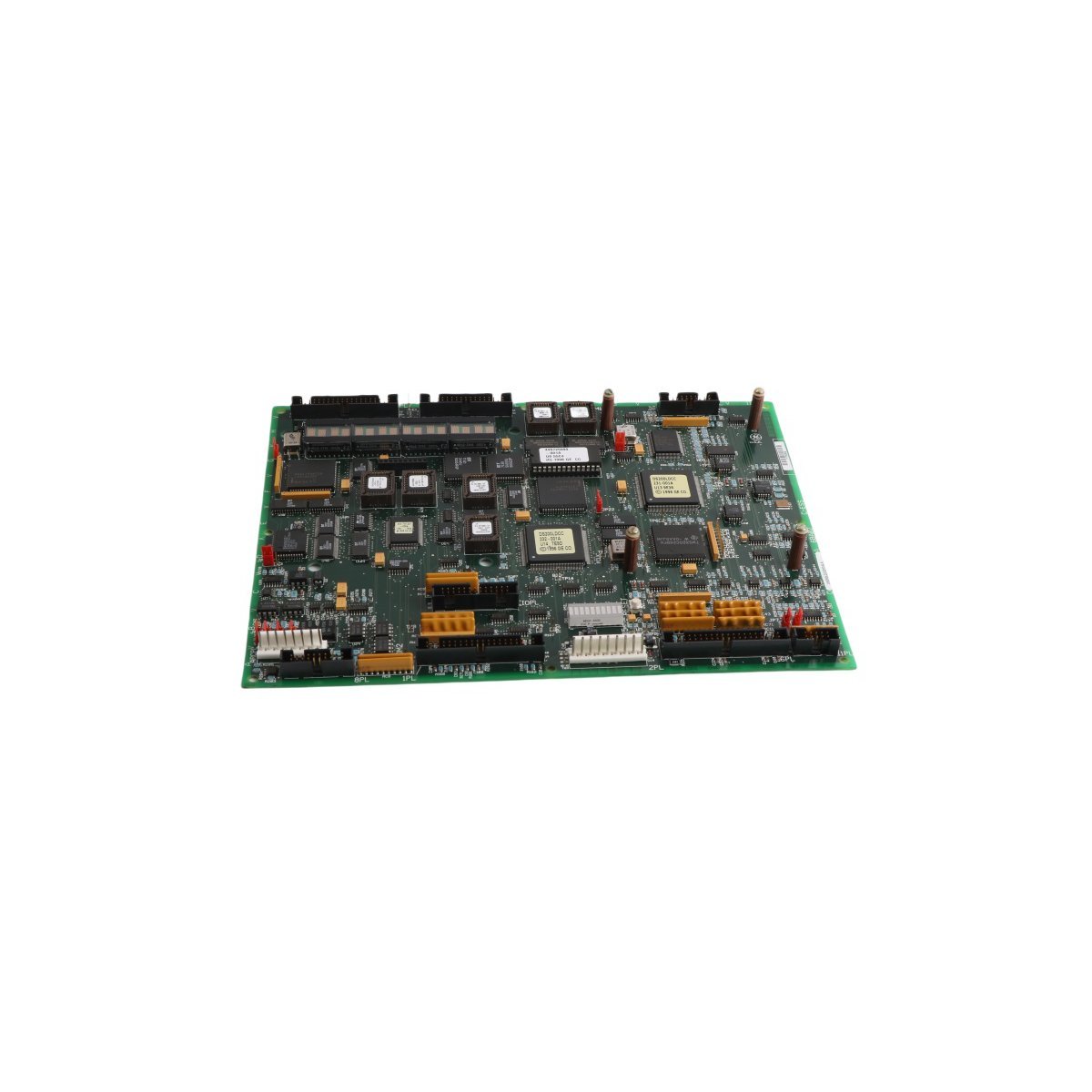

The GE DS200LDCCH1ALA serves as the primary intelligence hub for DIRECTO-MATIC 2000 drive systems. This multi-functional board manages complex turbine operations within the Speedtronic Mark V framework. It integrates advanced drive control logic with high-speed local area network communications. Consequently, the board ensures synchronized performance across gas, steam, and wind turbine assemblies. Its sophisticated design represents the final evolution of General Electric’s legacy Speedtronic technology.

Advanced Multi-Processor System

Four dedicated microprocessors drive the computational power of this communications card. Each processor handles specific tasks to optimize signal filtering and command execution. The Drive Control Processor (DCP) manages fundamental drive parameters and logic. Simultaneously, the LAN Control Processor (LCP) maintains network stability and data exchange. The Motor Control Processor (MCP) and Co-Motor Processor (CMP) provide precise regulation for motor armature and I/O feedback. This distributed architecture prevents processing bottlenecks during high-demand industrial cycles.

Network Protocol Support

The DS200LDCCH1ALA facilitates seamless integration with multiple industrial bus architectures. It supports high-performance communication protocols including DLAN+, Genius, and CPL. Furthermore, the board remains compatible with C-Bus systems for comprehensive data networking. Specialized terminal boards often assist these connections to ensure electrical isolation. This versatility allows the Mark V system to interface with various distributed control system (DCS) components.

Technical Specifications

Operational Reliability and Maintenance

This board includes a front-panel reset button to clear functional faults during operation. Operators utilize the alphanumeric display and keypad interface for real-time monitoring and local adjustments. The hardware design prioritizes durability in harsh power generation environments. Proper installation requires adherence to static-shielding protocols to protect the sensitive CMOS components. Regular firmware verification ensures the board maintains compatibility with evolving turbine control requirements.
