Description

Advanced Control and Signal Processing

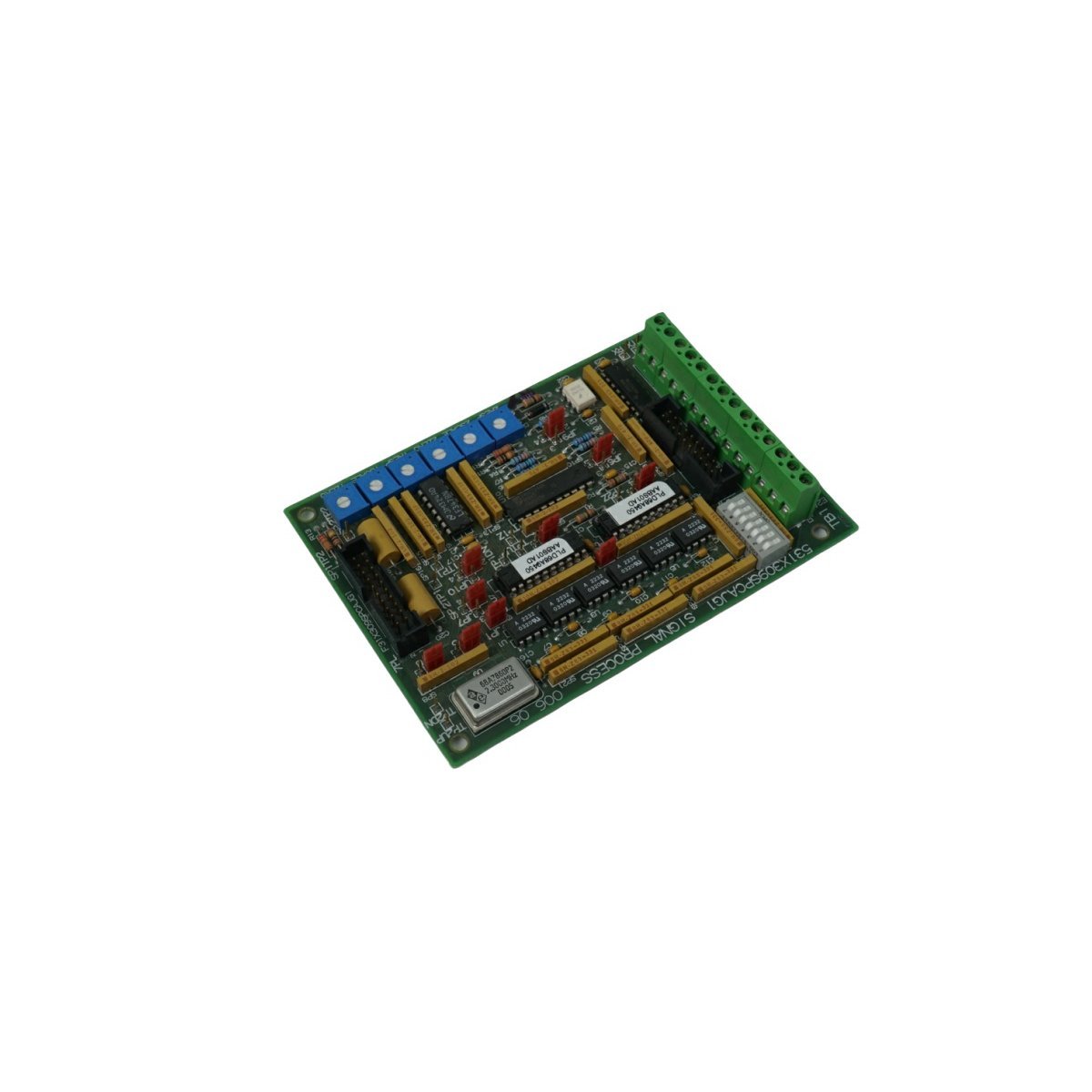

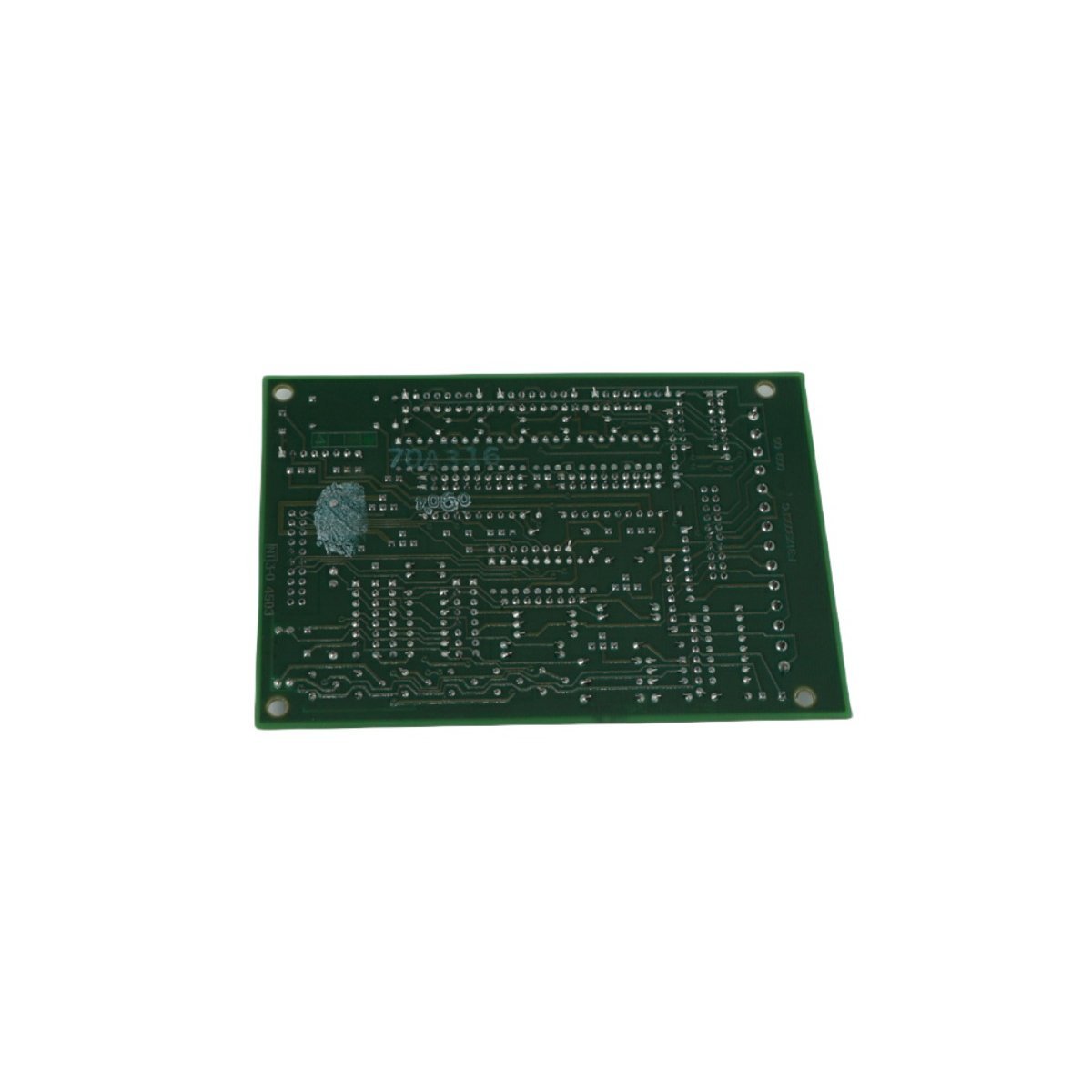

The GE 531X309SPCAJG1 serves as a high-performance Digital Signal Process (DSP) card within the 531X series, specifically engineered to support legacy and modern General Electric drive systems. This card primarily executes high-speed data acquisition and logic processing, acting as a critical bridge between the central processor and external field devices. Because industrial automation requires extreme precision, this board manages Local Area Network (LAN) control and integrated I/O processing to maintain synchronized drive performance. Furthermore, it ensures the seamless relay of digital commands, thereby stabilizing motor operations in complex Distributed Control System (DCS) environments.

Core Technical Specifications

• Brand: General Electric (GE)
• Part Number: 531X309SPCAJG1
• Component Category: Digital Signal Process Card
• Series Compatibility: Multilin / 531X Drive Systems
• Communication Protocol: RS-422 Serial Processing
• Feedback Interface: Encoder and Tachometer compatibility
• Origin: USA
• Physical Dimensions: 13.3 cm x 9.2 cm x 2.3 cm
• Shipping Weight: 0.12 kg

Feedback Mechanisms and Signal Conversion

One major advantage of the 531X309SPCAJG1 is its sophisticated signal conversion architecture. The card accurately transforms three distinct current reference signals and various voltage level inputs into standardized voltage reference signals. Consequently, the drive control board receives exact data for speed regulation and torque management. To facilitate precise motion control, the card interfaces directly with encoders and tachometers, providing the high-resolution speed feedback necessary for industrial accuracy. Additionally, it processes RS-422 serial signals, which it then transmits to the motor control processor to facilitate real-time system adjustments.

Hardware Customization and Integration

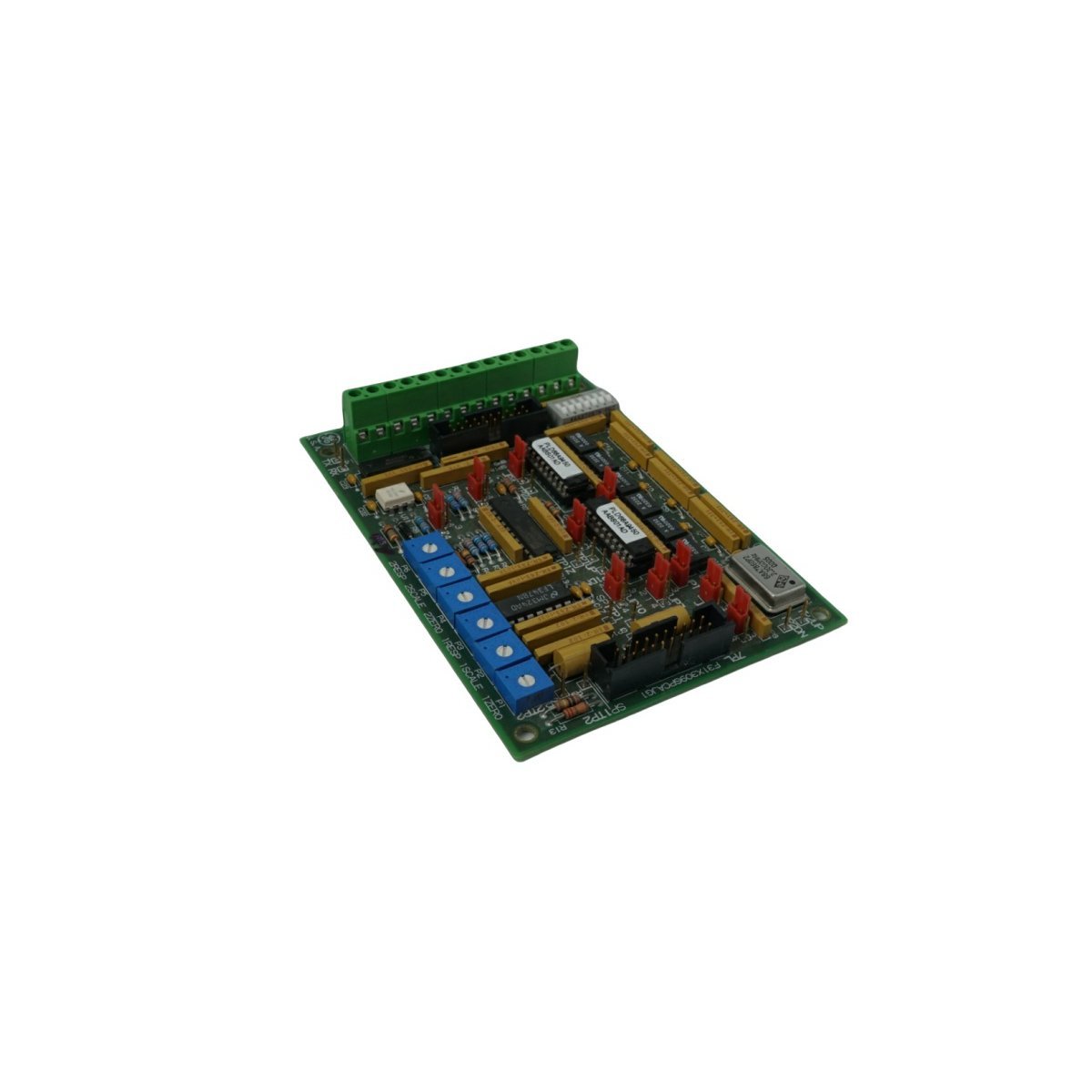

Technicians can optimize the 531X309SPCAJG1 for specific operational requirements through its array of on-board configurable hardware. The board features several potentiometers, jumpers, and switches that allow for manual adjustment of signal filtering and gain settings. Therefore, the card adapts easily to various electrical environments where signal noise might otherwise interfere with performance. Because this board is designed for critical industrial applications, users must adhere to strict manufacturer installation guidelines to prevent electrostatic discharge or mechanical failure. Proper integration of this card ensures the continued reliability of GE’s robust drive infrastructure.
