Description

Product Overview

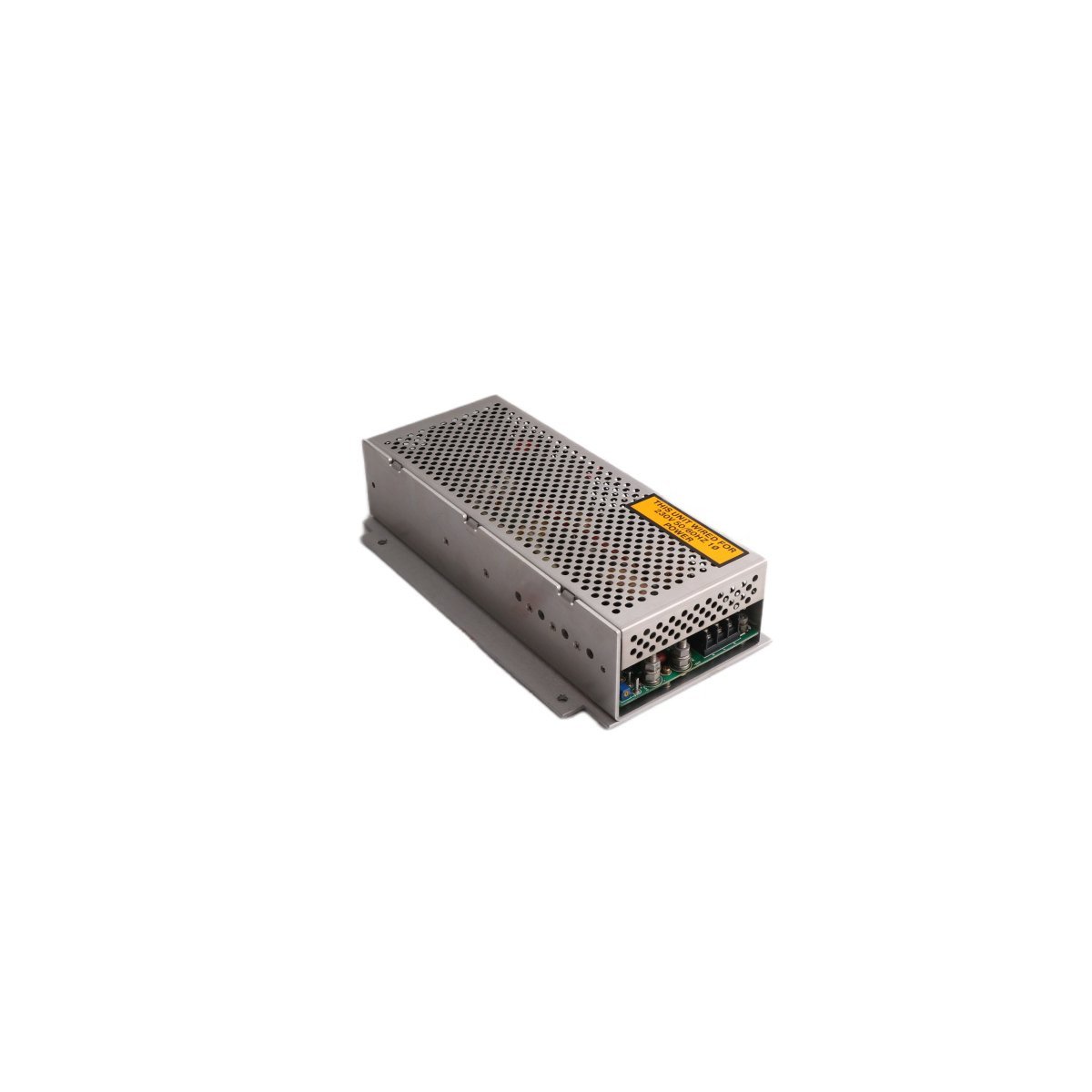

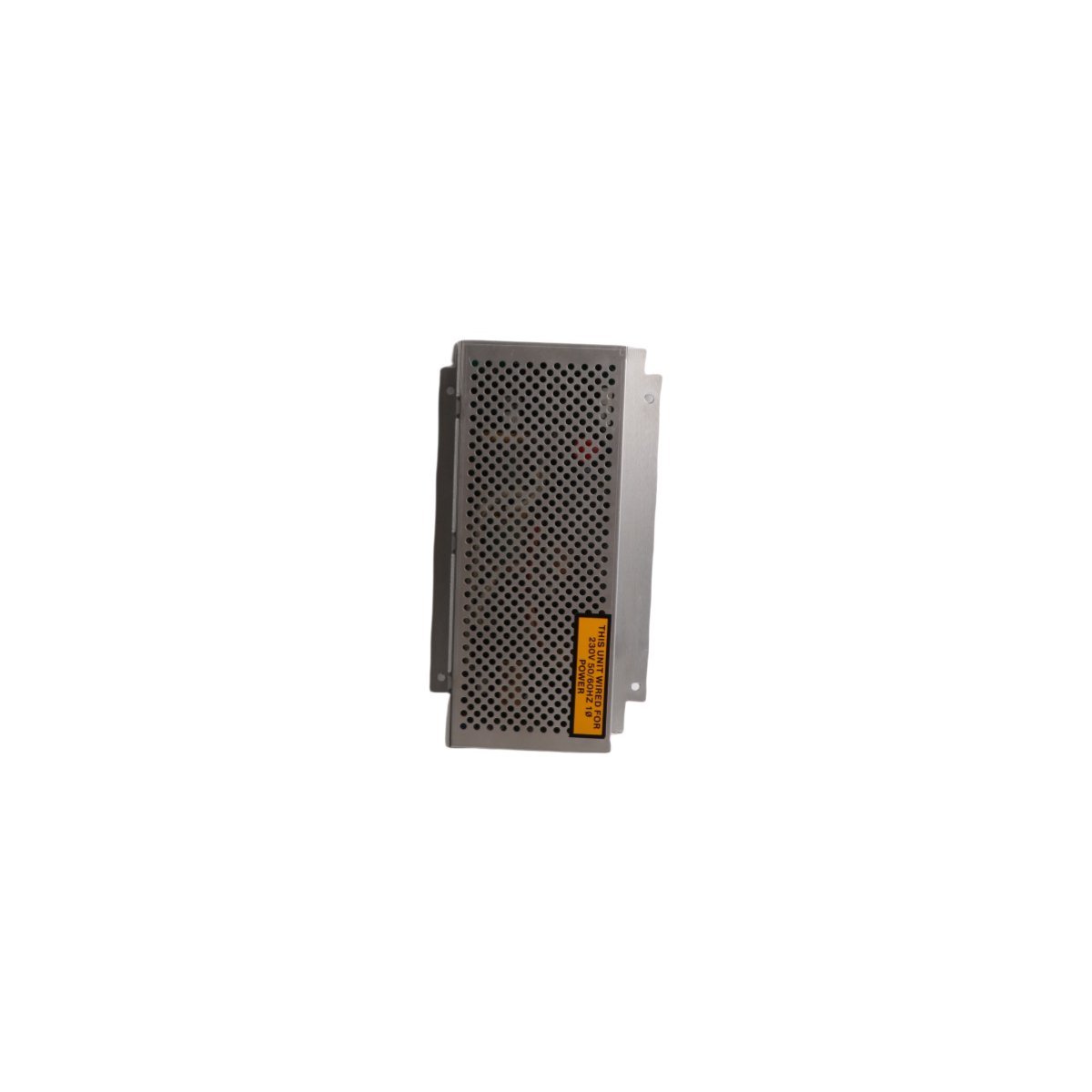

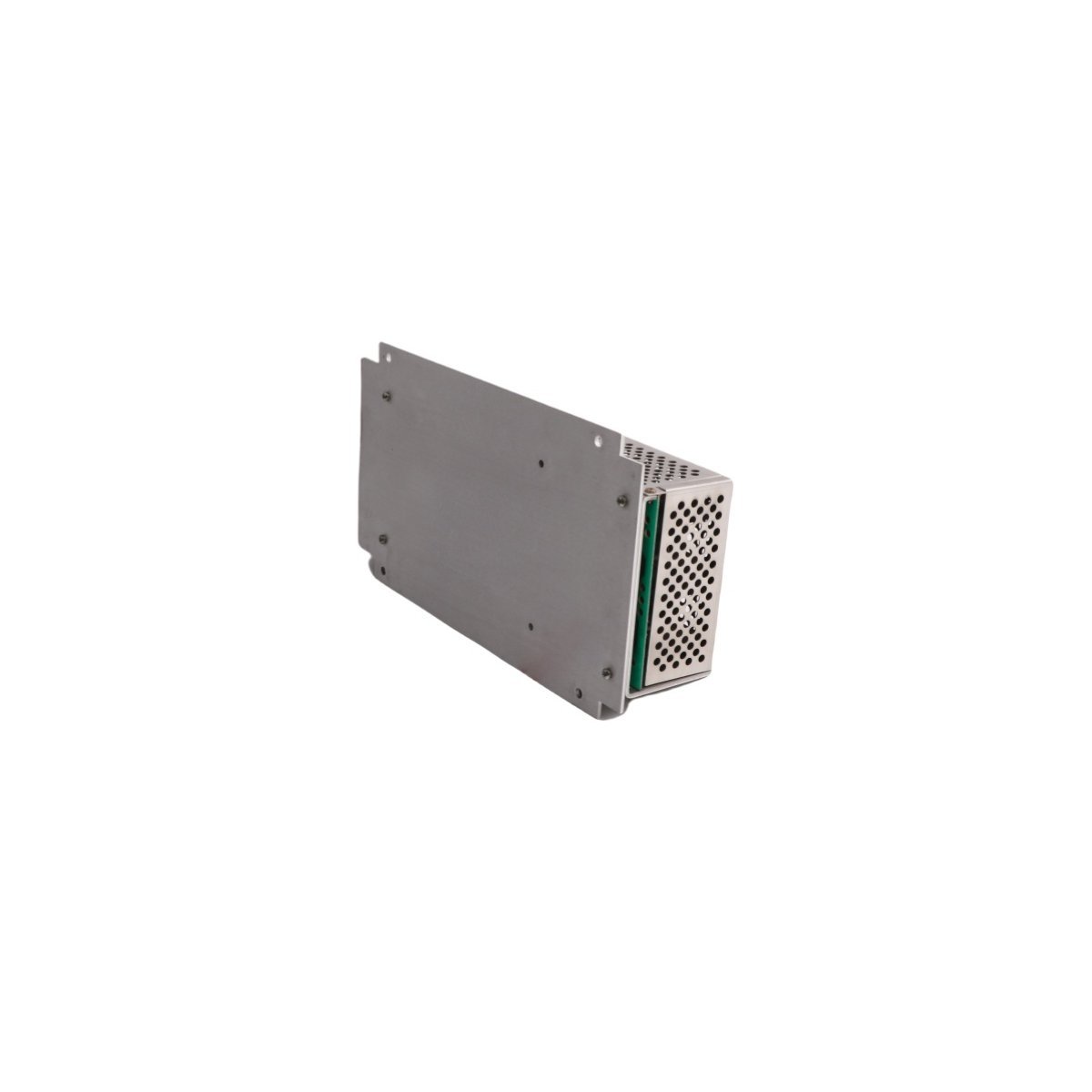

The Honeywell IP-PI-OI24 serves as a high-performance Advanced Process Control (APC) interface designed for the TDC 3000 Distributed Control System (DCS) ecosystem. This module functions as a critical bridge for managing complex industrial loops, providing the computational speed and data integrity required for modern automated manufacturing. By utilizing a ruggedized architecture, the unit maintains stable operation even when exposed to significant thermal fluctuations and airborne particulates common in heavy industrial settings.

Technical Functionality and Integration

This Advanced Process Control Module operates through a sophisticated modular framework that enables seamless integration into existing DCS architectures. It primarily facilitates real-time data acquisition and precise signal processing for both digital and analog control loops. While it is categorized as an Advanced Process Control component, it includes integrated Digital I/O capabilities and supports MODBUS RTU communication. This protocol compatibility allows the module to establish a reliable data exchange link between the primary controller and peripheral field devices, such as sensors and actuators.

Core Technical Characteristics

• System Compatibility: Specifically engineered for Honeywell TDC 3000 Distributed Control Systems (DCS).
• Communication Protocols: Supports MODBUS RTU and Ethernet routing for versatile networking and remote monitoring.
• Reliability Features: Equipped with internal safeguards against overcurrent and short-circuit faults to prevent hardware damage and system downtime.
• Environmental Resistance: Hardened chassis design rated for operation in high-temperature and high-dust environments.
• Process Accuracy: High-speed response times allow the system to adapt instantaneously to dynamic changes in process variables.

Physical Specifications

• Manufacturer: Honeywell
• Model Identifier: IP-PI-OI24
• Country of Origin: USA
• Unit Weight: 2.8 kg
• Dimensions: 17.4 cm x 7.2 cm x 30.5 cm

Industrial Applications

The IP-PI-OI24 is utilized extensively across sectors that demand high-availability control solutions. It is particularly effective in chemical processing, oil and gas refining, and power generation facilities where precise automation is mandatory for both safety and efficiency. Because the module handles complex communication tasks through its Ethernet router service, it effectively reduces the load on the central processor, thereby optimizing the overall performance of the industrial network.
