Description

Brief Product Description

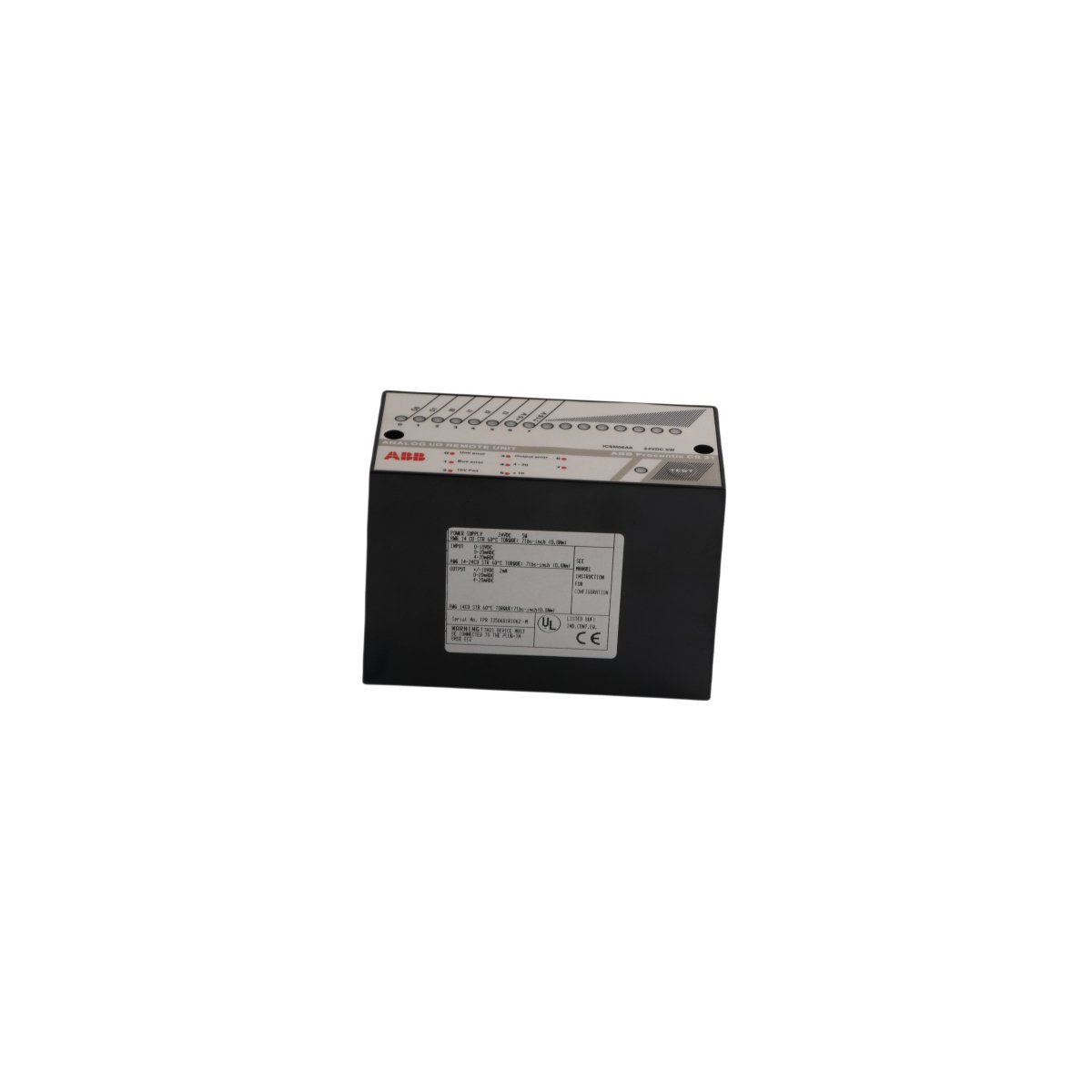

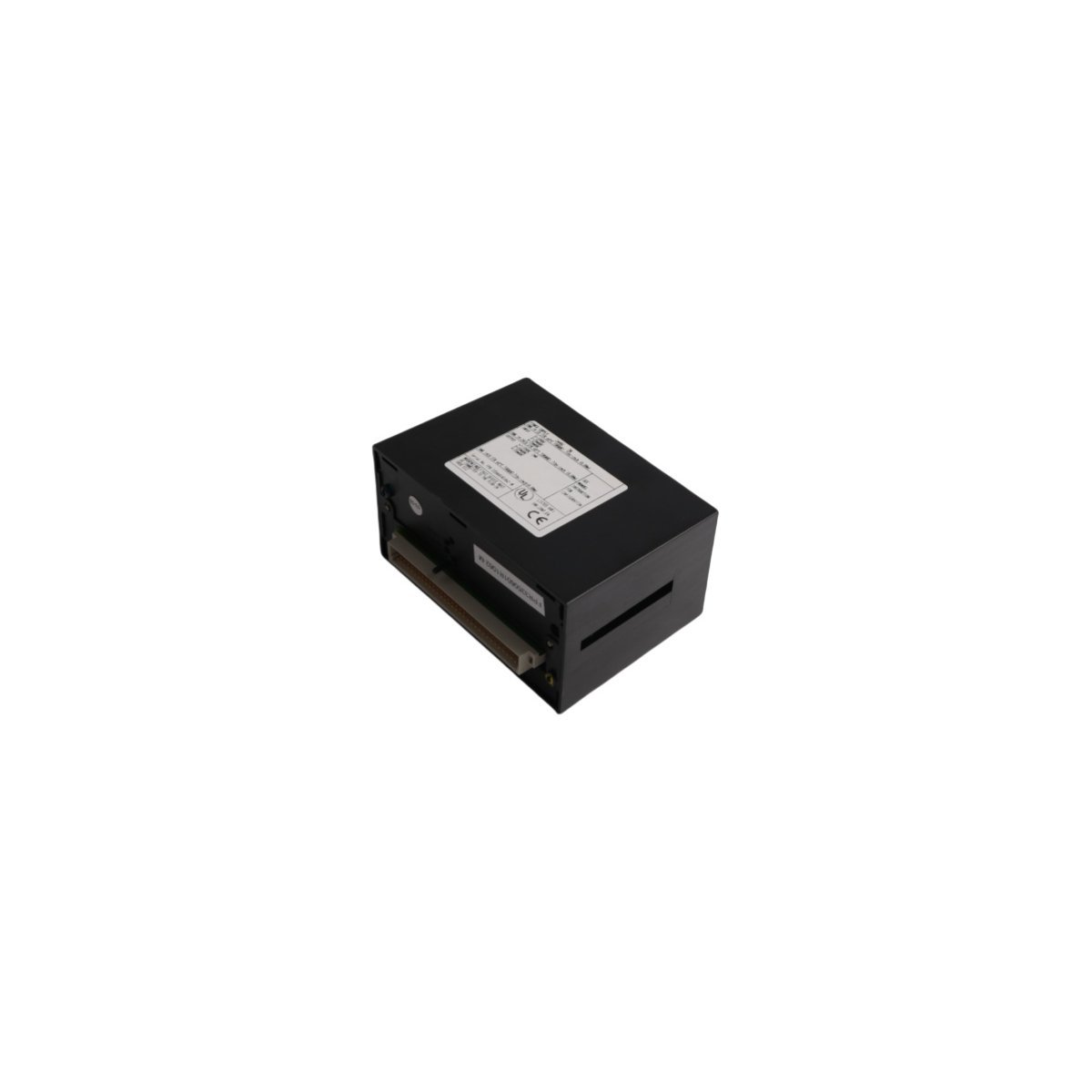

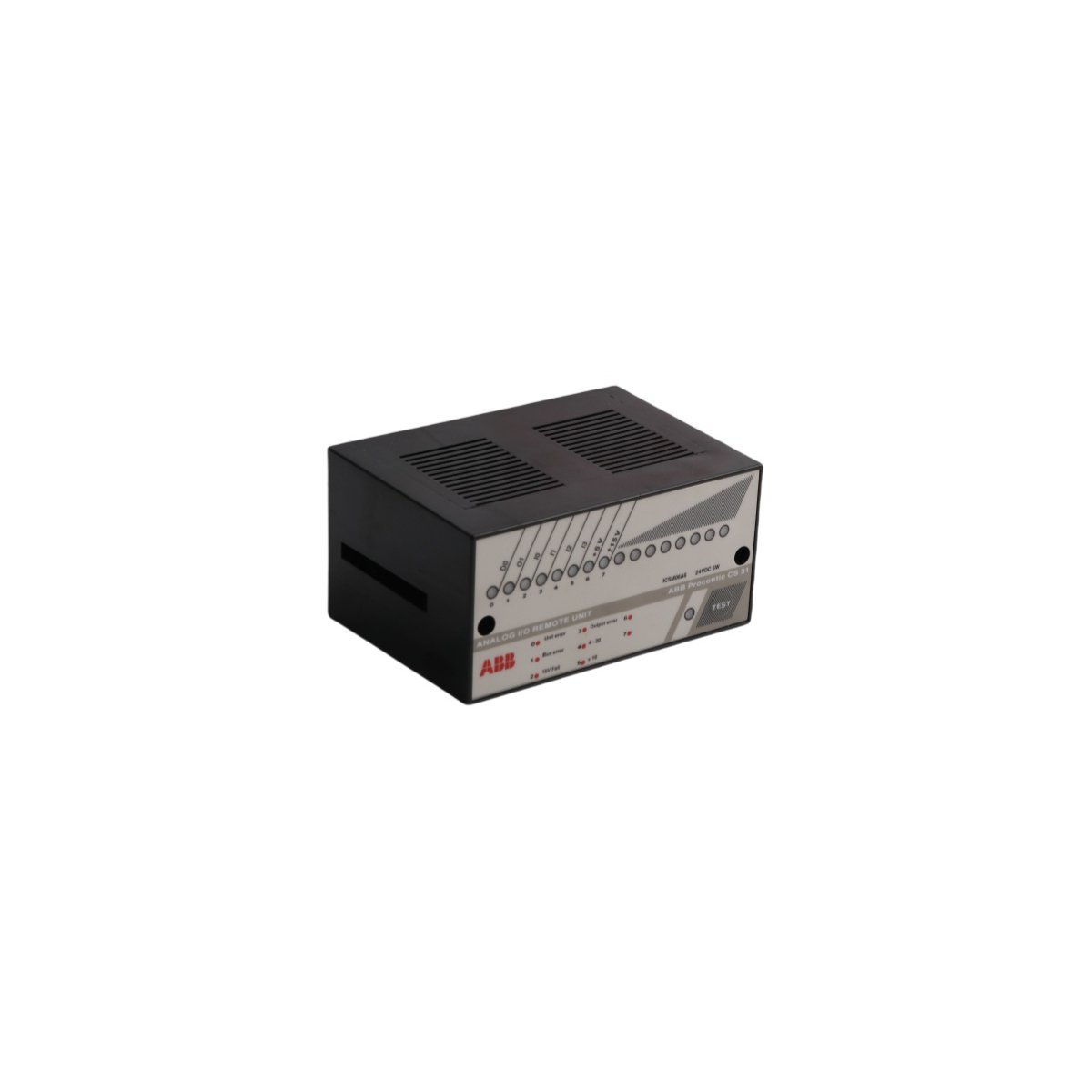

The ABB ICSM06A6 FPR3350601R1062 is a high-precision remote analog interface designed for the Advant Procontic CS31 fieldbus system. This module manages critical process variables by providing six dedicated analog input channels and six analog output channels for seamless DCS integration.

​Product Description

High-Precision Analog Signal Management

The ABB ICSM06A6 FPR3350601R1062 serves as a vital bridge between field instrumentation and central control systems. By offering six analog inputs and six analog outputs, the module allows operators to monitor and control continuous variables such as temperature, pressure, and flow rates with high accuracy. The unit utilizes the Procontic CS31 fieldbus protocol to transmit these signals over long distances, effectively reducing signal degradation that often occurs with traditional long-run copper wiring. Consequently, this remote architecture ensures that process data remains reliable and representative of real-time field conditions.

Advanced Integration and Communication

Connectivity remains a primary advantage of the ICSM06A6 FPR3350601R1062. Although primarily designed for the CS31 bus, this module supports diverse industrial networking standards through appropriate gateway interfaces, ensuring interoperability within complex DCS environments. The unit operates on a stable DC power supply and features internal diagnostic capabilities that monitor channel health and communication integrity. Furthermore, the analog outputs allow the system to drive actuators, valves, and variable speed drives precisely, closing the control loop at the machine level to optimize overall process efficiency.

Built for Demanding Industrial Environments

ABB engineered the ICSM06A6 to perform consistently within harsh industrial climates, featuring a wide operating temperature range from -25°C to +60°C. Its compact 12.2 cm wide housing permits efficient installation in standardized control cabinets where space is at a premium. The IP20-rated enclosure provides essential protection for the internal electronics while allowing for easy access to wiring terminals. By choosing this module, engineers gain a scalable and durable solution for distributed analog control, significantly lowering installation costs and simplifying future system maintenance.

Technical Specification Overview
