Description

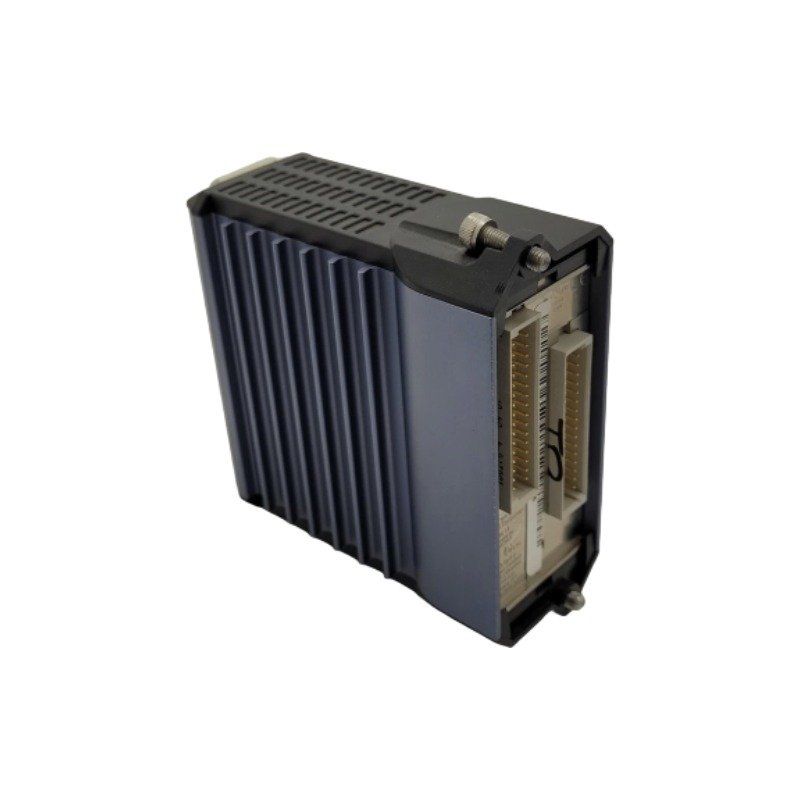

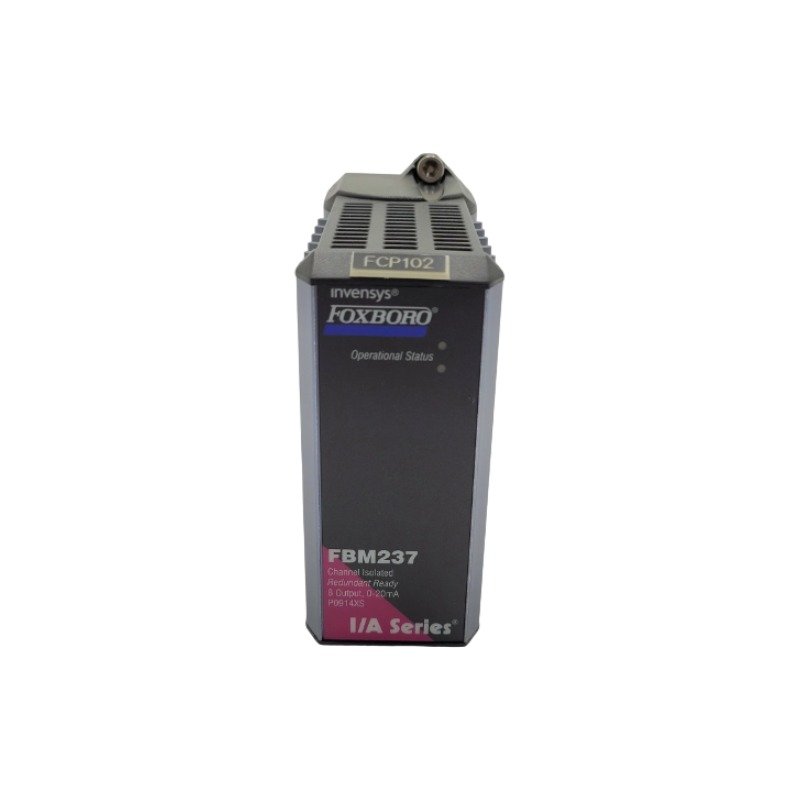

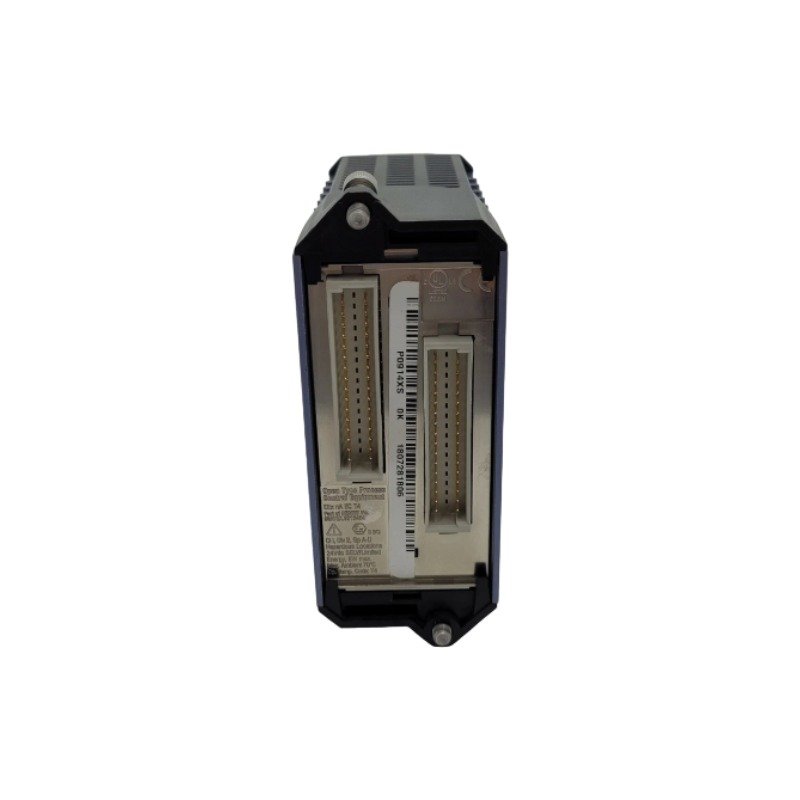

Configured for 0-20 mA current output control in Foxboro I/A Series, the Foxboro FBM237 P0914XS (FBM237 8-channel isolated output module) provides direct physical/electrical execution. Operating within standard DCS field bus architectures, this unit directly translates digital system commands into galvanic-isolated analog currents without introducing ground loop potentials. Channel-to-channel isolation safeguards backplane digital logic against field-side voltage surges and transient electrical interference, ensuring deterministic analog signal synthesis for downstream industrial final control elements.

Hardware Specifications

Process Control & Channel Isolation Dynamics

The Foxboro FBM237 P0914XS integrates high-density channel-to-channel isolation rated to 3000 VDC. This galvanic barrier separates individual 0-20 mA current loops from one another and from the internal I/A Series system backplane. By eliminating shared common return paths, the module prevents ground potential differences between remote field actuators and centralized control hardware from corrupting signal integrity. In typical 4-20 mA HART loop protocol environments or standard current loop topologies, this channel-to-channel isolation architecture reduces crosstalk, attenuates common-mode electrical noise, and ensures continuous operational isolation for uninterrupted analog field execution.

Frequently Asked Questions

Q: What is the primary function of the 3000 VDC isolation rating on the FBM237 P0914XS?

A: The 3000 VDC isolation rating provides complete galvanic separation between individual output channels and the internal system backplane. This protects backplane logic components against severe field transients, common-mode ground voltages, and localized short-circuit conditions.

Q: Does the FBM237 P0914XS support hot-swapping during active DCS operation?

A: Yes, the module supports hot-swapping in accordance with Foxboro I/A Series baseplate specifications. Removal or insertion under 24 VDC power does not disrupt communication or output signal states on adjacent module slots.

Q: How does the maximum output current parameter impact circuit loads across all 8 channels?

A: The module supports up to 200 mA total current capacity, enabling simultaneous full-scale output performance (up to 20 mA per channel) across all 8 isolated output paths without exceeding module thermal dissipation or current drive limits.

Field Installation Guidelines

Installation of the Foxboro FBM237 P0914XS must strictly adhere to Foxboro I/A Series hardware mounting requirements. Ensure the module baseplate slot is clean and free from particulate matter before insertion. Align the module card edge carefully with the backplane connector and press firmly until the locking mechanism fully engages. All field signal cables associated with the 0-20 mA loops must utilize shielded twisted-pair conductors. Drain wires of the cable shields must be grounded at a single dedicated earth point near the enclosure entry panel to prevent circulating ground currents.

Route field wiring away from high-voltage AC power lines and variable frequency drive outputs to maintain low noise thresholds. Verify that external 24 VDC power supply voltage falls within designated operational limits prior to energizing the circuit. Field wire termination terminals must be tightened to the manufacturer torque specifications to avoid high-resistance contacts or thermal expansion loosening.
