Description

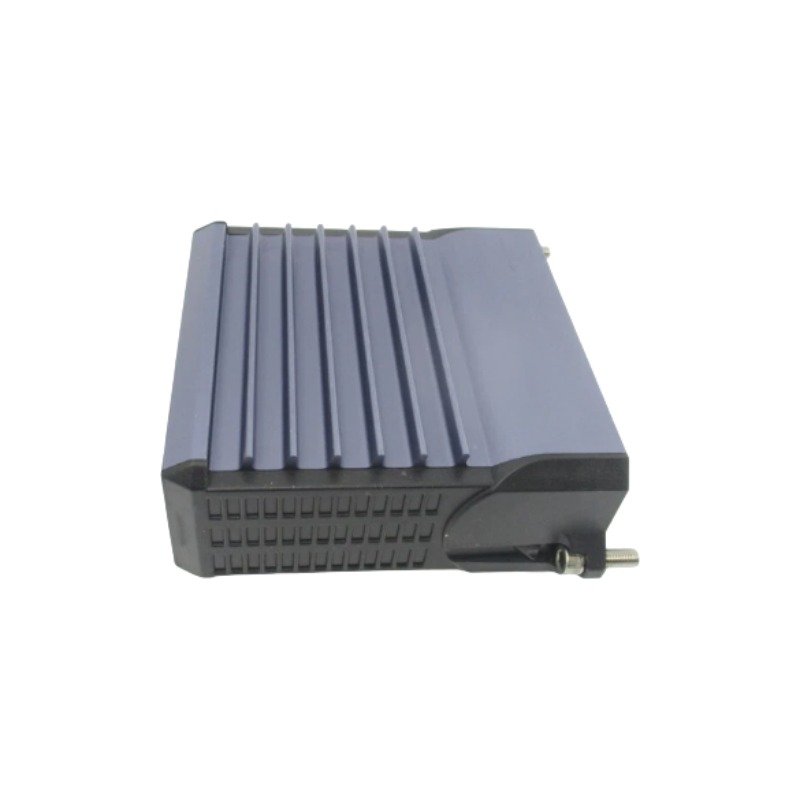

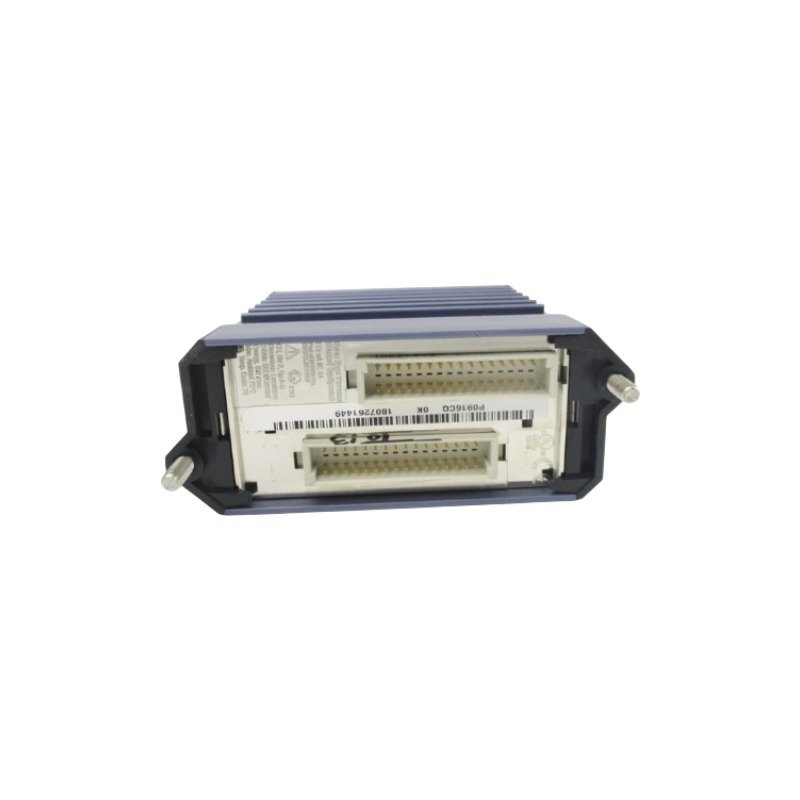

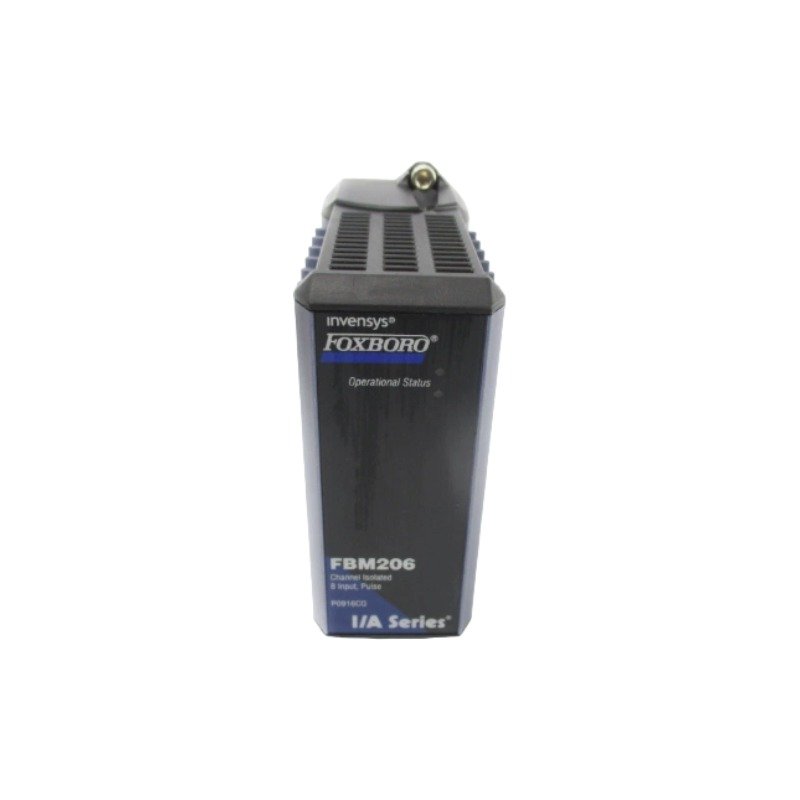

Configured for pulse signal acquisition and analog current generation in Foxboro I/A Series DCS networks, the Invensys FBM206 P0916CQ (FBM206 pulse input module) provides direct physical/electrical execution. The hardware accepts frequency inputs across 8 isolated pulse channels (10 Hz to 25 kHz) while driving 4 isolated 0 to 20.4 mA dc analog output loops. Through dedicated channel-to-channel isolation, the unit prevents ground loops, digitizes dynamic flow signals, and maintains stable execution across wide ambient temperature swings.

Hardware Specifications

Process Control & Channel Isolation Dynamics

The Invensys FBM206 P0916CQ establishes individual galvanic barriers across all input and output channels to preserve signal integrity in harsh electrical environments. By isolating both the 8 pulse inputs and the 4 current outputs, the module eliminates common-mode ground potential offsets between remote primary sensors and centralized DCS racks. In standard 4-20 mA HART loop protocol architectures and dynamic frequency measurement circuits, this channel-to-channel isolation suppresses electrical crosstalk, mitigates common-mode noise, and maintains linear loop execution up to the 735 Ohms maximum load threshold.

Frequently Asked Questions

Q: What input frequency range does the FBM206 P0916CQ support on its pulse input channels?

A: The 8 isolated input channels accept pulse signal frequencies ranging from 10 Hz up to 25 kHz per channel.

Q: How does channel-to-channel isolation impact the 0 to 20.4 mA dc analog output channels?

A: Channel-to-channel galvanic isolation prevents ground loops and eliminates transient electrical interference between individual output circuits and the system backplane logic.

Q: What is the maximum load resistance supported by the analog output channels?

A: Each isolated analog output channel supports driving external current loops up to a maximum output resistance of 735 Ohms.

Field Installation Guidelines

Mount the Invensys FBM206 P0916CQ onto a compatible Foxboro I/A Series baseplate. Inspect the baseplate card connector for contaminants prior to insertion. Align the module card edge carefully with the slot guide rails and push the unit firmly until the retaining mechanism locks into position.

Route all field signal connections to the corresponding termination assembly using shielded twisted-pair cables. Connect the cable drain shields to a single dedicated earth bus bar at the panel entry point to prevent circulating ground currents. Separate pulse input signal ducts from high-voltage AC conductors to maintain low signal-to-noise ratios. Torque terminal screws to manufacturer specifications to ensure high-vibration contact stability.
