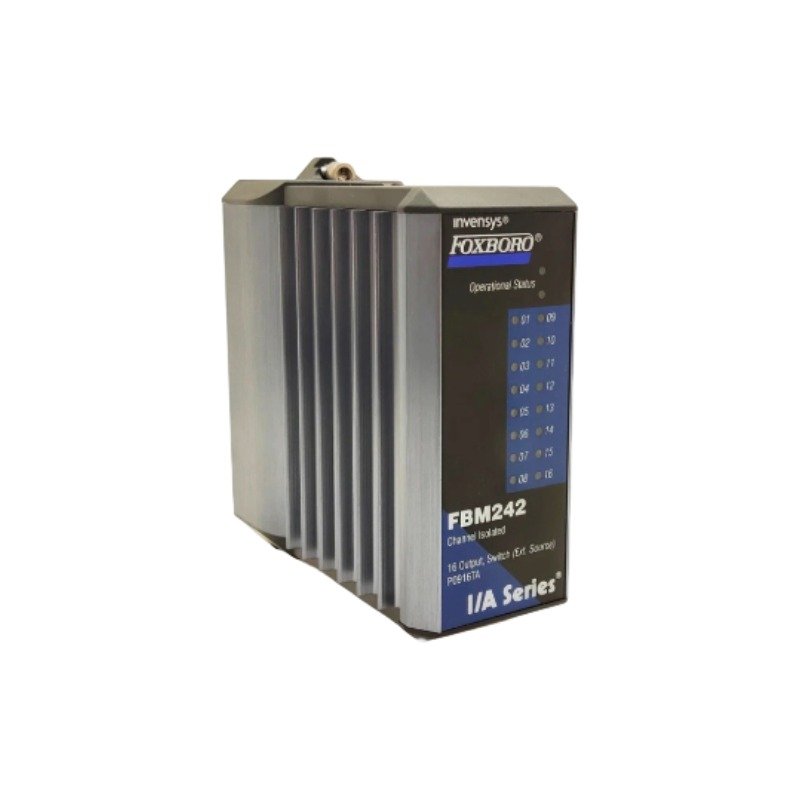

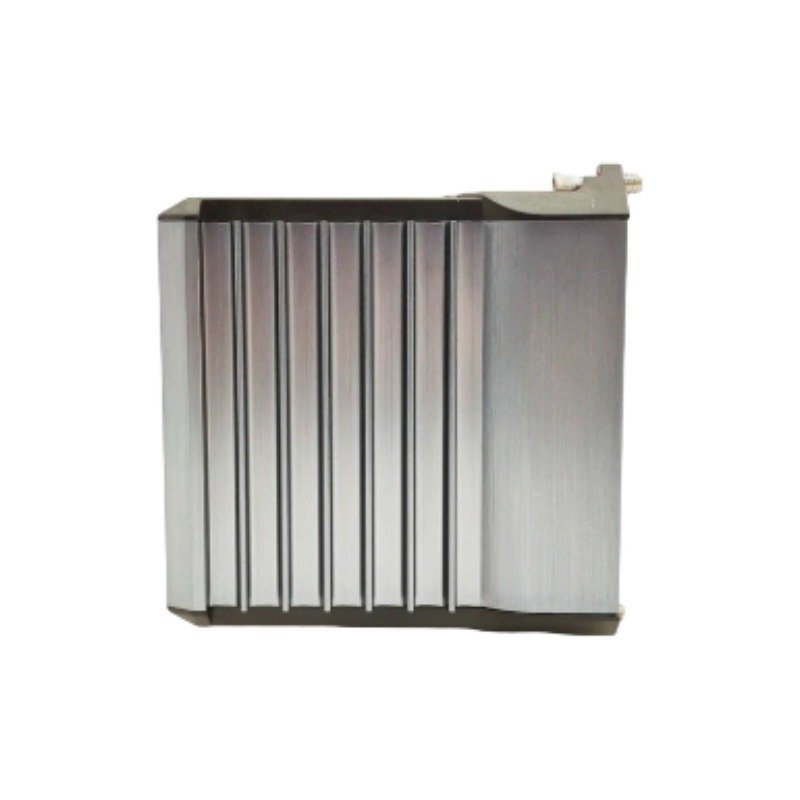

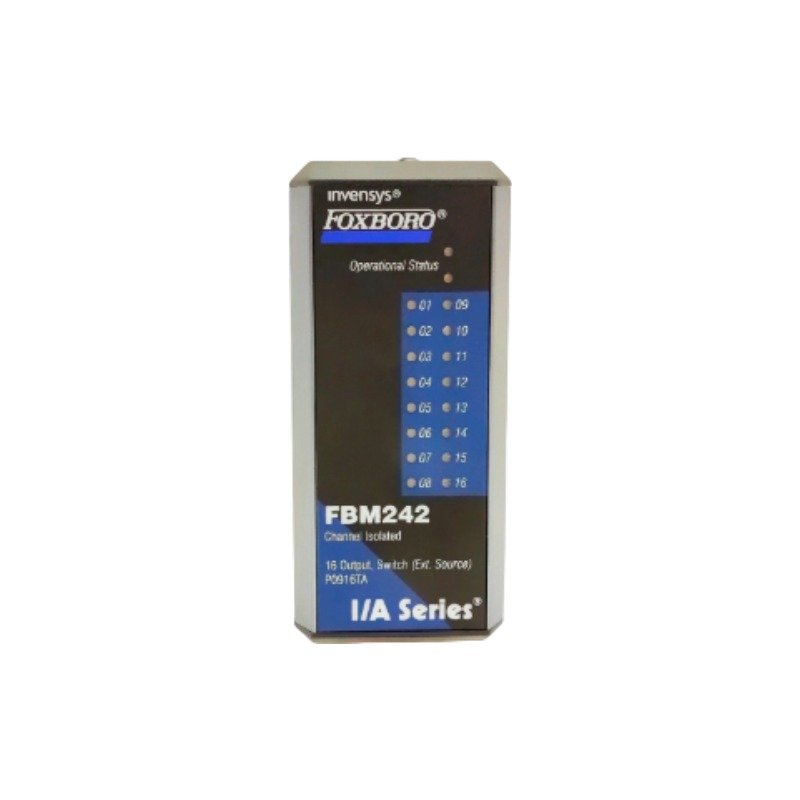

Foxboro FBM242 P0916TA External Sourced Discrete Output Module
Foxboro FBM242 P0916TA module available in Brand New condition with Original Stock. Global Shipping provided for process control architectures.
Description
Configured for discrete output processing in Foxboro I/A Series DCS networks, the Foxboro FBM242 P0916TA (FBM242 Discrete Output Module) provides direct physical/electrical execution. The module manages 16 isolated current-sinking or current-sourcing discrete channels to drive field relays, solenoids, and indicator circuits using external power sources ranging from 15 VDC to 60 VDC.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM242 P0916TA |
| Brand | Foxboro |
| Origin | USA |
| Weight | 0.28 kg |
| Dimensions | 114 mm x 45 mm x 105 mm |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | 3 W maximum at 24 VDC |
| Output Channels | 16 isolated discrete output channels |
| Applied Voltage Range | 15 to 60 VDC maximum |
| Maximum Load Current | 2.25 A per channel |
| Load In-Rush Current | 8 A for 20 ms at 30 deg C; 6.4 A for 20 ms at 70 deg C |
| On-State Voltage Drop | 1.2 VDC maximum at 2.25 A |
| Off-State Leakage Current | 0.1 mA maximum |
| Input Voltage (Redundant) | 24 VDC +5%, -10% |
| Maximum Heat Dissipation | 7.5 W at 24 VDC with all 16 channels at 2.25 A |
| Environmental Rating | Class G3 harsh environment compliant |
| EMC & Standards | EN 61326-1:2013 Class A, European Directive 2004/108/EC and 2014/30/EU |
Channel Isolation and Process Control Execution
The module incorporates galvanic isolation across all 16 output channels to prevent common-mode voltage spikes from interfering with internal system logic. Built-in thermal protection handles in-rush currents during heavy load activation, maintaining switching stability under maximum rated loop capacity. Zero periodic hardware calibration requirements simplify long-term maintenance cycles across the termination assembly interface.
Frequently Asked Questions
Q: Does the module require field or factory calibration during maintenance shutdowns?
A: No calibration is required for the module or its associated termination assemblies throughout its service lifecycle.
Q: What is the maximum allowable in-rush current for inductive load switching per channel?
A: Each channel handles up to 8 A for 20 ms at 30 deg C, or up to 6.4 A for 20 ms at 70 deg C operating temperatures.
Field Installation Guidelines
- Power down the mounting baseplate backplane before seating the module into the assigned slot.
- Align the module housing guide key with the baseplate socket to prevent connector pin damage.
- Press the module firmly into the baseplate slot until side retaining latches lock fully into position.
- Verify that external 15 to 60 VDC field power connections match the specified polarity on the termination assembly.
- Connect output cable shielding to the designated system grounding terminal to control transient interference.
Additional information
| Weight | 0.28 kg |
|---|---|
| Dimensions | 67 × 45 × 46 mm |
