Description

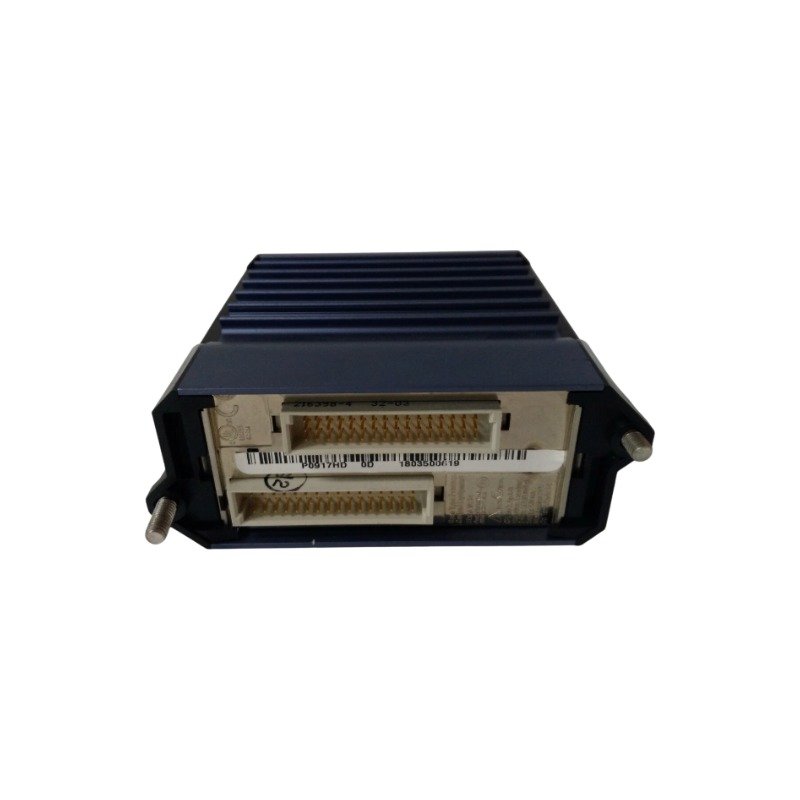

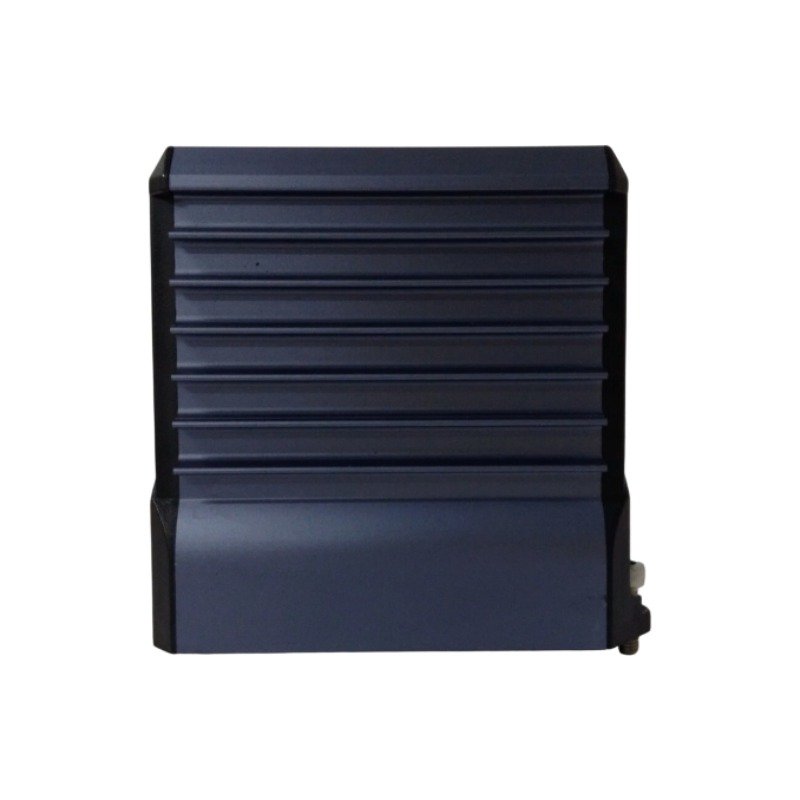

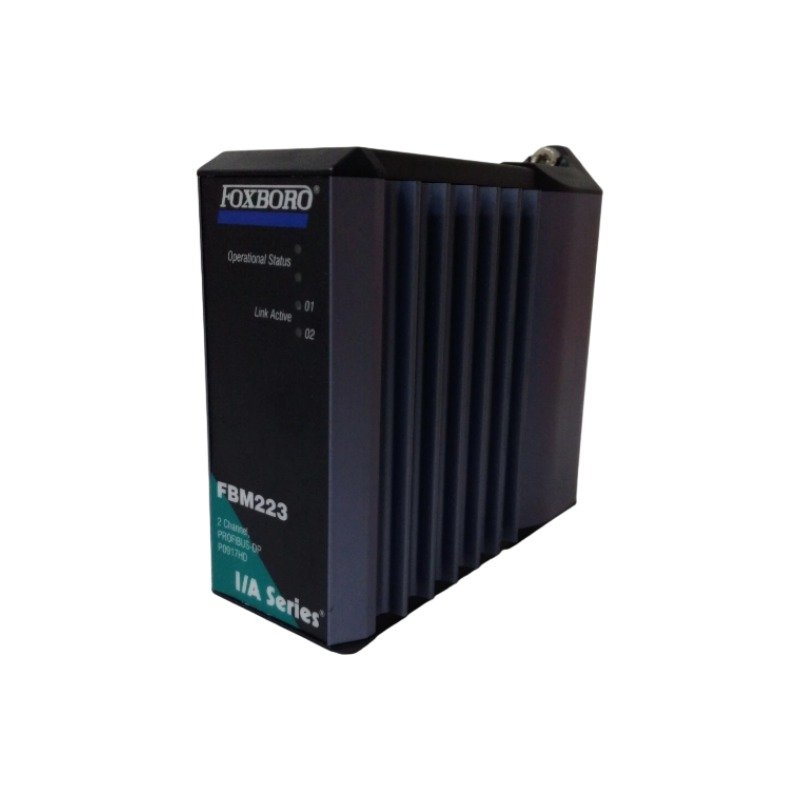

The Foxboro FBM223 P0917HD, also cataloged as the FBM223 Fieldbus Communication Module, operates as a dedicated hardware component for high-speed serial and Ethernet network interfacing within Foxboro I/A Series DCS platforms. It executes digital protocol integration and field device data exchange over dual redundant communication channels.

Hardware Specifications

Process Control Communication & Channel Isolation

The module integrates field device networks through channel-to-channel isolation and structured field protocol translation mechanisms. Consequently, galvanic isolation up to 1500 VDC prevents ground loops from disrupting data flow across industrial network transceivers. Furthermore, by maintaining dual redundant physical paths, the hardware seamlessly transfers communications upon link failure. As a result, the module ensures continuous data exchange with PLCs, gateways, and distributed I/O systems across industrial process networks.

Frequently Asked Questions

Q: How does the module maintain active communication during a network path disruption?

A: The hardware utilizes dual redundant physical channels. Consequently, when signal degradation or link disconnection occurs on the primary line, internal logic immediately transfers transmission to the secondary channel without dropping active DCI block connections.

Q: What environmental protection standards safeguard the module in harsh plant conditions?

A: The module features Class G3 conformal coating. As a result, this standard protects internal electronic components against airborne contaminants, corrosive gases, and severe humidity levels within operating ranges from -20 deg C to +70 deg C.

Field Installation Guidelines

First, align the module housing with its designated slot on the 200 Series baseplate assembly and push firmly until backplane bus connectors latch securely. Next, connect shielded twisted-pair network cables to the corresponding termination assembly, ensuring drain wires ground directly at the panel entry point. Additionally, maintain physical separation between digital communication runs and high-voltage AC power conduits to minimize electromagnetic interference. Finally, verify that the 24 VDC power supply remains within specified ±5% tolerances prior to energizing the backplane.
