Description

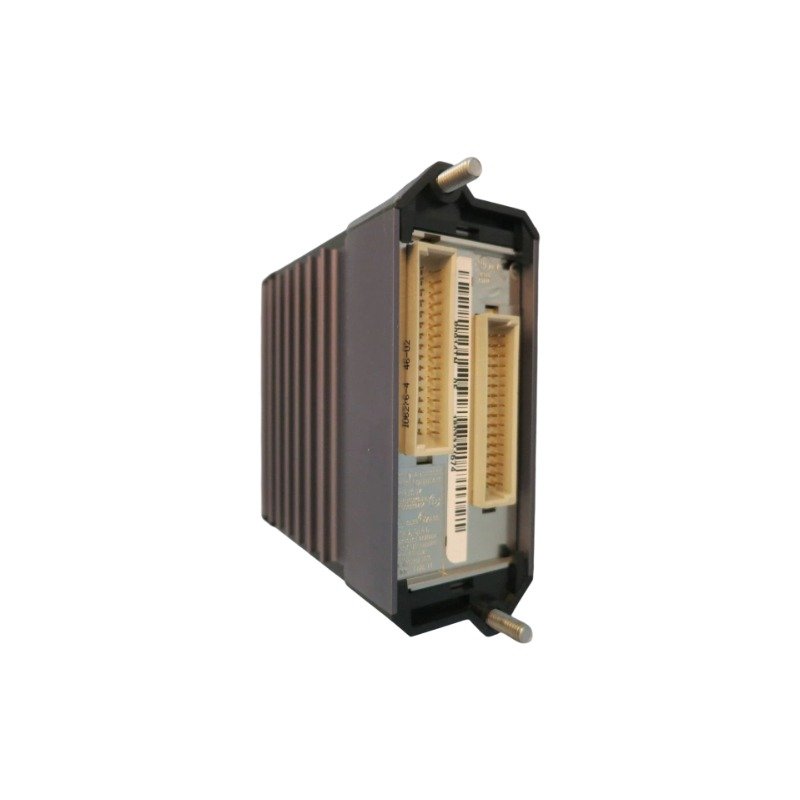

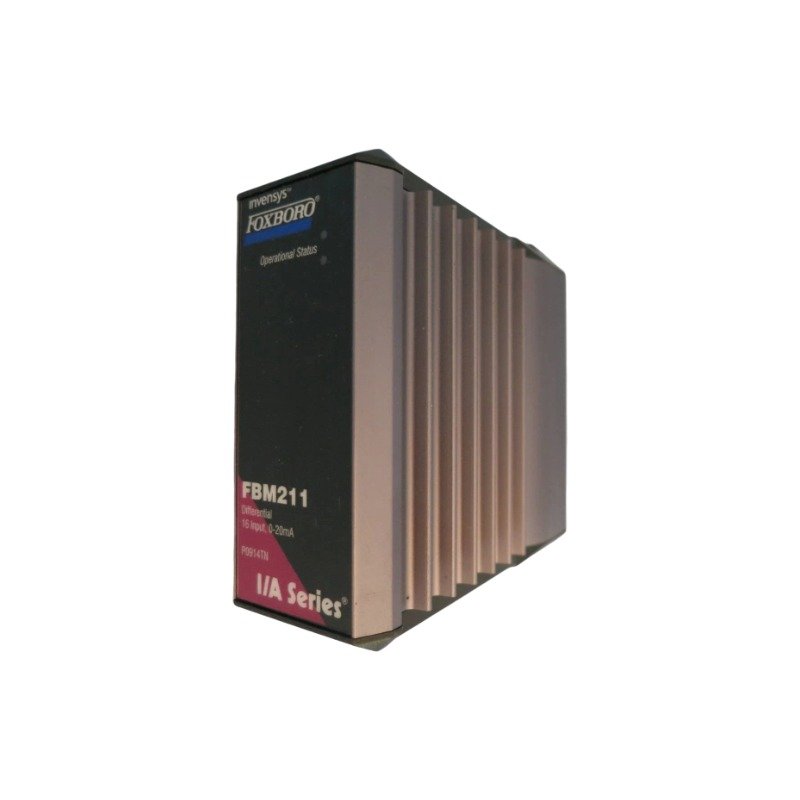

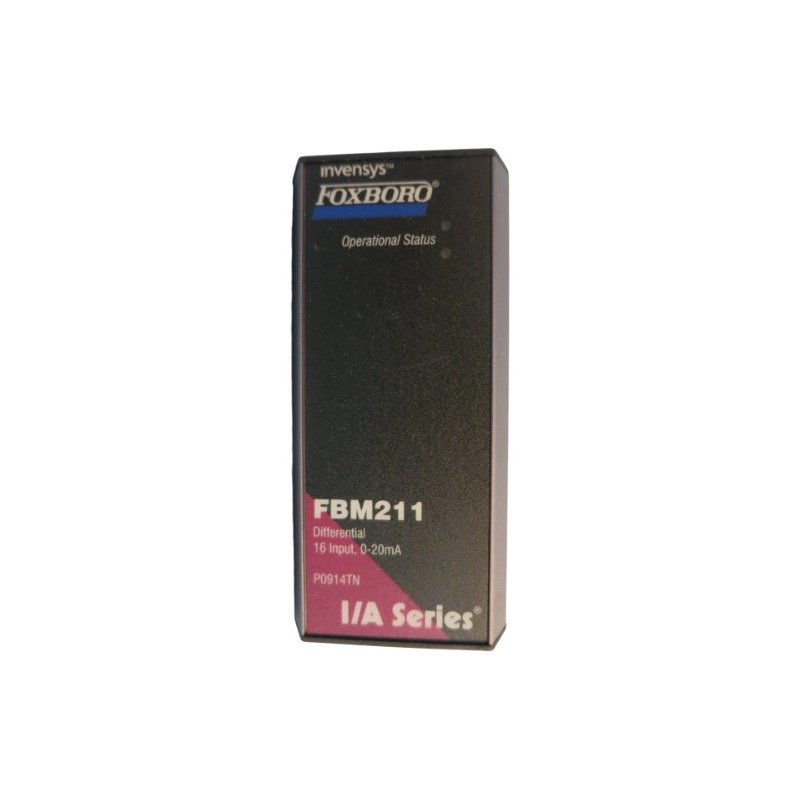

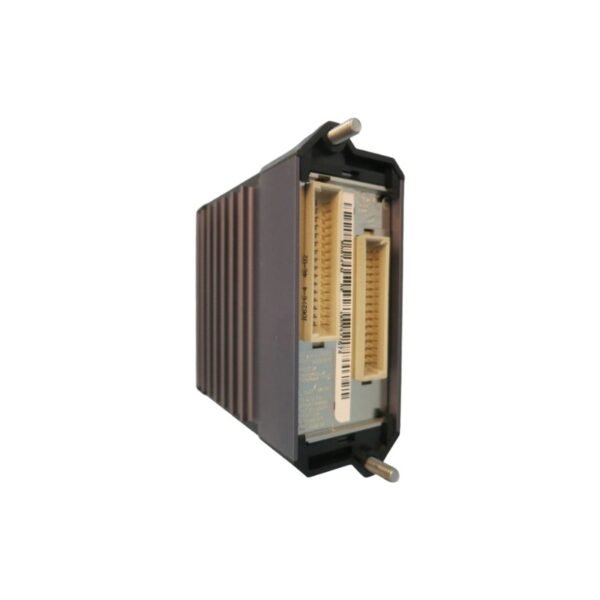

Configured for high-accuracy analog signal processing in Foxboro I/A Series DCS platforms, the Foxboro FBM211 P0914TN (FBM211 0 to 20 mA Analog Input Module) provides direct physical and electrical execution. It processes 16 group-isolated 0 to 20 mA DC analog input channels, rapidly converting field transmitter signals into digital data blocks for system-wide control execution.

Hardware Specifications

Process Control Instrumentation & Channel Isolation

The internal circuitry measures incoming 0 to 20 mA current loops across 61.5 Ohm precision resistors. Consequently, the high-resolution 15-bit A/D converter digitizes the resulting voltage drop to ensure accurate measurement. Furthermore, optical and galvanic isolation barriers effectively shield central backplane logic from ground loops and high-voltage field transients up to 600 VAC. Configurable digital filters additionally suppress signal noise, thereby stabilizing process data before passing parameters to the controller database.

Frequently Asked Questions

Q: How does the module execute signal conditioning and conversion for active current loops?

A: The module continuously channels input signals across internal 61.5 Ohm resistors. As a result, an integrated 15-bit A/D converter samples the voltage drop across each channel, completing updates within 25 ms per channel at ±0.03% full-scale accuracy.

Q: What isolation mechanism protects system electronics against severe line transients?

A: Integrated galvanic and optical barriers isolate the input channels from earth ground and the backplane logic. Consequently, the assembly withstands dielectric potentials up to 600 VAC for one minute without structural breakdown.

Field Installation Guidelines

First, seat the module directly into its assigned slot on the 200 Series baseplate until the backplane connector fully latches. Next, attach external field lines to the corresponding Termination Assembly (TA), taking care to observe correct loop polarity. Additionally, terminate all field cable drain wires at designated panel grounding points to maximize noise rejection. Finally, verify that the 24 VDC redundant power bus stays within specified ±5% tolerances prior to energizing the module.
