Description

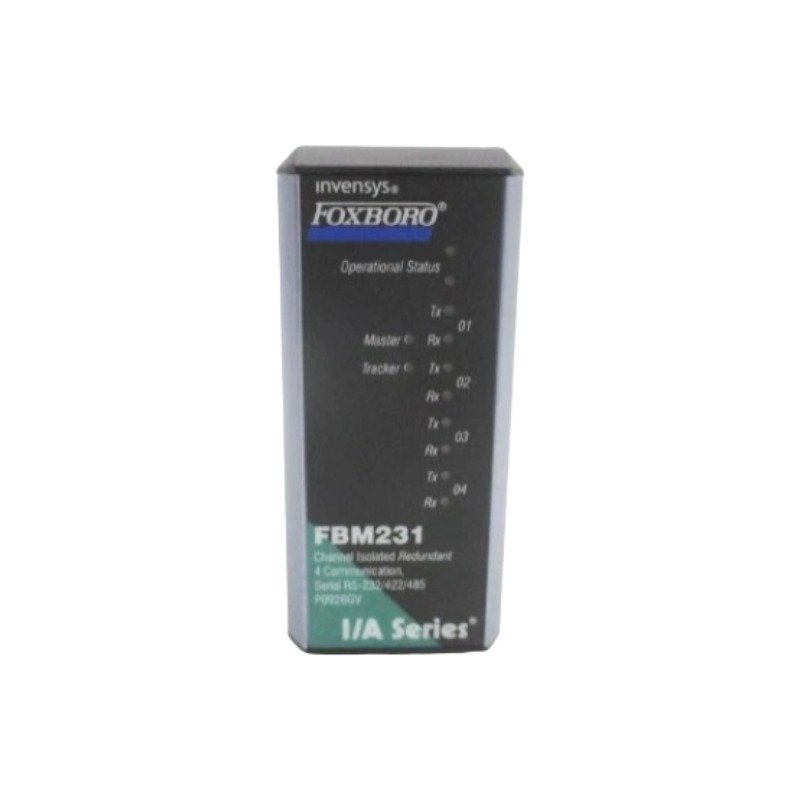

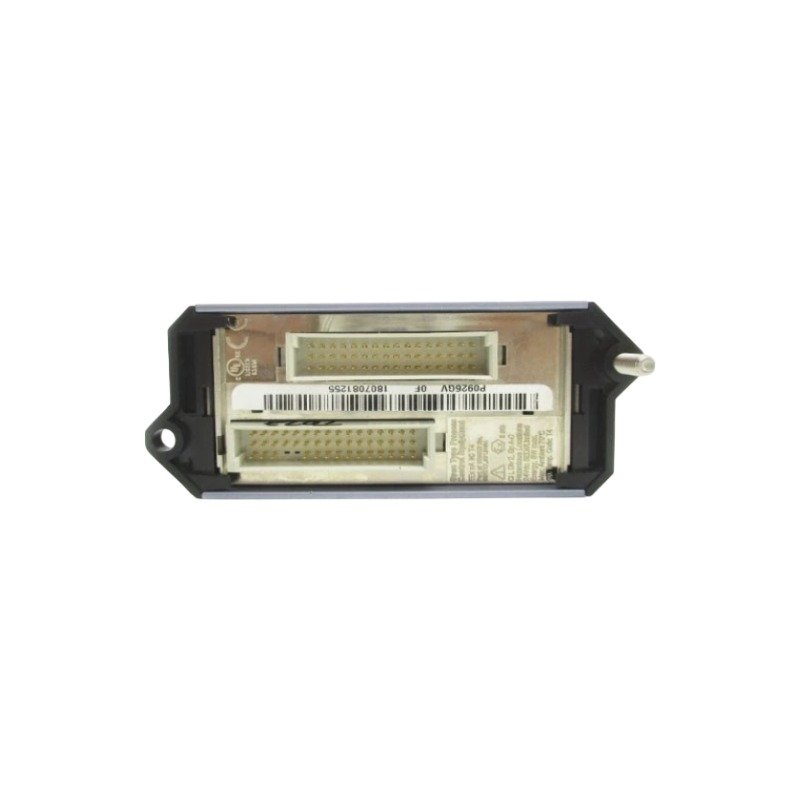

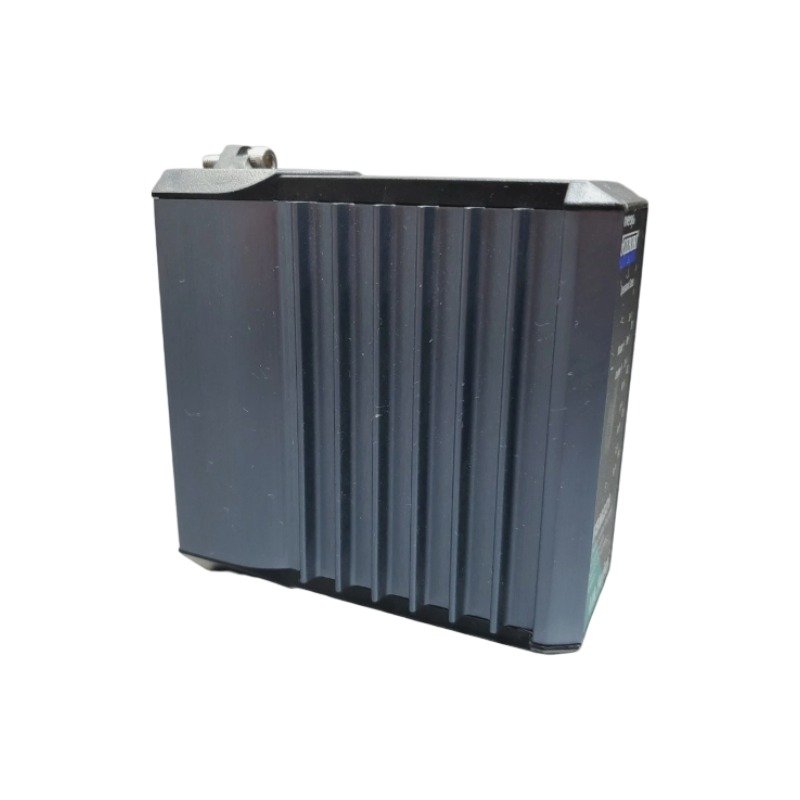

Configured for high-speed fieldbus communications and digital network interfacing in Foxboro I/A Series DCS networks, the Foxboro FBM231 P0926GV (FBM231 Fieldbus Communication Module) provides direct physical and electrical execution. It processes bidirectional serial and fieldbus protocols, rapidly linking distributed field devices to central system control blocks.

Hardware Specifications

Process Control Instrumentation & Channel Isolation

The internal communication processor manages data transactions across redundant physical network channels. Consequently, optical and galvanic isolation barriers up to 600 VAC shield central processing logic from field ground loops and electrical line surges. Furthermore, the module continuously monitors link integrity across primary and secondary channels. As a result, internal logic automatically switches communication paths upon detecting signal attenuation or line failure, maintaining uninterrupted data exchange with connected field instrumentation.

Frequently Asked Questions

Q: How does the module handle automatic path switching during network line failures?

A: The hardware continuously evaluates signal quality across its redundant communication channels. Consequently, when line degradation occurs on the active channel, the module transfers data traffic to the standby secondary path within milliseconds without dropping active process control blocks.

Q: What physical isolation parameters protect internal electronics from plant ground loops?

A: Integrated transformer and optical isolation components isolate the communication ports from the central backplane logic and earth ground. Consequently, the isolation barrier withstands dielectric testing potentials up to 600 VAC for one minute without breakdown.

Field Installation Guidelines

First, slide the module into its designated baseplate position on the 200 Series DIN-rail rack until the rear connectors click into the backplane. Next, connect fieldbus transmission cables to the designated Termination Assembly (TA), ensuring correct line termination resistance is applied. Additionally, attach all shielding drain wires directly to the panel ground busbar to maintain Class G3 noise suppression and surge protection standards. Finally, verify that 24 VDC redundant power bus tolerances remain within ±5% before restoring system power.
