Description

Brief Product Description

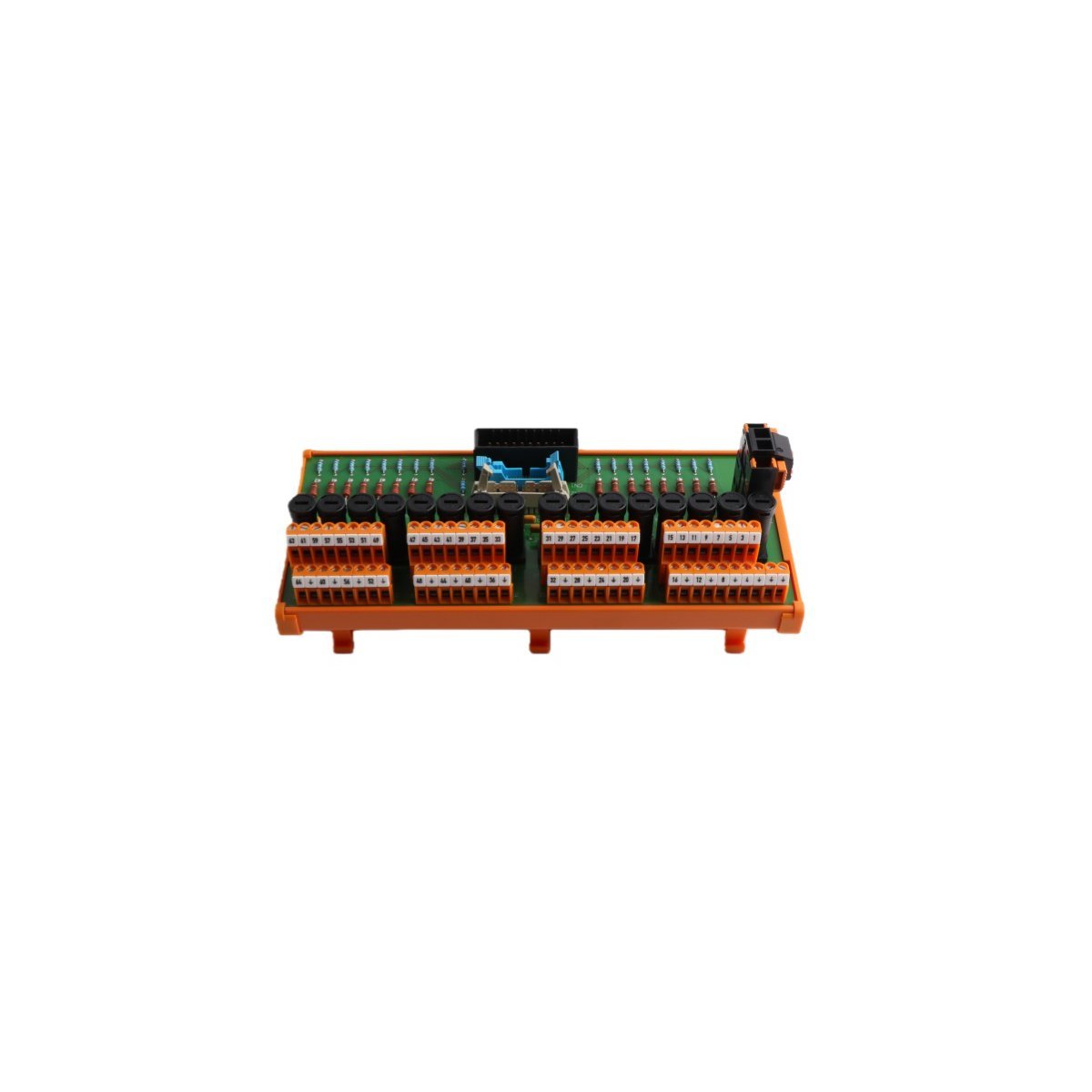

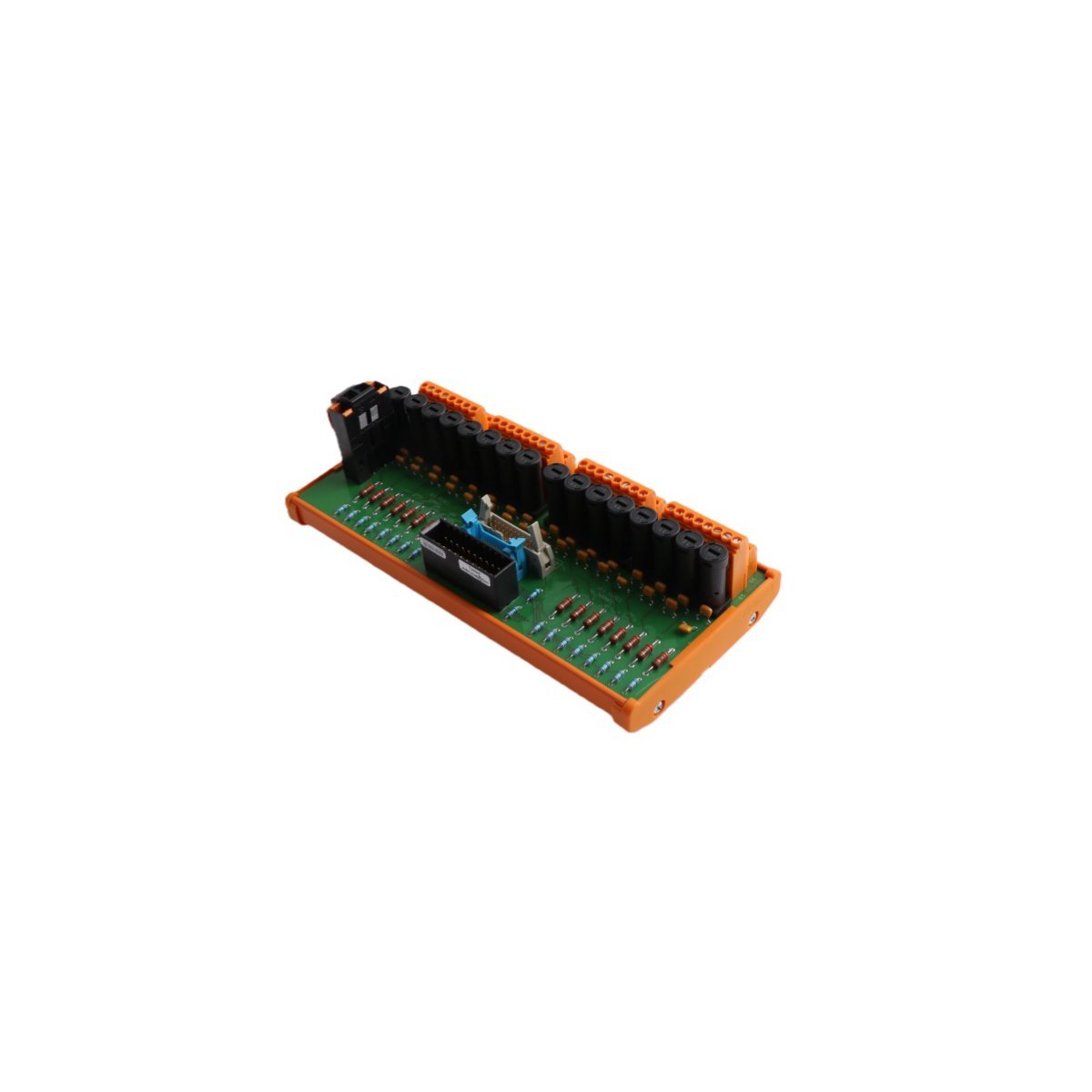

The Honeywell FC-TSGASH-1624P is a high-density Field Termination Assembly (FTA) designed to interface 16 analog gas and flame detectors with Honeywell Safety Manager systems. It features integrated HART communication on every channel to support advanced remote diagnostics and predictive maintenance in critical safety environments.

Product Description

High-Density Safety Interface for Hazard Detection

The Honeywell FC-TSGASH-1624P serves as a specialized bridge between field-mounted gas or flame detectors and the centralized Safety Manager controller. By providing sixteen dedicated analog input channels, this assembly allows engineers to consolidate multiple safety signals into a single, space-efficient interface. This density is particularly advantageous in complex industrial facilities where cabinet space is limited. Furthermore, the module supports both safety-critical and standard non-safety signal configurations, offering the versatility required for diverse plant protection strategies.

Comprehensive HART Integration and Remote Diagnostics

A standout technical advantage of the FC-TSGASH-1624P is its native support for HART (Highway Addressable Remote Transducer) protocol across all sixteen ports. This digital communication layer enables the control room to perform remote calibrations, modify device parameters, and retrieve real-time diagnostic data without dispatching technicians to hazardous field locations. By facilitating these predictive maintenance capabilities, the module significantly enhances system reliability and reduces the total cost of ownership for safety-instrumented systems (SIS). Consequently, operators can identify sensor degradation or calibration drift before they lead to potential safety gaps.

Streamlined Installation and Secure Connectivity

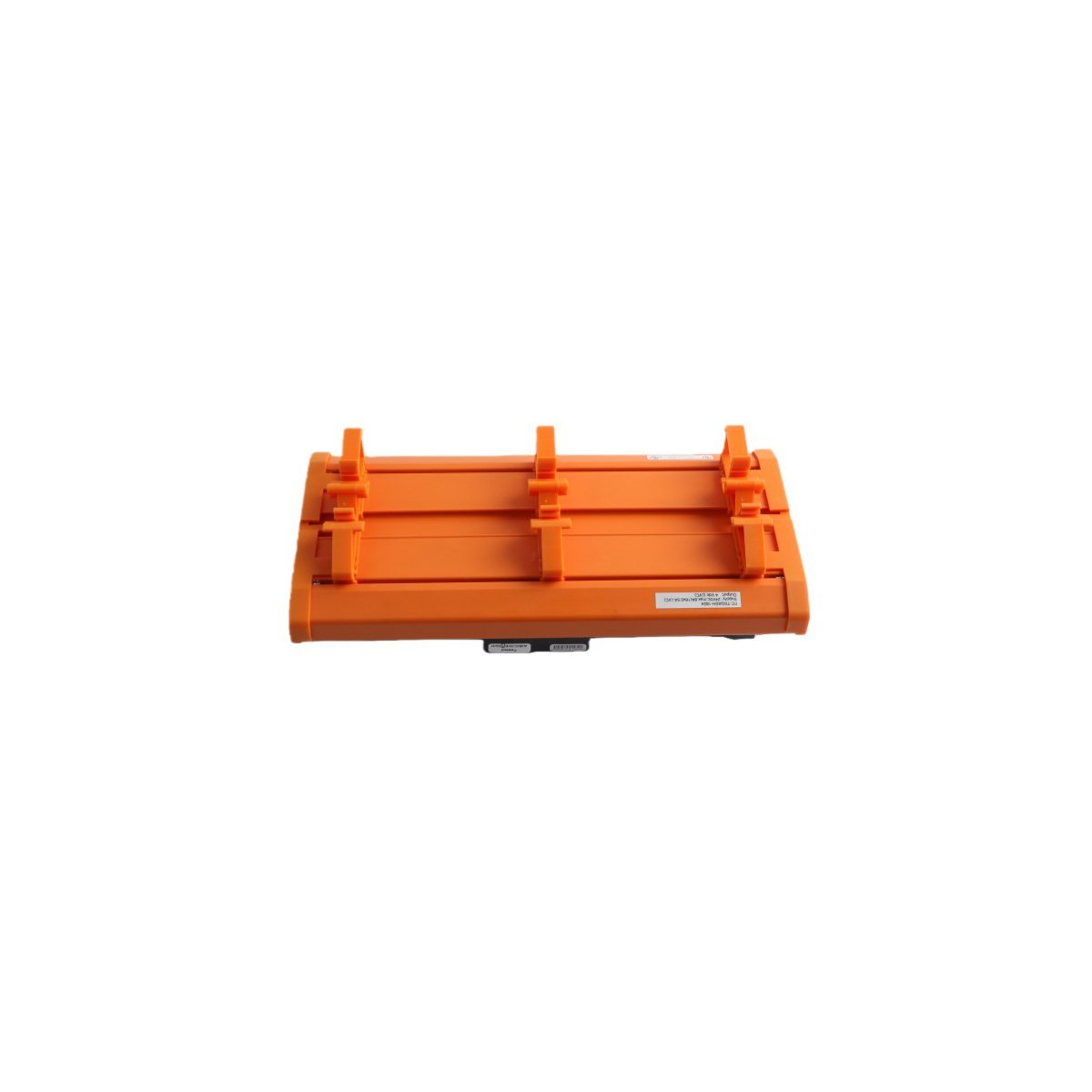

Honeywell designed the FC-TSGASH-1624P to simplify the complexities of panel assembly and field commissioning. The unit features a universal snap-on mechanism compatible with standard DIN rail systems, which ensures a fast and stable physical installation. For electrical connectivity, the module employs heavy-duty screw terminals that provide secure, vibration-resistant points for field wiring. Additionally, a dedicated 2-pole connector manages the 24V DC power distribution, maintaining a clean and organized terminal layout. These design choices collectively reduce the likelihood of wiring errors and accelerate the overall deployment schedule for safety projects.

Technical Specifications
