Description

Brief Product Description

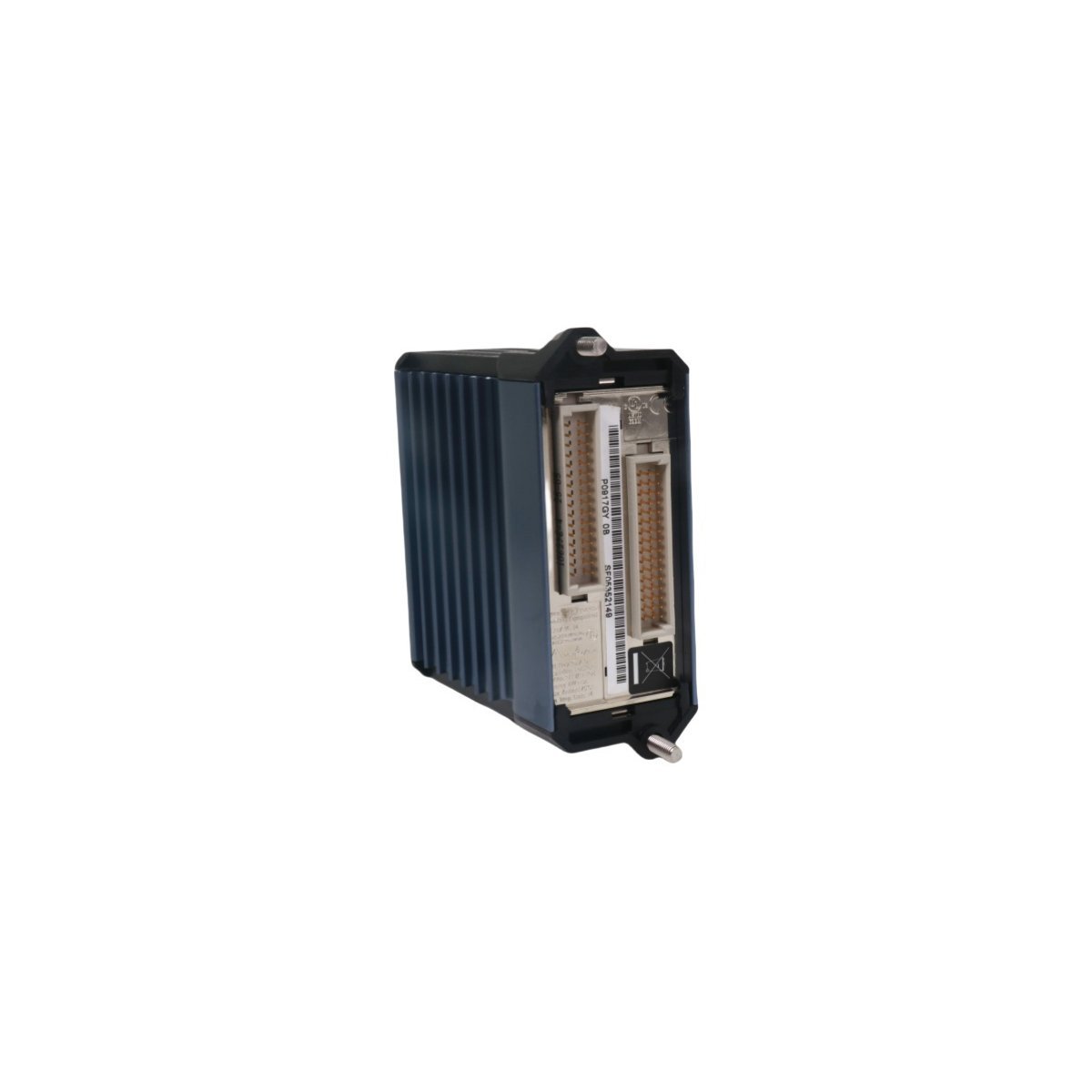

The Foxboro FBM207C is a rugged 16-channel discrete input module designed for the I/A Series Distributed Control System.² It provides precise voltage monitoring and contact sensing across multiple signal levels, ensuring reliable data acquisition for safety-critical and regulatory control applications.³

Reliable Discrete Signal Acquisition for Complex Networks

The Foxboro FBM207C serves as a high-density interface between field devices and the I/A Series DCS.⁴ Equipped with sixteen independent discrete input channels, this module accurately detects the status of switches, contacts, and voltage levels.⁵ It processes various signal types, ranging from 15 to 60 V dc for contact sensing to higher thresholds of 120 V ac/125 V dc and 240 V ac for voltage monitoring. By converting these field signals into digital process data, the FBM207C enables the control system to execute critical logic functions, pulse counting, and Sequence of Events (SOE) recording with high precision.

Advanced Isolation and Harsh Environment Protection

Operational integrity remains a priority in demanding industrial sectors like chemical processing and power generation. The FBM207C addresses this by providing galvanic isolation for each input, effectively shielding the system from ground loops and electrical noise.⁶ Furthermore, the module is rated for ISA Class G3 harsh environments, which means it resists the corrosive effects of atmospheric contaminants. Because of its wide operating temperature range and IP65-rated durability, the FBM207C maintains stable performance even when mounted in outdoor enclosures or non-climate-controlled equipment rooms.

Versatile Integration and Engineering Flexibility

System designers benefit from the FBM207C’s adaptable architecture, which supports both single and redundant configurations to meet specific availability requirements.⁷ The module interfaces with various Termination Assemblies (TAs), allowing for streamlined field wiring either locally or remotely.⁸ These assemblies often include additional signal conditioning hardware for optical isolation and voltage attenuation. Moreover, the FBM207C executes sophisticated ladder logic and configurable input filtering natively. This edge-processing capability reduces the load on the main control processor and improves the overall responsiveness of the industrial automation network.⁹

Key Technical Characteristics

• 16 Isolated Discrete Inputs: Provides high-density status monitoring for a wide variety of field contacts.¹⁰
• Multi-Voltage Support: Detects signals at 15–60 V dc, 120 V ac/125 V dc, and 240 V ac levels.¹¹
• Sequence of Events (SOE) Execution: Capable of high-resolution time-stamping for precise post-trip analysis.
• Galvanic Group Isolation: Protects internal circuitry from external field excitation and electrical interference.¹²
• Class G3 Environmental Rating: Engineered to withstand corrosive and high-contamination atmospheres.¹³
• Low Power Management: Consumes only 5 Watts, contributing to lower thermal loads and operational costs.¹⁴
