Product Description

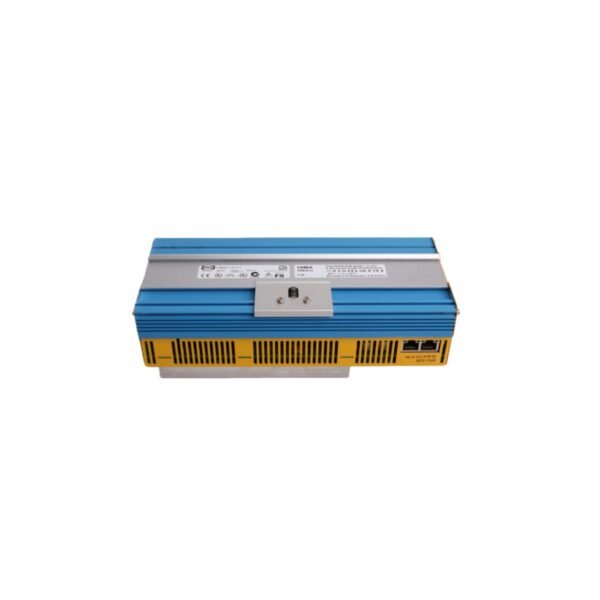

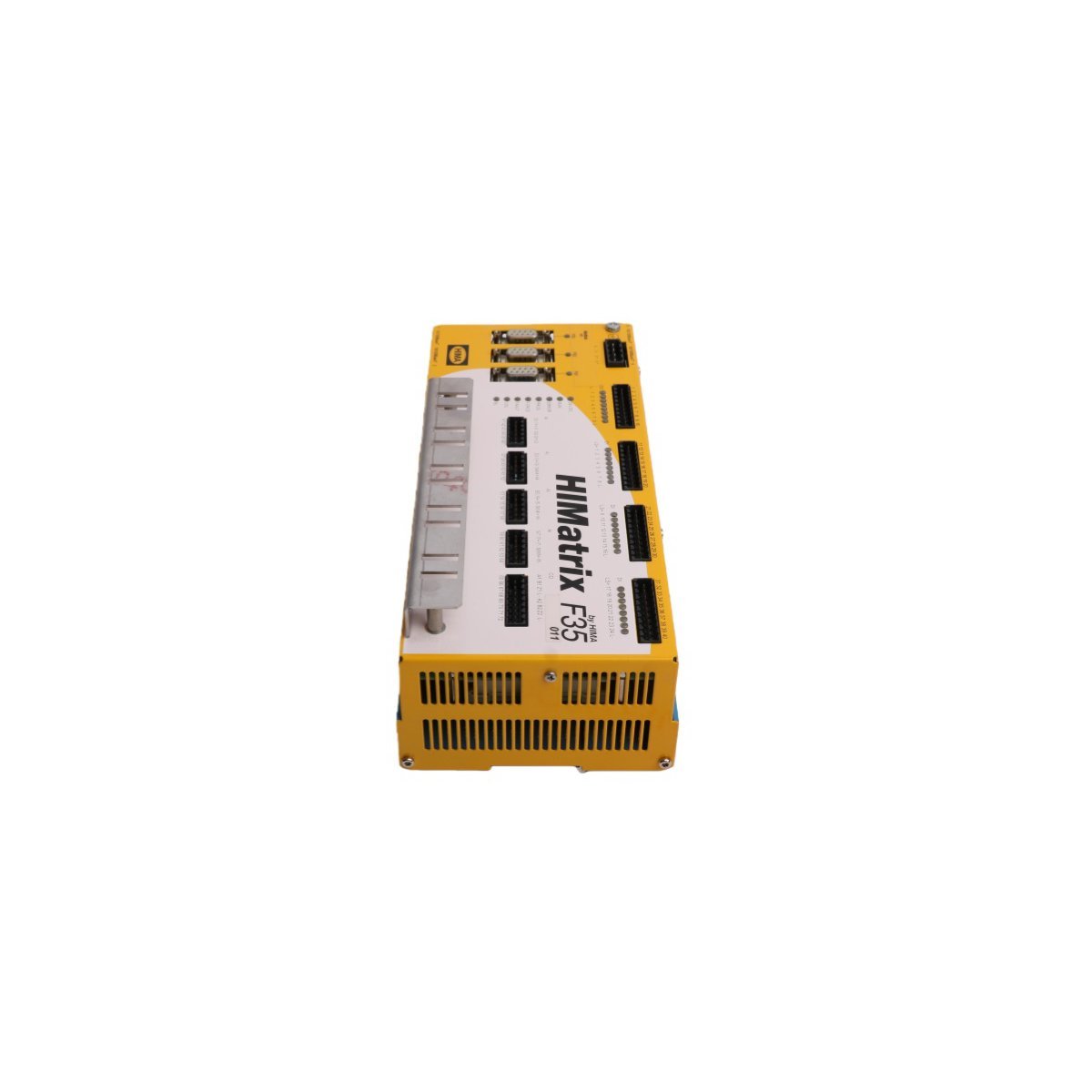

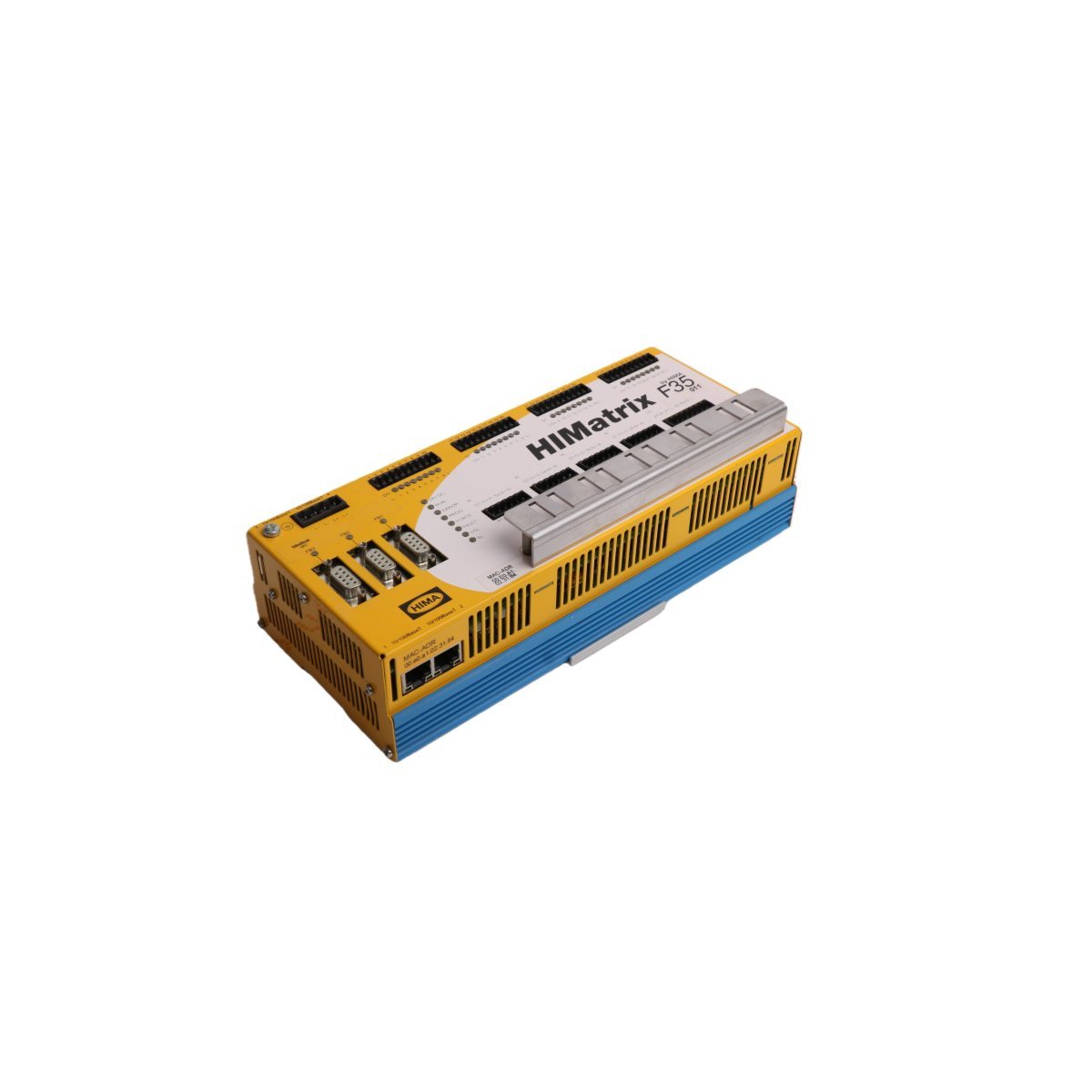

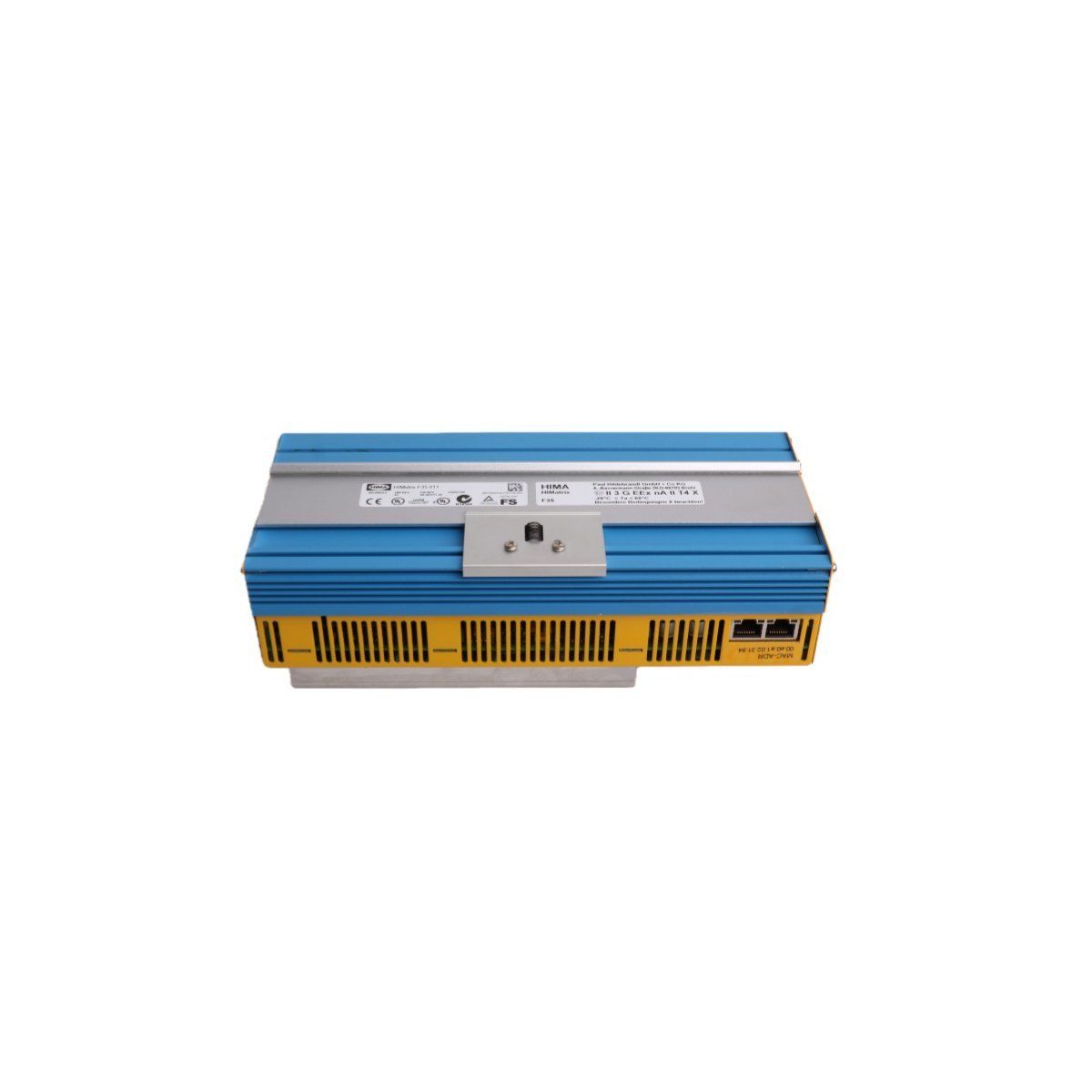

The HIMA HIMatrix F35 010 30 is a high-integrity, compact safety controller designed for distributed safety applications requiring the highest levels of functional safety. This module integrates seamlessly into Safety Instrumented Systems (SIS) to provide dependable protection for critical industrial processes.

High-Integrity Safety Architecture

Engineers developed the F35 010 30 to meet SIL 3 requirements in accordance with IEC 61508 and EN 954-1 Category 4. This module excels in providing deterministic response times, which are vital for emergency shutdown (ESD) and fire and gas (F&G) detection systems. The hardware utilizes a multi-processor architecture that continuously performs self-diagnostics to detect internal faults. Consequently, the controller ensures that the process transitions to a safe state immediately upon detecting any hardware or software abnormality.

Connectivity and Industrial Integration

The HIMatrix F35 010 30 facilitates rapid communication via safeethernet, allowing for distributed safety logic across extensive plant networks. This networking capability enables the module to function as either a standalone controller or as a remote I/O component within a larger DCS environment. Moreover, its compact form factor allows for installation in decentralized junction boxes, significantly reducing field wiring costs while maintaining high-speed signal processing.

• Safety Certification: Certified for use in SIL 3 and PL e applications.
• Communication: Utilizes safeethernet (IEEE 802.3) for secure, real-time data exchange.
• Configuration: Operates within the SILworX programming environment for intuitive logic development.
• Diagnostics: Includes comprehensive LED status indicators for power, system errors, and I/O channel health.
• Resilience: Features a fanless, robust design intended for harsh industrial environments with high electromagnetic interference.
