Description

Functional Description

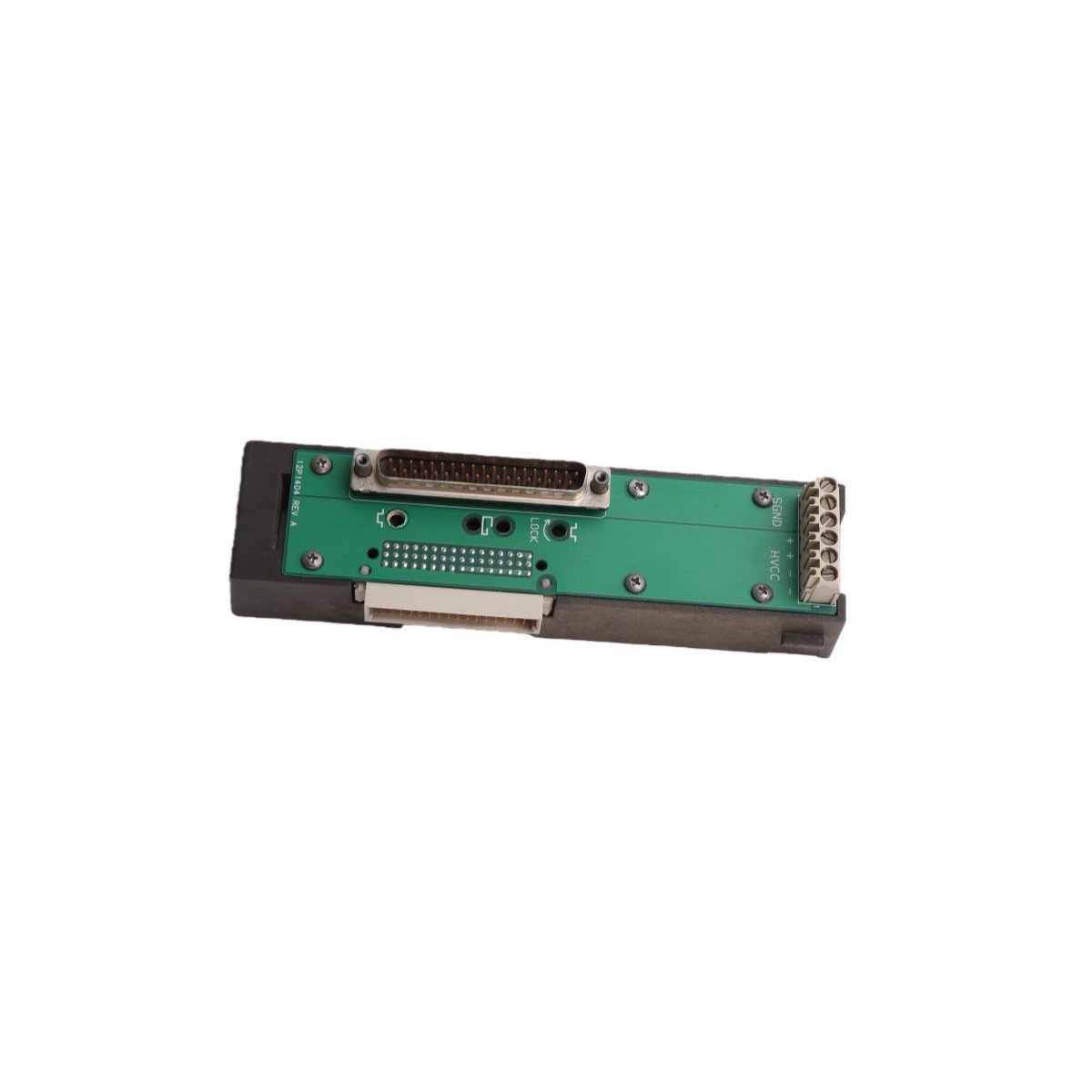

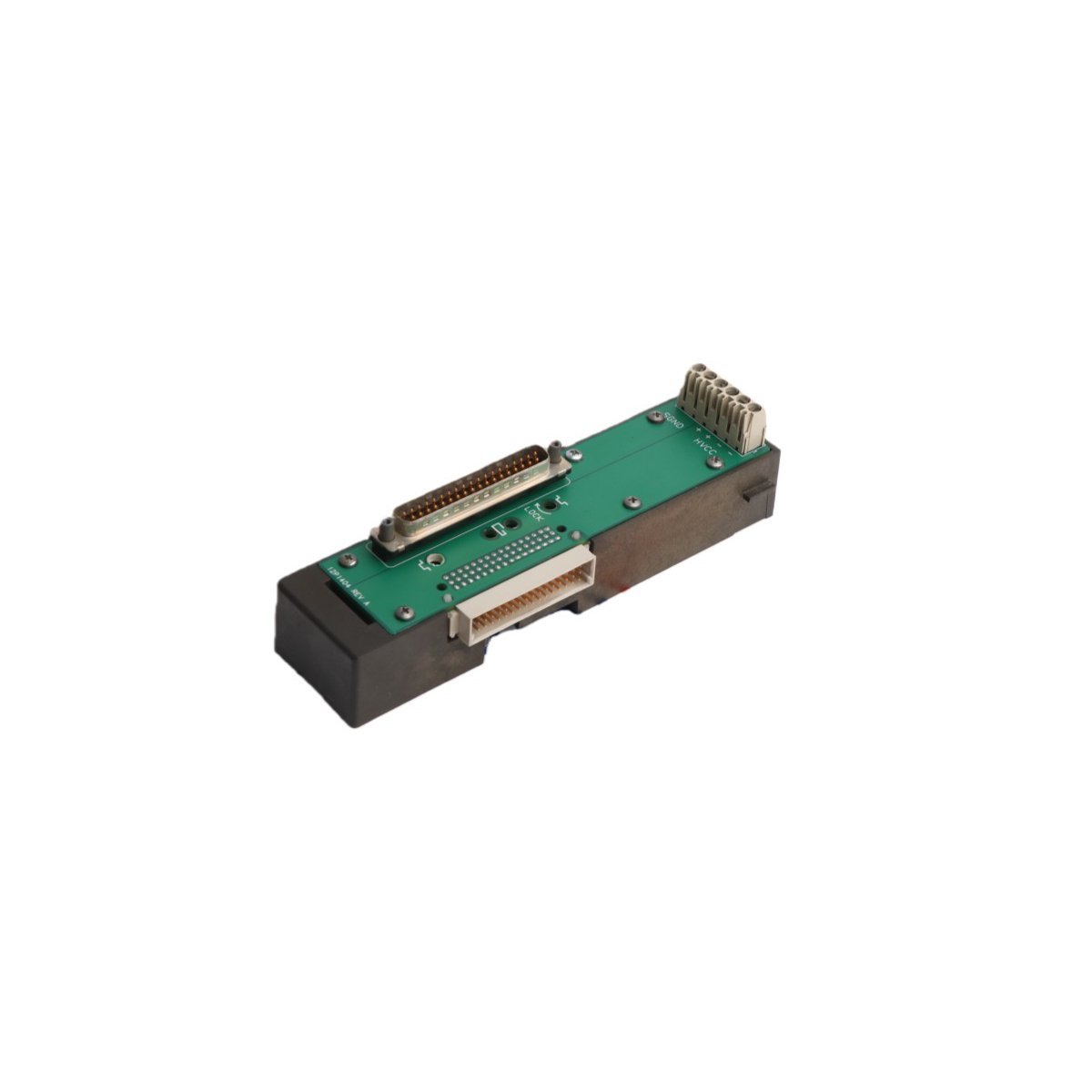

The Emerson KJ4001X1-HA1 12P0949X042 operates as a high-integrity Localbus Extender Cable assembly within the DeltaV and DeltaV SIS™ Distributed Control System (DCS) architectures. This specialized hardware component is engineered to bridge and extend the proprietary localized communication backplane across separate I/O carrier racks. By maintaining low-impedance electrical continuity, the extender cable transfers real-time I/O diagnostics and time-critical process data between adjacent hardware banks without introducing bus latencies or signal distortion.

Engineering Design and Environmental Resilience

• Deterministic Bus Extension: Optimally calibrated for 12 V DC bus environments at a nominal current draw of 150 mA, keeping power consumption low while securing fast data transfer across extended rack spaces.
• Industrial Physical Protection: Enclosed within a ruggedized structural sheath, the assembly holds an IP20 ingress defense rating, striking a balance between reliable solid-object protection and ambient convective cooling.
• Vibration and Shock Hardening: Built to survive active plant conditions, the cable safely absorbs physical stresses up to 1 mm peak-to-peak displacement (spanning 5 to 16 Hz) and structural shocks of 10g half-sinewave impulses lasting 11 milliseconds.
• Corrosive Gas Isolation: The interface connectors feature specialized metallurgy compliant with ISA-S71.04-1985 Airborne Contaminants Class G3 standards, preventing oxidative buildup in harsh, chemical-heavy control rooms.
• Climate Adaptability: Operates continuously through a broad industrial temperature envelope from 0°C to 60°C and copes easily with relative humidity levels ranging from 5% to 95% non-condensing.

Industrial Applications

Automation engineers deploy the KJ4001X1-HA1 extender cable in complex, multi-rack distributed environments where I/O counts exceed a single enclosure’s capacity. It is heavily utilized throughout oil refining complexes, pharmaceutical production lines, and water treatment operations to interconnect digital, analog, and safety-instrumented system (SIS) carriers. This connection forms a singular, expansive, yet highly synchronized automation grid.

Product Technical Specifications

• Brand Manufacturer: Emerson Automation Solutions
• System Architecture: DeltaV / DeltaV SIS Series
• Model Number: KJ4001X1-HA1
• Part Number Identification: 12P0949X042
• Component Classification: Localbus Expansion / Extender Cable Interconnect
• Bus Operating Voltage: 12 V DC (150 mA Current Rating)
• Physical Outline Dimensions: 12.1 cm x 5.2 cm x 16.6 cm
• Net Hardware Weight: 0.34 kg
• Country of Origin: United States
