Product Overview

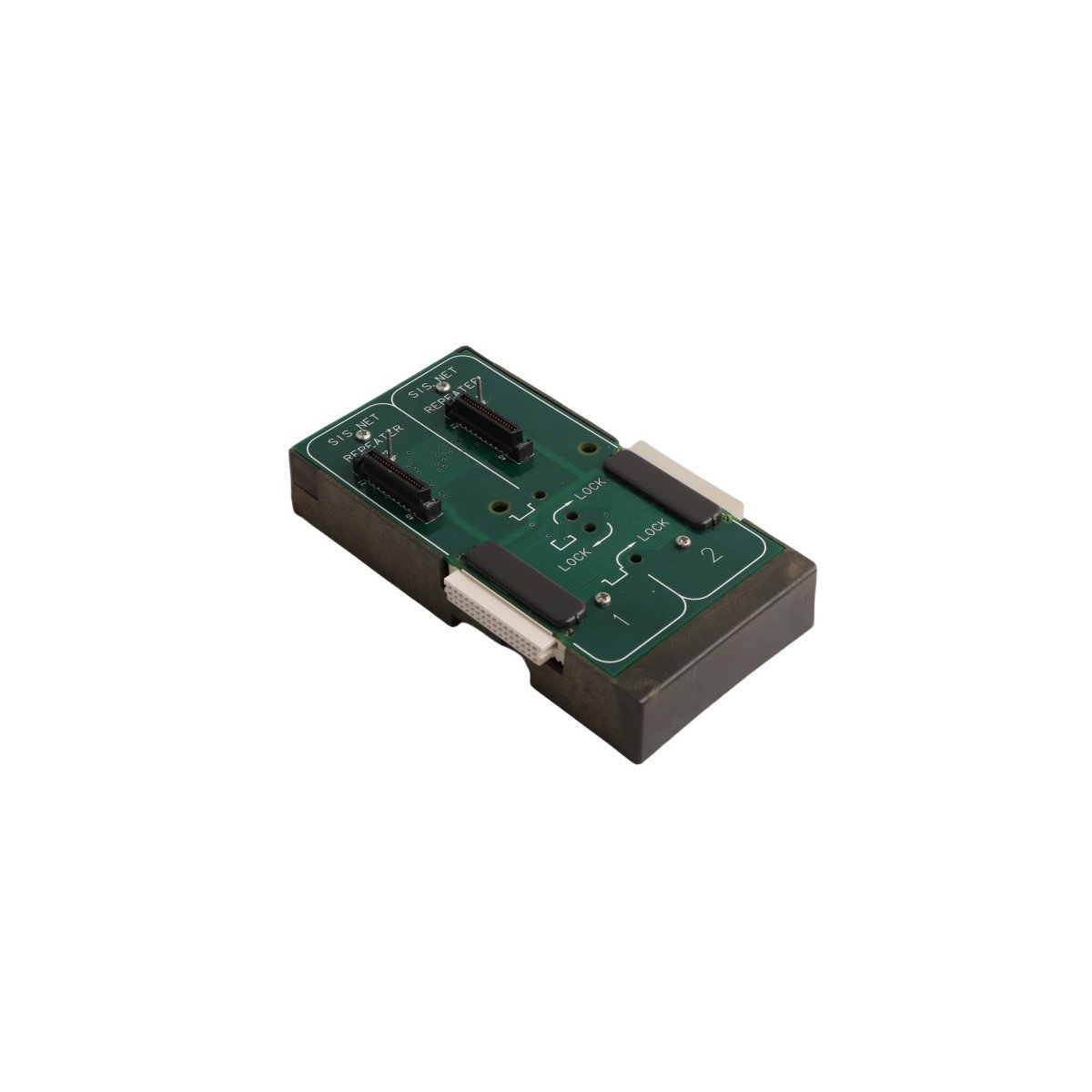

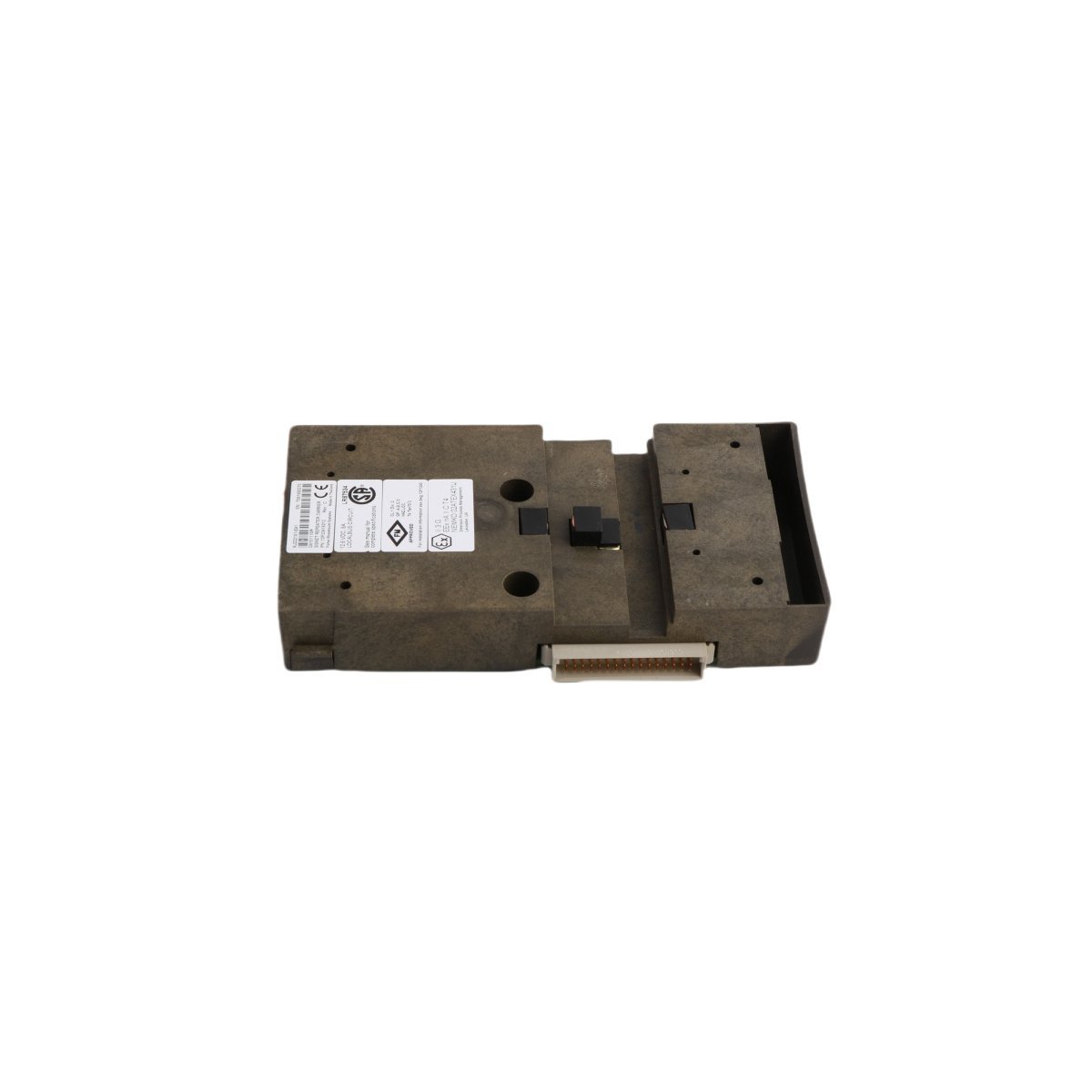

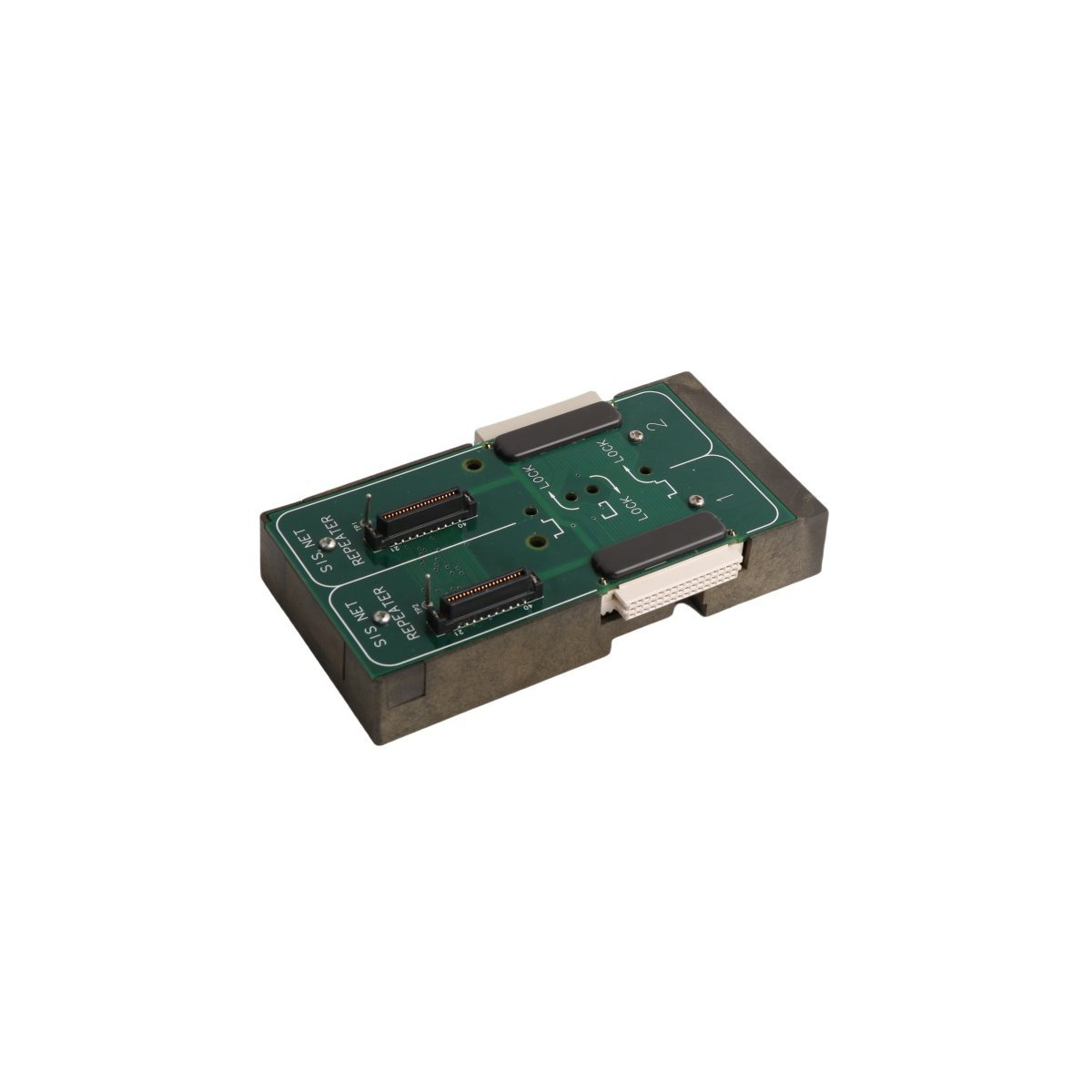

The Emerson DeltaV KJ2231X1-EA1 (Engineering Part Numbers: 12P3241X012 and VS6002) is a specialized structural hardware component engineered for the DeltaV SIS™ (Safety Instrumented System) platform. Classified as a SISNet Repeater Carrier, this module acts as the physical and electrical mounting interface for SISNet repeater modules. It is a critical infrastructure asset used to extend the communication distances of the safety network bus, ensuring inter-peer logic solvers remain synchronized across large-scale industrial facility footprints.

Core Technical Specifications

Industrial Applications and System Deployment

The KJ2231X1-EA1 carrier is deployed in complex processing plants where safety-critical logic solvers and I/O subsystems are physically separated by long distances. Key application environments include:

• Sprawling Power Generation Stations: Linking distant boiler protection systems, emergency switchgear rooms, and generator safety controls to the centralized control room.
• Large Petrochemical & Tank Farm Facilities: Stretching reliable communication lines to remote safety valves, tank level monitors, and ESD (Emergency Shutdown) fields.
• Offshore Oil & Gas Platforms: Bridging safety networks between different platform decks, utility modules, and living quarters.

Operational Characteristics and Functional Advantages

• Signal Degradation Prevention: Provides a high-integrity electrical bus that hosts repeater modules to refresh, amplify, and retransmit safety data over copper or fiber media, eliminating packet loss across broad network topologies.
• Deterministic Safety Response: Ensures that critical emergency shutdown commands or interlock trips pass through the expanded safety network with zero structural propagation delays, maintaining the system’s real-time safety metrics.
• Robust Environmental Durability: Designed to handle industrial electrical interference (EMI/RFI), structural vibrations, and thermal fluctuations common within distributed processing racks.
• Fault-Tolerant Redundancy Architecture: Built to fully integrate into redundant SISNet loops, facilitating secondary backup routing paths to keep peer-to-peer logic running smoothly if a single communication link fails.
• Native DeltaV Integration: Pairs with native DeltaV safety software tools for automated device discovery, simplifying network diagnostics and real-time carrier health reporting.
