Description

Product Overview

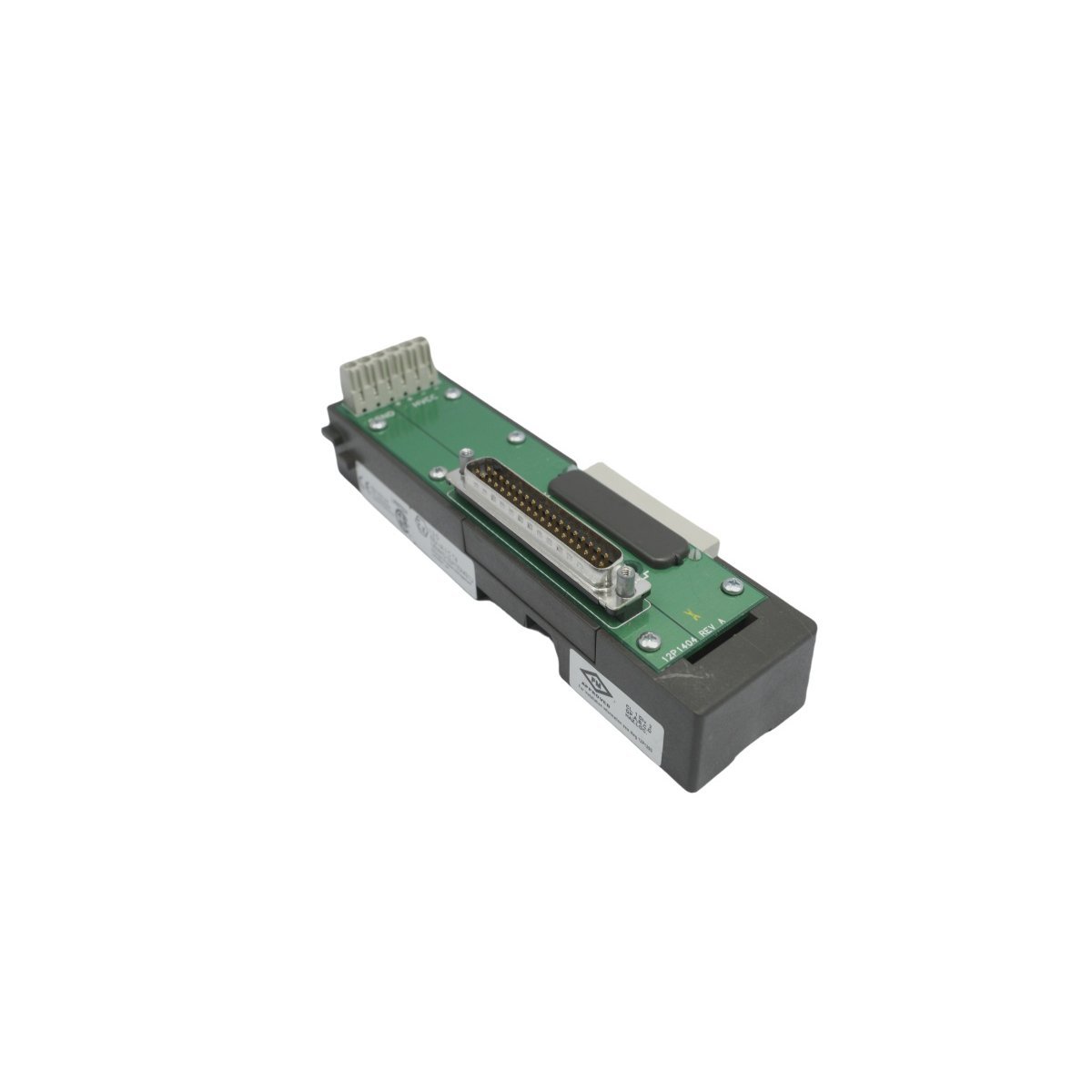

The Emerson DeltaV KJ4010X1-BF1 12P0831X062 is a hardware expansion component designed for the DeltaV M-series I/O Subsystem architecture. Operating as a Left LocalBus Extender, this module physically and electronically extends the native backplane bus of a distributed control system (DCS) carrier. This extension allows engineering teams to increase system capacity by adding more installation slots for vital functional modules, including advanced input/output card arrays and direct communication interfaces.

Core Technical Specifications

• Manufacturer: Emerson Process Management
• Product Line: DeltaV M-series I/O Subsystem
• Model Designation: KJ4010X1-BF1
• Part/Order Number: 12P0831X062
• Hardware Category: Left LocalBus Extender Module
• Control Infrastructure: Distributed Control Systems (DCS)
• Net Weight: 0.1 kg
• Physical Proportions: 16.5 x 5.1 x 3.8 cm
• Harmonized Tariff Code (HS Code): 8537101190

Industrial Applications and Asset Deployment

This bus extension interface is utilized in heavily automated process sectors such as chemical refining, oil and gas extraction, municipal water treatment, and large-scale power generation. Whenever an existing DeltaV controller base reaches its maximum physical physical capacity, this extender module is deployed to seamlessly expand network architecture. Consequently, facilities can implement extensive plant expansions or execute control loops upgrades without overhauling their primary DCS infrastructure.

Operational Characteristics and Functional Advantages

• Seamless Backplane Continuity: The module lengthens the data bus transmission line, enabling high-speed communication from the main controller to the secondary I/O base without signal attenuation.
• Ruggedized Industrial Enclosure: Built to operate reliably in harsh processing zones, the module resists continuous mechanical vibration, ambient dust infiltration, and mild thermal fluctuations.
• Native Configuration Matching: Because the extender integrates directly with the standard DeltaV diagnostic software layer, the system auto-detects downstream functional modules to simplify initial configuration tasks.
• Compact Footprint Efficiency: The narrow mechanical design occupies minimal rail space inside control panels, permitting high-density I/O configurations within compact electrical cabinets.
