Description

Brief Product Description

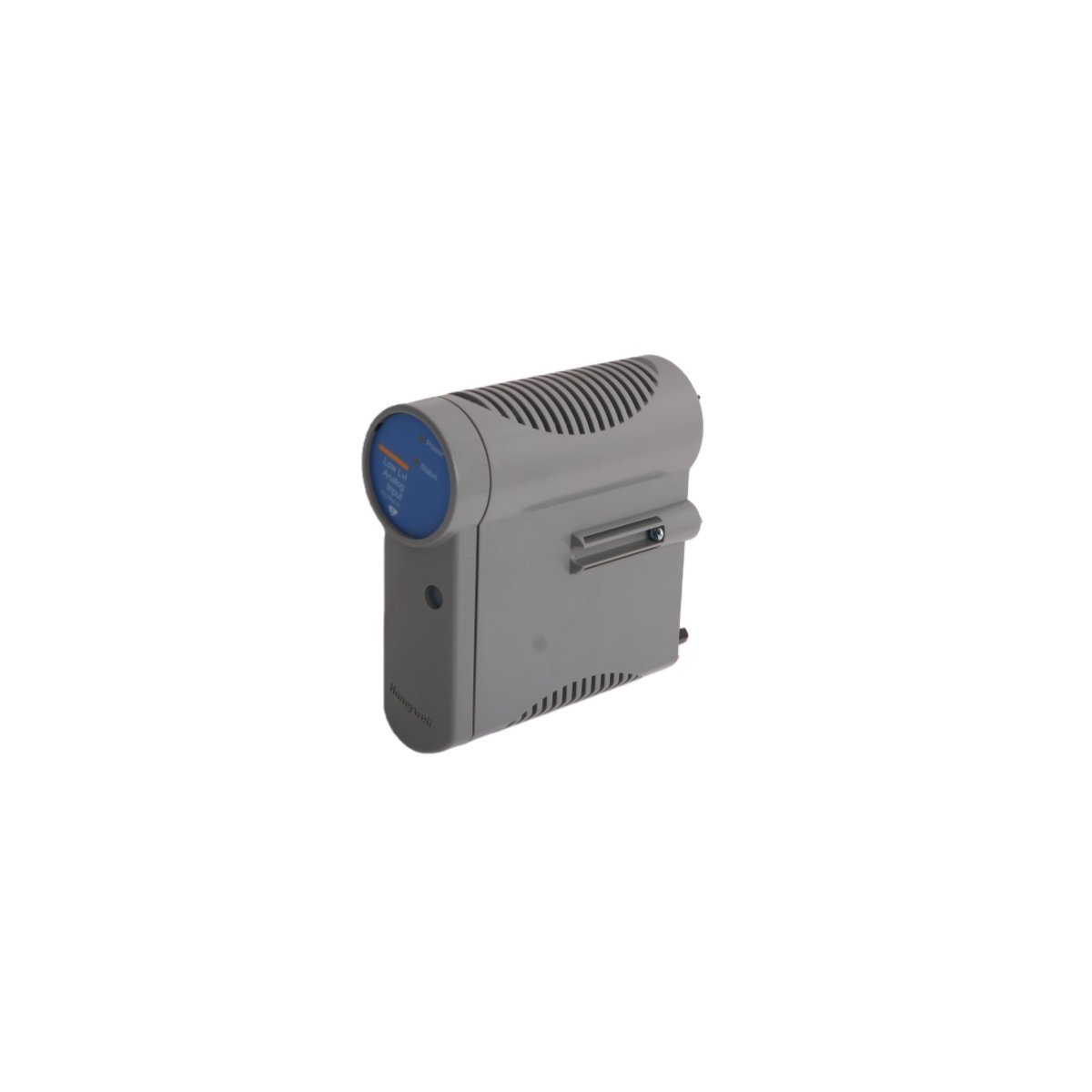

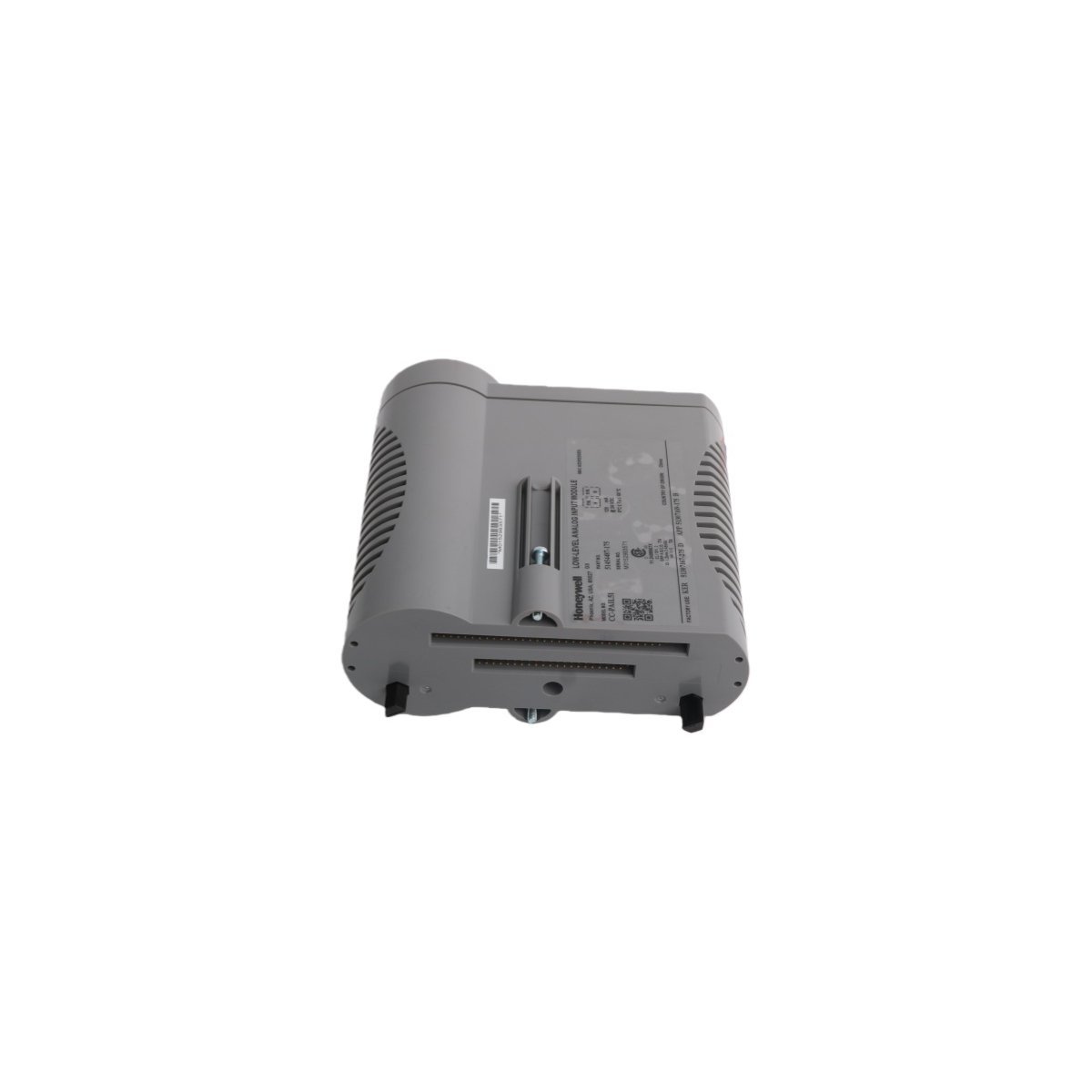

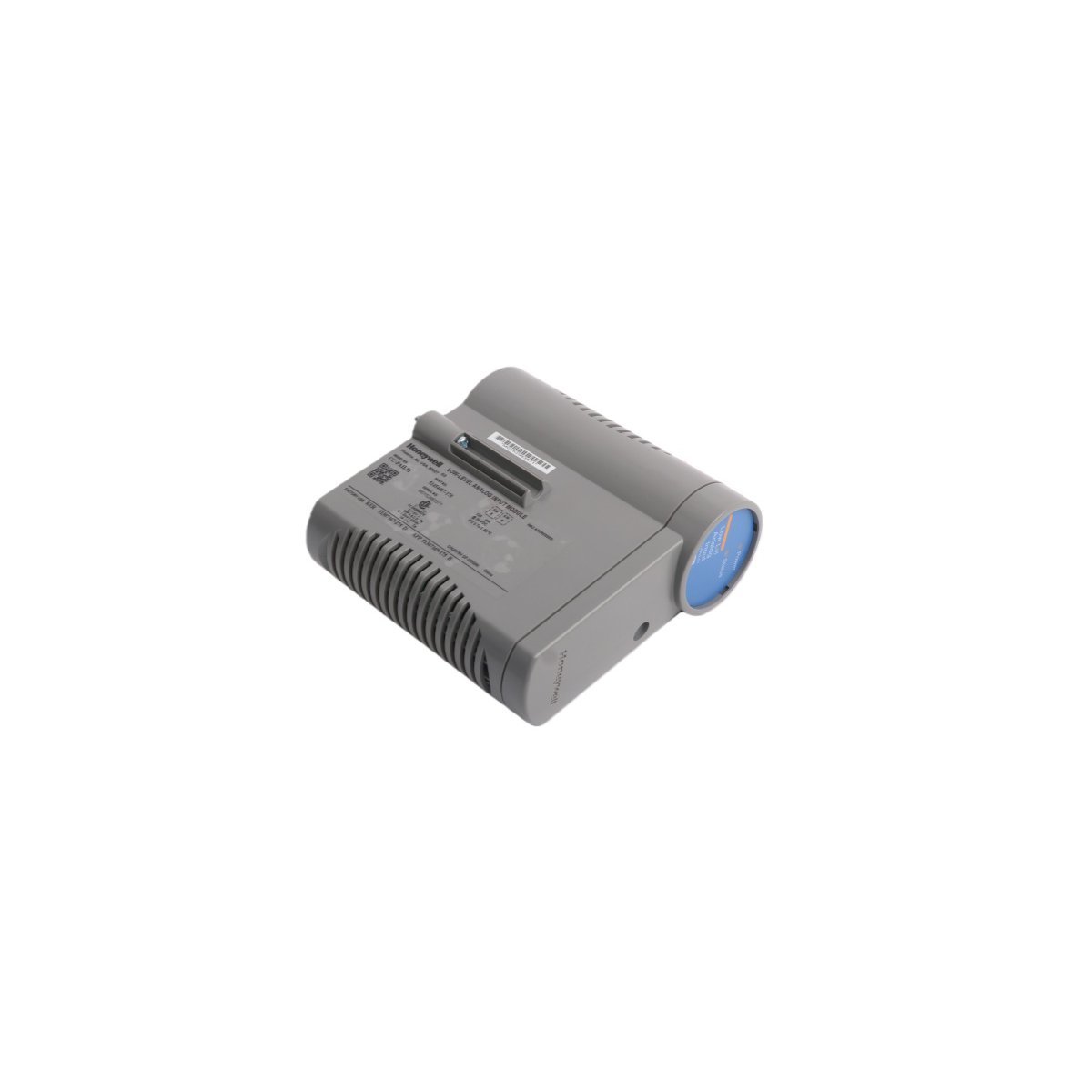

The Honeywell CC-PAIL51 is a 16-channel, high-precision analog input module designed for the Experion Series C I/O system. It specializes in low-level signal acquisition from Thermocouples (TC) and Resistance Temperature Devices (RTD) to ensure accurate thermal monitoring in rugged industrial environments.

​Product Description

High-Density Temperature Data Acquisition

The Honeywell CC-PAIL51 serves as a specialized interface for low-level signal processing within the Experion PKS architecture. By supporting 16 isolated channels, this module allows operators to aggregate a high density of temperature sensors into a single Series C footprint. Each channel offers universal configuration, meaning engineers can mix Thermocouple and RTD inputs depending on the specific thermal ranges required by the process. This versatility eliminates the need for multiple specialized modules, thereby optimizing cabinet space and reducing overall system overhead.

Advanced Signal Conditioning and Protection

Precision remains the cornerstone of the CC-PAIL51 design. To maintain measurement integrity, the module incorporates integrated Cold Junction Compensation (CJC) for thermocouples and a rapid one-second scanning rate for all process variables. These features ensure that the control system receives a highly accurate representation of field conditions in real-time. Furthermore, the module includes built-in over-temperature detection and electrical isolation to shield the DCS backplane from field-side transients. Consequently, the unit maintains superior gain accuracy and temperature stability even when operating in extreme ambient conditions between -40°C and +70°C.

Simplified Architecture and Integration

Honeywell has streamlined the deployment of the CC-PAIL51 by enabling direct connection to the Series C Input Output Termination Assembly (IOTA). This engineering choice removes the requirement for external Field Termination Assemblies, significantly cutting down on wiring complexity and potential failure points. Because the module integrates natively with the Experion Process Knowledge System, it provides seamless diagnostics and calibration capabilities directly from the control station. This tight integration ensures long-term reliability and minimizes the maintenance burden for continuous-process industries such as oil and gas, chemical refining, and power generation.
