Description

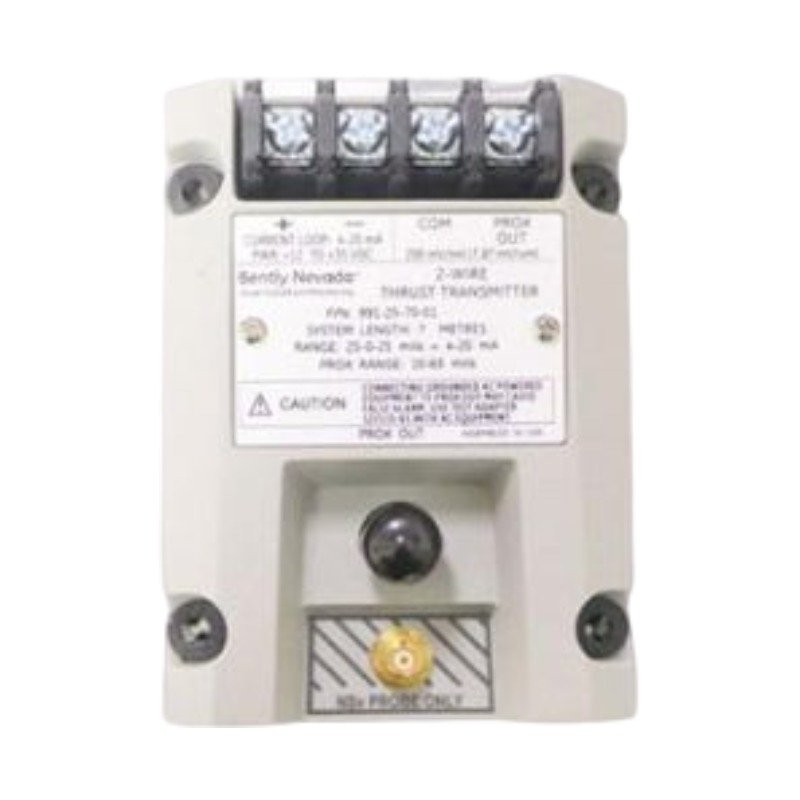

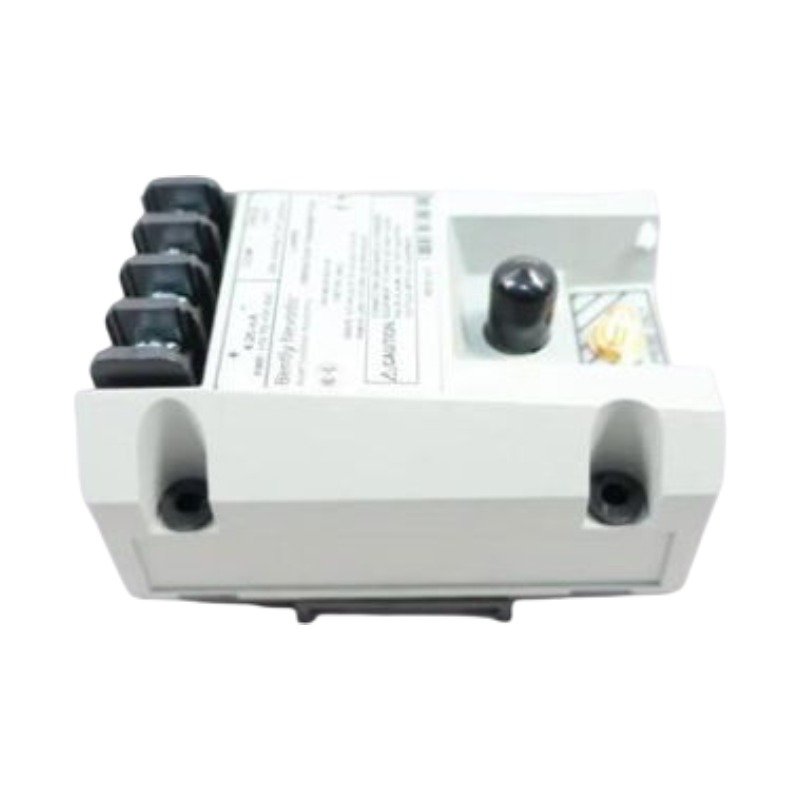

The Bently Nevada 991-05-70-01-01, also cataloged as the 991 Thrust Transmitter, operates as a dedicated hardware component for axial displacement monitoring within machinery control systems. The device interfaces directly with a non-contacting proximity probe to track shaft axial position, subsequently translating physical displacement variables into an industry-standard loop current.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The module incorporates precise internal eddy-current probe scaling to calibrate accurate voltage changes against shaft physical movement. During initialization, maintenance personnel execute gap voltage validation to anchor the central reference point, adjusting the target physical clearance until the voltage settles at the nominal -10 VDC baseline. This precise layout establishes a reliable range to evaluate real-time rotor dynamics under high thrust loads. Furthermore, active electronic design profiles ensure strict cross-talk suppression, which eliminates electromagnetic interference between adjacent sensor elements installed in close physical alignment.

Frequently Asked Questions

Q: What specific engineering range corresponds to the “05” code on this device?

A: The “05” full-scale range option designates a standardized axial calibration mapped to measure 25-0-25 mils or 0.6-0-0.6 mm of total shaft movement.

Q: How does the transmitter respond to an electrical open circuit or damaged probe?

A: The integrated Not OK / Signal Defeat circuit automatically forces the loop current down to less than 3.6 mA within 100 microseconds to alert the system of a primary sensor fault.

Q: Is the coaxial diagnostic port isolated from the main current loop?

A: No, the PROX OUT coaxial port is non-isolated. Consequently, technicians must connect ungrounded test instruments or use an isolated test adapter to evaluate the loop signal.

Field Installation Guidelines

• Mount the transmitter directly onto a clean 35 mm DIN rail using the pre-fitted mounting clips inside a secure termination housing.
• Enforce a thread engagement length equivalent to 1.5 times the nominal thread diameter when threading the probe case into the machinery bracket.
• Segregate all low-voltage signal conduits entirely from variable-frequency drive cabling and high-voltage power mains.
• Terminate the 75 ohm extension cable armor directly at the designated enclosure ground bracket while isolating the 4-20 mA loop shield at the receiver chassis.
