Description

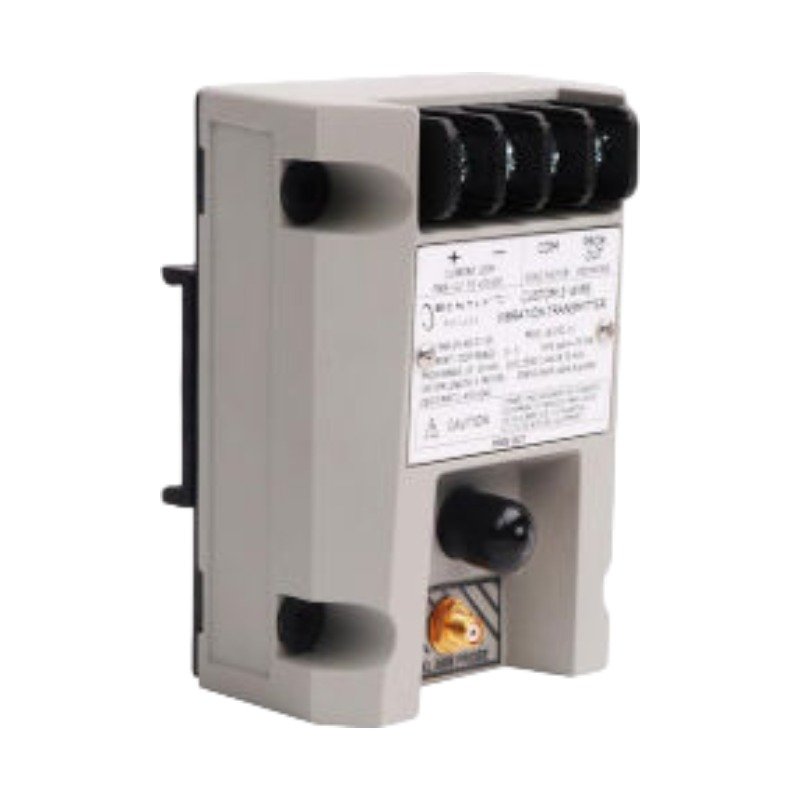

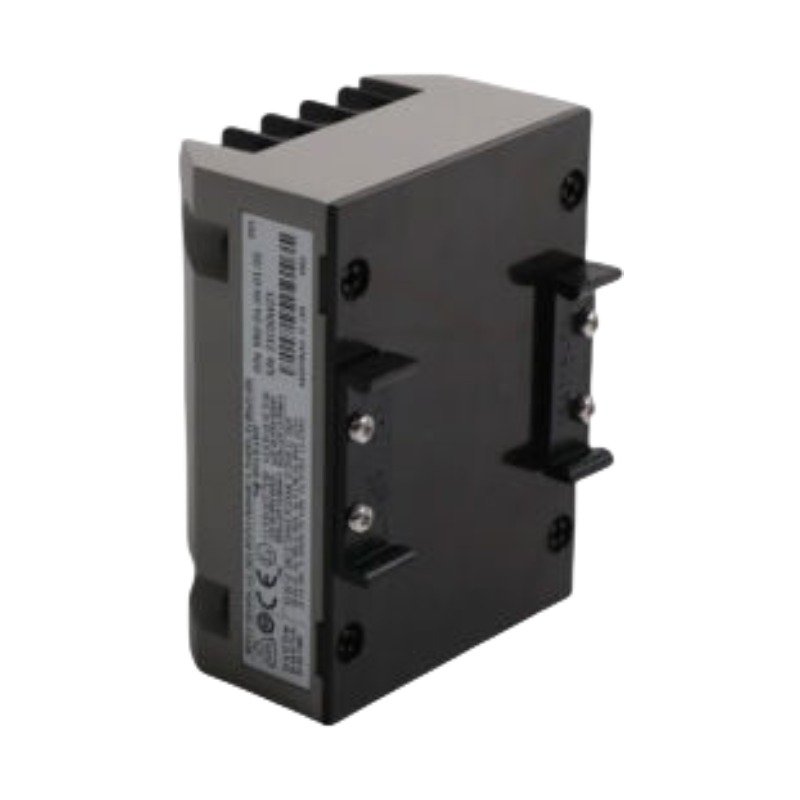

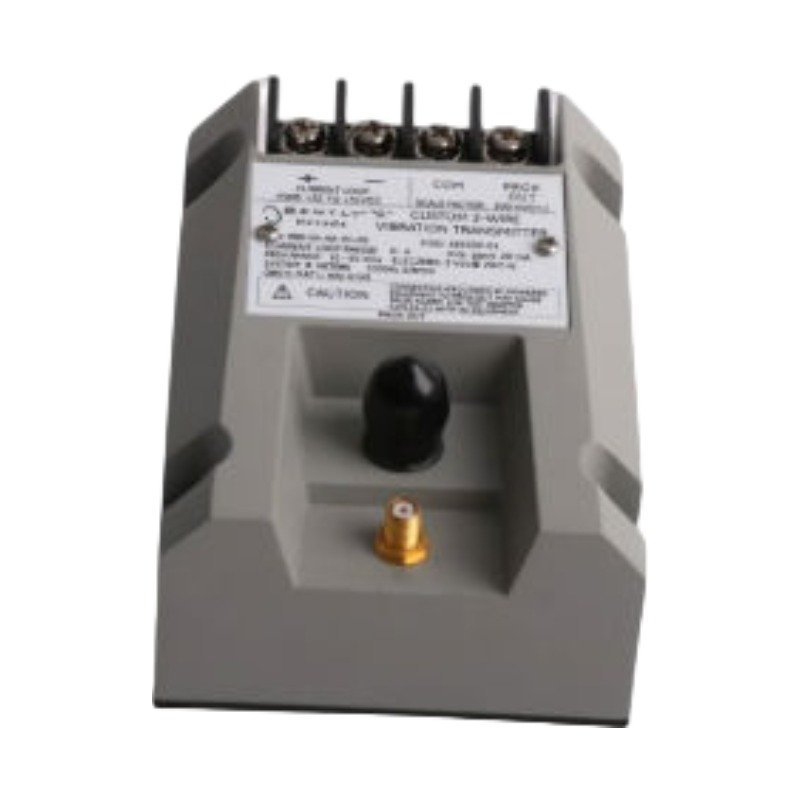

The Bently Nevada 990-05-70-01-00 serves as the primary 990 Vibration Transmitter utilized to execute proximity probe signal conditioning across machinery monitoring platforms. The hardware accepts dynamic inputs from a non-contacting 3300 NSv proximity probe system and converts the peak-to-peak displacement variables into a proportional 4-20 mA analog loop output.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The hardware relies on rigorous eddy-current probe scaling to ensure linear displacement tracking across the 1.4 mm linear range. During commissioning, field technicians execute gap voltage validation to anchor calibration alignment. The system requires a nominal target voltage of -10 VDC at the non-isolated “PROX OUT” terminal to establish mid-scale positioning. Consequently, accurate scaling and gap verification minimize rotor dynamics calculation errors. Furthermore, the internal electronic design provides robust cross-talk suppression, which completely prevents signal degradation from adjacent channels when probes are installed in tight physical proximity inside centrifugal compressors.

Frequently Asked Questions

Q: What specific full-scale range is pre-calibrated on the 990-05-70-01-00 transmitter?

A: The “05” full-scale option designates a hardware range of 0-5 mils peak-to-peak, which equates to 0-125 micrometers peak-to-peak.

Q: How does the device react to a faulty proximity probe or loose cable connection?

A: An integrated Not OK / Signal Defeat circuit actively forces the loop output down to less than 3.6 mA within 100 microseconds of a fault detection to prevent false machinery protection alarms.

Q: Can this device be operated in high-humidity applications?

A: Yes. The module features fully potted construction, which enables continuous deployment in environments up to 100% condensing relative humidity, provided the coaxial connections remain protected.

Field Installation Guidelines

• Secure the transmitter assembly firmly onto a standard 35 mm DIN rail using the integrated mounting clips.
• Maintain a structural thread engagement length of 1.5 times the nominal thread diameter when fixing probe cases into tapped installation holes.
• Route all low-voltage proximity sensor cables entirely segregated from high-current AC power lines to block electromagnetic noise.
• Establish a solid grounding profile by linking the system extension cable armor to the local machine chassis ground while shielding the signal loop at the receiver side.
