Description

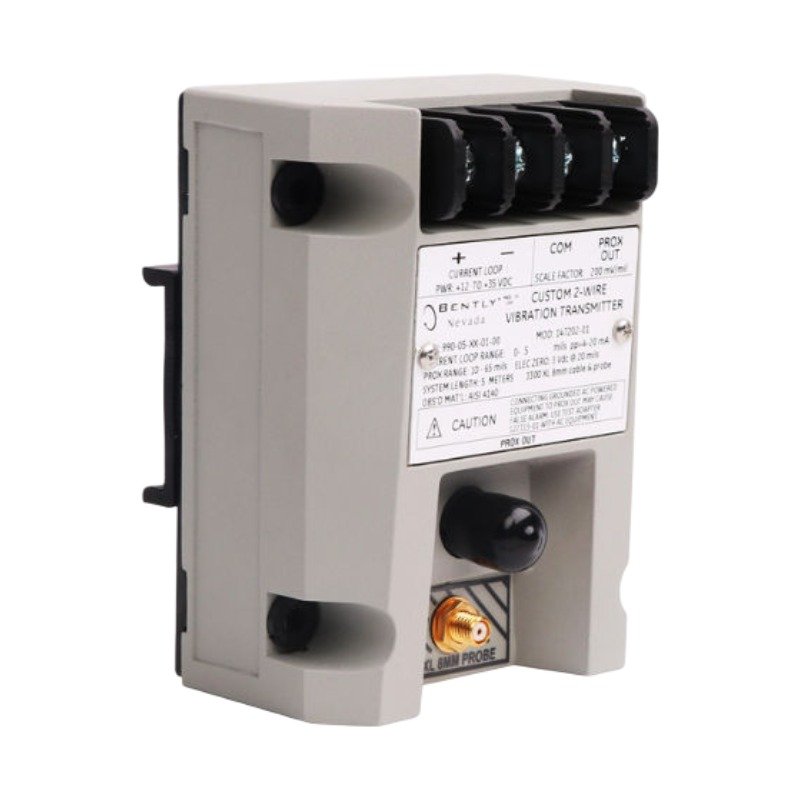

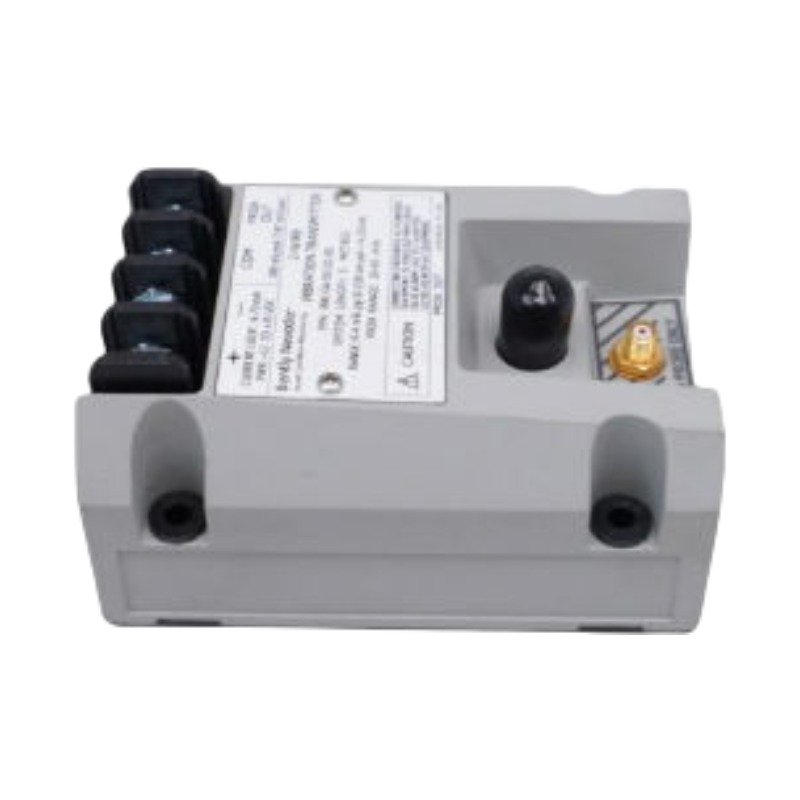

The Bently Nevada 990-04-XX-03-00 serves as the primary 990 Vibration Transmitter utilized to execute proximity probe signal conditioning across machinery monitoring platforms. The hardware processes raw transducer signals from an eddy-current proximity probe system and continuously generates a proportional 4-20 mA current output for direct interface with control systems.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The transmitter relies on rigorous eddy-current probe scaling to convert target displacement into electronic variables. Consequently, engineers perform field gap voltage validation to anchor the system baseline, aiming for a target of -10 VDC to optimize the linear measuring range. This precision calibration mitigates rotor dynamics distortions during high-speed shaft rotation. Furthermore, internal differential filtering provides robust cross-talk suppression, which effectively prevents signal interference when adjacent probes run in close physical proximity.

Frequently Asked Questions

Q: What does the “03” option denote in the 990-04-XX-03-00 part number?

A: The “03” specific option designates the hardware configuration, mounting, or certification parameters defined by the manufacturer’s options matrix for the 990 series.

Q: Can this device be hot-swapped while the 4-20 mA loop is energized?

A: No. Technicians must de-energize the loop power prior to disconnecting or swapping out the internal module terminals to prevent electrical arcing or signal spikes.

Q: How is the shield handled for noise mitigation on this model?

A: The field probe cable shield connects to the dedicated transmitter shield terminal, whereas the transmitter housing relies on clean chassis ground integration via the DIN rail or grounding stud.

Field Installation Guidelines

• Install the device onto an integrated 35 mm DIN rail inside a sealed enclosure to block moisture and chemical contaminants.
• Ensure a minimum of 5 threads of engagement if using NPT conduits or threaded mounting adapters.
• Route all low-voltage sensor cables completely segregated from high-current motor leads and AC power lines.
• Verify the physical target gap using a multimeter to confirm the -10 VDC bias voltage before sealing the termination box.
