Description

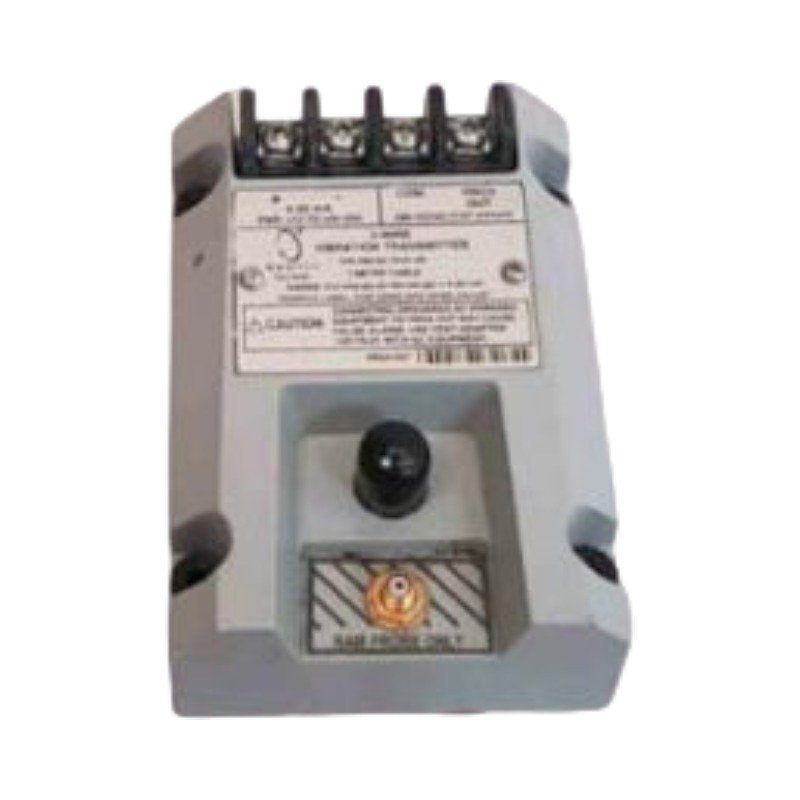

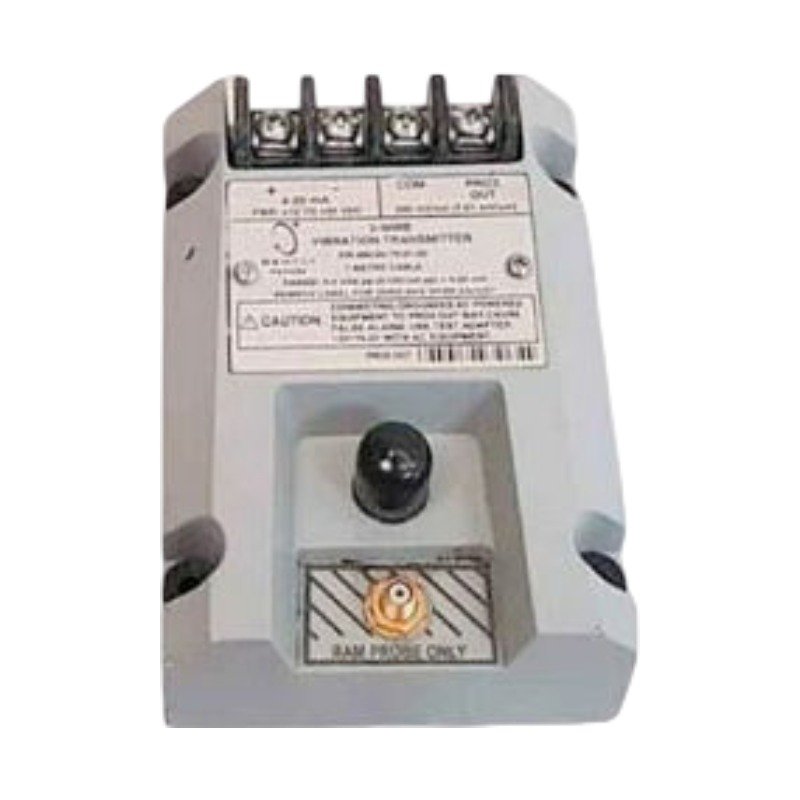

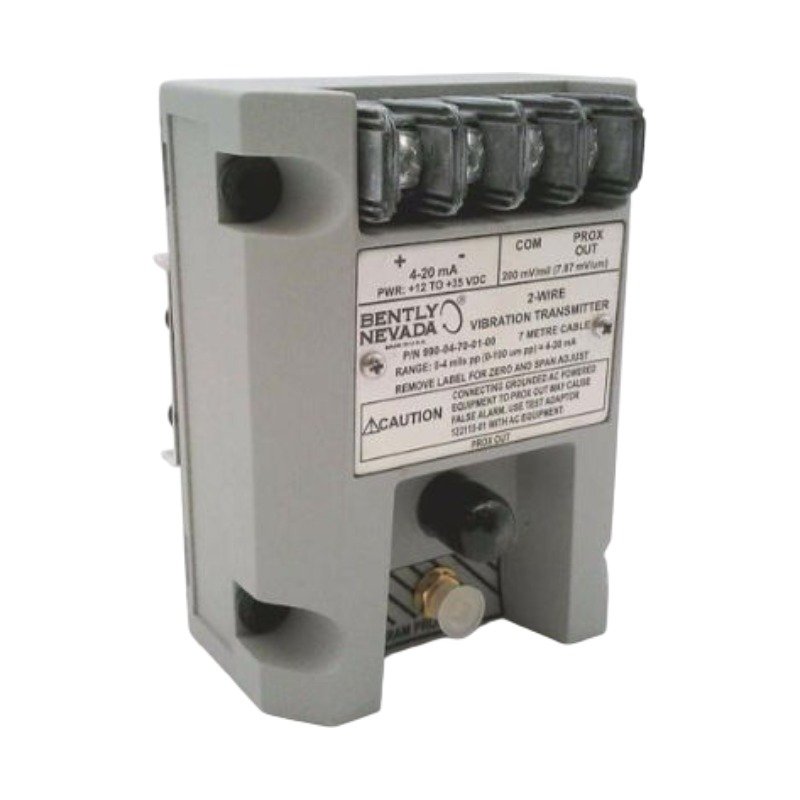

Configured for proximity probe signal conditioning in machinery monitoring systems, the Bently Nevada 990-04-70-01-00, also cataloged as the 990 Vibration Transmitter, provides direct physical/electrical execution. The instrument converts the high-frequency signal from a proximity probe system into a proportional 4-20 mA current loop output, facilitating interfacing with programmable logic controllers (PLCs) or distributed control systems (DCS).

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The hardware relies on rigorous eddy-current probe scaling to ensure linear displacement tracking. During commissioning, field technicians execute gap voltage validation to confirm calibration alignment. The system requires a nominal target voltage of -10 VDC to achieve mid-scale positioning within the linear range. Proper scaling and gap alignment eliminate cross-talk suppression failures, which subsequently prevents signal degradation from adjacent channels. This precise voltage regulation ensures that the mechanical vibration waveforms convert accurately into the corresponding current loops without inducing harmonic errors or signal clipping.

Frequently Asked Questions

Q: What specific probe systems interface with the 990-04-70-01-00 transmitter?

A: This transmitter requires a 3300 NSv proximity probe system. Connecting incompatible 5 mm or 8 mm probes causes non-linear calibration errors and invalidates the output scale.

Q: How do technicians perform gap voltage validation on this device?

A: Technicians hook up a standard digital multimeter across the Prox output and COM terminals. The distance between the probe tip and target must adjust until the meter reads a stable -10 VDC nominal value.

Field Installation Guidelines

• Mount the transmitter onto a standard 35 mm DIN rail inside a protective, weatherproof enclosure to mitigate environmental contamination.
• Terminate all wiring using insulated crimp lugs to avoid short circuits.
• Maintain physical separation between the 4-20 mA signal loop runs and high-voltage power conduits to block inductive noise coupling.
• Connect the extension cable shield directly to the designated transmitter shield terminal, and ensure the outer armor connects firmly to the local chassis ground.
