Description

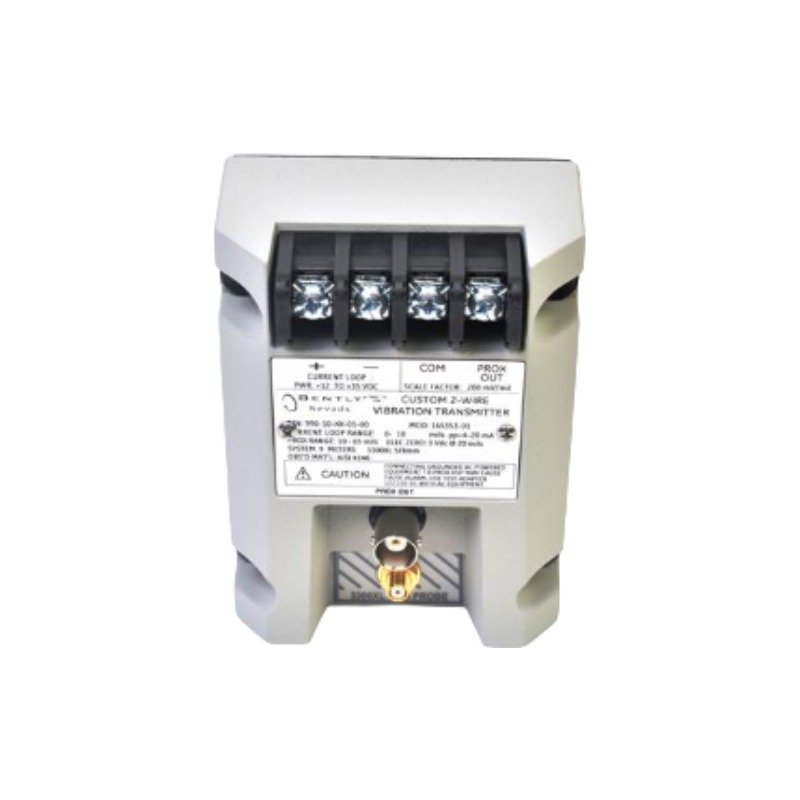

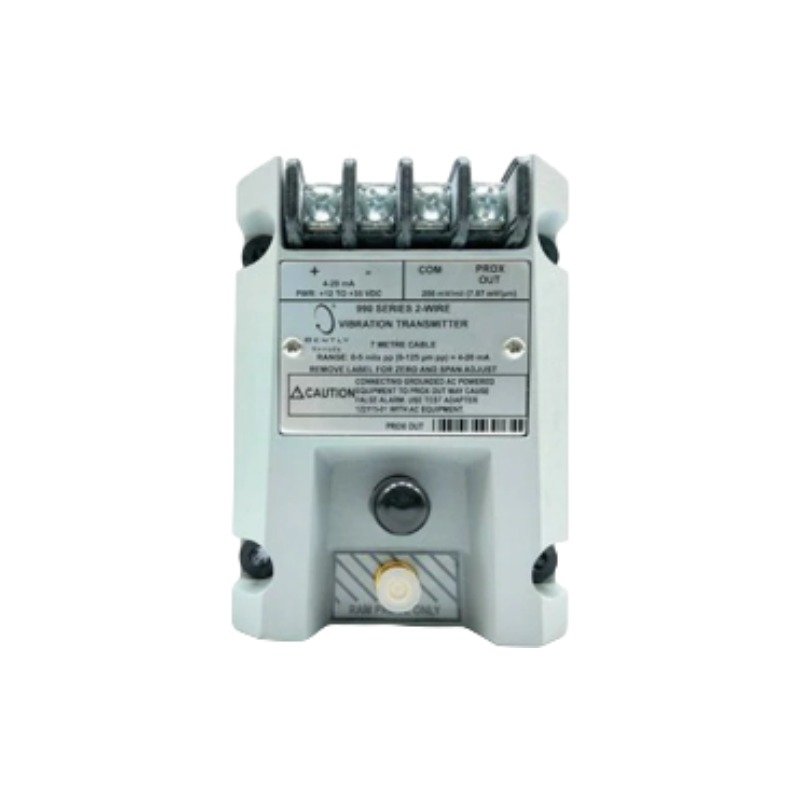

Configured for non-contacting radial vibration measurements in machine monitoring networks, the Bently Nevada 990-10-XX-02-00 (990 Vibration Transmitter) provides direct physical/electrical execution. Specifically, the transmitter conditions high-frequency radio frequency (RF) signals from an eddy-current probe system and subsequently converts the physical gap variations into a linear 4-20 mA DC current loop scaled for peak-to-peak vibration amplitude. Consequently, this design executes the direct delivery of dynamic machinery metrics to distributed control systems (DCS) or programmable logic controllers (PLC) without requiring an intermediate monitoring rack.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Dynamics

The Bently Nevada 990-10-XX-02-00 utilizes precise eddy-current probe scaling to convert physical gap fluctuations into electrical signals for the analysis of dynamic rotor dynamics. During commissioning, engineers perform gap voltage validation (-10 VDC targets) within the specified linear operational range, thereby verifying the proper probe-to-target alignment. Furthermore, the internal electronics deploy integrated cross-talk suppression circuitry; as a result, the hardware minimizes electromagnetic interference even when multiple sensor lines run through parallel wire conduits.

Frequently Asked Questions

Q: What does the “02” suffix specify in this hardware configuration?

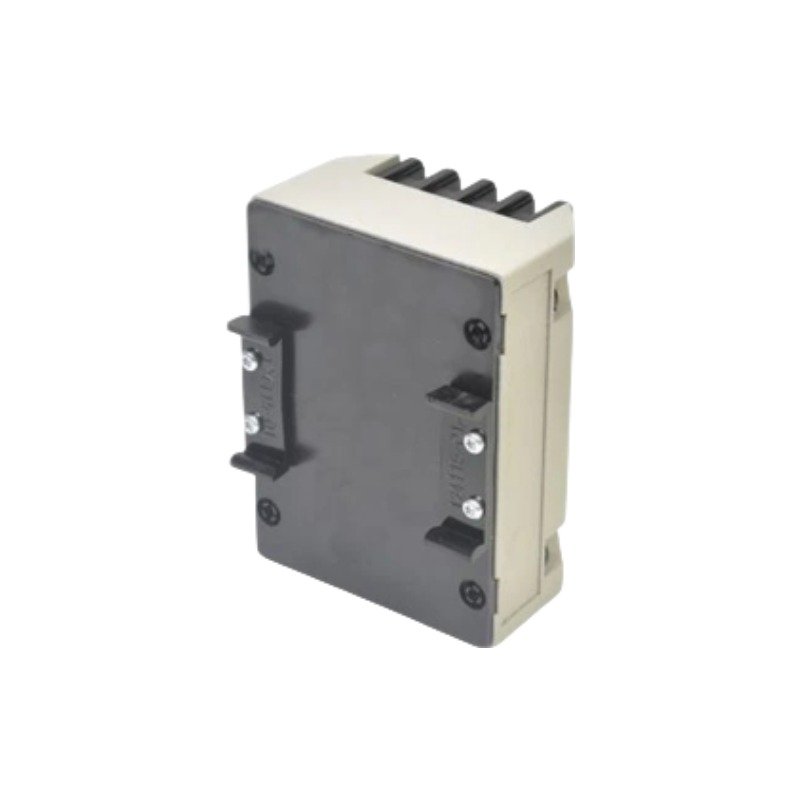

A: The “02” suffix denotes the structural mounting option, which specifies that the unit features an integrated 35 mm DIN-rail mount configuration rather than standard panel mount tabs.

Q: How does the transmitter loop respond during a probe fault or broken cable condition?

A: The transmitter incorporates a fault detection circuit. Consequently, if the system detects an open or shorted probe circuit, the transmitter drives the 4-20 mA loop current below 3.6 mA to signal a “Not OK” status to the host PLC/DCS.

Field Installation Guidelines

• Shielding and Grounding: First, terminate the coaxial extension cable shield securely at the transmitter housing terminal block. Afterward, ground the overall 4-20 mA field wiring shield at a single point inside the control room instrument panel to mitigate ground loop noise.
• Conduit Separation: Always route all sensor proximity probe leads and transmitter current loop cables inside dedicated, isolated metal conduits. In addition, avoid running signal wiring parallel to high-voltage AC lines or variable frequency drive (VFD) paths.
• Mechanical Orientation: Install the transmitter housing on a standard 35 mm DIN rail or, alternatively, bolt it directly to a flat panel. For installations in environments with high humidity or chemical exposure, mount the assembly inside an enclosure rated IP54 or higher.
