Description

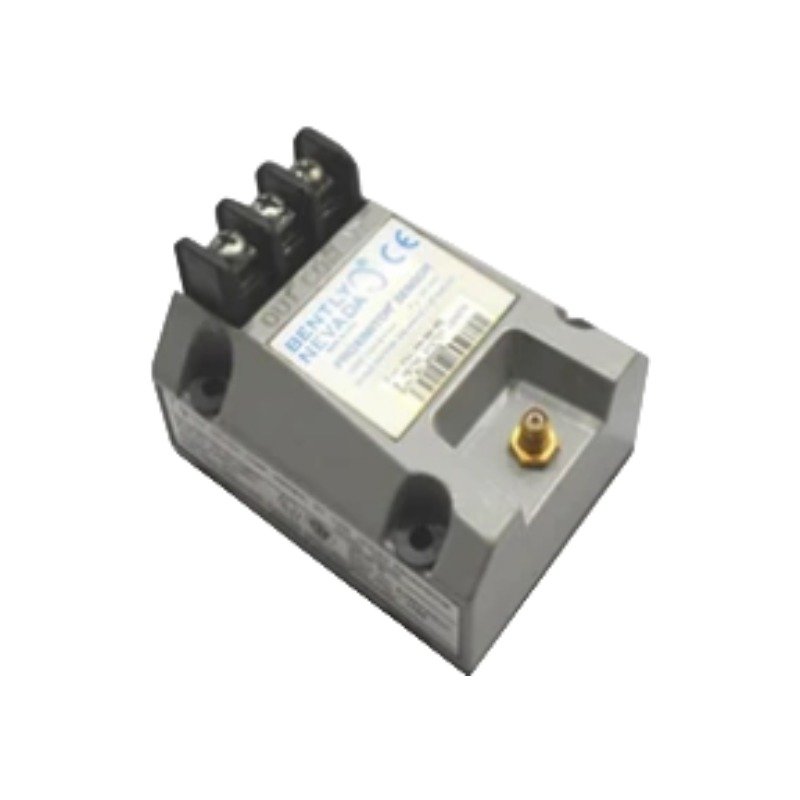

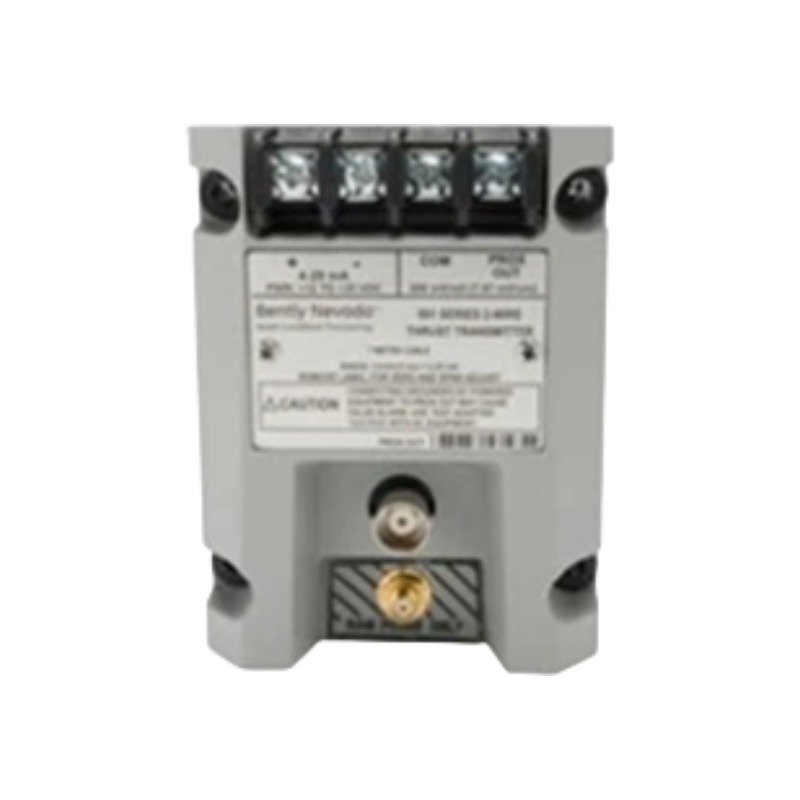

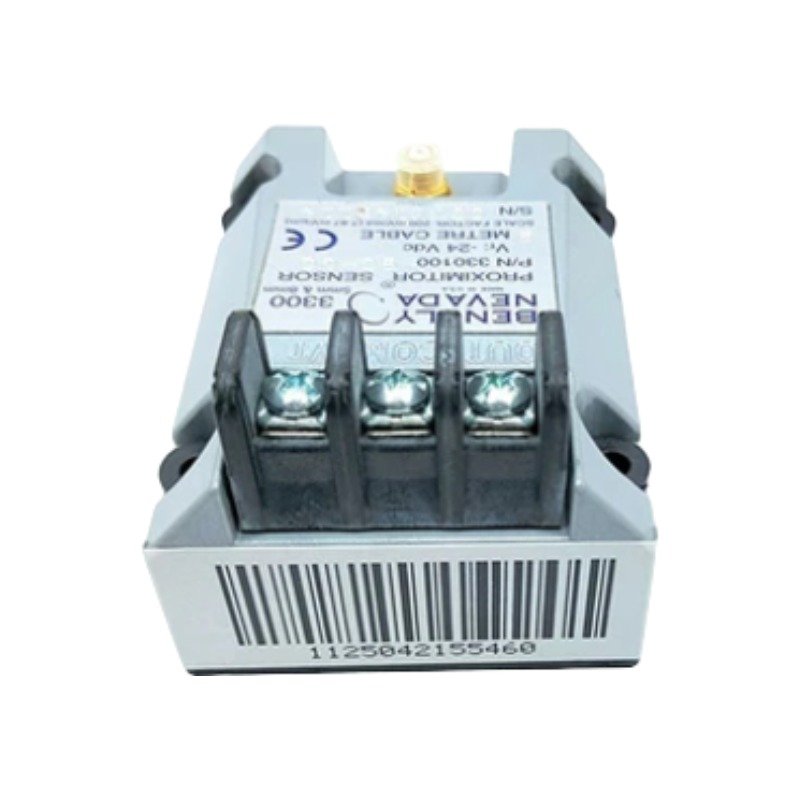

Configured for non-contacting radial vibration measurements in machinery monitoring networks, the Bently Nevada 990-04-xx-01-00 mod 147202-01 (990 Vibration Transmitter) provides direct physical/electrical execution. Specifically, the transmitter conditions high-frequency radio frequency (RF) signals from an eddy-current probe system and subsequently converts the physical gap variations into a linear 4-20 mA DC current loop scaled for peak-to-peak vibration amplitude. Consequently, this design executes the direct delivery of dynamic machinery metrics to distributed control systems (DCS) or programmable logic controllers (PLC) without requiring an intermediate monitoring rack.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Dynamics

The Bently Nevada 990-04-xx-01-00 mod 147202-01 utilizes precise eddy-current probe scaling to convert physical gap fluctuations into electrical signals for the analysis of dynamic rotor dynamics, optimized primarily for small-diameter shafts or constrained target areas via a 3300 NSv probe system. During commissioning, engineers perform gap voltage validation (-10 VDC targets) within the calibrated linear range (20 to 55 mils / 0.5 to 1.75 mm), thereby verifying proper probe-to-target alignment. Furthermore, the internal electronics deploy integrated cross-talk suppression circuitry; as a result, the hardware minimizes electromagnetic interference even when multiple sensor lines run through parallel wire conduits.

Frequently Asked Questions

Q: What specific layout parameters do the options in this hardware configuration define?

A: The “-04” specifies a full-scale range configuration of 0-4 mils peak-to-peak (0-100 µm peak-to-peak). The “-xx” denotes the total system length option (matched to either 5.0m or 7.0m probe/cable lengths). The “-01” code designates the integration of 35 mm DIN-rail mounting clips.

Q: What does the “mod 147202-01” designation indicate for this specific transmitter model?

A: The “mod 147202-01” denotes a manufacturer modification that adapts the internal electrical components or structural potting compound to achieve enhanced stability across extreme environmental conditions while adhering to the default technical specifications of the 990 platform.

Field Installation Guidelines

• Shielding and Grounding: First, terminate the coaxial extension cable shield securely at the transmitter housing terminal block. Afterward, ground the overall 4-20 mA field wiring shield at a single point inside the control room instrument panel to mitigate ground loop noise.
• Conduit Separation: Always route all sensor proximity probe leads and transmitter current loop cables inside dedicated, isolated metal conduits. In addition, avoid running signal wiring parallel to high-voltage AC lines or variable frequency drive (VFD) paths.
• Mechanical Orientation: Install the transmitter housing on a standard 35 mm DIN rail or, alternatively, bolt it directly to a flat panel. For installations in environments with high humidity or chemical exposure, the potted housing provides robust defense, but mounting inside an enclosure rated IP54 or higher is recommended.
