Description

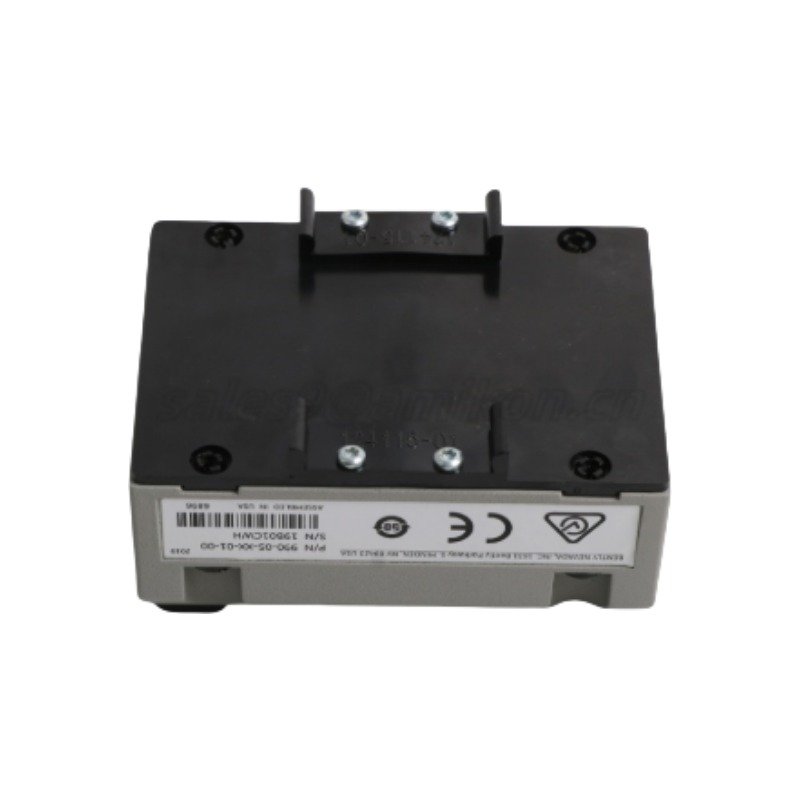

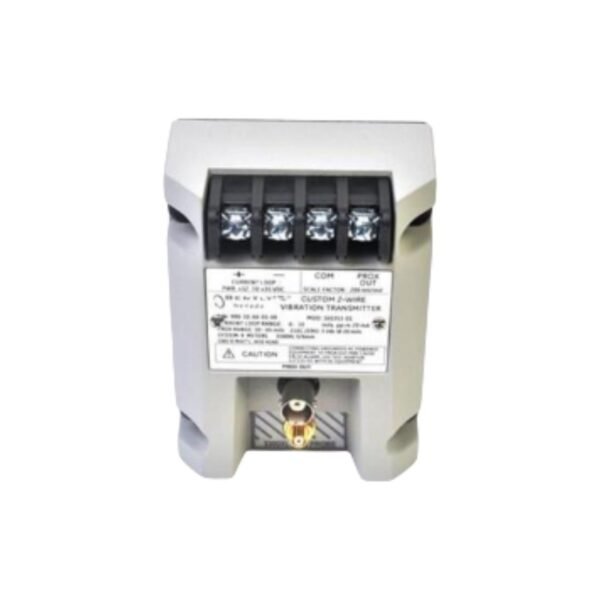

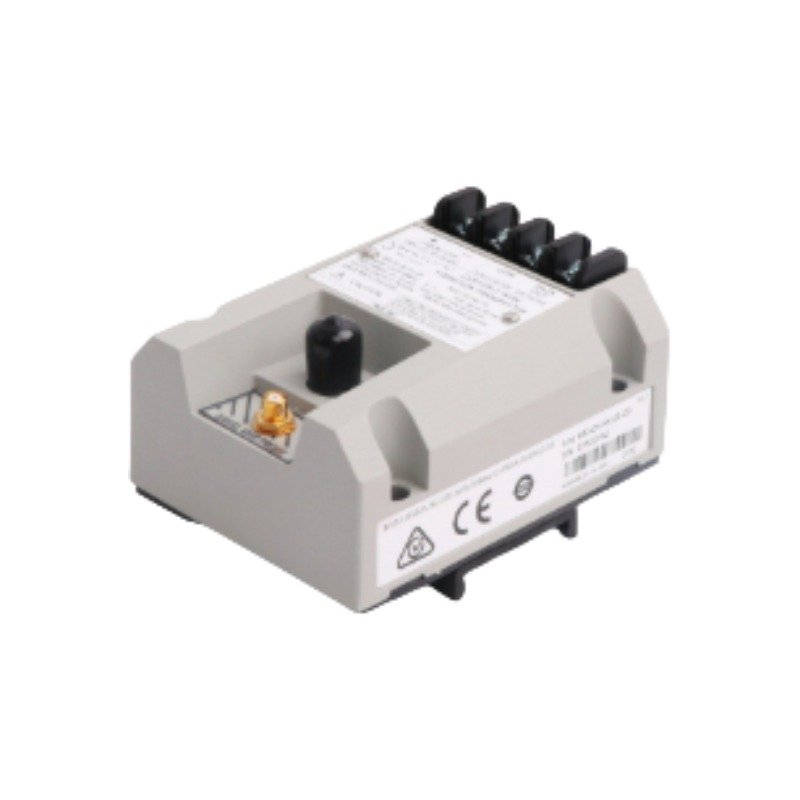

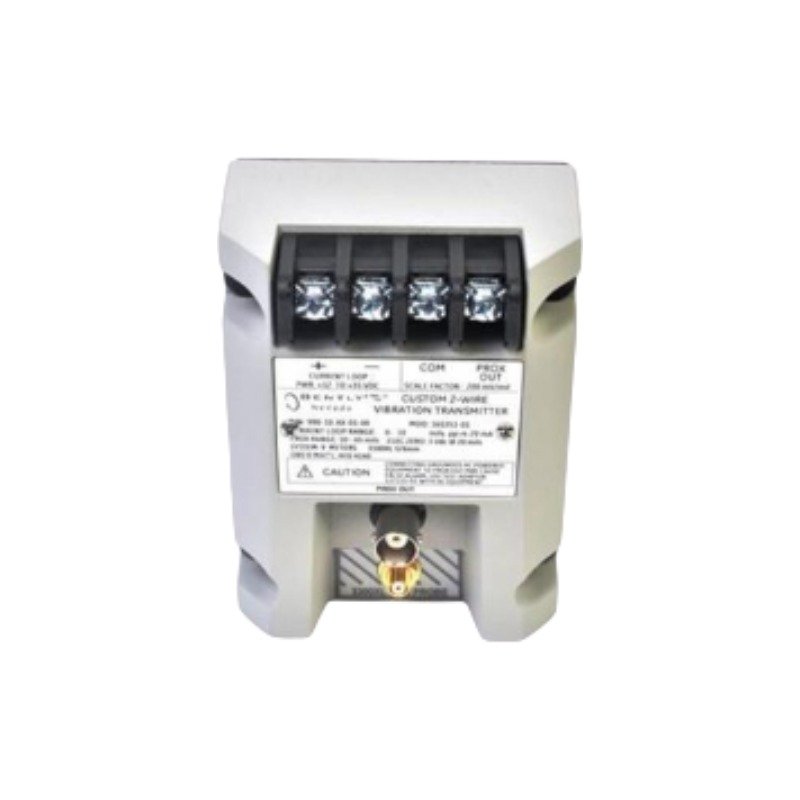

The Bently Nevada 990-05-xx-01-00 mod 165335-01 operates as a two-wire, loop-powered 990 Vibration Transmitter designed primarily for non-contacting radial vibration monitoring. The device integrates a Proximitor sensor inside its potted housing, allowing it to condition raw radio frequency (RF) signals from a proximity probe into a linear 4-20 mA DC current loop. Consequently, it delivers standard peak-to-peak vibration metrics directly to a distributed control system (DCS) or programmable logic controller (PLC) without requiring an intermediate monitoring rack.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Dynamics

The Bently Nevada 990-05-xx-01-00 mod 165335-01 utilizes precise eddy-current probe scaling optimized for a 3300 NSv proximity probe system, making it ideal for small-diameter shafts or constrained target surfaces. During commissioning, engineers perform gap voltage validation (-10 VDC target at the raw BNC output) within the calibrated linear range (20 to 55 mils / 0.5 to 1.75 mm) to guarantee proper sensor alignment. The internal electronics provide a raw “Prox Out” linear range with an incremental scale factor of 7.87 mV/µm (200 mV/mil), enabling direct waveform analysis through external diagnostic machinery tools.

Frequently Asked Questions

Q: What specific layout parameters do the options in this hardware configuration define?

A: The “-05” specifies a full-scale range configuration of 0-5 mils peak-to-peak (0-125 µm peak-to-peak). The “-xx” denotes the total system length option (typically matched to either 5.0m or 7.0m probe/cable variants). The “-01” code designates integrated 35 mm DIN-rail mounting clips, and “-00” indicates no specialized agency approvals are selected.

Q: What does the “mod 165335-01” designation indicate for this specific transmitter model?

A: The “mod 165335-01” denotes a specialized manufacturer modification that adapts internal circuitry behavior and environmental potting properties. It optimizes loop performance, structural sealing, and line transient defenses under specific OEM application demands—such as centrifugal air compressor packages—while maintaining the baseline 990 technical specifications.

Field Installation Guidelines

• Shielding and Grounding: First, terminate the coaxial extension cable shield securely at the transmitter housing terminal block. Afterward, ground the overall 4-20 mA field wiring shield at a single point inside the control room instrument panel to mitigate ground loop noise.
• Conduit Separation: Always route all sensor proximity probe leads and transmitter current loop cables inside dedicated, isolated metal conduits. In addition, avoid running signal wiring parallel to high-voltage AC lines or variable frequency drive (VFD) paths.
• Mechanical Orientation: Install the transmitter housing on a standard 35 mm DIN rail or, alternatively, bolt it directly to a flat panel. For installations in environments with high humidity or chemical exposure, the potted housing provides robust defense, but mounting inside an enclosure rated IP54 or higher is recommended.
