Description

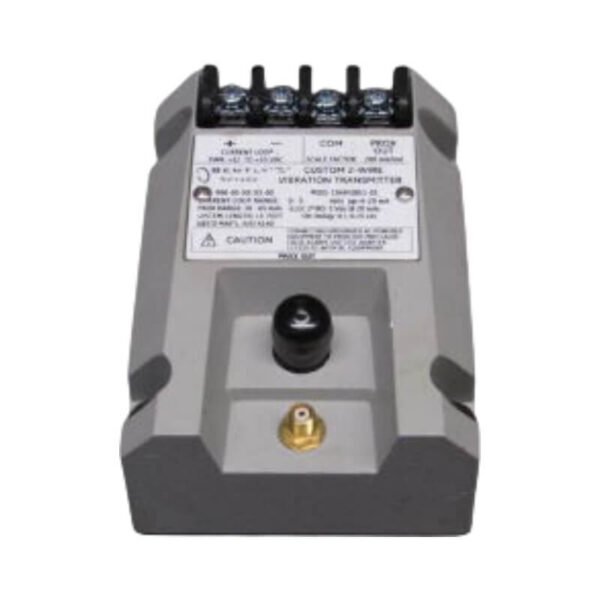

Configured for relative vibration measurement on rotating machinery, the Bently Nevada 990-05-XX-03-05 (990 Vibration Transmitter) provides direct physical/electrical execution. This 2-wire, loop-powered device accepts input directly from a non-contacting 3300 NSv proximity probe and matching extension cable assembly. Consequently, the internal circuitry conditions the high-frequency proximity signal into a proportional 4-20 mA analog output representing peak-to-peak vibration amplitude for direct integration into plant PLC or DCS platforms.

Suffix Breakdown & Model Matrix

• 990: Core product identifier for the 2-wire, loop-powered Vibration Transmitter series.
• 05: Full-scale vibration amplitude measurement range option designated as 0-5 mils pp (0-125 um pp).
• XX: Variable placeholder for total system electrical length configuration; options dictate either 50 (5.0 meters) or 70 (7.0 meters).
• 03: Mechanical mounting hardware option specifying factory-installed bulkhead mounting screws.
• 05: Factory agency approval certification level option denoting hazardous area approvals (CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval).

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 990-05-XX-03-05 incorporates internal Proximitor conditioning circuitry that energizes the connected 3300 NSv probe to generate a high-frequency eddy-current field. During mechanical installation, loop validation requires setting a target baseline gap voltage via the raw PROX OUT test signal terminal. Furthermore, because this device drives compact 3300 NSv probes, it provides robust cross-talk suppression inside tight centrifugal air compressor housings where multiple sensing elements operate close to one another. Technicians must align the installation carefully to avoid interference from electrical or mechanical shaft runout. Otherwise, micro-structural shaft variations deform the eddy-current flux lines, which injects parasitic noise into the 4-20 mA output and obscures real-time rotor dynamics.

Frequently Asked Questions

Q: How does a technician access the raw dynamic vibration signal for diagnostic analysis on this transmitter?

A: The transmitter includes a front-facing, ungrounded coaxial BNC connector labeled PROX OUT. This interface outputs a continuous 7.87 mV/um (200 mV/mil) raw voltage signal, enabling field operators to connect portable oscilloscopes or data collectors without disrupting the primary 4-20 mA control loop.

Q: What action does the transmitter loop take if the associated 3300 NSv probe cable snaps or disconnects?

A: The device features an integrated Not OK/Signal Defeat circuit. If a probe fault or loose connection occurs, the internal circuit triggers instantly and forces the 4-20 mA loop current down to less than 3.6 mA within 100 microseconds. This action prevents false high-vibration trips inside the control system logic.

Field Installation Guidelines

• Probe Gapping Procedure: Mechanically adjust the 3300 NSv probe body inside its mounting bracket until the voltage reading at the transmitter PROX OUT terminal registers a quiescent value corresponding to the center of the linear envelope. The acceptable baseline gap window spans between 0.5 mm and 1.75 mm (20 to 55 mils) relative to the shaft target surface.
• Wiring and Loop Impedance Balancing: Connect a twisted-pair shielded cable to the positive and negative transmitter terminals. Ensure total loop resistance, including field wiring and the DCS input card internal resistance, does not exceed 1000 Ohm when operating from a 35 VDC supply loop. Ground the cable shield exclusively at the control room end.
• Target Area Clearance Dimensions: Verify that the observed shaft target area provides a minimum flat surface diameter of 9.5 mm (0.375 in). If the shaft target area is smaller than this minimum requirement, the eddy-current field will experience edge-effect degradation, causing permanent calibration errors.
