Description

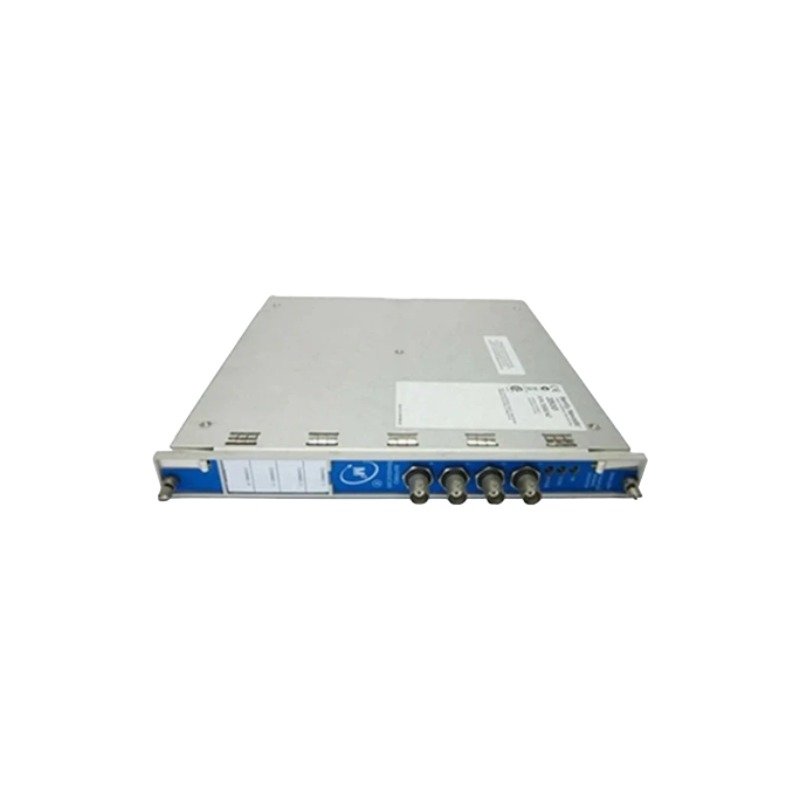

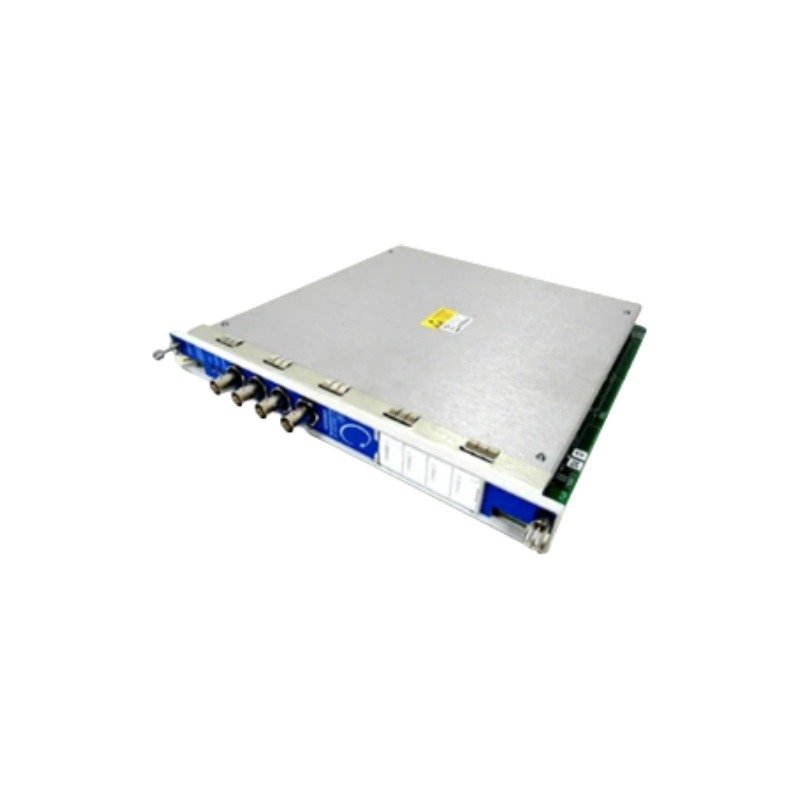

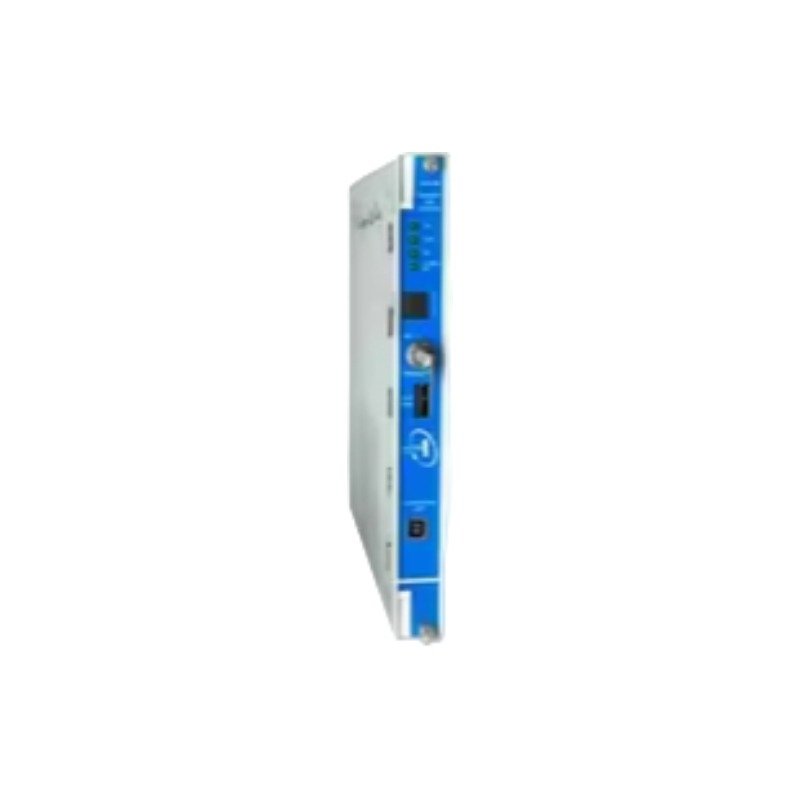

Configured for machinery monitoring data transmission to compatible computer systems in industrial applications, the Bently Nevada 87870-01 (87870-01 Serial Data Interface Module) provides direct physical/electrical execution. Specifically, the hardware module facilitates real-time data transfer by establishing external digital communication channels for the hosting rack framework. Furthermore, the unit serializes processed variables from internal backplane buses and pushes the continuous data stream down localized point-to-point networks via an isolated physical port.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This serial communication interface actively preserves the telemetry integrity of raw machinery vectors because the internal isolation paths maintain the stability of core eddy-current probe scaling configurations. Consequently, the 500 V DC isolation boundary blocks external voltage spikes from disrupting gap voltage validation (-10 VDC targets) within the main 3300 rack modules. During continuous operations, the interface extracts steady-state and dynamic values to assist software platforms in diagnosing transient rotor dynamics without loading the primary protection loop. Additionally, the integrated shielding and physical board layout provide exceptional cross-talk suppression, preventing RS-232C digital signal transitions from coupling into highly sensitive adjacent analog vibration channels.

Frequently Asked Questions

Q: How does a technician modify the hardware input voltage between 115 V AC and 230 V AC?

A: Technicians must access the internal transformer taps or configuration jumpers located inside the main module assembly. Always disconnect the main power source before opening the unit casing to verify or alter voltage selections.

Q: What physical factors limit the serial output cable distance when operating at the maximum 19,200 baud rate?

A: The line capacitance must not exceed 50 pF/ft to drive up to the maximum 5000 feet threshold. Utilizing high-capacitance wiring degrades the signal edges, causing transmission dropouts or data frame parity validation errors.

Q: What actions should be taken if the serial interface suffers an internal overcurrent fault condition?

A: The integrated slow-blow fuse opens to protect the circuitry. Replace the broken component exclusively with an identically rated 0.25 A fuse for 115 V AC lines or a 0.125 A fuse for 230 V AC lines to ensure persistent overcurrent protection.

Field Installation Guidelines

• Mounting Mechanics: Align the module flanges with the mounting holes of a standard 19-inch electronic enclosure frame. Tighten the four panel screws completely to secure the 3 rack units high structure against sustained industrial plant floor vibrations.
• Shielding Requirements: Terminate the outer braided shield of the RS-232C communication cable at the designated chassis grounding screw point. Do not leave the line unshielded as electromagnetic radiation can corrupt the serial registers during active data execution loops.
• Wiring Separations: Route the digital serial line through dedicated low-voltage wireways. Ensure a minimum distance of 300 mm from parallel power loops, main motor switchgear paths, or variable frequency drive cables to suppress transient electrical noise.
• Thermal Management: Verify that cabinet louvers or exhaust fans maintain the internal ambient temperature within the specified 0 to 65 deg C boundaries. Keep the relative humidity below 95% non-condensing to avoid moisture formation on high-voltage transformer areas.
