Description

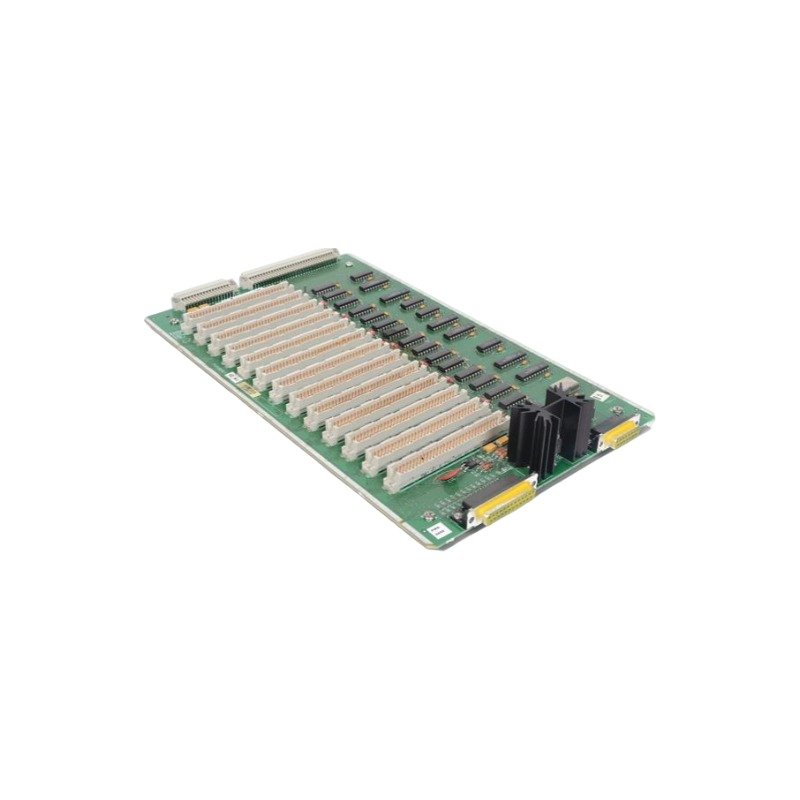

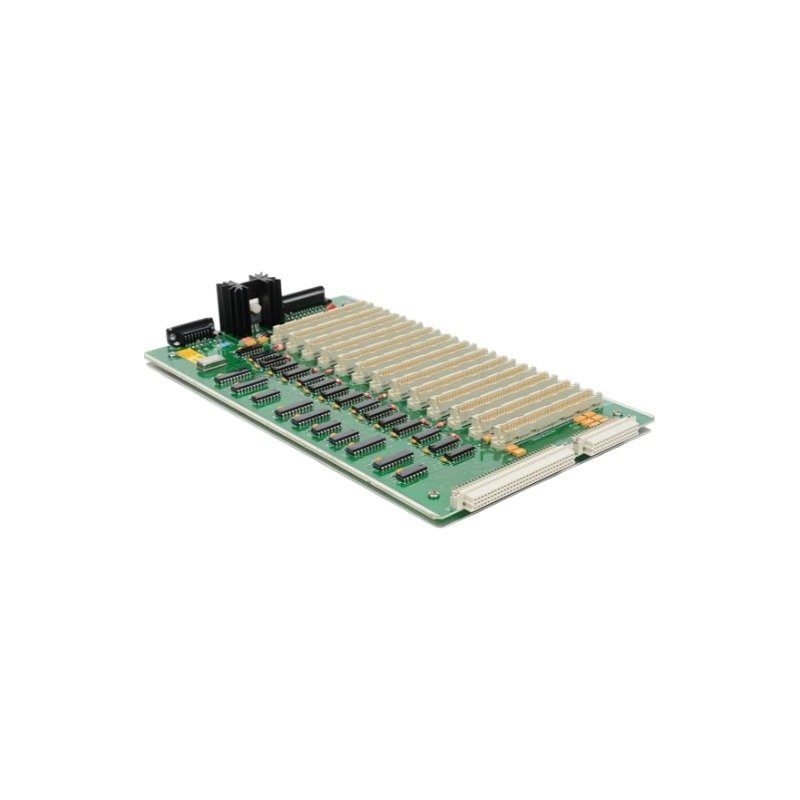

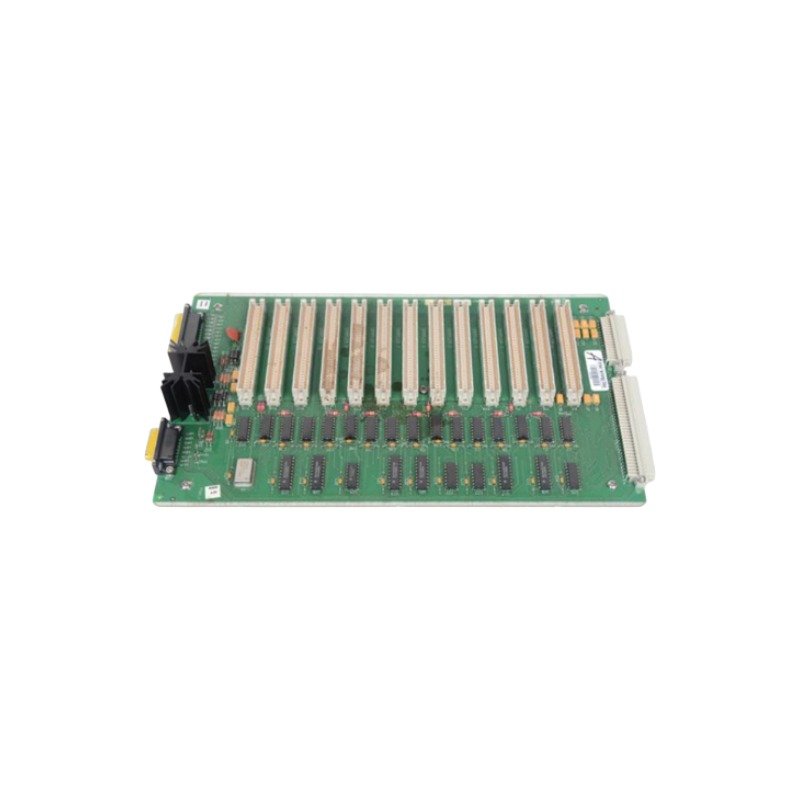

The Bently Nevada 105401-02, also cataloged as the 105401-02 Sampler Backplane Board, operates as a dedicated hardware component for data collection and signal routing within 3500 Series vibration monitoring and protection systems. Configured for high-speed data transfer between sensors and monitoring systems, the hardware establishes the physical interface required to collect, process, and distribute signals from displacement, velocity, and acceleration sensors. The board delivers direct electrical routing of analog and digital variables across the common instrumentation rack structure.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The backplane architecture provides the primary physical traces that govern precise eddy-current probe scaling for multi-channel displacement monitoring. Built-in routing paths sustain continuous gap voltage validation (-10 VDC targets) across connected proximity sensor channels to preserve sensor calibration and fault-detection benchmarks. By distributing uncorrupted high-frequency signals, the board allows diagnostic modules to accurately evaluate transient rotor dynamics during machine speed adjustments. Furthermore, the multi-layered printed circuit board topology incorporates extensive cross-talk suppression paths, blocking high-frequency clock line noise from entering low-amplitude analog acceleration loop circuits.

Frequently Asked Questions

Q: Does the 105401-02 backplane module support active hot-swap insertion of processing cards?

A: The backplane electrical bus is engineered to handle hot-swap transitions of compatible 3500 series cards. However, operators must apply configuration bypass commands to the specific monitoring loop prior to card extraction to prevent triggering unexpected machinery protection trips.

Q: What specific input signals can be routed simultaneously across this backplane?

A: The internal bus architecture is built to concurrently process both analog and digital input vectors, accommodating combinations of proximity, velocity, and accelerometer transducer signals through the integrated conditioning, amplification, and filtering pipelines.

Q: What are the current limitations regarding physical expansion or grounding configurations on this board?

A: The backplane is bounded by standard 19-inch rack slot allocations. Grounding protocols necessitate a low-impedance connection directly between the rack frame chassis and the central instrumentation earth bus bar.

Field Installation Guidelines

• Mounting Mechanics: Align the backplane board within the designated card slots of a 19-inch electronic equipment rack chassis. Secure all structural hardware completely to eliminate mechanical vibration stresses and ensure structural frame grounding continuity.
• Shielding Requirements: Terminate all incoming sensor cable drain wires at the specialized earth ground terminal strips on the rack assembly. Do not ground the cable shield at both the field transducer case and the backplane panel to avoid circulating ground loops.
• Wiring Separations: Maintain a strict physical separation of at least 200 mm between low-voltage sensor signal conductors routed via the backplane and any adjacent high-power AC lines or variable frequency drive cables.
• Thermal Management: Verify that enclosed cabinet cooling fans maintain local ambient conditions within the defined 0 deg C to 60 deg C operating window. Ensure that the installation space remains clean and dry to comply with the indoor IP20 protection classification.
