Description

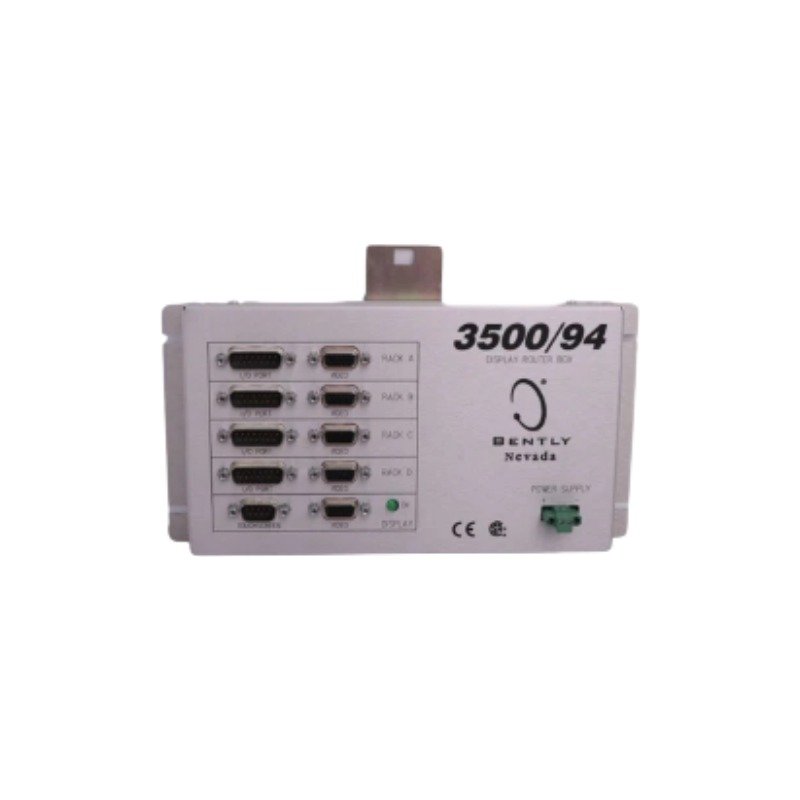

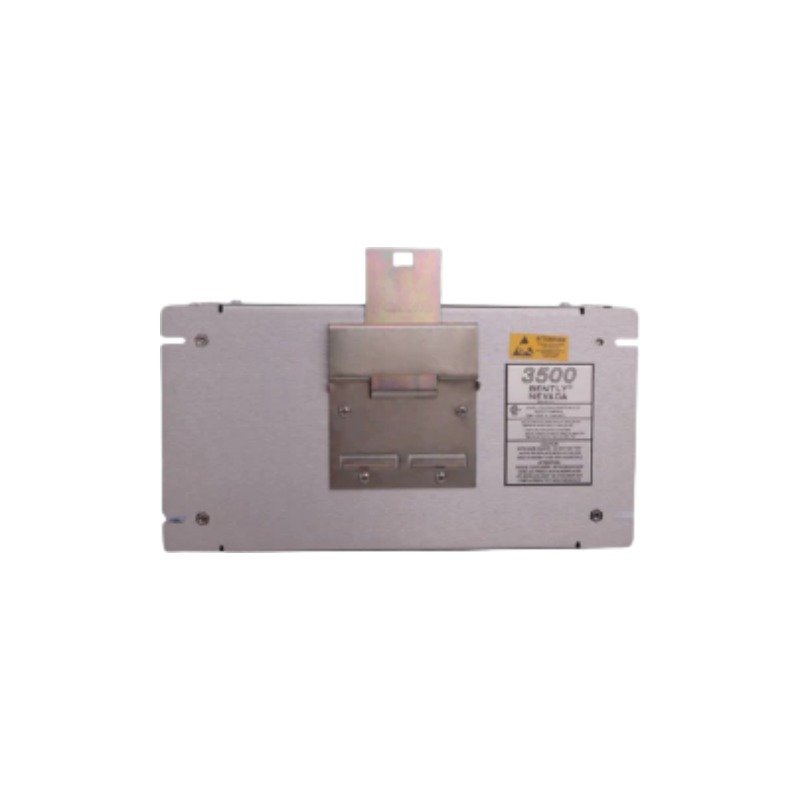

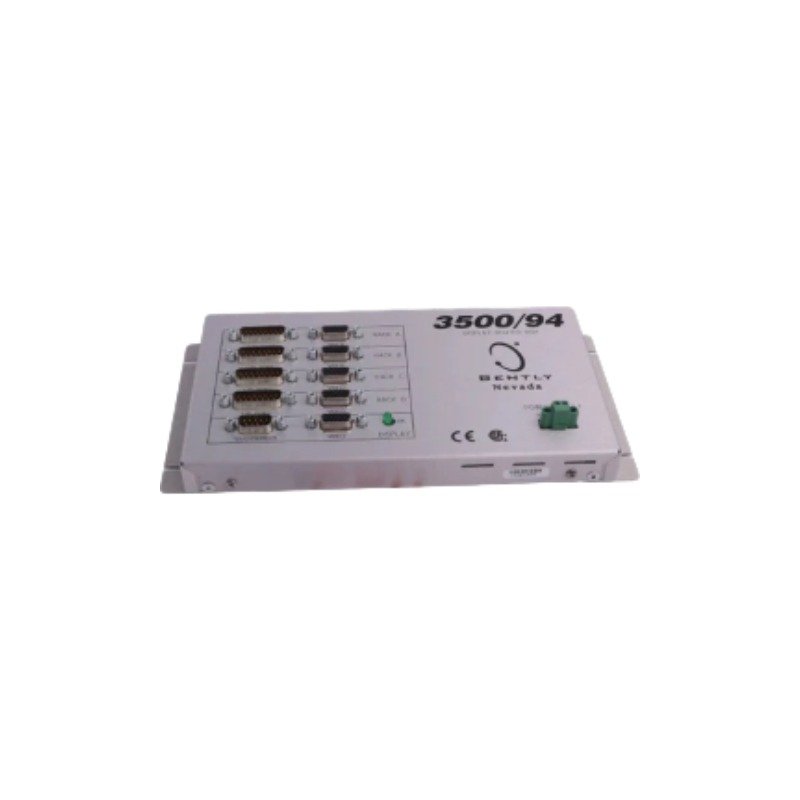

The Bently Nevada 3500/94 145988-01, also cataloged as the 3500/94 VGA Display Monitor, operates as a dedicated hardware component for displaying monitor status, data, and values within 3500 Series Machinery Protection System platforms. Configured to collect backplane variables, the module drives visual layouts including system event lists, alarm event lists, and an API-670 compliant 3300 style rack view. Additionally, an integrated RS232 I/O port executes touch controller data transmission between the main processing hardware and the display panel interface.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This VGA display module interfaces with the internal rack network to continuously output localized diagnostics without affecting critical eddy-current probe scaling configurations. The direct digital collection method reads calibrated engineering units straight from adjacent calculation cards, rendering real-time gap voltage validation (-10 VDC targets) and alarm highlights on screen. During active rotor dynamics deviations, the high-speed internal bus transfers current alarm parameters to the quick view panel instantly to maintain visual synchronization. Furthermore, the localized display processing ensures high cross-talk suppression by shielding the low-amplitude analog machinery monitoring circuits from high-frequency external video line noise.

Frequently Asked Questions

Q: What specific visual configurations are available for tracking operational channels on this monitor?

A: The display interface provides nine distinct custom presentation choices alongside standard data matrices. These layout selections compile current alarm data, systemic events, and individual channel values into readable formats.

Q: How does the module execute communication for external touch panel interactions?

A: The module relies on a dedicated RS232 I/O serial port integrated directly into the hardware configuration. This hardware path translates and processes directional touch controller coordinates without burdening primary protection tasks.

Q: Does a failure in the 3500/94 module affect the real-time trip execution loops of the system?

A: No, the module operates purely as a data display and status collection component. A failure or loss of power within this display layer does not disrupt the independent protective relay logic running on adjacent modules.

Field Installation Guidelines

• Mounting Mechanics: Insert the module assembly securely into its designated slot on the 3500 rack frame. Tighten all front panel hardware elements to guarantee correct structural alignment and electrical ground continuity across the chassis.
• Shielding Requirements: Route the RS232 serial cable and video connection lines through grounded metal conduit. Ground the outer cable shields explicitly at the designated instrument earth block to prevent external high-frequency interference.
• Wiring Separations: Maintain a clear physical separation distance of at least 200 mm between display signal lines and high-voltage AC electric cables or active motor drive circuits to suppress induced field noise.
• Thermal Management: Ensure the surrounding operating environment remains strictly between -30 deg C and +65 deg C. Do not block the ventilation gaps of the rack enclosure to avoid localized thermal pocket formation.
