Description

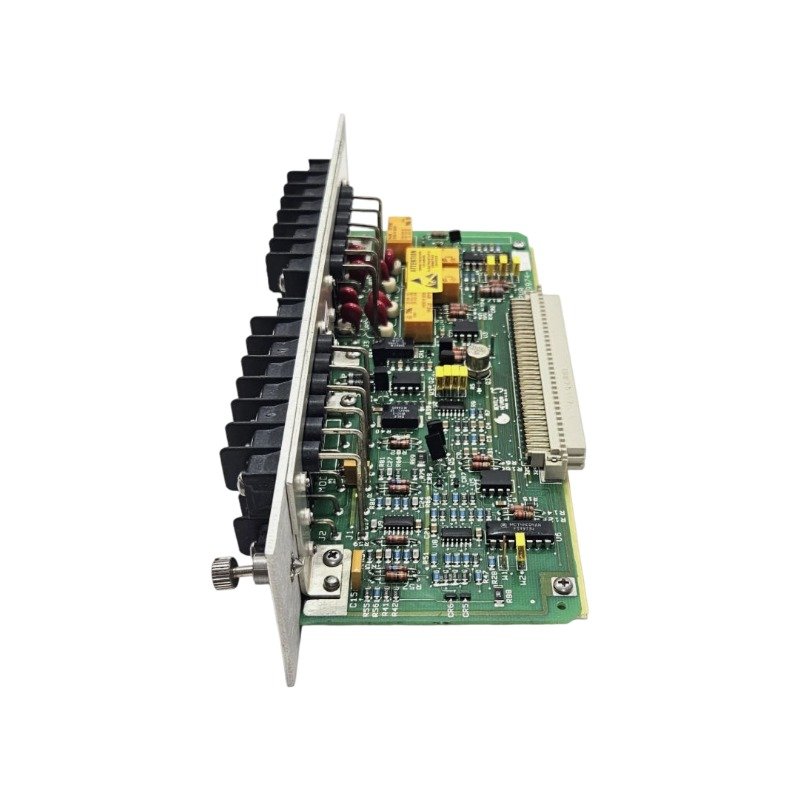

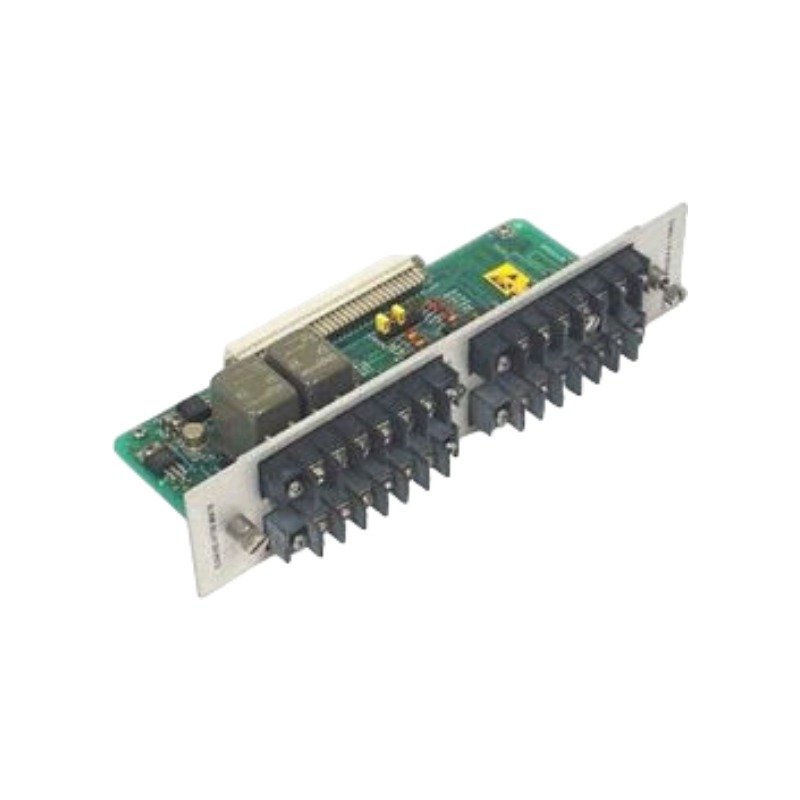

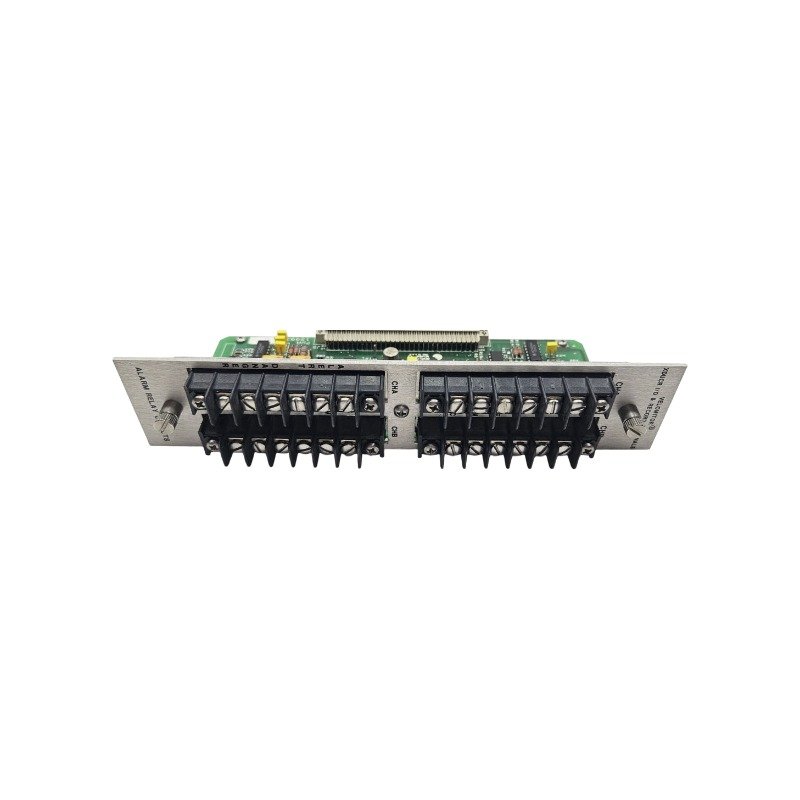

The Bently Nevada 83792-01, also cataloged as the 83792-01 Quad Relays Module, operates as a dedicated hardware component for direct physical/electrical execution within 3500 Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The control architecture implements precise eddy-current probe scaling configurations via backplane link mapping to actuate specific channels when alarm thresholds pass safe levels. To confirm system safety loops, the internal processors execute gap voltage validation (-10 VDC targets) data checks derived from input modules, adjusting tripping matrix conditions dynamically. This automated execution handles critical physical interlocks during transient machine speeds without introducing lag. Furthermore, dedicated cross-talk suppression filters safeguard the core relay logic circuits against external EMI spikes, supplying clean execution states required to assess real-time rotor dynamics.

Frequently Asked Questions

Q: Can maintenance personnel configure individual channels on this module for different voting logics?

A: No. The internal logic parameters and programmatic voting options (such as AND/OR gating schemes) must be specified and assigned via the core 3500 Rack Configuration Software rather than via hardware switches on the 83792-01 circuit card.

Q: What physical state do the dry contacts assume when the main 3500 system rack loses all input power?

A: This module relies on the configured fail-safe designation. You must wire the dry contact lines to match either Normally Open or Normally Closed installations, which determines whether the relays drop out or hold state during a sudden input power loss.

Field Installation Guidelines

• Ground all field wiring shields and outer metal braids directly at the designated chassis ground strip on the 3500 rack structure to minimize electrical drift.
• Disconnect all active field-side control loops before sliding the relay module into the backplane to prevent arc generation at the terminal interface.
• Verify all final terminal block installation terminal screws match standard field industrial torque thresholds to secure links under severe industrial vibration profiles.
