Description

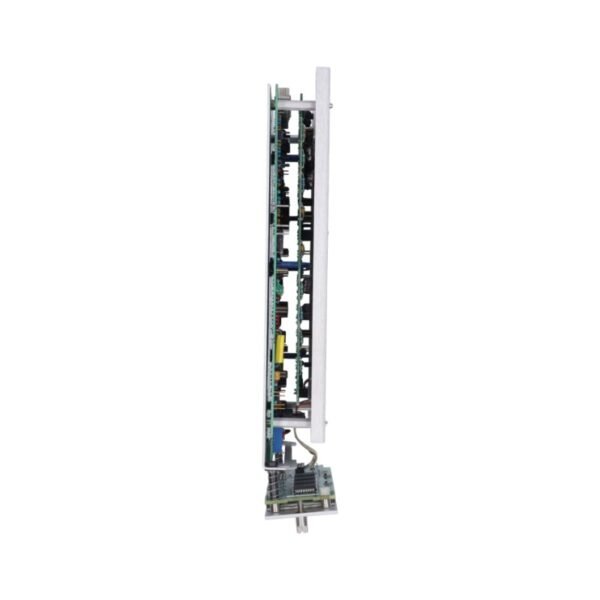

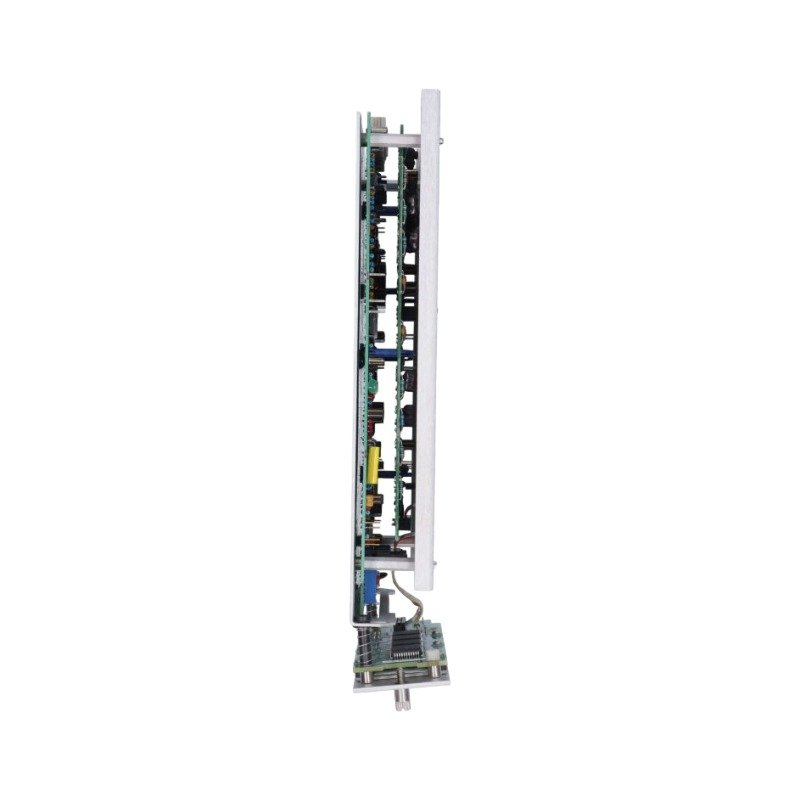

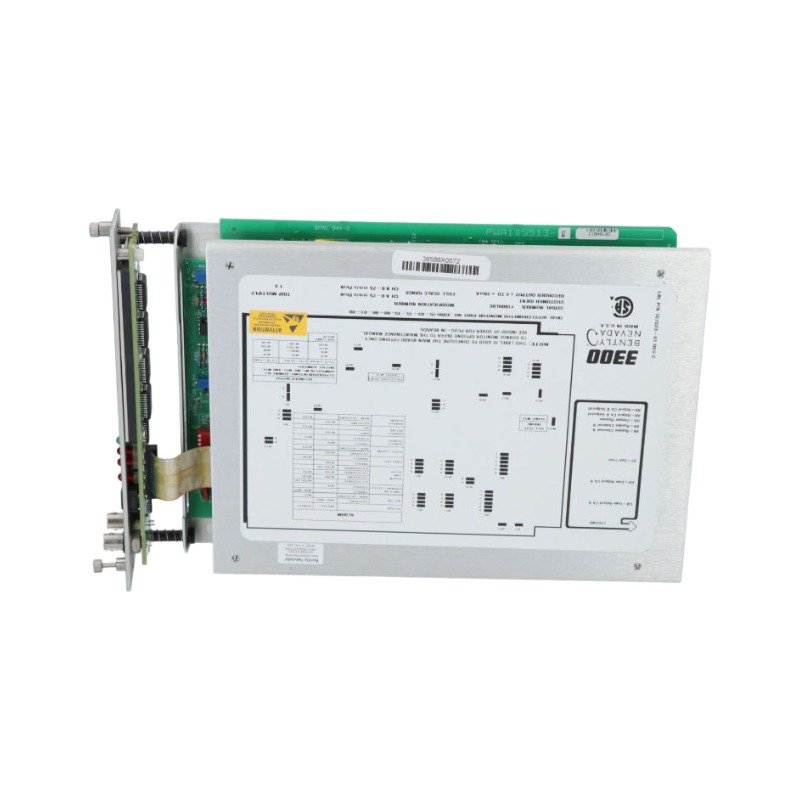

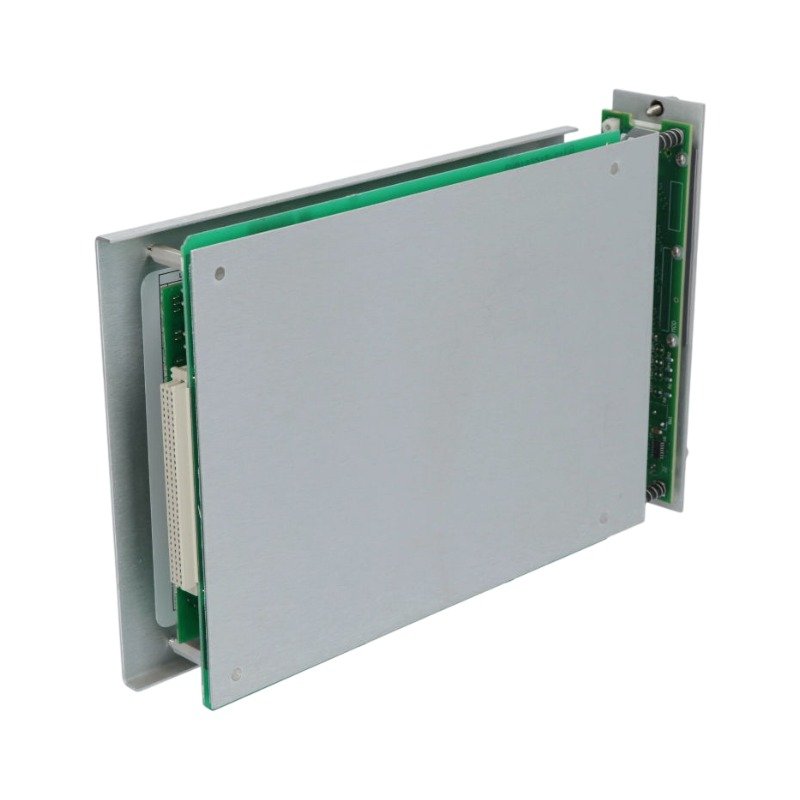

Configured for continuous dual-channel relative thermal expansion monitoring in 3300 Monitoring System platforms, the Bently Nevada 3300/45-XX-01-03-00 (3300/45 Dual Differential Expansion Monitor) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• XX: Full-scale range configuration option (Unspecified/Variable field selection)
• 01: Transducer input selection option
• 03: Alarm relay hardware configuration option
• 00: Factory standard agency approval option

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The processing circuitry executes precise eddy-current probe scaling to translate raw physical displacement into reliable metrics. During continuous operations, the firmware implements automatic gap voltage validation (-10 VDC targets) to verify that the paired proximity probes reside strictly within their calibrated linear measurement zones. Consequently, this validation process prevents measurement errors caused by localized thermal drift. To preserve signal integrity across high-density transducer arrays, integrated cross-talk suppression filters minimize adjacent channel interference, which yields stable data outputs for advanced rotor dynamics verification.

Frequently Asked Questions

Q: How does the “XX” suffix variable affect the physical hardware configuration?

A: The “XX” placeholder designates the specific scale range selection option. While the primary hardware remains identical, this setting configures the internal scaling parameters and front-panel bezel markings to match either millimeter or mil displacement spans.

Q: Can maintenance personnel hot-swap this module while the machinery is operating?

A: Yes, you can hot-swap the module, but you must manually bypass or inhibit the associated external machinery shutdown loops beforehand. Removing the card disrupts backplane continuity, which can trigger accidental Danger relay actuation on the connected relay module.

Field Installation Guidelines

• Disconnect all primary rack backplane power sources before inserting or extracting the monitor card assembly to eliminate voltage transients.
• Connect all external transducer shield drains to the designated chassis ground rail on the rear backplane assembly, ensuring robust electromagnetic noise isolation.
• Verify terminal screw tight torque thresholds during final rear I/O block installation to secure stable physical connections under continuous mechanical vibration.
