Description

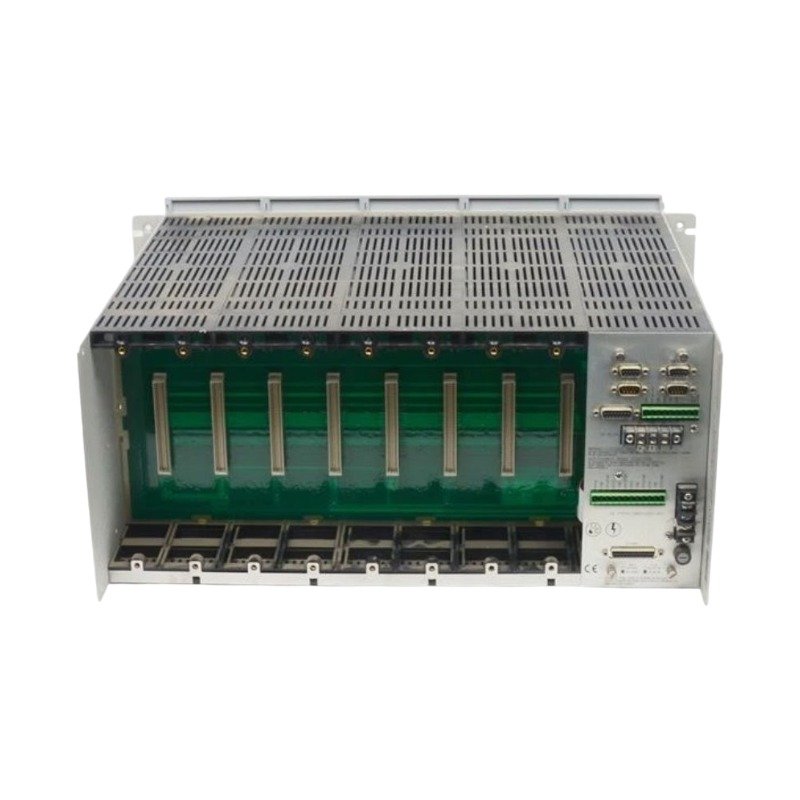

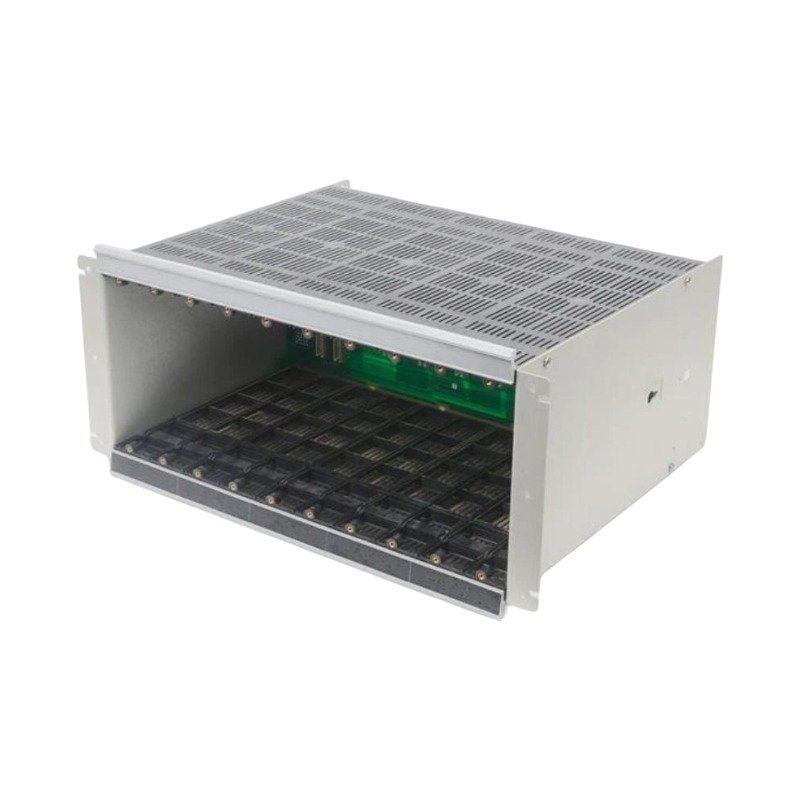

Configured for machinery monitoring and physical housing in 3300 Monitoring System platforms, the Bently Nevada 3300/05-24-00-00 (3300/05 Rack Assembly) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• 24: 19-inch panel mount, 14-slot system rack configuration option
• 00: Factory standard system panel option configuration
• 00: Factory standard agency approval option

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The backplane architecture establishes the precise physical interface required for continuous eddy-current probe scaling calculations executed by individual plug-in cards. To enforce signal stability across all slots, the internal power rail distribution maintains steady lines for accurate sensor gap voltage validation (-10 VDC targets), minimizing structural ground loops during steady-state or transient machine operations. This layout ensures steady current paths to the underlying transducer circuits. Furthermore, integrated cross-talk suppression paths within the multilayer printed circuit board shield data buses from adjacent signal fields, protecting the data streams needed to monitor complex rotor dynamics.

Frequently Asked Questions

Q: Can a 3300/05 system rack operate without a power supply in the dedicated left slot?

A: No. The backplane depends on a 3300 power supply module positioned in the left slot to step down line input voltages and supply regulated power to the monitor modules.

Q: How does this 14-slot rack handle system-wide alarm resets?

A: The backplane contains dedicated common trace lines linking each module slot to a common reset circuit. Engaging a single external hardware switch shorts this trace to ground, clearing latched alert or danger alarms across all installed cards simultaneously.

Field Installation Guidelines

• Secure the 19-inch outer flange framework into standard instrument racks using all four standard mounting bolts to prevent flexing under plant operating conditions.
• Route all high-voltage power conduits separated from the delicate sensor field lines entering the rear terminal blocks to eliminate industrial noise pick-up.
• Ground the primary chassis frame grounding lug directly to the central plant instrumentation earth grid using a heavy-gauge copper strap.
