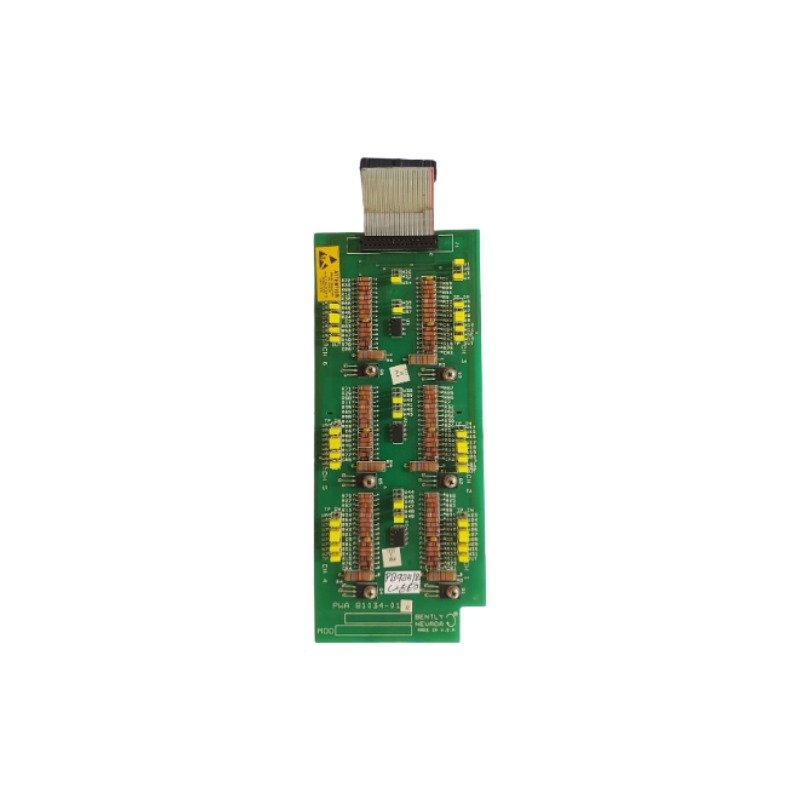

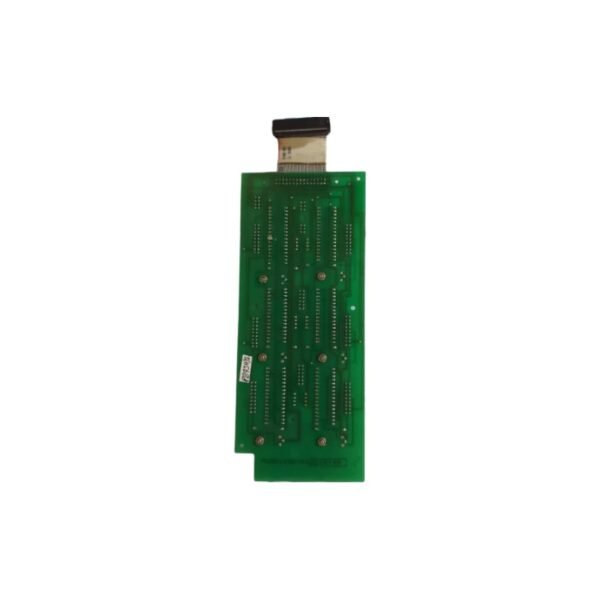

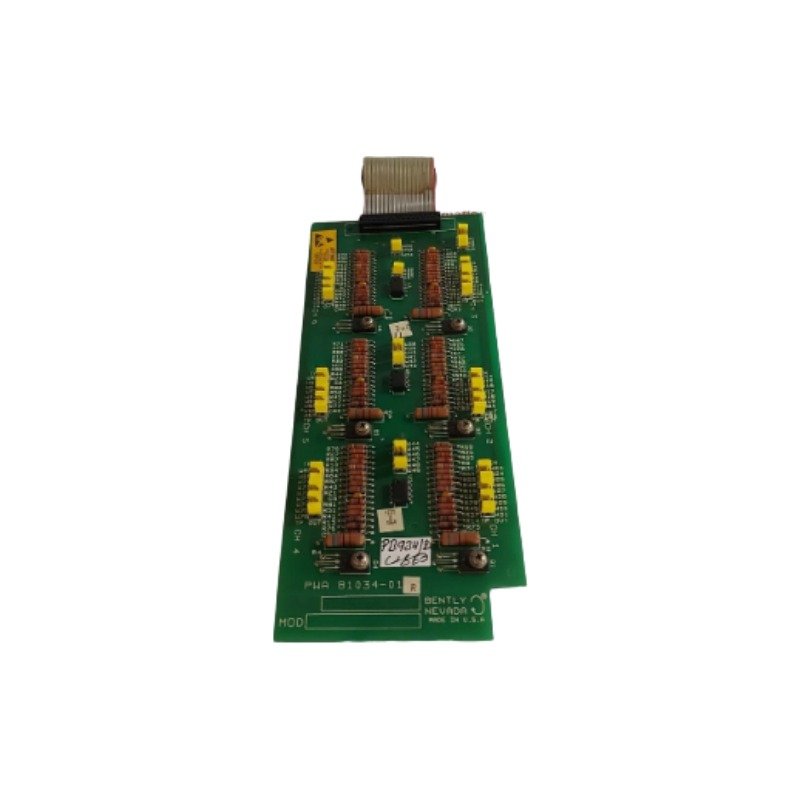

The Bently Nevada 81034-01, also cataloged as the 3300/35 Six-Channel Temperature Monitor Board, operates as a dedicated hardware component for on-line temperature monitoring within 3300 Series machinery protection systems. Specifically, the board accepts resistance temperature detector (RTD) or thermocouple sensor inputs across six independent processing channels. The micro-components execute live transducer tracking directly through the rack backplane assembly, translating dynamic thermal resistance shifts into linearized physical parameters to determine asset conditions.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This six-channel temperature monitor board runs continuous structural diagnostic passes to coordinate casing thermal curves with primary rotor dynamics evaluations. By isolating thermal expansions alongside eddy-current probe scaling baselines, the multi-channel tracking logic cross-checks localized bearing temperature spikes against unexpected shaft alignment shifts. The circuit architecture utilizes physical separation barriers between each input loop to achieve high cross-talk suppression. Consequently, this shielding prevents high-frequency inductive field noise from altering the millivolt-level telemetry lines or disrupting target loop measurements.

Frequently Asked Questions

Q: Does this hardware assembly permit hot-swap module replacement while the system rack remains energized?

A: No, the 3300 series backplane architecture does not support live hot-swapping for this board configuration. Power down the rack mainframe completely before extracting or inserting the component to prevent localized electrical arc damage to the backplane pin pins.

Q: How does the internal logic handle a broken lead or open-circuit condition on a channel configuration?

A: The board continuously drives a small diagnostic current through the transducer circuit. If an open-circuit fault occurs, the internal monitor drives the specific channel logic into an upscale or downscale error state, immediately triggering a channel NOT OK indicator lamp.

Q: Can technicians intermix three-wire RTD and type-K thermocouple lines directly onto the same 81034-01 board?

A: No, the internal instrumentation amplifier configurations must match the specific option block chosen for either the 3300/30 (TC) or 3300/35 (RTD) matrix. Intermixing different primary transducer classes on a single board disrupts the internal linearization tables.

Field Installation Guidelines

• Mounting Mechanics: Align the board edges with the dedicated plastic guide rails of the 3300 chassis slot. Slide the board forward with steady physical force until the rear multi-pin male connectors seat fully into the motherboard socket.
• Shielding Requirements: Terminate all field sensor cable shields directly at the instrument common ground bus within the terminal enclosure. Ensure the shield remains completely isolated and open at the transducer housing end to block ground loop current paths.
• Wiring Separations: Keep the incoming low-voltage RTD or thermocouple signal wires physically separated from high-current AC mains power runs or variable frequency drive cables. Maintain a minimum space configuration of 300 mm to avoid inductive noise injection.
• Thermal Management: Ensure the front faceplate and chassis exhaust ports remain completely clear of dust or obstruction. Maintain an interior rack operating environment within 0 deg C to +65 deg C to prevent early thermal drift in the measuring circuits.
