Description

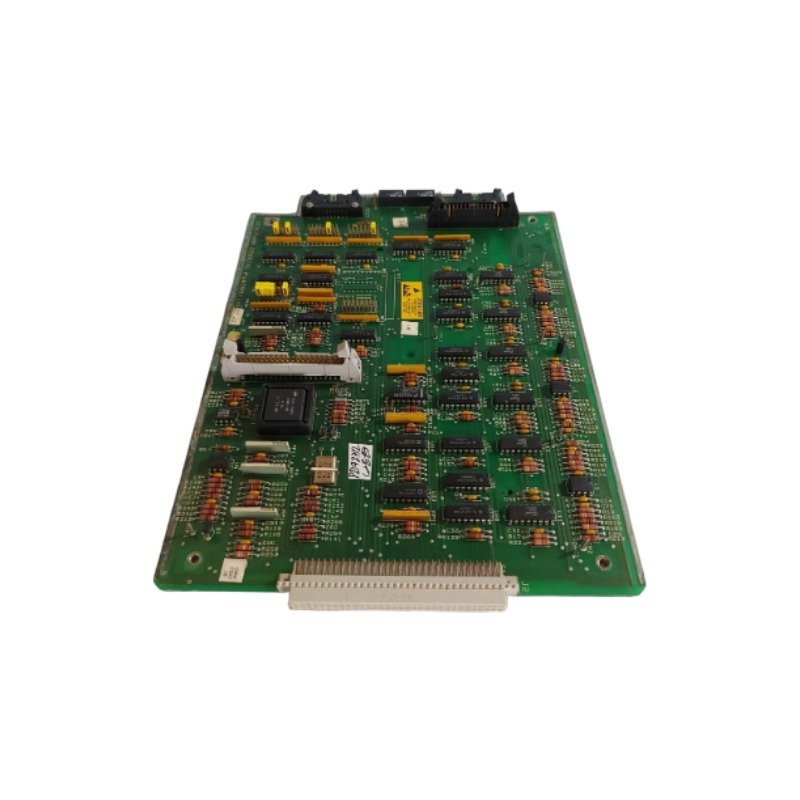

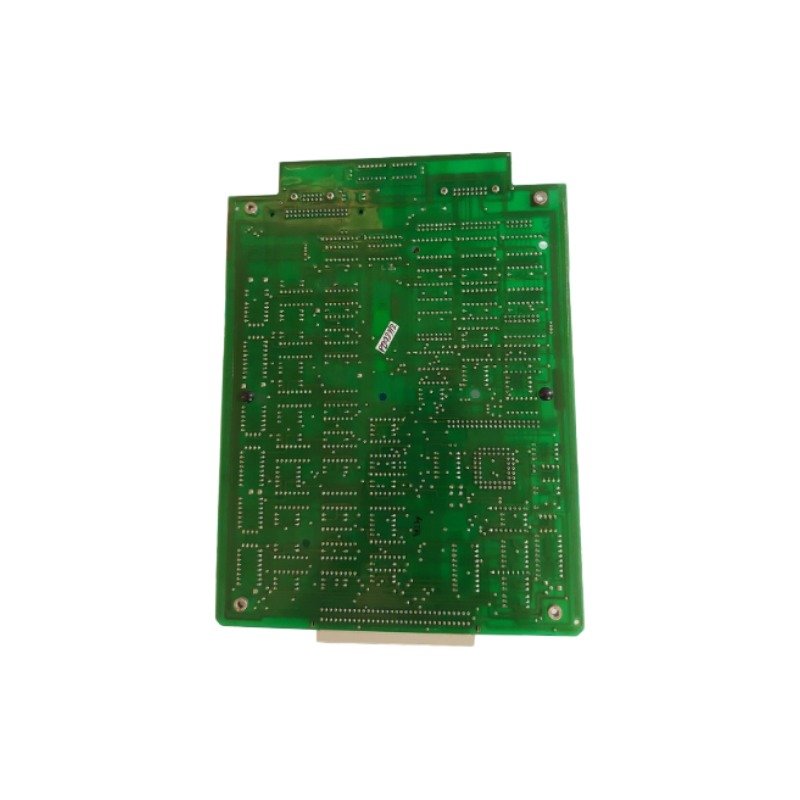

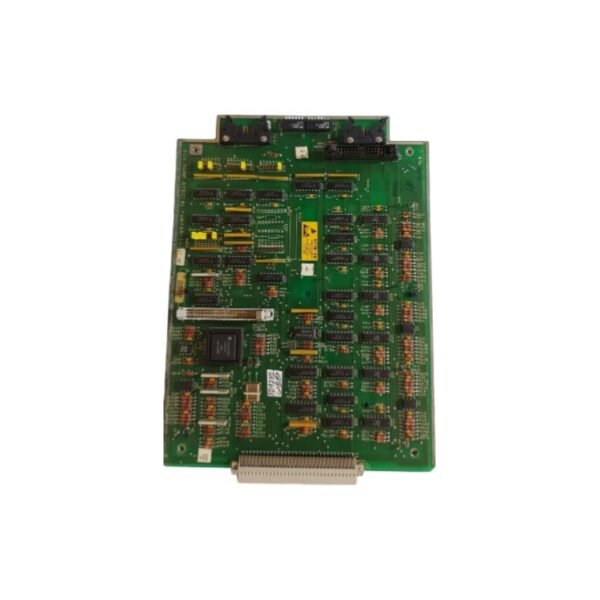

The Bently Nevada 79512-01, also cataloged as the 79512-01 Temperature Monitor Module, operates as a dedicated hardware component for continuous temperature monitoring within Bently Nevada 3500 series racks. Specifically, the processing channels accept direct field connections from multiple RTDs and thermocouples to evaluate thermal variables. Furthermore, the internal hardware paths digitize incoming analog voltage or resistance loops, routing real-time status values across the backplane bus while driving discrete alarm and trip outputs for over-temperature conditions.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This temperature monitor module continuously processes static thermal gradients alongside high-frequency dynamic channels to coordinate overall turbomachinery protection matrices. While adjacent modules execute eddy-current probe scaling functions and gap voltage validation (-10 VDC targets), this module maps bearing and casing temperatures to evaluate the physical consequences of rotor dynamics alterations. The localized analog input conditioning circuits integrate strict cross-talk suppression paths, blocking high-frequency carrier wave spillover from proximity transducer power lines and ensuring low-voltage thermocouple readings do not experience measurement drift.

Frequently Asked Questions

Q: How does the 79512-01 manage hot-swap procedures during active machinery tracking?

A: The module supports live insertion and extraction within a powered 3500 rack frame. However, pulling the module opens the field sensor loops immediately, forcing the assigned rack trip relays to react according to the programmed alarm voting configuration.

Q: Can a single 79512-01 handle a combination of RTD and thermocouple inputs simultaneously?

A: Yes, the module firmware provides flexible sensor configuration options. Technicians configure individual channels via the 3500 rack software utility to match the exact physical sensor type connected to the matching terminal block.

Q: What action does the hardware execute if an active input cable undergoes a short-circuit fault?

A: The internal diagnostic engine detects abnormal input voltage ranges. It immediately bypasses regular trip logic, drives the affected channel into a NOT OK fault state, and updates the system status registers to prevent a false machine shutdown.

Field Installation Guidelines

• Mounting Mechanics: Slide the module completely along the plastic chassis guide rails of the 3500 rack. Tighten the top and bottom integrated panel screws to secure the physical ground path and prevent mechanical loosening from continuous machine vibration.
• Shielding Requirements: Terminate all sensor cable braided shields at the single-point instrument earth ground strip. Keep the field-side cable shield isolated and ungrounded to prevent parallel ground currents from introducing measurement noise.
• Wiring Separations: Route the incoming low-voltage sensor lead wires through distinct conduits. Maintain a clear separation barrier of at least 300 mm from high-voltage AC electrical lines or variable frequency drive cabling to prevent inductive coupling.
• Thermal Management: Verify that cabinet cooling systems maintain uninterrupted airflow through the rack faceplate openings. Maintain ambient room conditions within the specified -30 deg C to +65 deg C boundaries to prevent early internal component degradation.
