Description

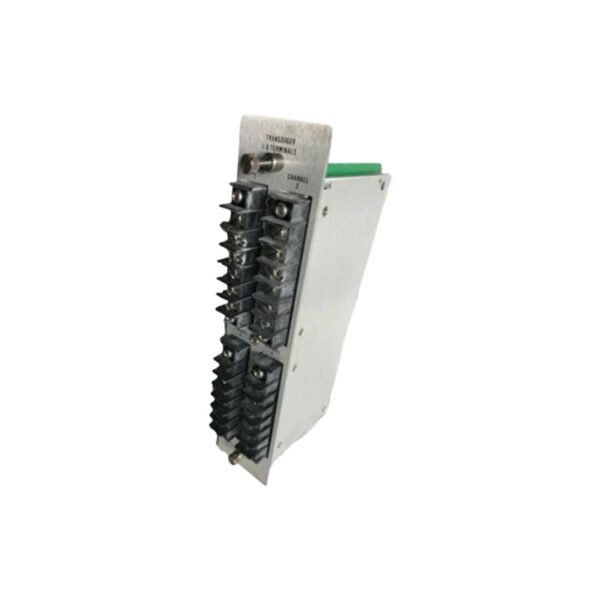

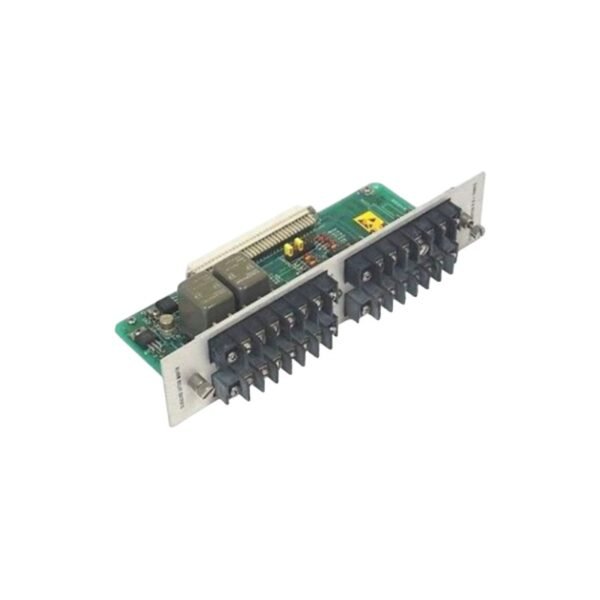

Configured for online temperature monitoring in 3300 System platforms, the Bently Nevada 79532-01 (79532-01 RTD Input Module), paired with component number 82369-01, provides direct physical/electrical execution. Specifically, the terminal module establishes direct connectivity for six independent 4-wire RTD sensors to route physical thermal variables into 3300/30 and 3300/35 Six-Channel Temperature Monitors. Furthermore, this rack-mounted hardware processes analog resistance changes directly over individual interface channels to prevent ground loop discrepancies across the collective instrumentation chassis.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This RTD input module actively preserves baseline voltage parameters required for adjacent eddy-current probe scaling configurations by segregating thermal field signals from high-frequency sensor buses. The 4-wire hardware measurement topology compensates for field lead wire resistance, which facilitates accurate gap voltage validation (-10 VDC targets) on thermal expansion loops without thermal cross-talk corruption. During high-velocity rotor dynamics transitions, the six independent channels continuously track bearing housing temperature metrics to correlate mechanical displacement with precise thermal loading. Additionally, the internal circuit paths optimize cross-talk suppression between the low-frequency RTD excitation currents and neighboring high-frequency analog vibration monitor cards.

Frequently Asked Questions

Q: How does the 4-wire connection protocol improve temperature measurement accuracy across long field cable runs?

A: The 4-wire design uses two leads to supply a constant excitation current and two independent leads to measure voltage drop across the RTD element. This method completely cancels out errors introduced by field cable lead resistance over long distances.

Q: Can this terminal module be hot-swapped while the primary 3300 monitor remains energized?

A: The rear terminal block assembly is secured to the chassis frame via mechanical fasteners. While field sensor wires can be disconnected, complete removal of the module backing requires proper field isolation protocols to prevent terminal short-circuits.

Q: What actions should be taken if a single channel experiences an open circuit fault condition?

A: An open circuit on any input channel triggers the associated 3300/30 or 3300/35 monitor’s internal fault logic, driving the channel status indicator into a NOT OK state while isolating the affected channel from trip relay outputs.

Field Installation Guidelines

• Mounting Mechanics: Align the terminal module assembly with the rear slot layout of the 3300/30 or 3300/35 monitor. Tighten the retaining screws fully to guarantee electrical continuity and mechanical stability against continuous industrial structural vibrations.
• Shielding Requirements: Terminate the overall shield of the 4-wire RTD field cables at the designated instrument earth ground strip. Never ground the shield at both ends to avoid generating ground loops that corrupt resistance readings.
• Wiring Separations: Maintain a physical clearance path of at least 300 mm between the low-level RTD signal cables and high-voltage AC electrical lines or variable frequency drive cabling to prevent electromagnetic noise induction.
• Thermal Management: Ensure ambient conditions within the enclosure remain within the standard operational limits of 0 to +65 deg C. Prevent localized condensation by maintaining a non-condensing atmosphere across the terminal connections.
