Description

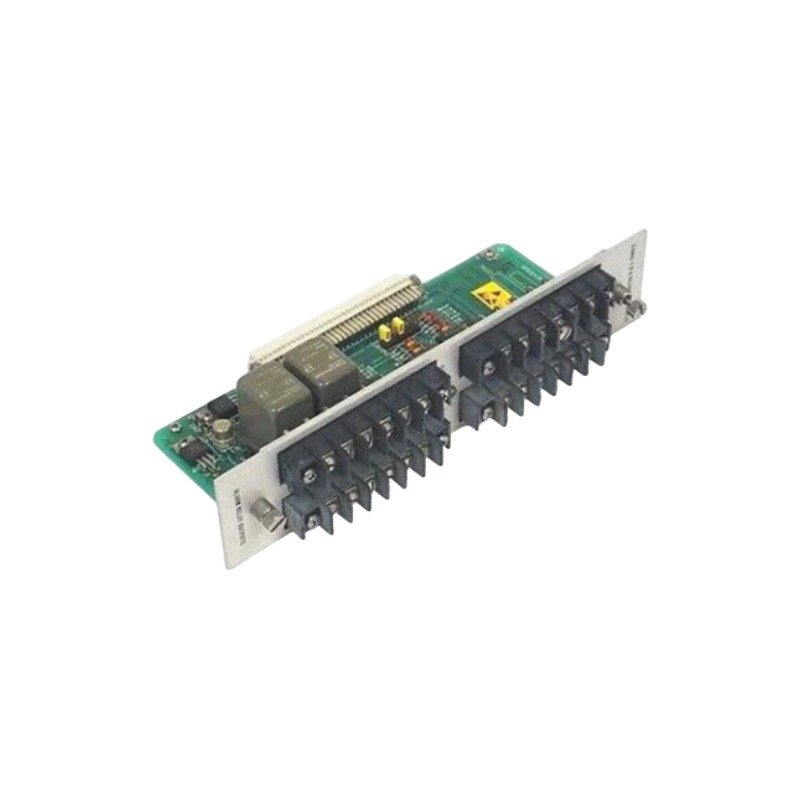

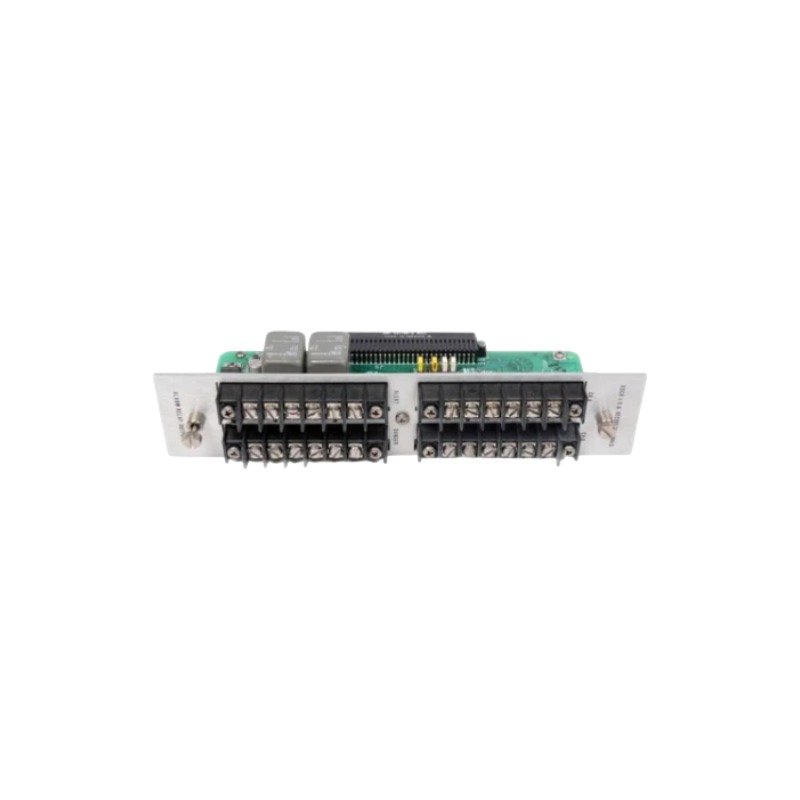

The Bently Nevada 79532-01 82369-01, also cataloged as the 82368-01 RTD Input Terminal Module, operates as a dedicated hardware component for online temperature monitoring within 3300 Series Machinery Protection System platforms. Configured with a 3-wire RTD architecture, the module handles signal acquisition across six independent channels to evaluate physical thermal variations across machinery bearings and windings. Furthermore, the localized circuitry interfaces directly with 3300/30 Thermocouple Monitors and 3300/35 RTD Monitors to transmit conditioned variables over integrated Ethernet and RS485 communication lines.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This RTD input terminal module actively isolates low-voltage thermal resistance measurements to prevent high-frequency noise from destabilizing adjacent eddy-current probe scaling matrices. The 3-wire electrical configuration continuously calculates and compensates for lead wire resistance variations, which facilitates precise thermal referencing during concurrent gap voltage validation (-10 VDC targets) on nearby displacement loops. During high-velocity rotor dynamics transients, the distinct separation of the six signal channels prevents inductive cross-talk between the RTD excitation loops and the high-speed processing circuits of nearby seismic or proximity monitoring cards.

Frequently Asked Questions

Q: How does the 3-wire configuration compensate for lead wire resistance over long industrial cable distances?

A: The module measures the voltage drop across the return lead wire and subtracts twice this value from the total loop resistance calculation. This hardware method cancels out matched lead wire impedances, stabilizing temperature data accuracy.

Q: Can the RS485 and Ethernet interfaces operate simultaneously for data polling?

A: Yes, the dual communication architecture allows parallel data transmission, enabling the module to serve real-time temperature registers to the localized 3300 rack monitor while transmitting plant-wide diagnostics over the industrial Ethernet link.

Q: What happens to the channel outputs if an active 3-wire RTD probe undergoes a physical open-circuit failure?

A: The internal channel logic registers an over-range condition, forcing the associated monitor channel into a NOT OK fault state. This action instantly blocks any false high-temperature trip signals from executing on the output relays.

Field Installation Guidelines

• Mounting Mechanics: Secure the terminal module directly onto the designated rear chassis positions of the 3300 monitor assembly. Tighten all interface screws to ensure rigid mechanical structural bonding capable of resisting continuous low-frequency machine vibration.
• Shielding Requirements: Terminate the outer instrumentation cable shields at the single point instrument ground bus. Ensure the field-side shield is cut back and insulated to prevent parallel ground paths from introducing common-mode current loops.
• Wiring Separations: Route all 3-wire RTD input lines inside dedicated conduits separated from high-voltage AC electrical distribution lines and variable frequency motor drive cables by at least 300 mm.
• Thermal Management: Ensure ambient cabinet conditions stay within the defined limits of -40 deg C to +85 deg C. Maintain clean, dust-free ventilation pathways around the terminal card to prevent localized thermal degradation.
