Description

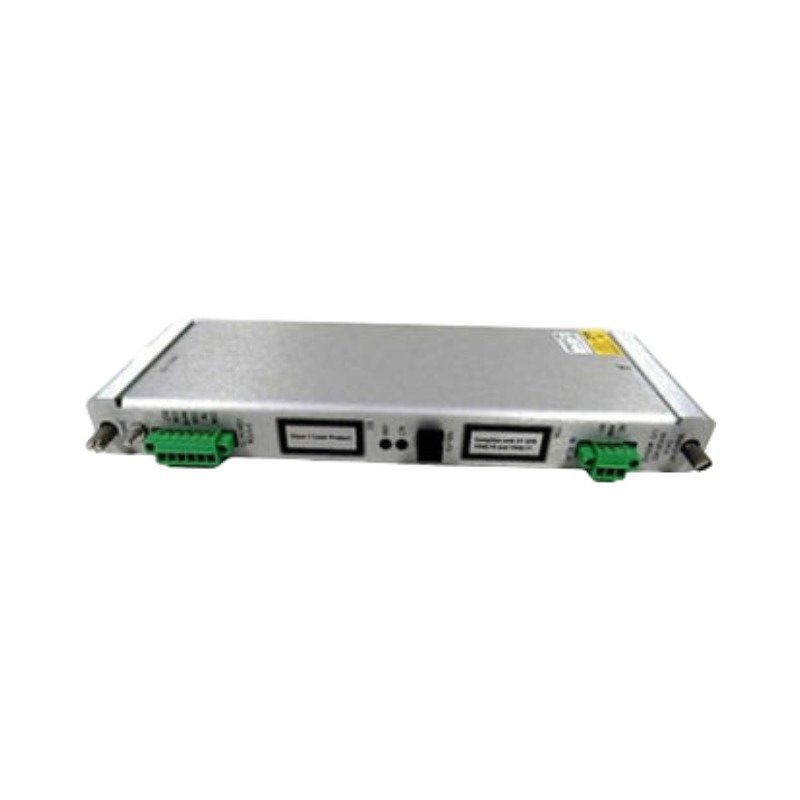

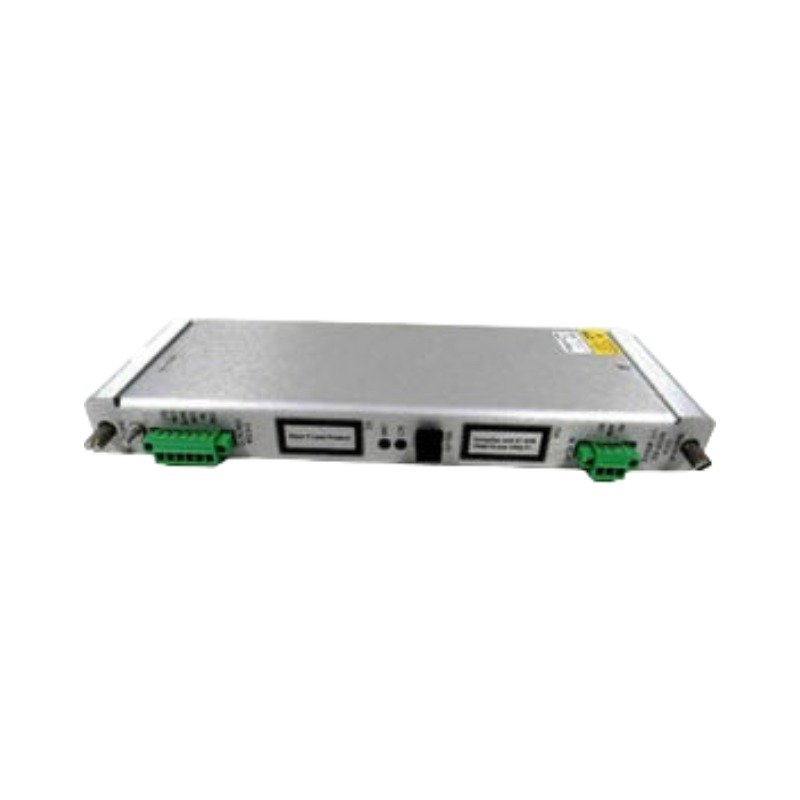

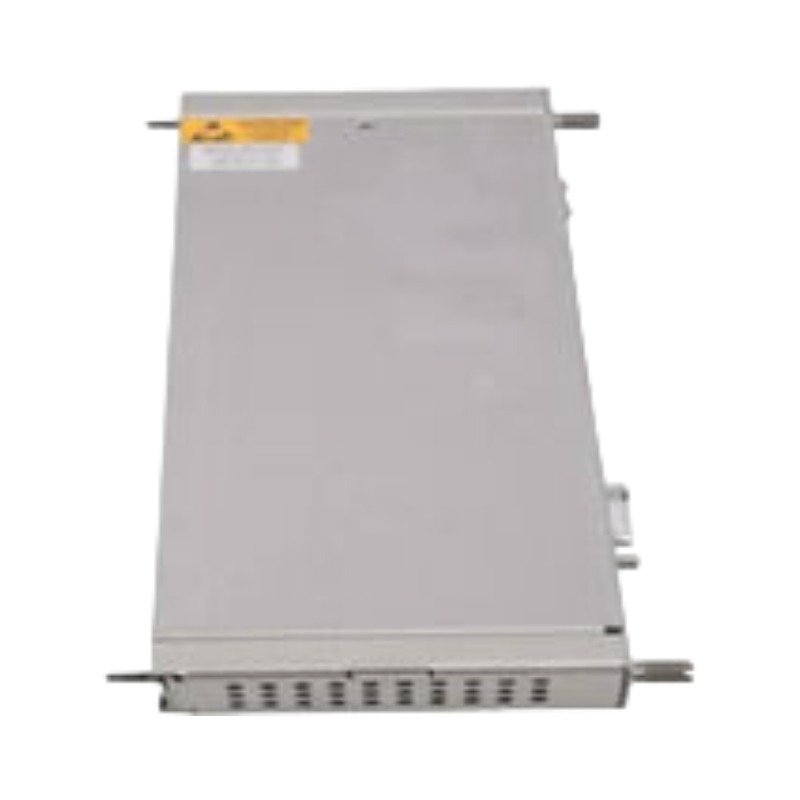

Configured for continuous thermal surveillance in 3300 Series Machinery Protection System platforms, the Bently Nevada 79512-03 (79512 Six-Channel Temperature Monitor) provides direct physical/electrical execution. The module conditions industrial RTD or thermocouple sensor inputs to track physical thermal changes across rotating components, enabling automated trip logic directly via internal backplane buses before thermal failure thresholds are breached.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

Operating within complex machinery monitoring arrays alongside critical vibration hardware, the 79512-03 addresses backplane signal integrity via targeted cross-talk suppression. High-frequency electrical noise stemming from adjacent eddy-current probe scaling circuits is rejected through multi-pole internal filtering networks. This ensures that low-amplitude sensor signals maintain high fidelity during fast changes in rotor dynamics. Safe operating margins are preserved because the module segregates steady-state thermal parameters from dynamic shaft position signals.

Frequently Asked Questions

Q: How is the specific input transducer type modified on the 79512-03 hardware?

A: Input configuration changes require altering physical jumper matrices situated on the internal Printed Circuit Board assembly prior to inserting the unit into the rack chassis.

Q: Does this specific dash variant support live insertion during system operations?

A: No. Complete disruption of rack power is required before installing or extracting the module to avoid creating transient ground loops or disrupting adjacent channel data buses.

Field Installation Guidelines

• Chassis Alignment: Insert the circuit board into the designated rack slots, verifying that the top and bottom card guides engage evenly before pushing the assembly into the rear backplane connectors.
• Shield Grounding Protocols: Run field transducer wiring with continuous twisted, shielded pairs. Terminate the shield drain wire exclusively at the rear chassis ground bar using standard ring terminals.
• Cable Separation: Route all temperature sensor input lines via separate dedicated conduits, keeping a minimum distance of 150 mm from high-voltage AC supply and machine drive cabling.
