Description

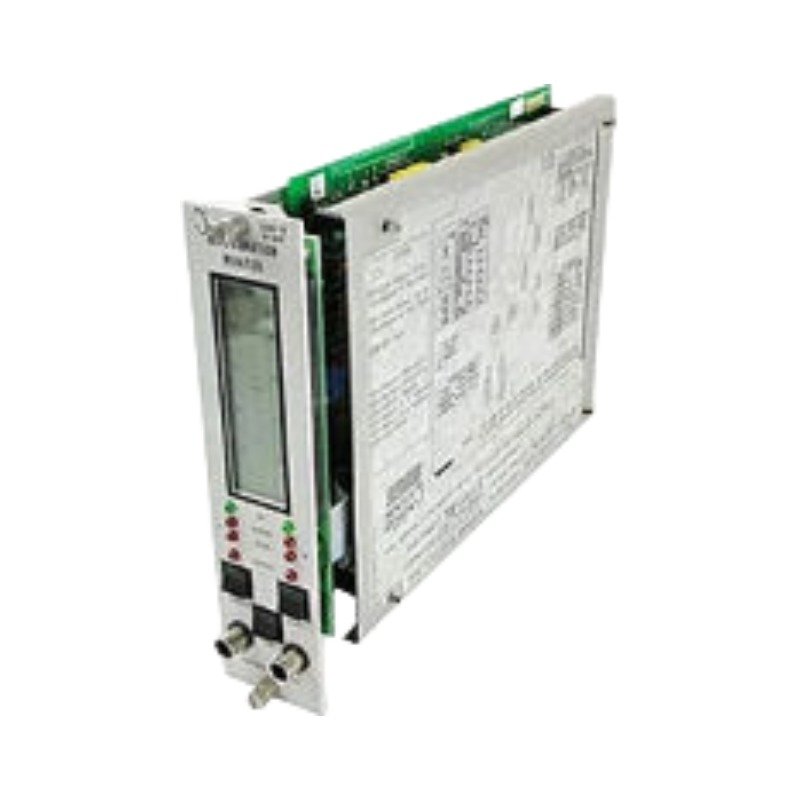

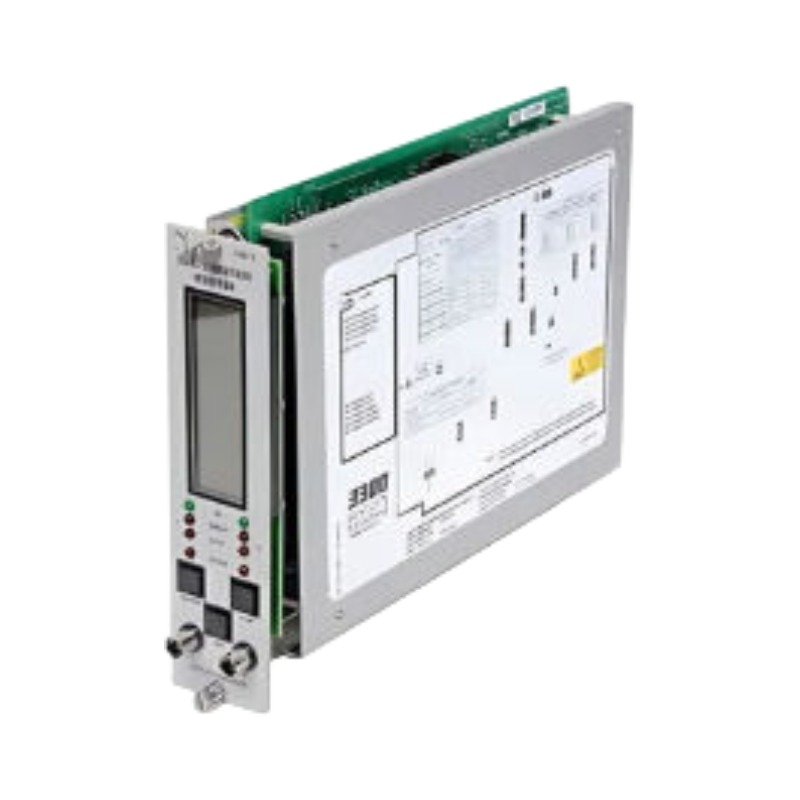

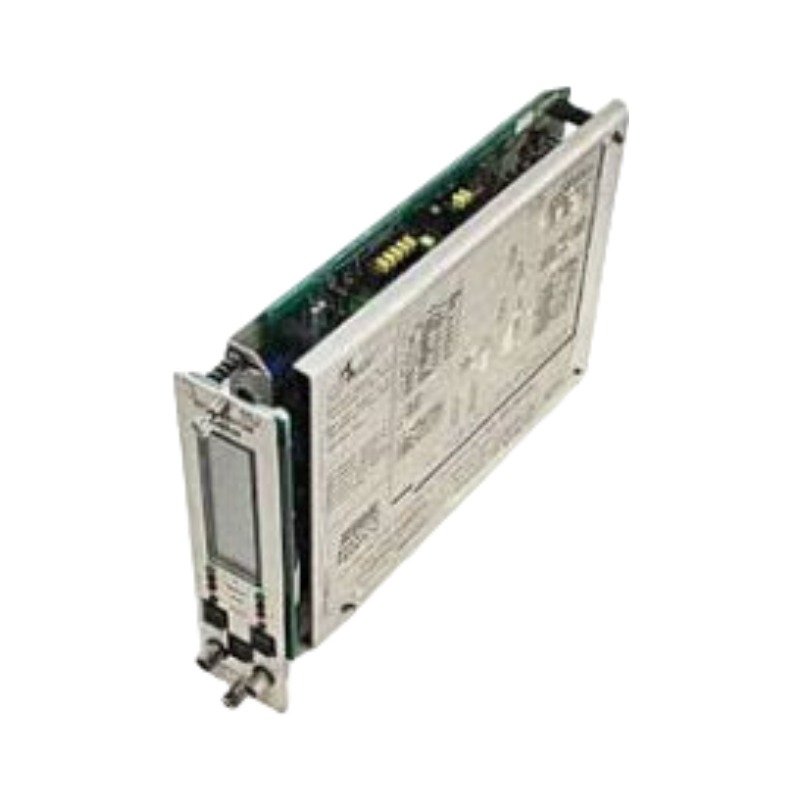

The Bently Nevada 79502-01, also cataloged as the 3300/30 Six-Channel Temperature Monitor, operates as a dedicated hardware component for continuous thermal surveillance within the Bently Nevada 3300 Series Machinery Protection System. The module executes real-time conditioning of inputs from standard transducers to protect industrial machinery against thermal over-limit conditions.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

In multi-slot machinery protection architectures, the 79502-01 interfaces directly via the 3300 system backplane bus. While dedicated to thermal metrics, the system integration utilizes cross-talk suppression methodologies to isolate low-voltage thermocouple signals from high-frequency eddy-current probe scaling and proximity sensor noise present in adjacent slots. This cross-talk suppression ensures signal fidelity across the backplane during transient machine events. Dynamic data sharing allows correlation between structural temperature increases and rotor dynamics metrics such as radial vibration or axial thrust variations.

Frequently Asked Questions

Q: Can the 79502-01 module be hot-swapped during rack operation?

A: No. The 3300 rack power supply must be completely de-energized before inserting or removing the 79502-01 monitor module to prevent electrical arcs and configuration corruption on the backplane.

Q: What is the isolation capability between the input channels?

A: The module utilizes galvanic isolation up to 500 VDC to decouple individual input circuits from each other and from the internal rack logic, preventing ground loop errors from distorting sensor readings.

Field Installation Guidelines

• Chassis Placement: Insert the 79502-01 module into any available full-height monitor slots within the 3300 rack framework, excluding positions 1 and 2 which are dedicated to the Power Supply and System Monitor modules.
• Wiring Configurations: Connect thermocouple extension wire leads to the corresponding terminals on the rear termination block. Ensure correct polarity alignment (positive and negative legs) based on the chosen sensor specification.
• Shielding and Grounding: Terminate the outer braided shields of the field input cables cleanly at the designated chassis ground bar. Do not allow shield drains to ground at both ends to avoid current loops.
