Description

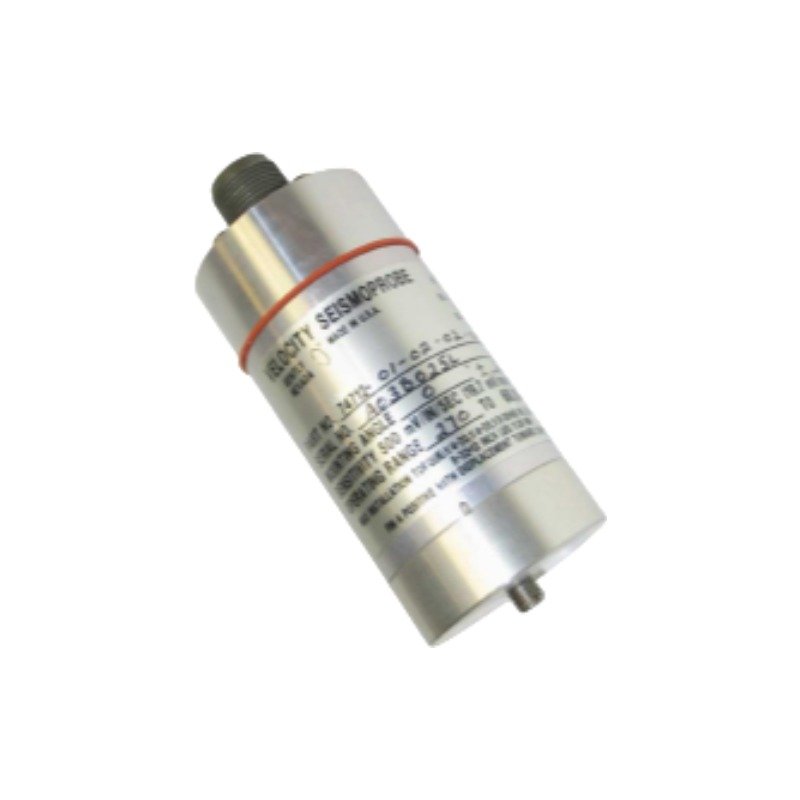

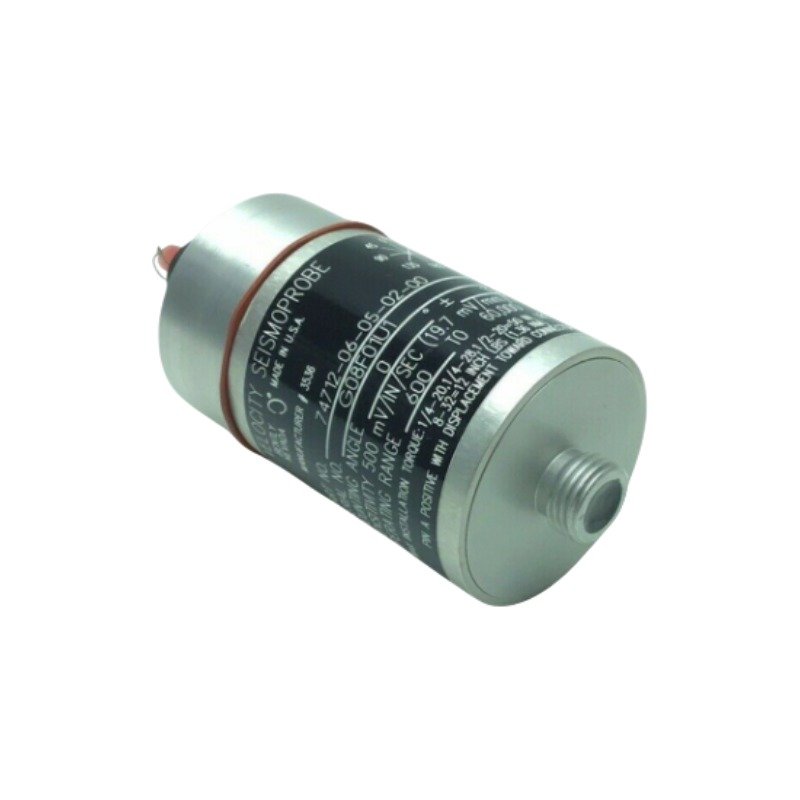

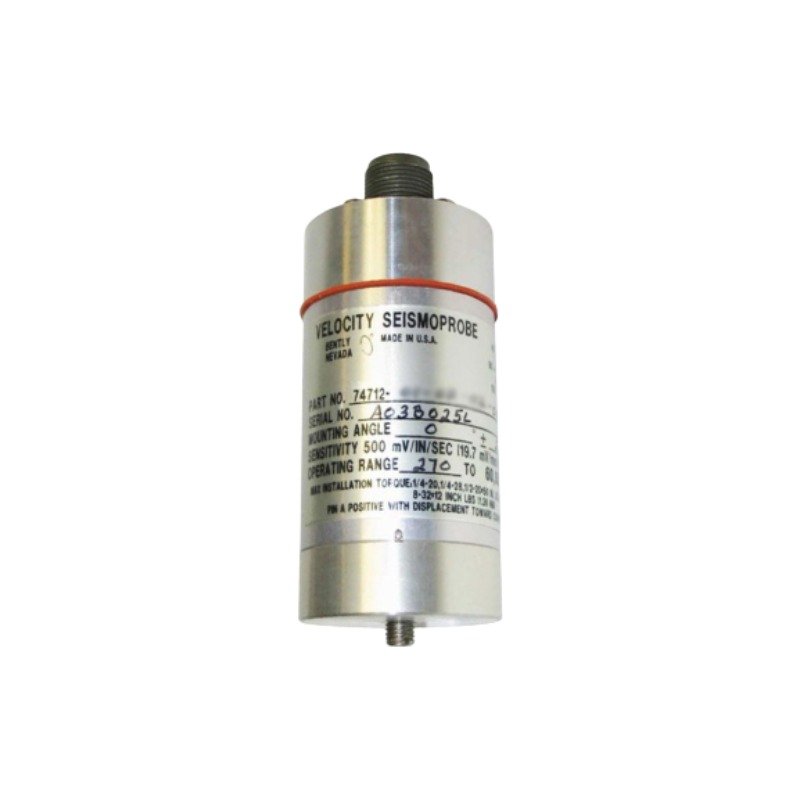

Configured for absolute vibration measurement in industrial machinery enclosures, the Bently Nevada 74712 (74712 Velocity Sensor) provides direct physical and electrical execution. Specifically, this passive, two-wire hardware component uses moving coil technology to generate a continuous voltage output. Because the mechanical internal structure responds directly to casing movements, the sensor tracks absolute vibration velocity relative to free space without external excitation power. Consequently, this self-generating architecture operates as a high-temperature monitoring option across critical plant monitoring networks.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This seismic probe velocity sensor converts mechanical casing velocities directly into clean analog telemetry records. Because the internal design utilizes a moving coil mechanism, the hardware suppresses mechanical cross-talk by damping transient shock impulses. Meanwhile, proximity probes track localized rotor dynamics via direct gap voltage validation (-10 VDC targets). The 74712 sensor complements this data by measuring absolute housing movements, which allows engineers to match rotor displacement data with low-frequency structural resonance frequencies. As a result, this combination stabilizes baseline tracking fields against unexpected structural changes.

Frequently Asked Questions

Q: How does the moving coil architecture improve performance over integrated solid-state velocity electronics? A: The moving coil design provides pure electro-dynamic voltage generation without active electronic components. Therefore, the sensor withstands pulsed shock excitation without overloading and performs reliably at higher ambient operating limits than solid-state alternatives.

Q: Do technicians need to supply external loop power to drive signal lines back to the monitor rack? A: No, the passive sensor design generates its own voltage signal via internal coil movement inside a permanent magnetic field. Because the unit runs entirely on its own mechanical power, it eliminates the need for external loop power drops.

Q: Can interconnecting signal lines run through high-vibration paths without stainless steel armor? A: While non-armored cabling functions effectively in clean spaces, physical lines routed across open bearing housings require stainless steel armor options. This shielding prevents mechanical breakdown from abrasion, debris, or fluid exposure.

Field Installation Guidelines

• Mounting Mechanics: Fasten the sensor securely to a machined flat surface using the designated stud options. Next, tighten standard base options (1/2-20, 1/4-20, 1/4-28, 5/8-18, or M10x1) to exactly 5.6 N-m (50 in-lb) to ensure true signal transfer across the interface.
• Shielding Requirements: Run the two-wire interconnecting cable through a single continuous ground shield. Furthermore, connect the shield to the monitor rack terminal block only, and clip it clean at the sensor end to avoid creating an active electrical ground loop.
• Wiring Separations: Separate the passive sensor signal wires from high-voltage AC utility runs or noisy variable frequency drive motor cabling. Maintain a minimum clearance of 300 mm to protect the millivolt telemetry output from inductive interference.
• Thermal Management: Verify that the high-temperature silicone gasket seats properly during installation. Additionally, keep operating conditions within standard limits and prevent moisture from pooling inside the top or side connector spaces.
