Description

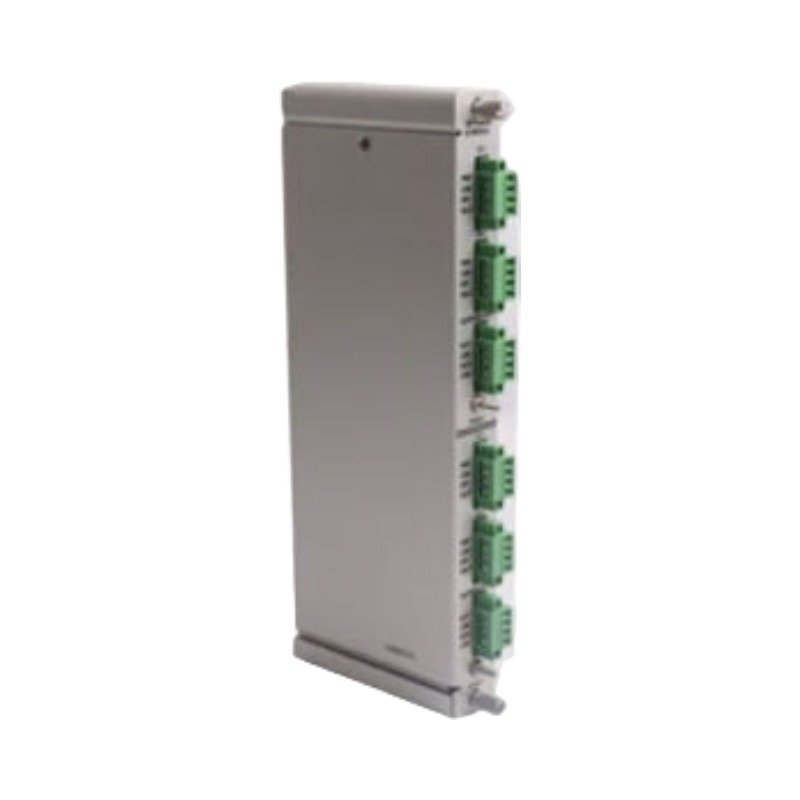

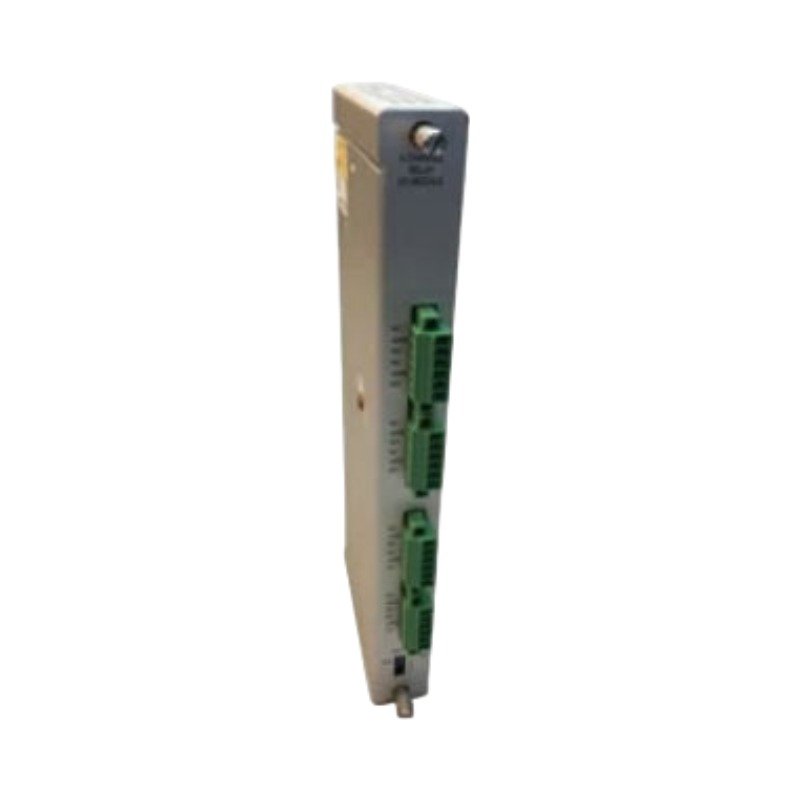

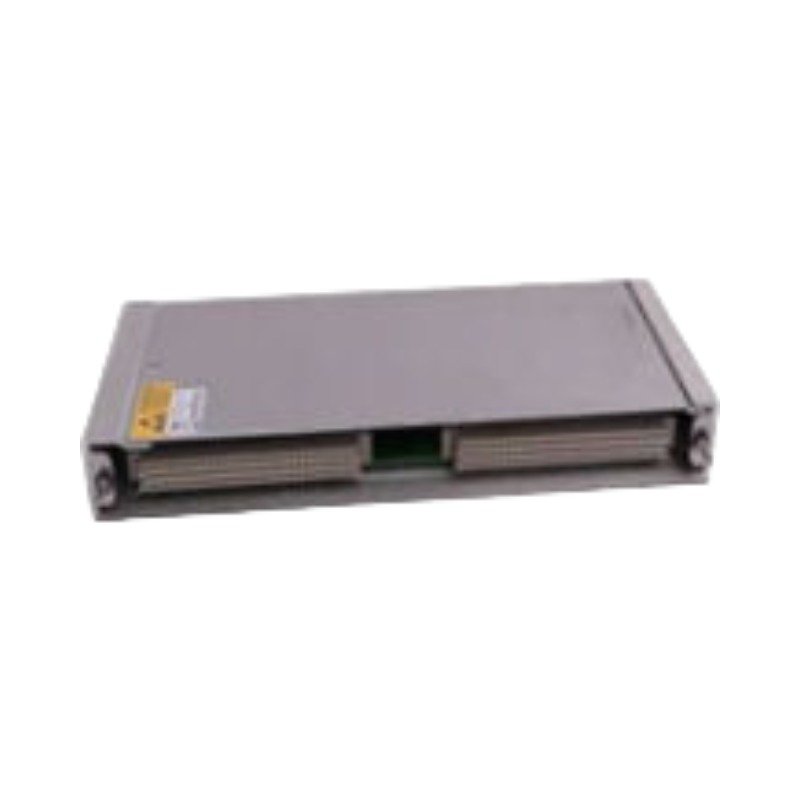

Configured for specific technical tasks in the 3500 Machinery Protection System, the Bently Nevada 47042 308 EL30 (47042 Velocity Monitor Module) provides direct physical/electrical execution. This specialized module processes real-time dynamic velocity data to actively identify and isolate mechanical anomalies across critical industrial turbine and compressor platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 47042 308 EL30 module continuously evaluates complex casing and bearing vibrations to decipher exact rotor dynamics. To maintain baseline calculation fidelity, field engineers execute explicit eddy-current probe scaling configurations within the software console. This procedure calibrates the module pathways to track specific sensor responses accurately.

Simultaneously, the internal layout utilizes hardware isolation matrices to perform cross-talk suppression between high-density adjacent data lines. During system validation routines, technicians verify proper transducer positioning by completing gap voltage validation. Confirming that the static bias voltage matches the standard -10 VDC baseline ensures that the attached sensors execute tracking precisely in the center of their linear calibration fields.

Frequently Asked Questions

Q: What primary sensor categories interface directly with the 47042 308 EL30 module?

A: The module typically interfaces with moving-coil or piezo-velocity transducers, though engineers can configure specific channels to accept seismic or proximity sensors depending on system parameters.

Q: How do technicians manage module extraction while the 3500 rack operates?

A: While the 47042 hardware technically permits extraction from live backplanes, field teams must engage the software bypass functions for the specific rack slot beforehand to prevent unwanted relay action.

Field Installation Guidelines

1. Guide the 47042 308 EL30 card into the designated slot guides on the frame until the connection block interfaces fully with the system backplane.
2. Torque the front panel grounding and securing screws straight into the chassis rails to achieve solid grounding continuity.
3. Keep the sensor connection paths isolated from parallel high-power switching cables within the wireways to eliminate inductive noise patterns.
4. Check that all external conduit connection threads achieve at least 5-thread engagement if installing through rigid NPT metallic fittings to the terminal box.
