Description

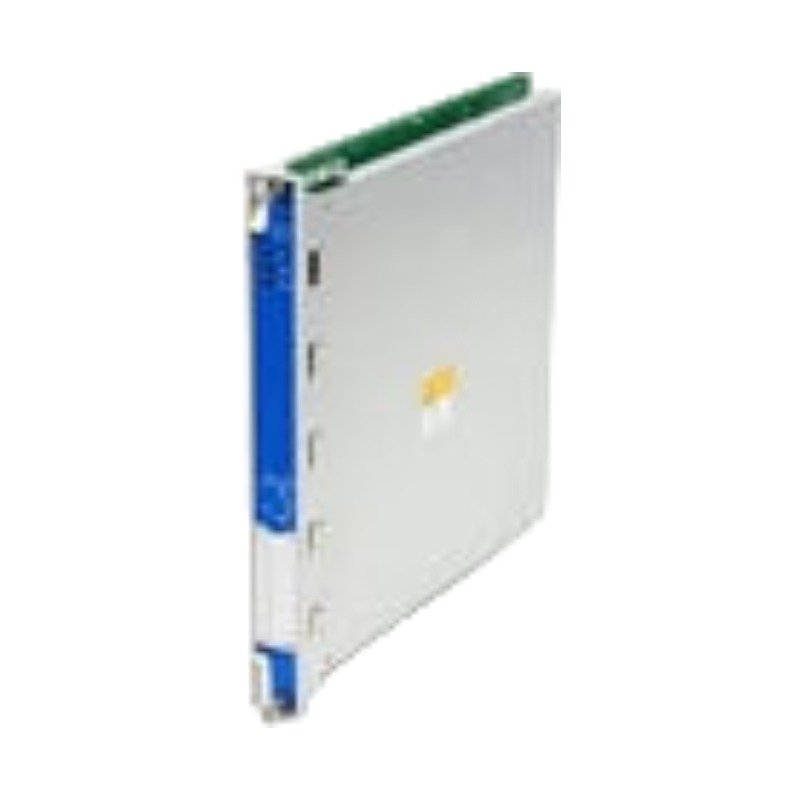

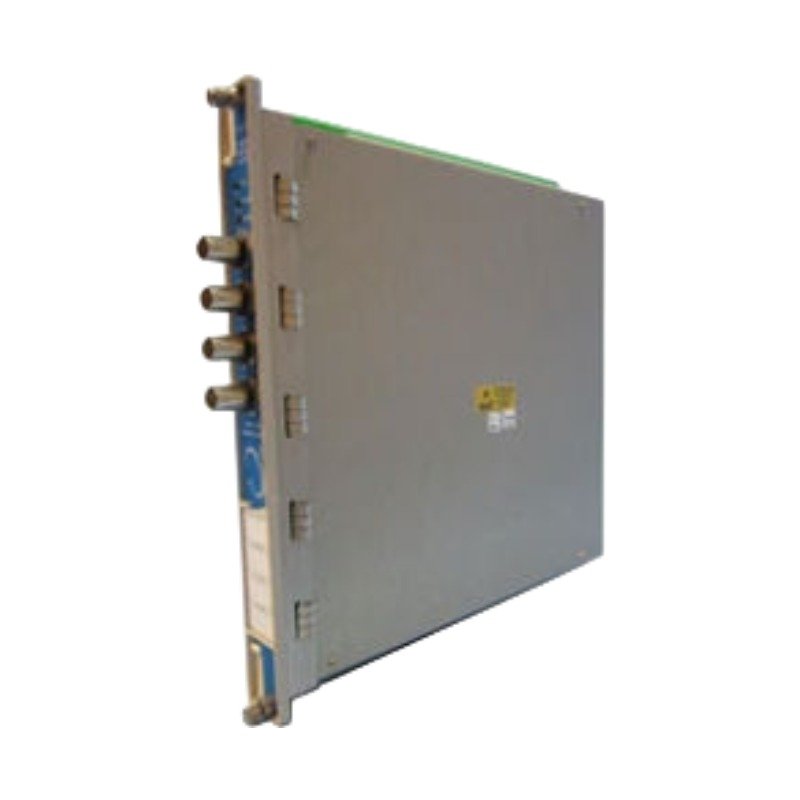

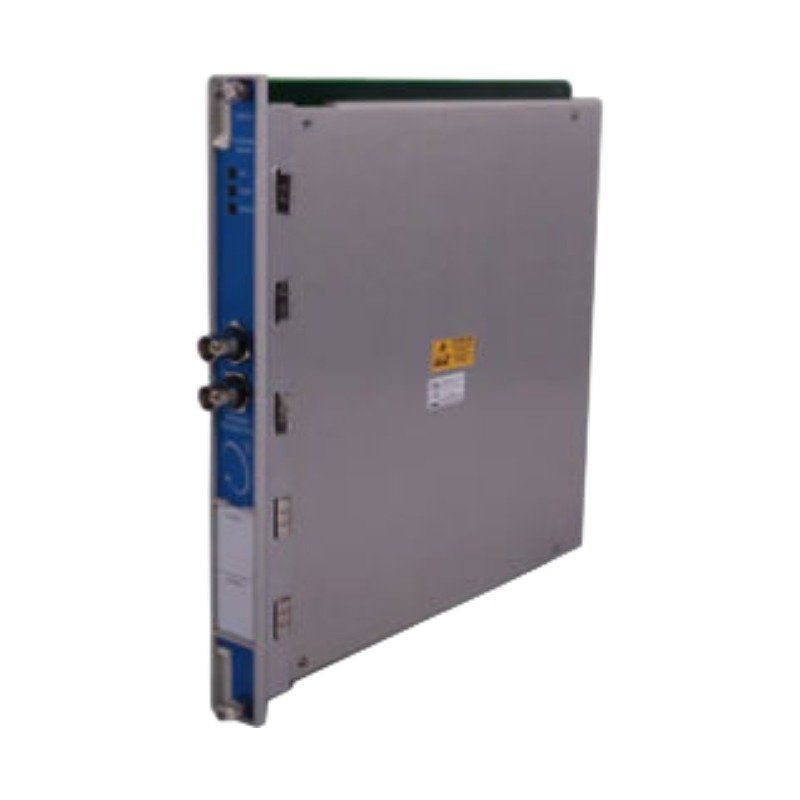

The Bently Nevada 71573 306-EL30, also cataloged as the 71573 Monitoring & Diagnostic Module, operates as a dedicated hardware component for continuous machinery protection by continuously acquiring and processing dynamic vibration and displacement signals within Bently Nevada monitoring chassis platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 71573 306-EL30 module continuously evaluates complex casing and shaft vibrations to analyze critical rotor dynamics. To maintain the highest fidelity during high-speed rotation, field engineers must execute exact eddy-current probe scaling configurations inside the corresponding setup software. This calibration directly aligns internal voltage tracking loops with the physical millivolt-per-mil (mV/mil) sensitivity of the attached proximity transducer tips.

Simultaneously, the internal processor architecture deploys active isolation filters to achieve robust cross-talk suppression between tightly packed sensor input lines. During loop commissioning phases, maintenance technicians prioritize gap voltage validation across the active channels. This test verifies that the static DC bias centers on the designated -10 VDC target, which confirms that the sensor operates perfectly within its designated linear measurement boundaries.

Frequently Asked Questions

Q: What primary monitoring functions does the 71573 306-EL30 module process?

A: The module processes high-precision real-time machinery variables, specifically analyzing dynamic acceleration, velocity, and relative shaft displacement to provide early indication of rotating equipment anomalies.

Q: How do technicians perform live slot maintenance on the 71573 306-EL30 hardware?

A: Technicians can hot-swap the monitor frame under live power environments, but the operator must place the active monitoring slot into software bypass mode beforehand to prevent accidental downstream machinery trip execution.

Field Installation Guidelines

1. Align the 71573 306-EL30 card assembly with the vertical slot guides on the panel chassis, and slide the component forward until the backplane connectors seat completely.
2. Secure the outer faceplate grounding screws straight into the rack chassis rails to guarantee structural stability and common ground plane continuity.
3. Separate the low-voltage proximity probe leads from parallel high-power motor cables inside the wireways to eliminate inductive noise interference.
4. Check that all external connection conduits establish a minimum of 5-thread engagement when routing cables through rigid NPT metallic fittings to the terminal boundary box.
