Description

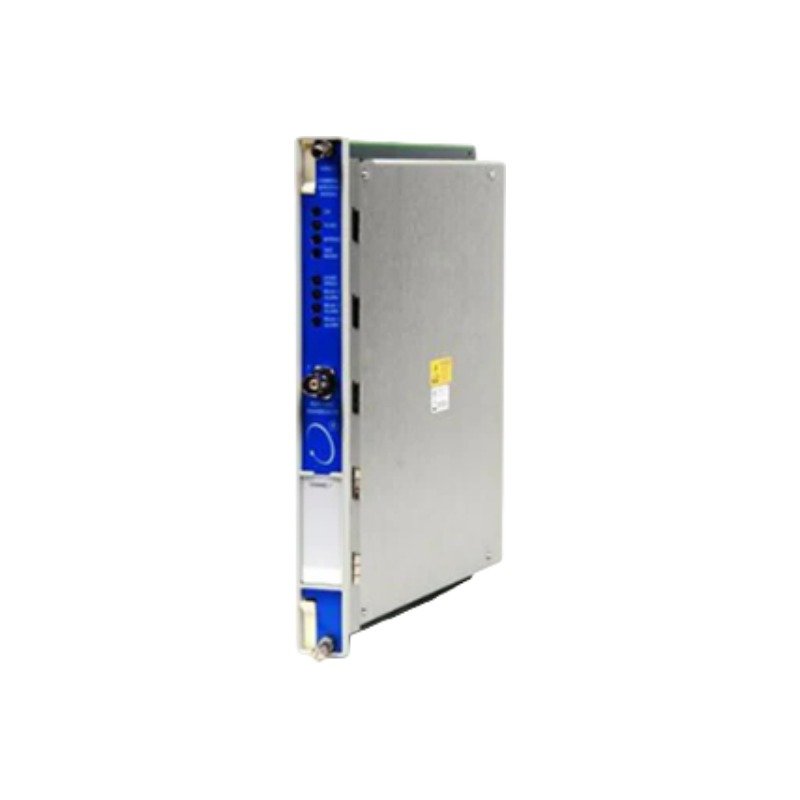

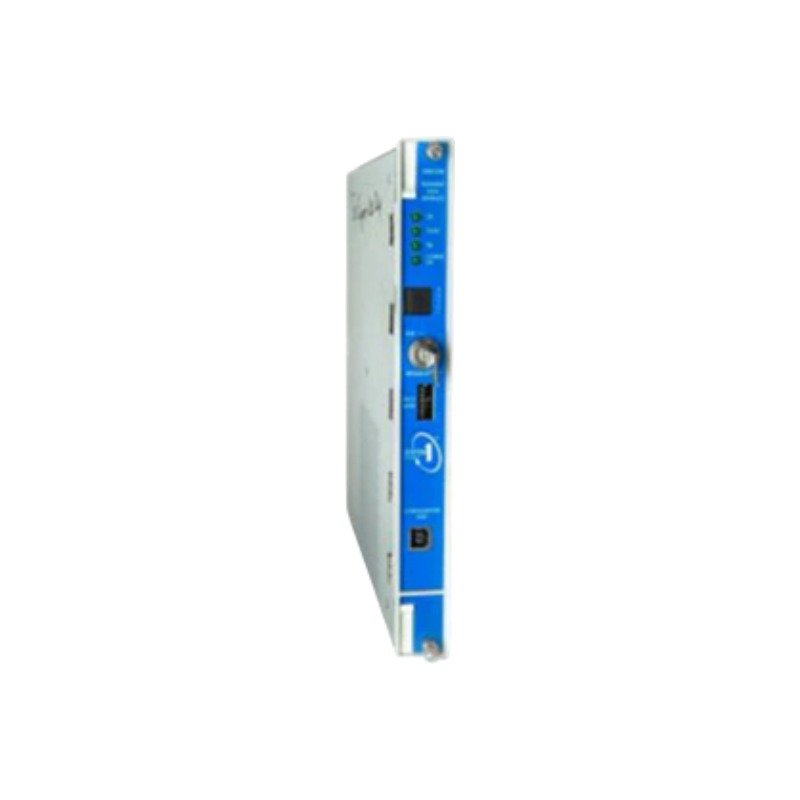

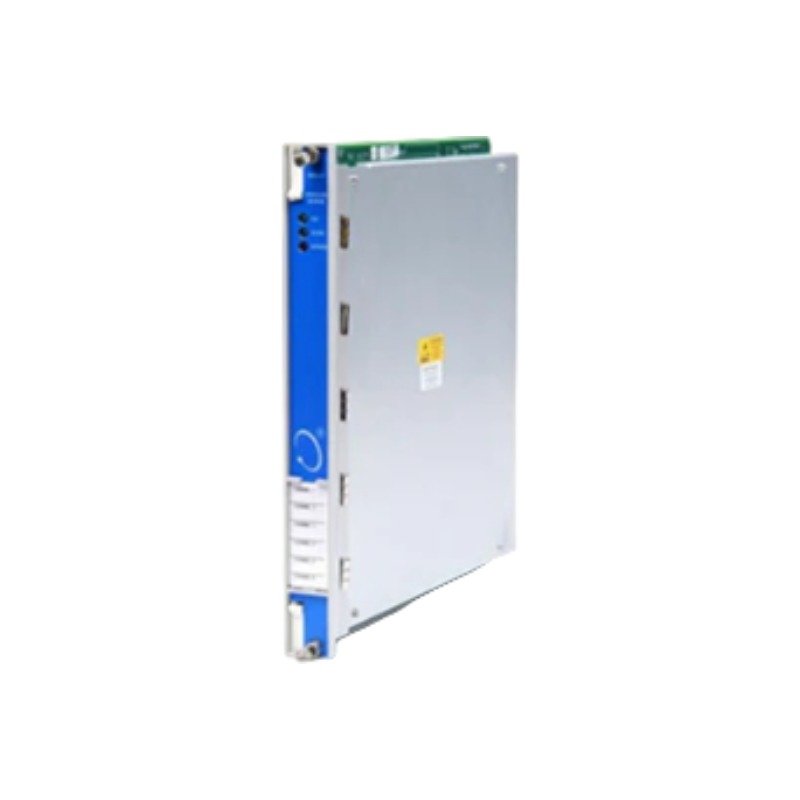

Configured for multi-channel machinery data acquisition in 3500 Machinery Protection System platforms, the Bently Nevada 3500/64 176449-05 (3500/64M Dynamic Pressure Monitor) provides direct physical/electrical execution. The instrument integrates continuous dynamic tracking variables to monitor combustor pressure instabilities across internal processing loops without external computer interaction.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The module processes gas turbine pressure pulsations alongside structural metrics governed by eddy-current probe scaling configurations. During multi-channel validation protocols, raw electrical signals undergo bandpass processing to assess rotor dynamics correlated with specific acoustic resonance nodes. To eliminate background induction noise from adjacent machinery monitors, the unit employs internal cross-talk suppression paths across the backplane bus. This ensures that dynamic pressure spikes do not disrupt standard gap voltage validation (-10 VDC targets) occurring simultaneously on nearby radial vibration monitors.

Frequently Asked Questions

Q: What is the function of Cascade Mode on the 3500/64 monitor?

A: Cascade Mode allows a single physical pressure transducer input to drive all four internal monitoring channels simultaneously, enabling up to four separate bandpass filter options and four distinct full-scale configurations from one hardware source.

Q: How do the Low Mode and High Mode selections alter the hardware filter characteristics?

A: Low Mode configures a 10-pole filter providing 200 dB per decade attenuation between 5 Hz and 4 kHz. High Mode implements a 6-pole filter providing 120 dB per decade attenuation between 10 Hz and 14.75 kHz.

Field Installation Guidelines

1. Insert the 176449-05 main card into a single slot from the front of the 3500 system chassis, ensuring full seating alignment with the rear I/O card.

2. Maintain separate cable trays for transducer input links to isolate weak millivolt analog loops from high-current industrial power distribution fields.

3. Configure the line rejection notch filter to match local electrical grids (50 Hz or 60 Hz) through the 3500 Rack Configuration Software to isolate line frequency anomalies.

4. Utilize short-circuit protected front-panel coaxial connectors for diagnostic test instruments without impacting the active machinery protection relay parameters.

5. Tighten the card retention screws completely into the chassis frame to ensure consistent backplane electrical bonding and reference ground paths.
