Description

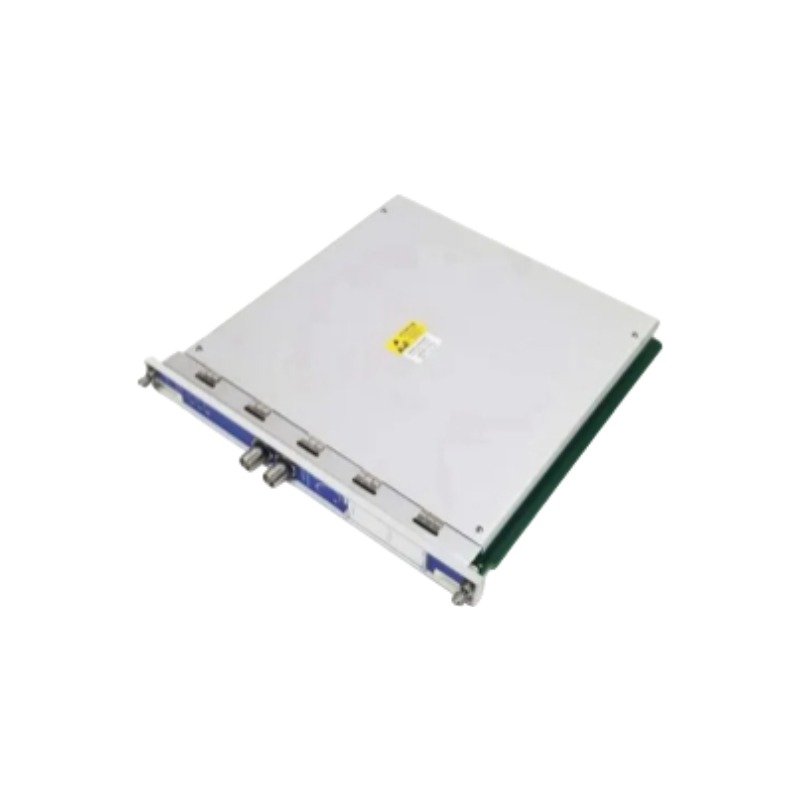

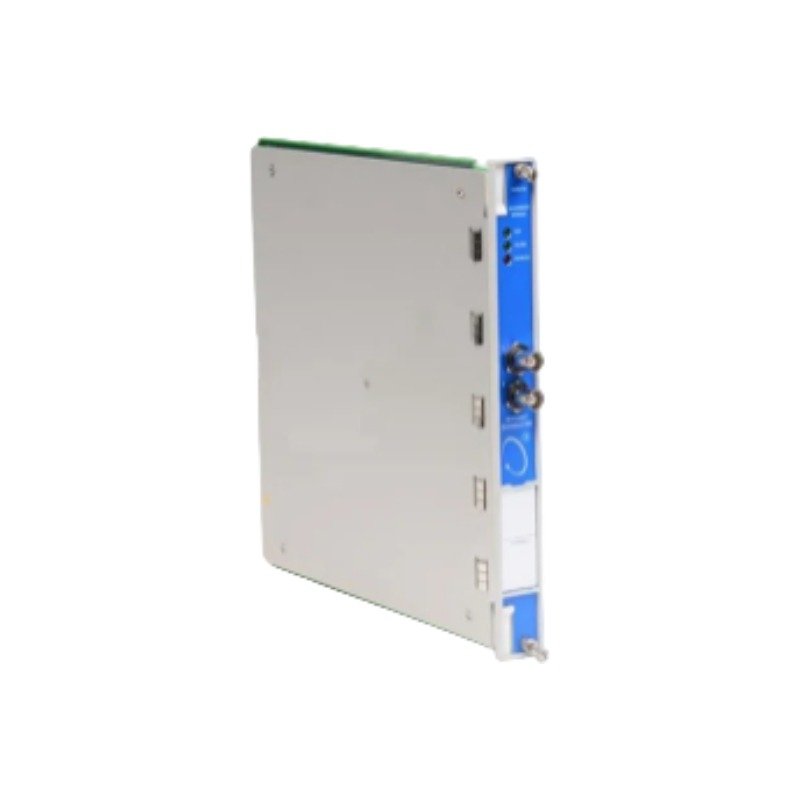

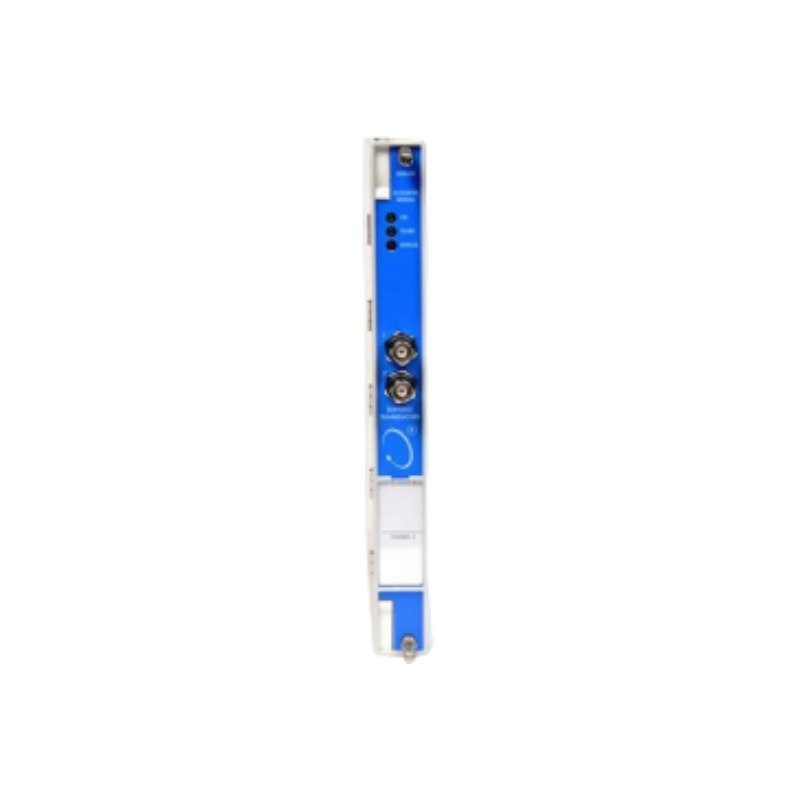

The Bently Nevada 3500/53M 288062-01, also cataloged as the 3500/53M Overspeed Detection Module, operates as a dedicated hardware component for high-integrity speed tracking and trip execution within 3500 Machinery Protection System platforms. The module processes raw pulse streams from transducer inputs to execute safety-critical deceleration and overspeed threshold diagnostics.

Suffix Breakdown & Model Matrix

The 3500/53M hardware architecture utilizes fixed component designations rather than internal field-configurable structural permutations. The base designation defines specific operational sub-assemblies:

• 3500/53M: Electronic Overspeed Detection Monitor module series complying with API 670 and API 612 parameters.
• 288062-01: Specially designated main processing board assembly utilizing an auto-threshold and manual threshold tracking architecture.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The tachometer processing circuit directly services inputs regulated by eddy-current probe scaling, supporting standard 7.87 V/mm (200 mV/mil) configurations. System configuration mandates precise gap voltage validation to ensure the proximity probe targets the rotor keyway without signal clipping; a target value of -10 VDC must be maintained during non-event intervals. The module incorporates internal cross-talk suppression paths across the backplane bus, ensuring that high-frequency speed pulses up to 20 kHz do not introduce harmonic noise into adjacent radial vibration or axial position monitoring circuits measuring rotor dynamics.

Frequently Asked Questions

Q: What is the hardware response latency for overspeed trip execution above 300 Hz?

A: The internal hardware relay and alarm response delay tracks at less than 30 ms when processing input signal frequencies exceeding 300 Hz.

Q: Can the 3500/53M module operate in redundant voting architectures?

A: Yes, multiple 3500/53M modules can be interconnected within the same 3500 chassis to form functional 2oo2 or 2oo3 triple modular redundancy voting networks.

Field Installation Guidelines

1. Insert the 288062-01 module into a full-height front slot of the 3500 rack, ensuring uniform backplane pin alignment before final mating.
2. Maintain clear separation between the speed sensor pulse wiring harness and neighboring high-voltage AC supply lines to prevent electromagnetic induction.
3. Configure the input threshold mode (Auto Threshold or Manual Threshold) through the 3500 Rack Configuration Software prior to commission testing.
4. Route the 4-20 mA recorder output lines through independent shielded twisted pairs, grounding only at the receiver end.
5. Fix both faceplate assembly screws to the rack frame using a standard industrial driver to preserve chassis grounding continuity.
