Description

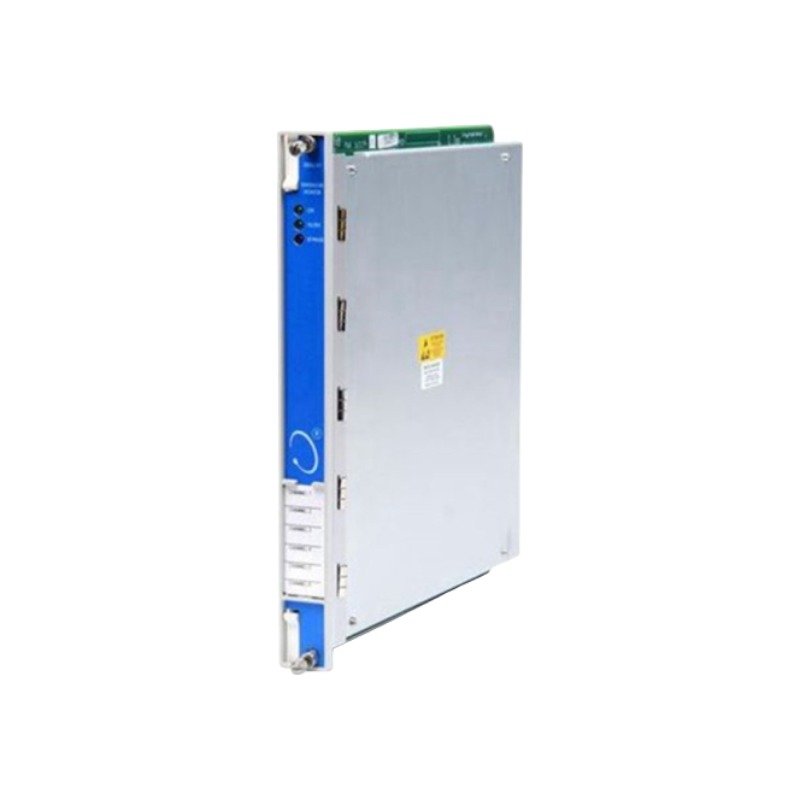

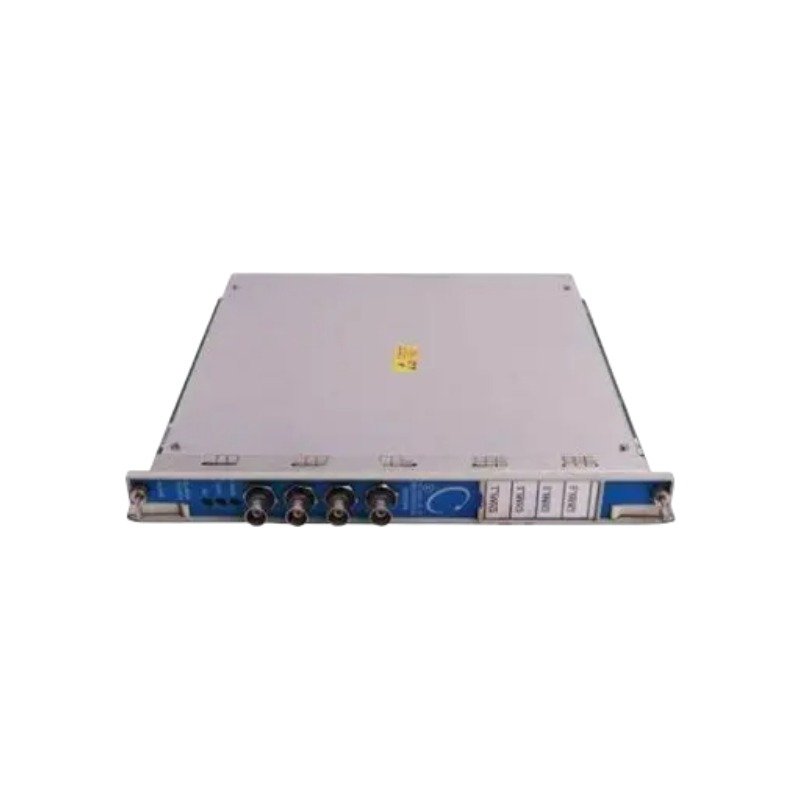

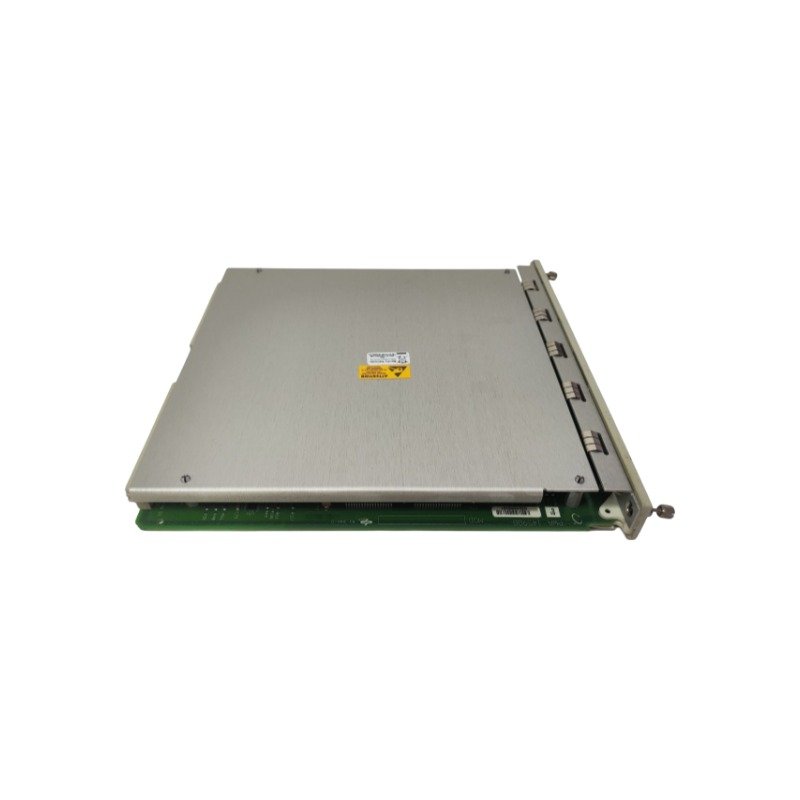

The Bently Nevada 3500/94-06-00-00, also cataloged as the 3500/94 Display Router Box, serves as the primary 3500/94 VGA Display module utilized to execute centralized multi-rack parameter visualization across 3500 Machinery Protection System platforms. The system component routes analog RGB video and serial touch commands between the inner rack backplane and an external industrial display interface.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The visual controller module consolidates processed data coming across the rack backplane, converting raw physical telemetry into graphical bar charts and numeric matrix listings. When verifying machinery trains governed by eddy-current probe scaling, the device acts as a centralized validation display for gap voltage validation (-10 VDC targets). The data path architecture maintains internal cross-talk suppression during high-throughput multi-channel updates, ensuring that refreshing large orbital plots and dynamic rotor dynamics charts does not induce processing latency in the underlying API-670 compliant trip bus.

Frequently Asked Questions

Q: What operational limitation is imposed when routing multiple 3500 chassis into a single 3500/94 module?

A: The hardware operates as a sequential switch box; it allows an operator to interface with up to four independent racks from a single screen, but only one distinct rack dataset can be actively viewed on the monitor at any given millisecond.

Q: How is the touch controller protocol modified to support alternative 10-inch or 15-inch industrial monitors?

A: The touch controller chip mapping is updated by altering the device driver configuration variables within the external 3500 Rack Configuration Software before uploading the primary runtime file.

Field Installation Guidelines

1. Seat the 3500/94 front module into any vacant full-height slot location within the main chassis frame assembly.
2. Fasten the accompanying VGA I/O module directly into the corresponding full-height rear slot location behind the front processor.
3. Keep the standard analog video interface cabling length under 6.0 meters (20 feet) to prevent attenuation of high-frequency pixel graphics.
4. Ground the outer frame structure of the external touch monitor using a dedicated low-impedance copper wire straight to the primary machinery enclosure busbar.
5. Secure both card retention hardware elements to a solid locking position to eliminate intermittent pin connectivity caused by continuous structural vibration.
