Description

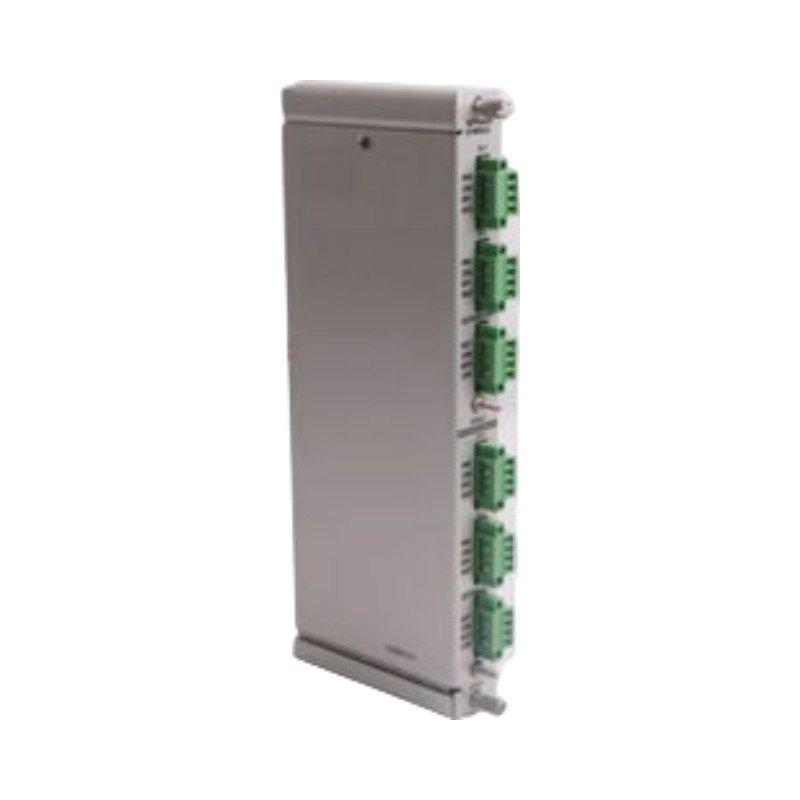

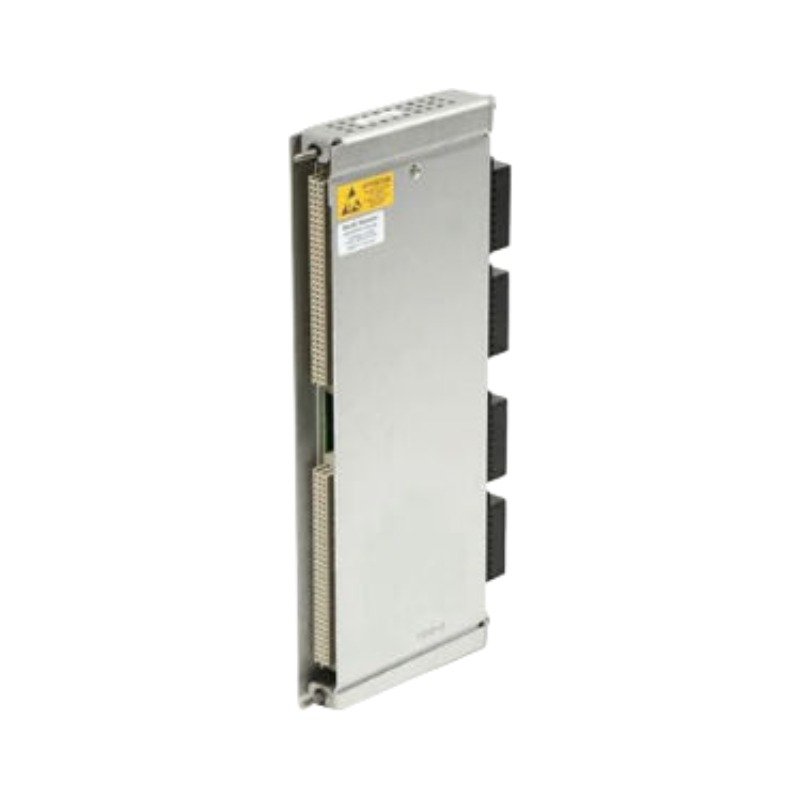

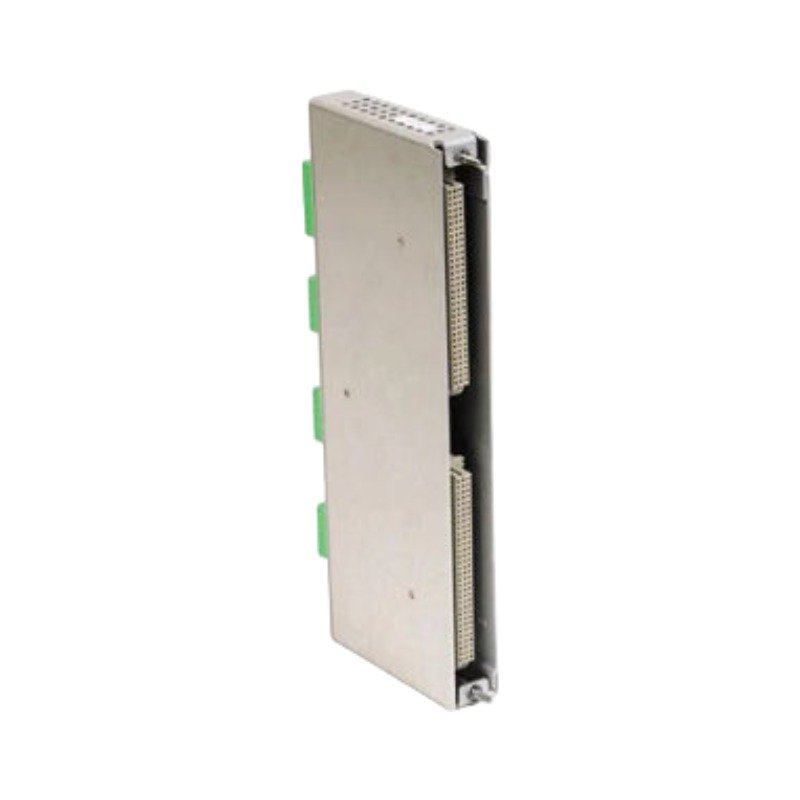

The Bently Nevada 3500/60 133843-01, also cataloged as the 3500/60 Temperature Monitor, serves as the primary 3500/60 monitor module utilized to execute high-density thermal data acquisition across Bently Nevada 3500 series machinery protection platforms. This hardware component processes input signals from temperature sensors, executes logic-based alarm setpoint comparisons, and outputs conditioned data for diagnostic analysis within the rack infrastructure.

Hardware Specifications

Bently Nevada TSI and Mechanical Monitoring Integrity

Engineers design the 133843-01 module specifically to maintain high signal integrity within turbine supervisory instrumentation (TSI) environments. Proper rotor dynamics monitoring requires the elimination of electromagnetic interference. Because sensor leads often traverse areas with high electrical noise, technicians must ensure that cable shielding terminates at the designated rack common point. When configuring the module, operators must validate the transducer scaling and gap voltage targets to ensure the system accurately identifies thermal anomalies. By maintaining these strict electrical thresholds, the module guarantees that the 3500 rack accurately monitors bearing health before the machine reaches critical trip states.

Frequently Asked Questions

Q: Does the 3500/60 support hot-swapping during active rack operation?

A: Yes, this module supports hot-swapping. However, operators must ensure that the replacement module matches the existing I/O module type to prevent configuration mismatches within the Rack Configuration Software.

Q: How does the module maintain accuracy in Triple Modular Redundant (TMR) configurations?

A: When users install three monitor modules in adjacent slots, the system employs two distinct voting tiers. This architecture validates incoming signals to ensure precise operation while simultaneously preventing single-point failures.

Field Installation Guidelines

• Slide the monitor module firmly into the assigned rack slot, ensuring the backplane connectors align perfectly before engaging the front panel locking levers.
• Terminate all field wiring using shielded, twisted-pair cables to mitigate external noise coupling, ensuring the shield connects to the rack’s common ground.
• Program the measurement type (RTD or TC) for each of the six channels via the 3500 Rack Configuration Software, as the module requires manual definition for accurate signal linearizing.
• Verify the loop integrity by measuring input resistance before powering the rack; this preventive step avoids potential electrical damage to the module circuitry.
