Description

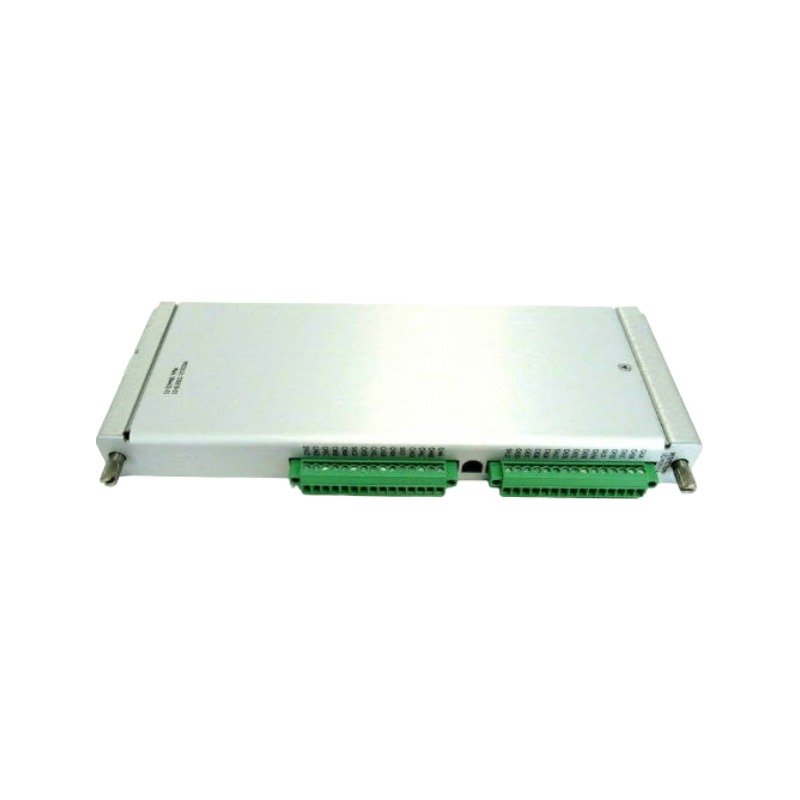

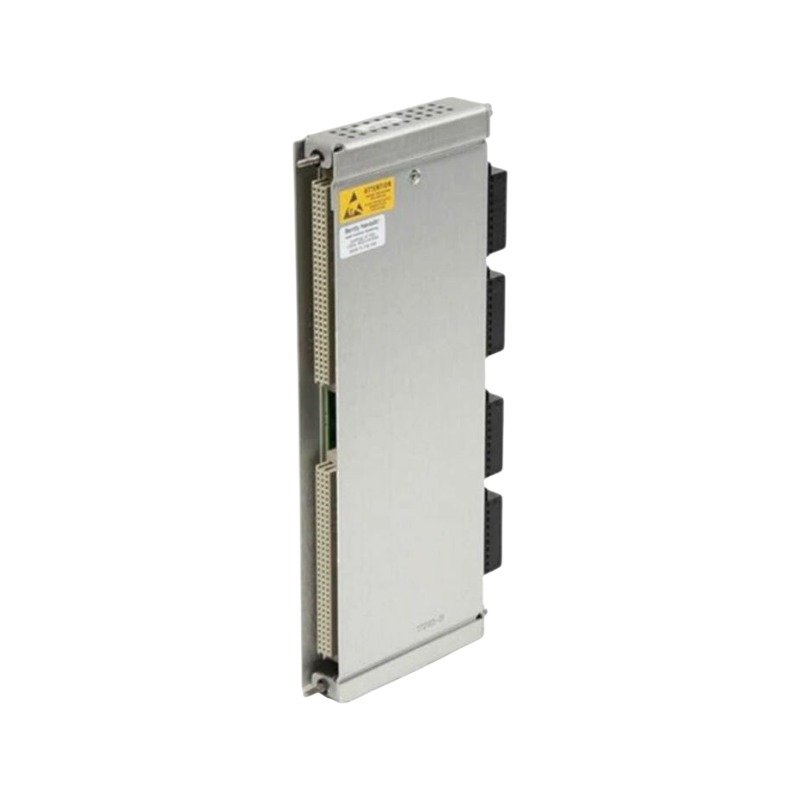

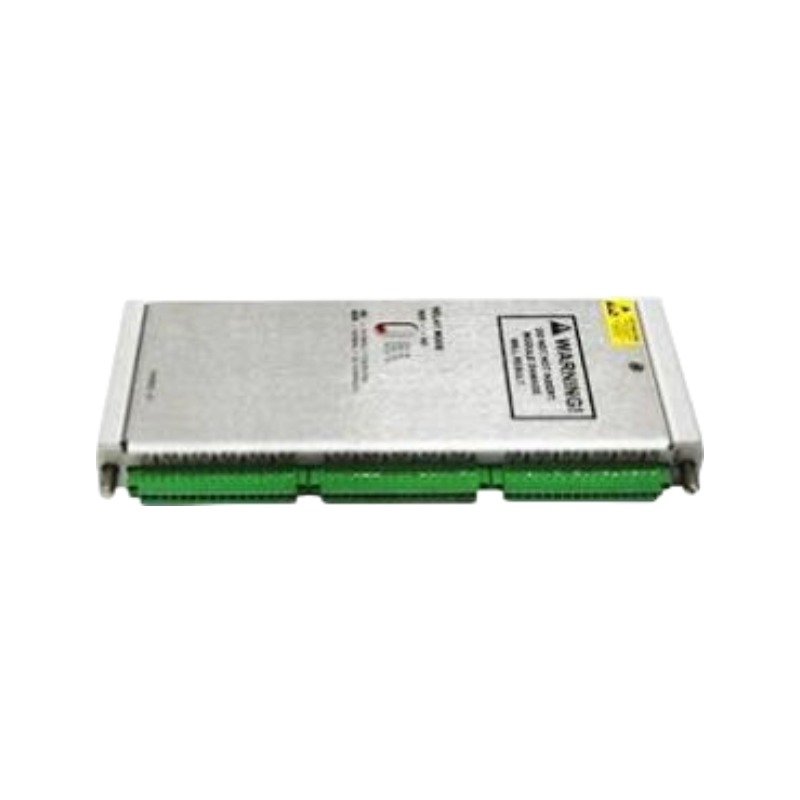

The Bently Nevada 3500/60 133819-01, also cataloged as the 3500/60 Temperature Monitor Module, operates as a dedicated hardware component for multi-channel thermal data acquisition within Bently Nevada 3500 series machinery protection systems. This module processes input signals from temperature sensors, executes logic-based alarm setpoint comparisons, and outputs proportional data for diagnostic analysis within the rack infrastructure.

Hardware Specifications

TSI Thermal Signal Integrity and Rotor Dynamics

The 3500/60 module is engineered to maintain high-fidelity signal acquisition for rotating machinery. Precise rotor dynamics monitoring requires the elimination of ground loops and electromagnetic interference. Users must ensure that probe wiring adheres to specific impedance standards to prevent signal degradation. When utilizing non-isolated I/O versions, verify that the common-mode voltage does not exceed operational thresholds, as this directly affects the accuracy of thermocouple millivolt readings. In scenarios involving rapid thermal gradients, users should calibrate the transducer scaling to match the sensor response curves, ensuring the system accurately tracks potential bearing or casing overheating events before reaching machine trip thresholds.

Frequently Asked Questions

Q: Does the 3500/60 module support hot-swapping during rack operation?

A: Yes, the module supports hot-swapping. However, ensure that the slot-level power is stable and that the replacement module matches the existing I/O module type to avoid configuration mismatches in the Rack Configuration Software.

Q: What is the primary difference between the 3500/60 and the 3500/61?

A: The 3500/60 does not provide recorder outputs for its six channels, whereas the 3500/61 includes integrated recorder outputs for each respective input channel.

Q: How does the module handle Triple Modular Redundant (TMR) configurations?

A: When configured for TMR, three 3500/60 modules must be installed in adjacent slots. The system implements a two-tier voting architecture to validate incoming signals and prevent single-point failures, ensuring robust uptime for safety-critical monitoring.

Field Installation Guidelines

• Mechanical Seating: Insert the module into the designated rack slot and verify that the front panel levers are fully engaged to ensure secure backplane connector mating.
• Wiring Termination: Use twisted-shielded pair cabling for all RTD and TC inputs. Terminate the shield at the rack common point to mitigate noise coupling.
• Input Scaling: Prior to active operation, define the specific sensor type (RTD or TC) within the 3500 Rack Configuration Software for each of the six channels to ensure correct linear scaling.
• Redundancy Checks: For TMR setups, confirm that the Rack Configuration Software recognizes all three modules as a single voting group before proceeding to final operational validation.
