Description

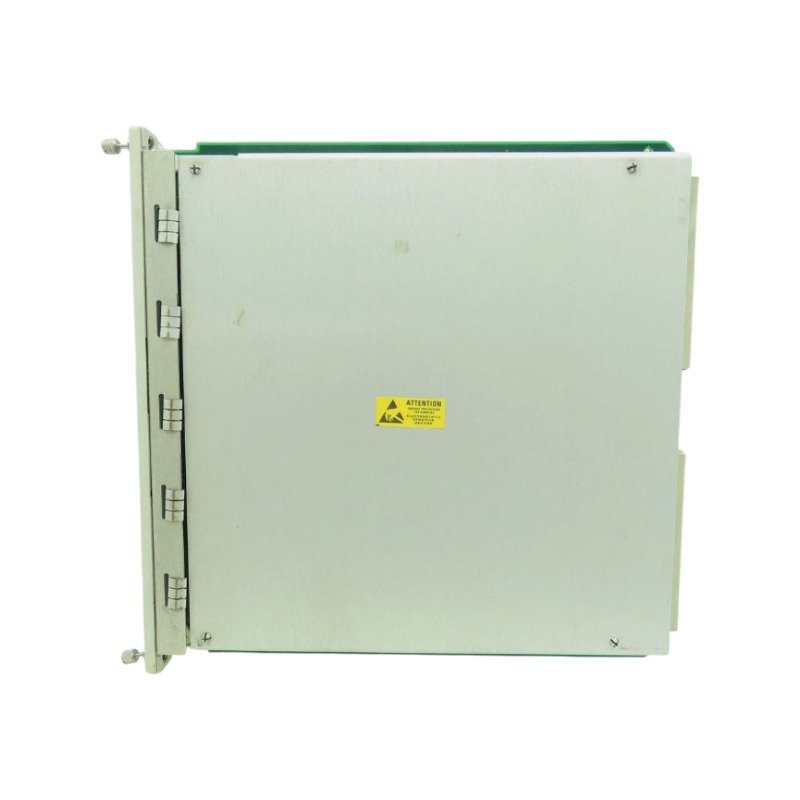

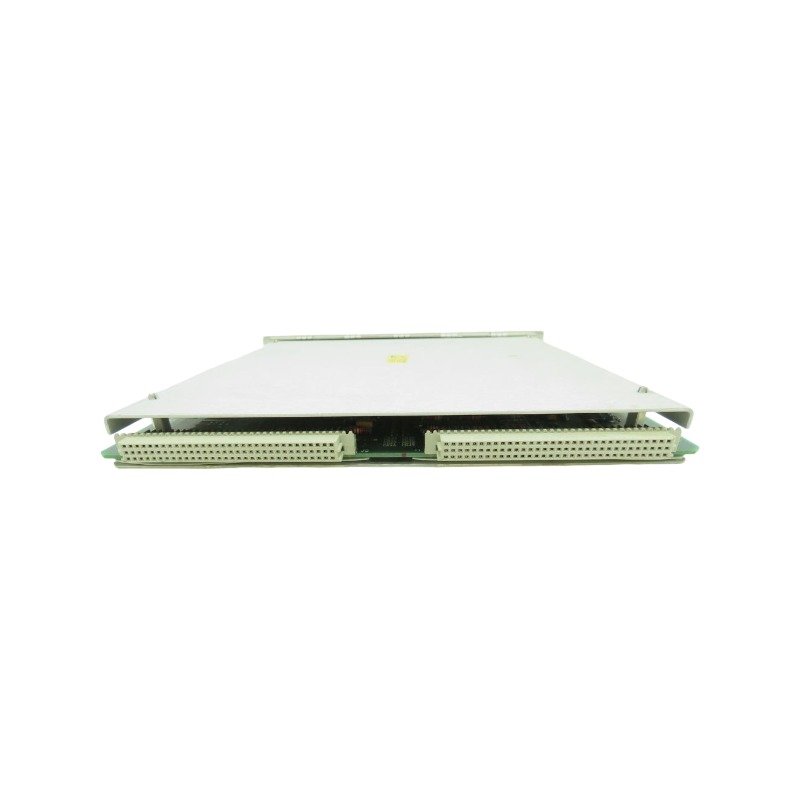

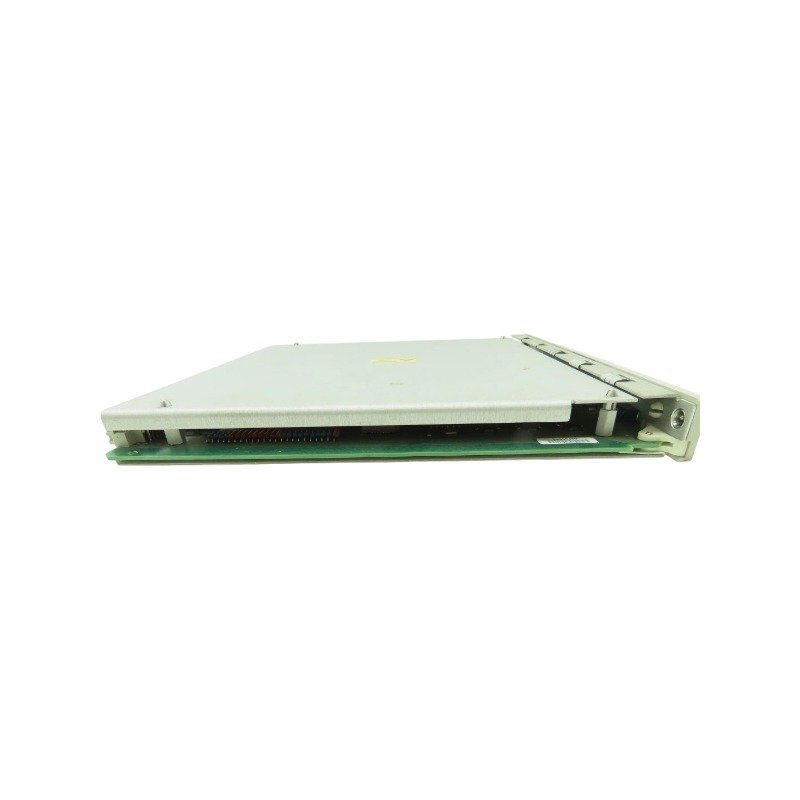

The Bently Nevada 3500/60 133811-01, also cataloged as the 3500/60 133811-01 Temperature Monitor, operates as a dedicated hardware component for multi-channel thermal data acquisition within the 3500 System platform. This module conditions inputs from Resistance Temperature Detectors (RTD) and Thermocouples (TC), subsequently comparing them against user-defined alarm setpoints to execute machinery protection.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 3500/60 133811-01 module leverages precise signal conditioning to execute thermal monitoring across rotating machinery assets. It validates input integrity by continuously scanning RTD and TC probes for open or short-circuit faults. Furthermore, the system supports Triple Modular Redundancy (TMR) architectures, where operators install modules in adjacent groups of three. In this TMR mode, the logic employs two distinct voting algorithms to eliminate single-point failures and maintain high-fidelity data acquisition. Additionally, the hardware suppresses common-mode noise, ensuring that measured temperature values remain stable despite environmental fluctuations typical in industrial environments.

Frequently Asked Questions

Q: Does the 3500/60 133811-01 support mixed input types on a single module?

A: Yes, you can configure the non-isolated I/O version to accept a mixture of TC and RTD inputs simultaneously, providing flexibility for diverse sensor requirements.

Q: How does the module handle TMR configurations?

A: When you install the modules in groups of three, the system automatically engages internal voting logic to compare data across channels, thereby ensuring fault-tolerant operation.

Field Installation Guidelines

1. Rack Slot Allocation: First, insert the 3500/60 133811-01 into the required instrument rack slots. If implementing TMR, you must position the three modules in adjacent slots to facilitate correct communication on the backplane.

2. I/O Module Selection: Select the appropriate I/O module based on your isolation requirements. Use the isolated version if you need 250 VDC channel-to-channel isolation to mitigate external electrical interference.

3. Sensor Termination: Terminate RTD and TC leads at the I/O module terminal blocks. You must ensure that all wiring utilizes the appropriate compensating cables for thermocouples to maintain measurement accuracy.

4. Software Configuration: Use the 3500 Rack Configuration Software to designate the specific sensor type for each of the six channels. Carefully verify your alarm setpoints and ensure that the module firmware resides at a compatible version for your current system revision.
