Description

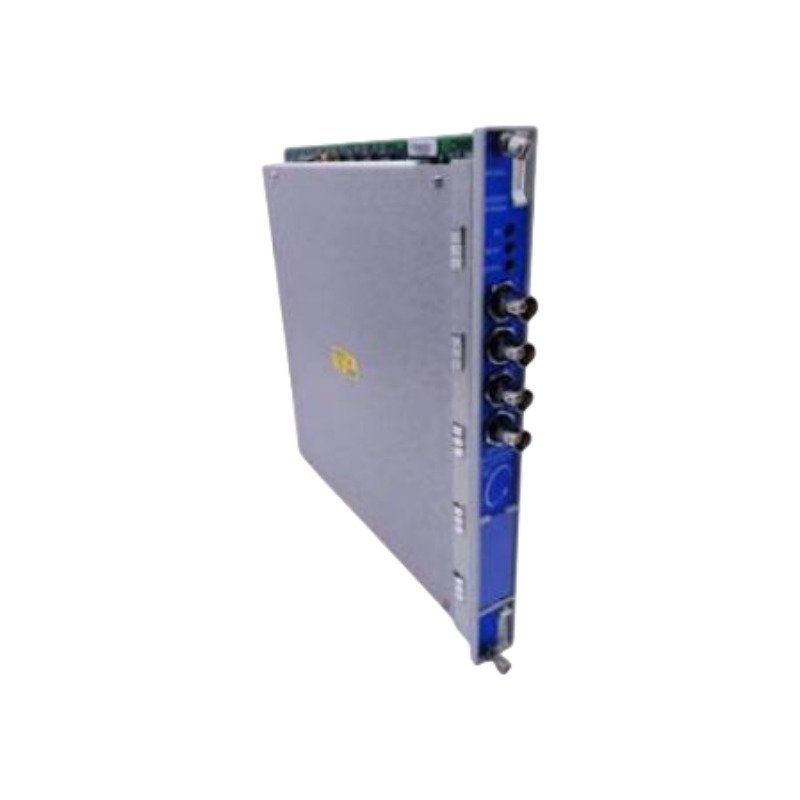

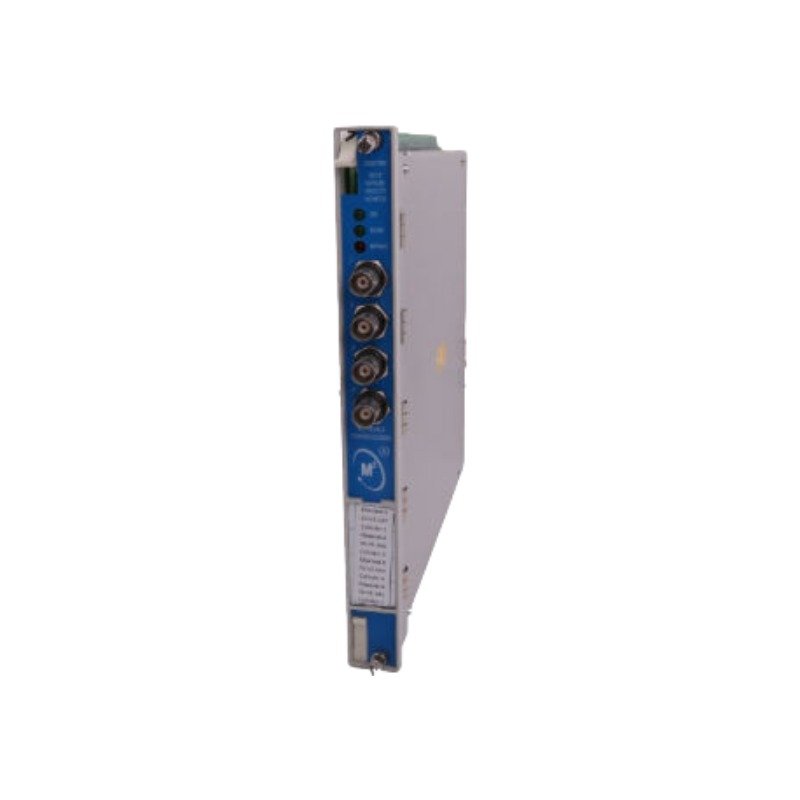

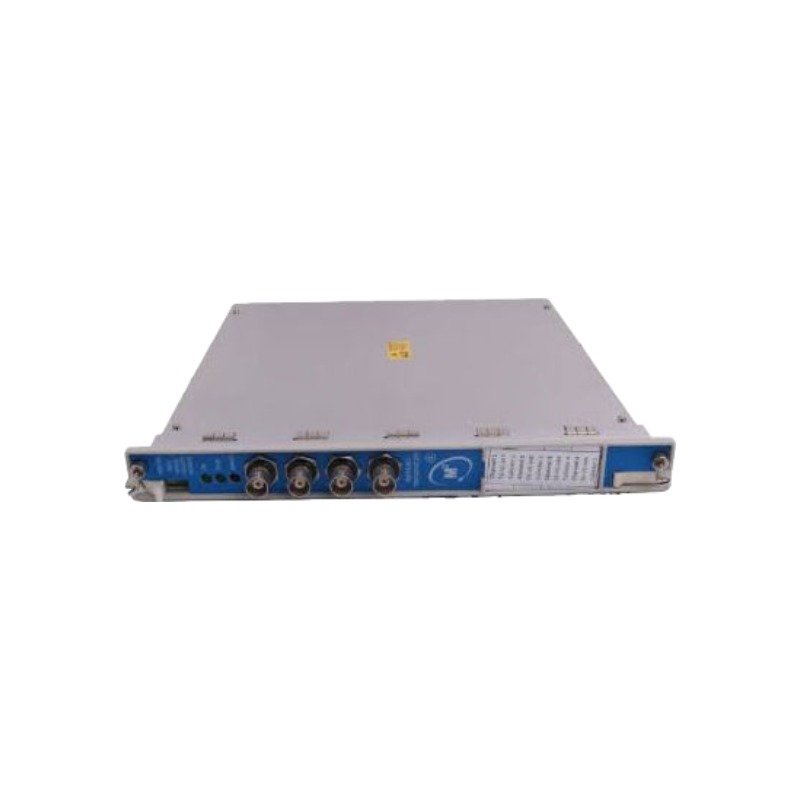

The Bently Nevada 3500/54M 286566-01, also cataloged as the 3500/54M 286566-01 Overspeed Detection Module, operates as a dedicated hardware component for high-speed machinery monitoring within the 3500 System platform. This module continuously processes input signals to detect overspeed conditions, which ensures machinery protection in accordance with API 670 standards.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 3500/54M 286566-01 module employs high-speed signal processing to execute rotor speed validation, which proactively protects rotating equipment from mechanical failure. Each input channel continuously performs gap voltage validation, maintaining the transducer signal within the -10 VDC target range to prevent false alarms. Furthermore, the circuitry suppresses signal cross-talk between adjacent channels, thereby preserving the precision of the tachometer feedback. Through the rigorous analysis of rotor dynamics, the module triggers safety outputs instantly when speed thresholds are breached, fulfilling the fail-safe requirements of critical industrial TSI installations.

Frequently Asked Questions

Q: Does the 3500/54M 286566-01 support hot-swapping within the instrument rack?

A: Yes, technicians can remove or insert this module into the 3500 rack while the system remains powered. The backplane bus facilitates this transition without interrupting adjacent module communication.

Q: What are the specific load requirements for the module outputs?

A: The module supports a load resistance of 0 to 600 Ohm. Ensure that the total loop resistance remains within these limits to maintain the specified 0 to +12 VDC voltage compliance.

Field Installation Guidelines

1. Rack Preparation: First, verify that the 3500/05 Instrument Rack contains an available slot and that the backplane connector remains free of contaminants.

2. Signal Shielding: Connect all field transducer cable shields to the system common at the I/O module terminal block. Proper shielding effectively prevents electromagnetic interference (EMI) from degrading the tachometer signal quality.

3. Wiring Constraints: Utilize shielded twisted-pair cabling for all input connections. Technicians must ensure that the load resistance on the output circuitry stays between 0 and 600 Ohm to guarantee operational stability.

4. Commissioning: Use the 3500 System Configuration Software to calibrate the module alarm setpoints. Always confirm that the firmware version aligns with the requirements of the system Transient Data Interface (TDI) module to ensure full integration.
